Overview

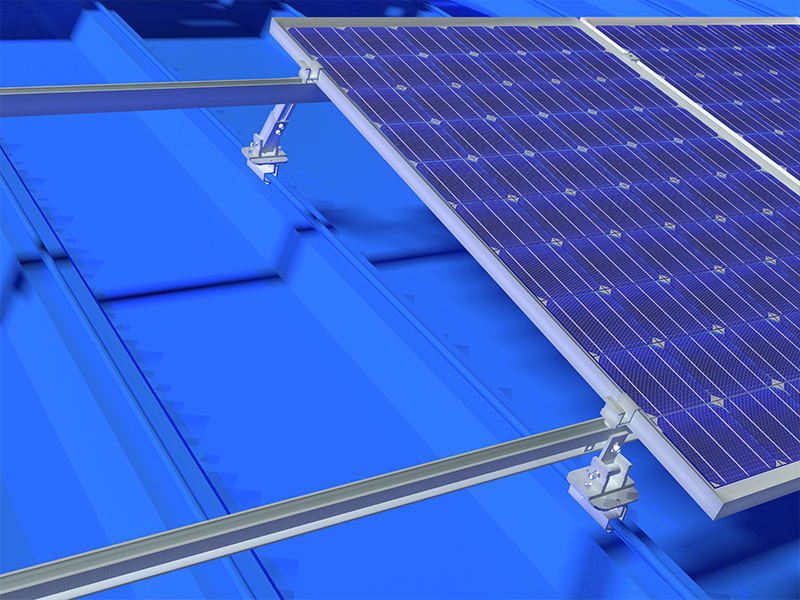

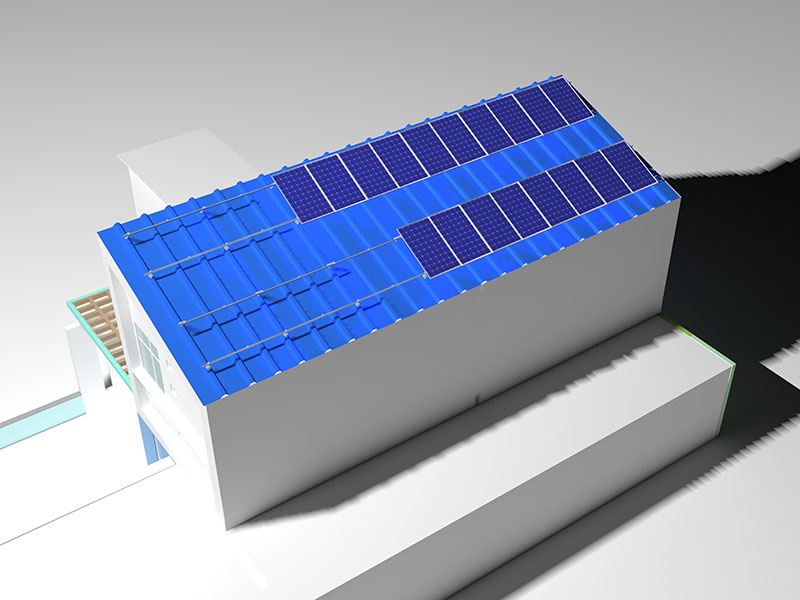

MRac Adjustable Support Kit Solar PV Mounting System are
applied in most Corrugated Metal Roof and Flat Roof commercial
and industrial solar projects. The system can achieve stable and
strong connection between the roof support structure and solar

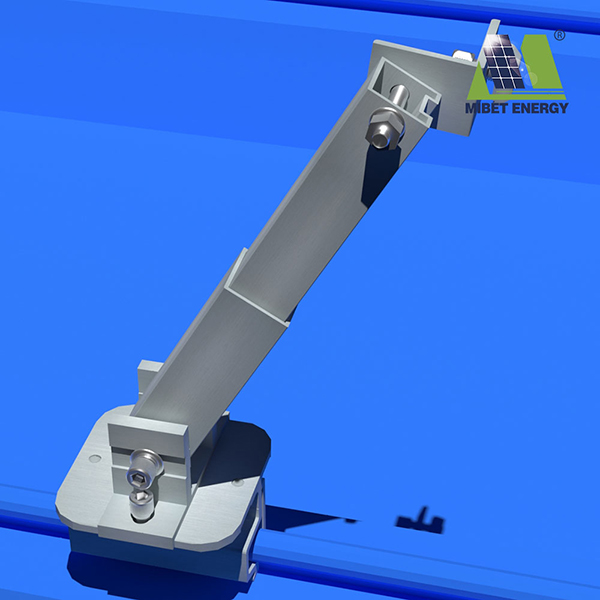

modules with modular Patented design. Adjustable angles can

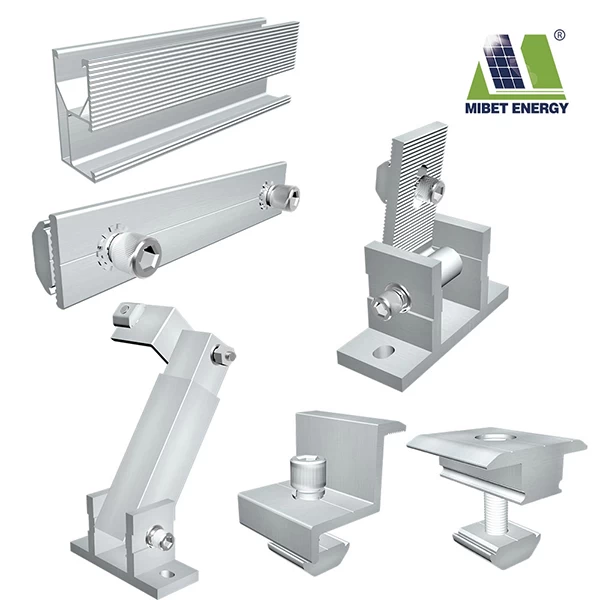

reduce the stock SKU and flexible for onsite installation. Pre-assembled kits save the installation time and cost onsite.
Features

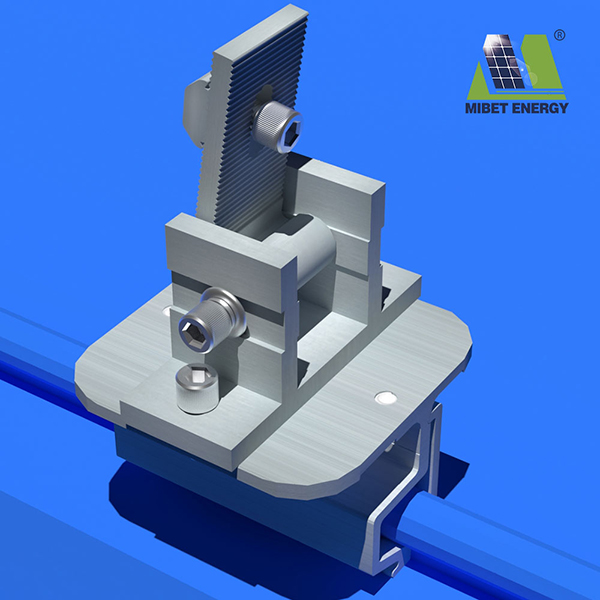

1.Applicable for different metal roofs
Using different clamps according to the specific circumstance of
each project, the Adjustable Support System is applicable to
various shaped metal roofs.
2.Save Installation Time and Cost
The unique design realizes easy installation and installation
manual is provided.
3.Compatible to Different Types of Solar Modules
The Adjustable Support System is compatible with different types of
solar modules, including 60-cell, 72-cell, framed or frameless
modules.
|
Technical Parameter
|
|
Installation Site
|
Pitched Roof
|
|
Roof Type
|
Metal Roof
|
|
Tilt Angle
|
10-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
System Name
|
Adjustable Support
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Landscape or Portrait
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
