ADTECH 2 aixs economic CNC lathe controller CNC9620 upgraded from CNC4620

ADTECH CNC9620/4620 2 axis Turning/Lathe Machine CNC control System for CNC lathe and turning system

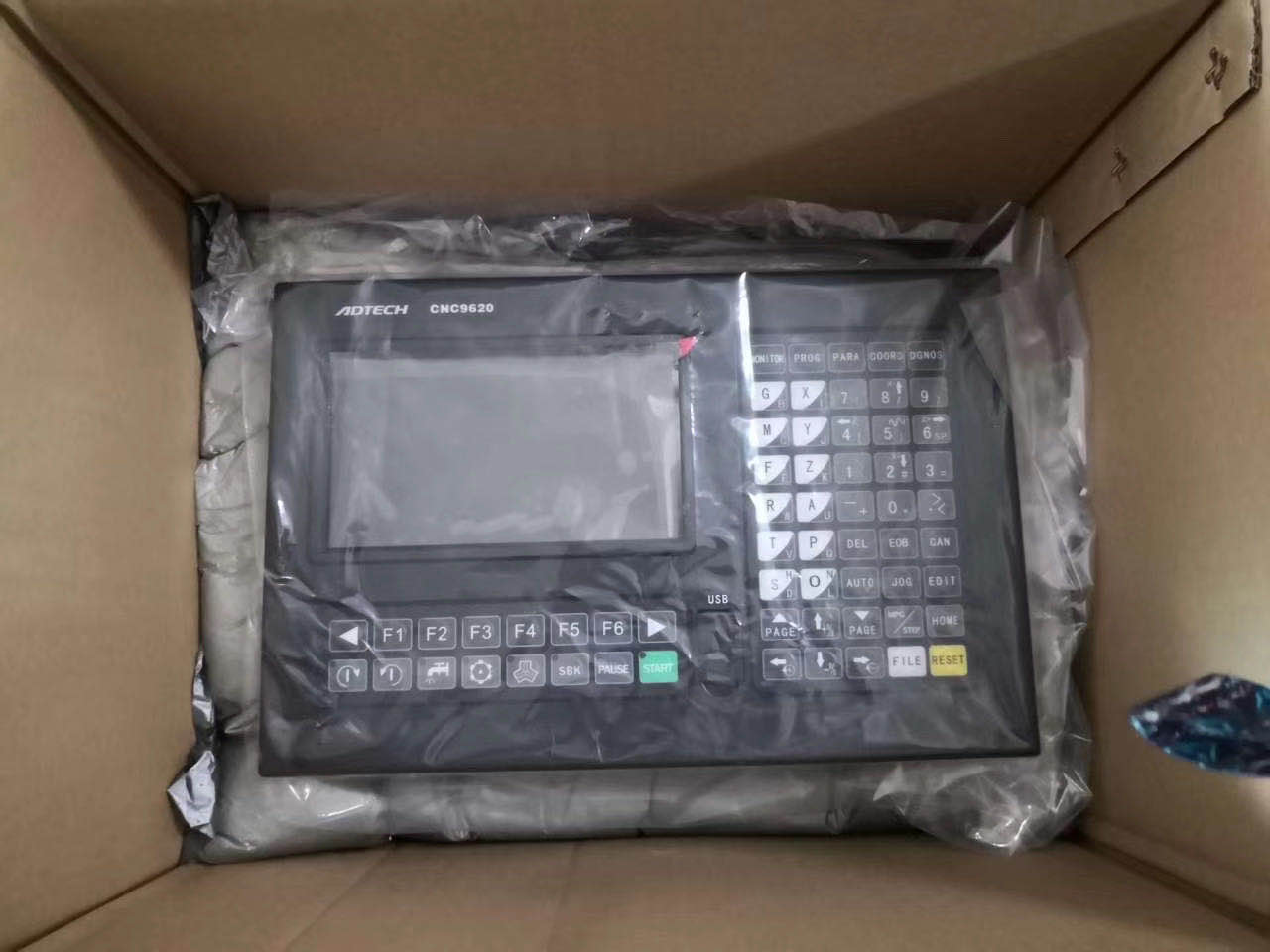

CNC9620 CNC Lathe machine control system

Introduction:

ADTECH specifically for small and medium sized machine tool manufacturers both in domestic and abroad independent research and development of cost-effective CNC control system.
Use ARM high performance CPU and super-large-scale programmable device FPGA, real-time multitasking control and hardware interpolation technology to ensure high efficiency of the system under the um-level precision machining.
256M electronic panel meets variety of large program work pieces.

7 inches color screen, interface can be made of parameter selection in both Chinese and English.

Function Specification

  1. Controlled axes X, Z-axis two-micron precision interpolation

  2. Can be configured according to different user needs stepping, servo drive, to achieve cost performance

  3. USB, U disk, RS232Com communication and so on the many kinds of communication methods, easy to help users to realize

  4. different data transfer and software upgrades

  5. With a network interface, support for remote monitoring and DNC file transfer process

  6. An open platform, can be customized according to customer's requirements the special system.

  7. Perfect self-diagnosis function, internal and external state of real-time display, abnormal alarm immediately.

  8. Supports external additional panel, hand wheel box operation, convenient for the customer tools changing.

  9. Macro variables, macro definition programming, for a variety of logic relations. Support with parameters of macro program

  10. invocation, the user more convenient programming.

  11. DXF + G code template function, the DXF automatically converted to G code processing.

  12. Variety of ways with automatic calibration, the tools calibrate instrument etc.

  13. The teaching function: teaching + RISC programming, using tabular teaching mode, the teaching method is simple, intuitive.

  14. Graphic simulation function: Display graphics as well as the tool movement trajectory of the actual operation of the machining

  15. program, but does not control the machine running the simulation tool path, inspection of machining program is correct.

  16. Multi-interface options: Support multi-language interface display, automatic fault alarm, rich in processing information display,

  17. processing time, number of pieces.

  18. Parameter table: input and output address arbitrarily set, only need to address bar to fill in the corresponding data in the

  19. configuration table.

  20. 7 inch large color (800 * 480 pixels) LCD screen


Graphic simulation function

Display graphics as well as the tool movement trajectory of the actual operation of the machining program, but does not control the machine running the simulation tool path, inspection of machining program is correct.

20160711100446_69433_

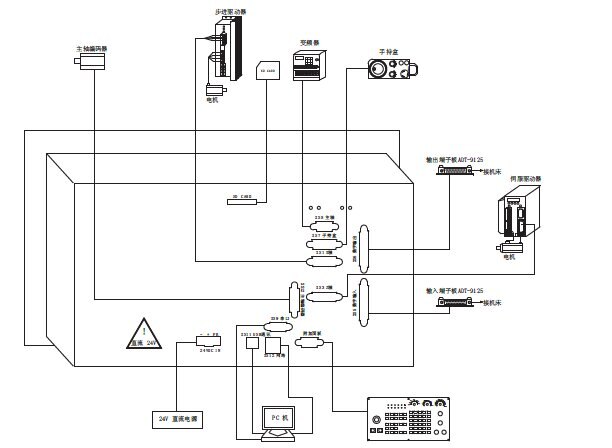

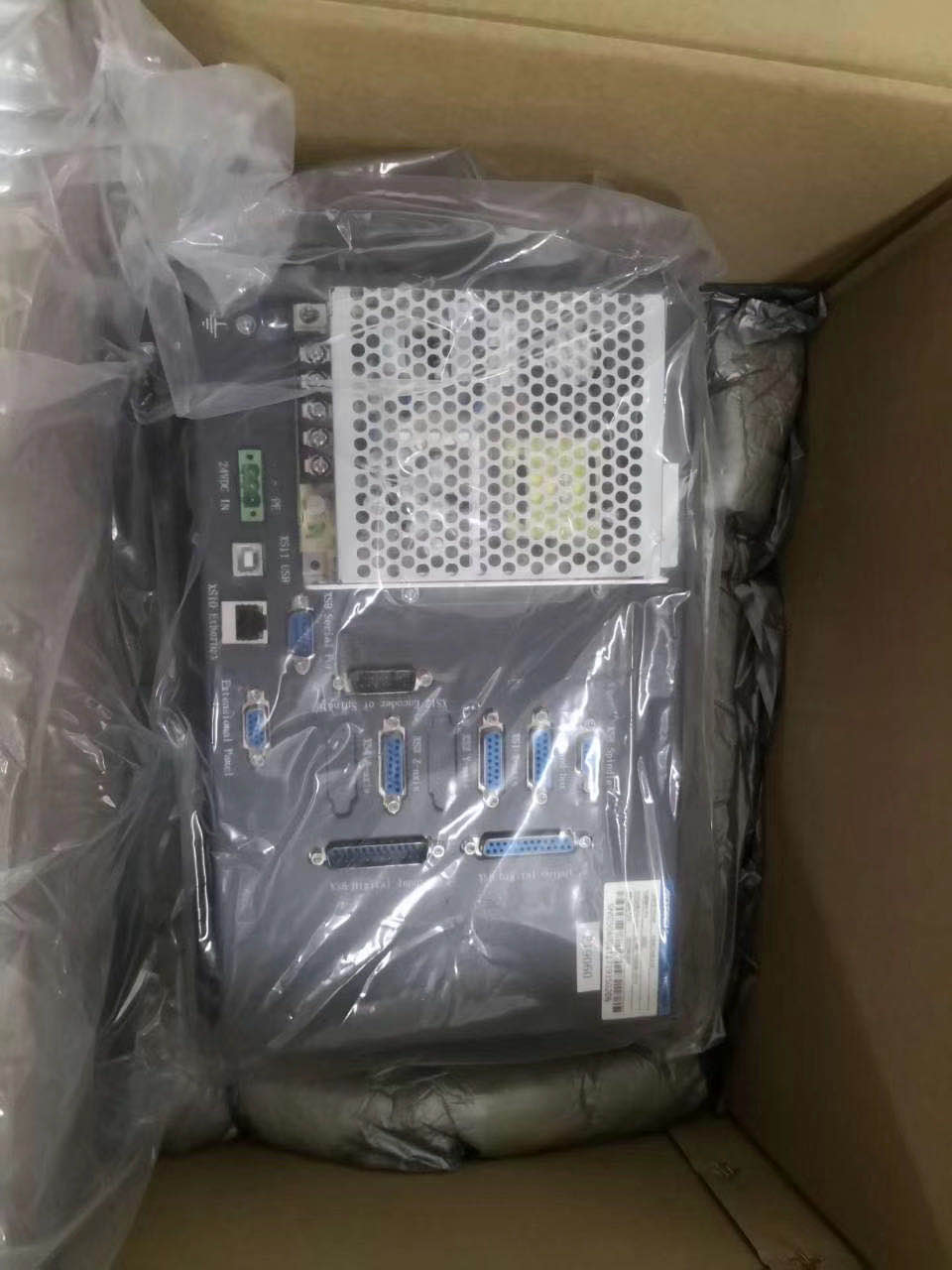

Easy Installation

Reliable structure, all interfaces are standard DB connector

20160711100632_31450_

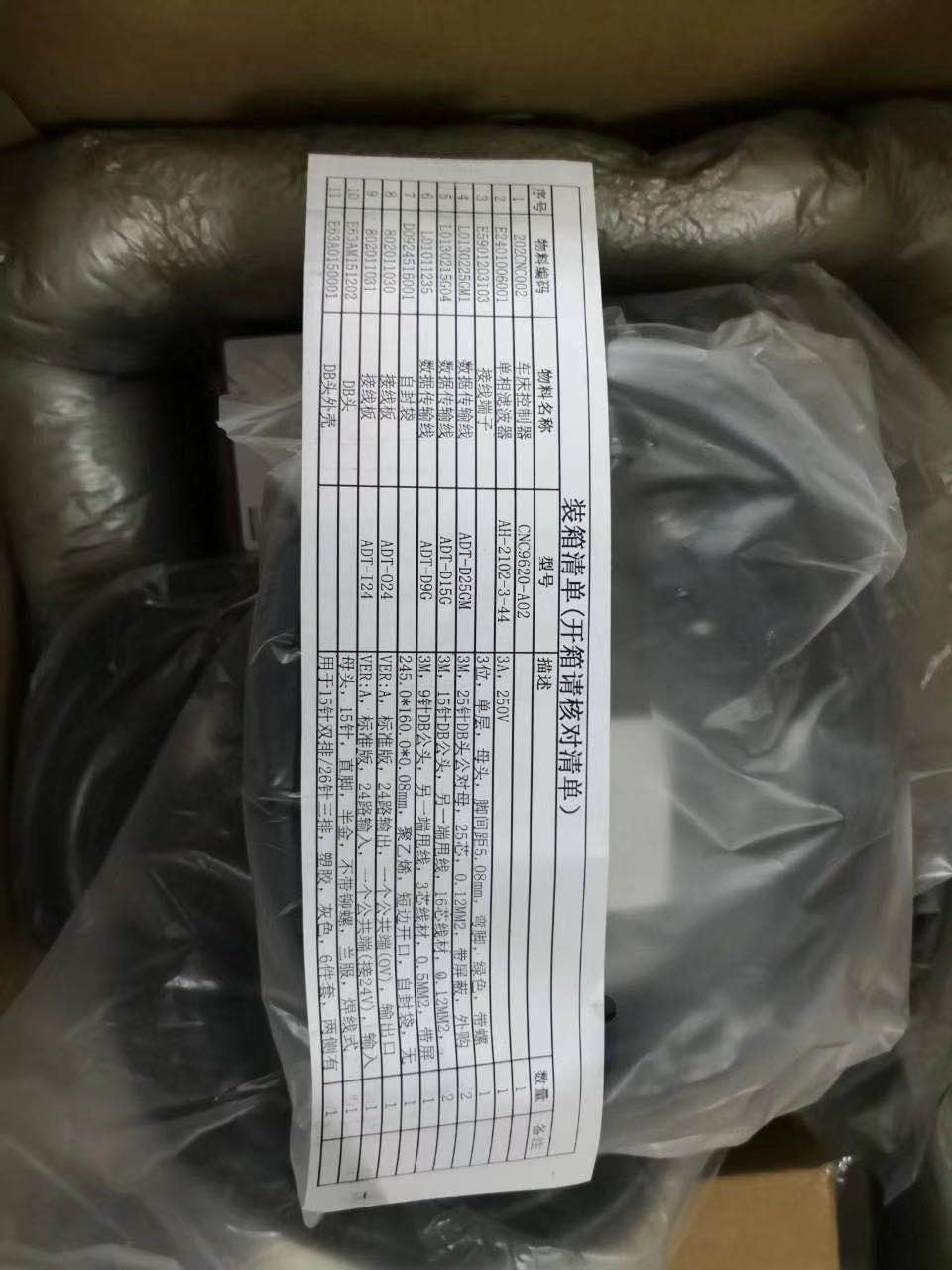

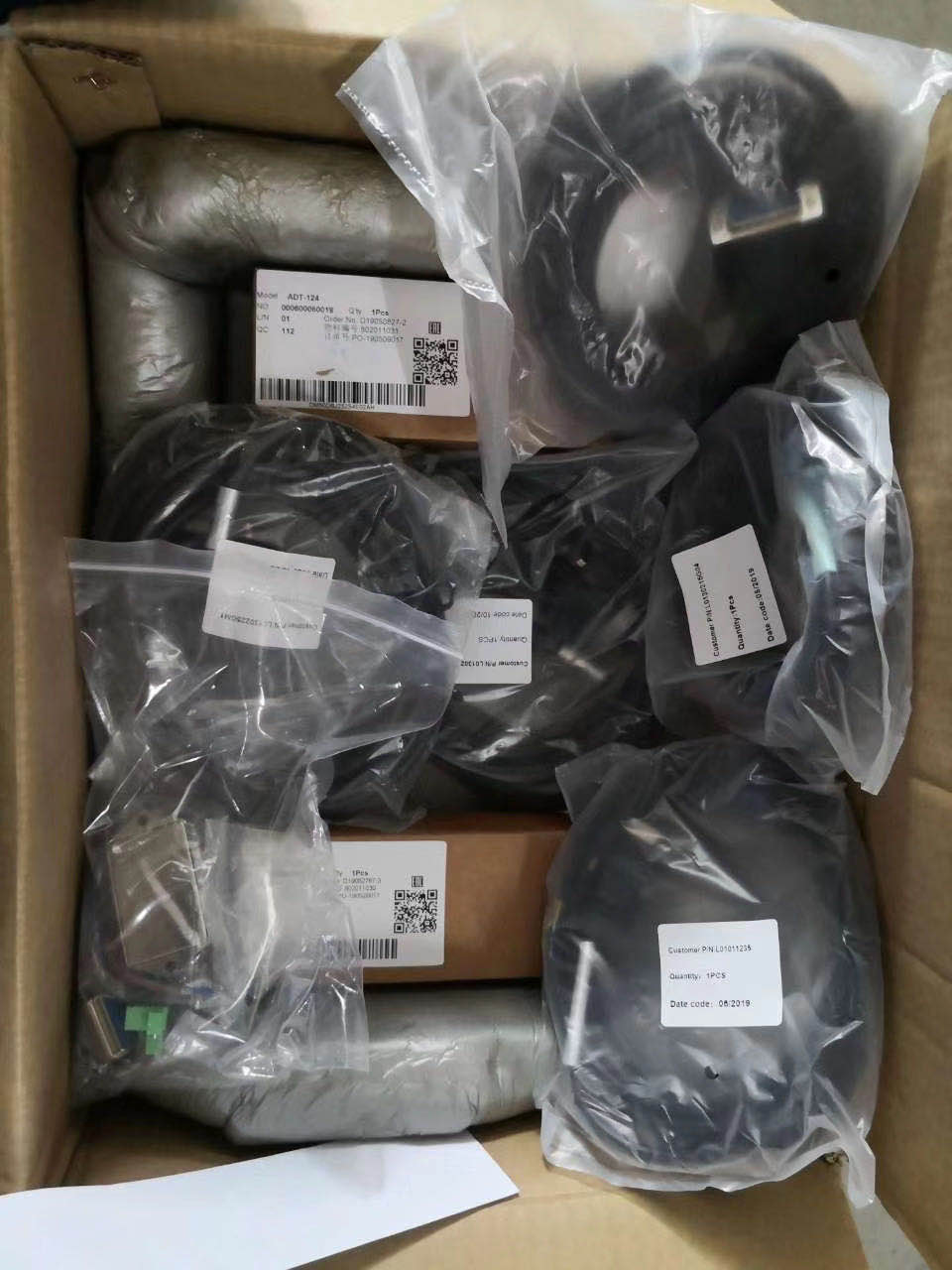

Additional Accessories

20160711100745_65485_

Dimension figure

20160711100827_74773_
