ADTECH 4 Axis CNC Spring Making Machine Controller ADT-CNC820B-A02

GH-CNC820 is 4~6 axes economic type CNC spring making controller, it is specialized to compression spring machine, torsion spring machine. It has 5.7 inch LCD display screen and English application software.

Facebook Twitter Pinterest LinkedIn 分享

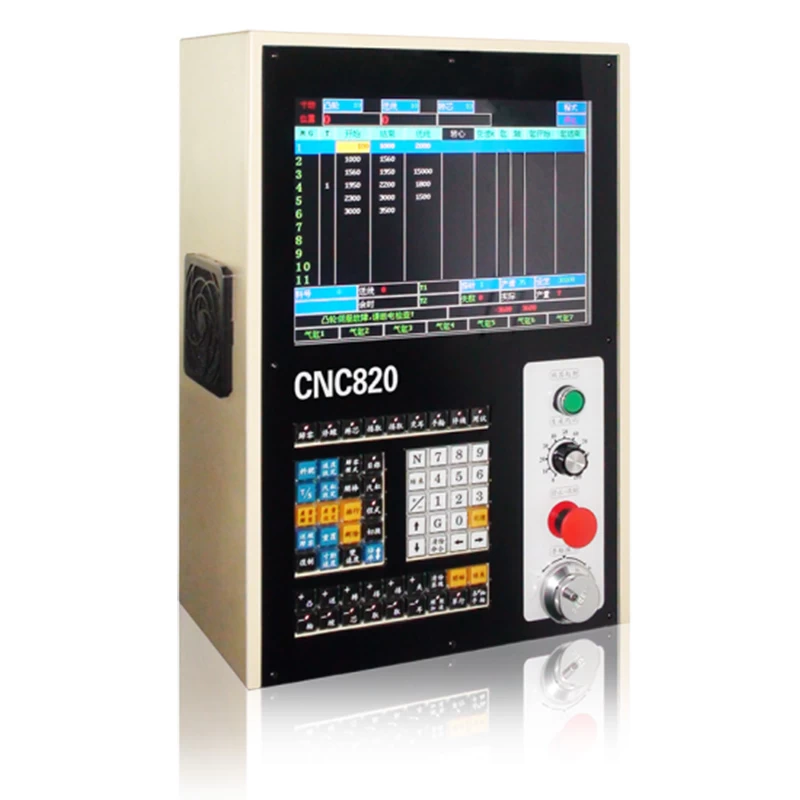

ADT-CNC820 4 Axis CNC Spring Making Controller

20171030170416_33711

  • 15” color LCD display
  • Chinese/English display can meet all customers from different countries
  • Support 4~6 axis servo control
  • Support 8 groups of probe cylinders
  • Hand wheel debugs processing function
  • Hand wheel debugs processing function
  • Support U disk function, Convenient system update
  • Support USB and RS232 communication for connecting with computer easily.
  • Simple and visual form programming is adopted, Chinese and English display is optional;
  • Data could be entered after having moved all shafts to the destination position manually, or be edited directly for the spring programming;
  • On-line programming function, can program without stopping machine while processing;
  • Cam, wire feeding, rotation core are worked at the same time. The precision of wire feeding is ±0.01mm, the cam and wring angle axes can be accurate as ±0.1°C. Every rotation shaft has independent functions of zero returning;
  • Support wire frame tangled lines, break the alarm detection and wire frame accelerated output function;
  • Support as many as 8 groups of probes and cylinders operating, high speed probe testing ensures the accuracy of the springs;
  • Conditional transfer and absolute transfer are supported, which improve the flexibility of programming and make it easy to detect the defects;
  • Support revolving programming function;
  • The system provides several groups of system parameters for conveniently maintaining the system and changing the parameters;
  • The code verification function could prevent others from changing the system parameters without authorization. The program can save as many as 1000 files.

20171030170353_76544
