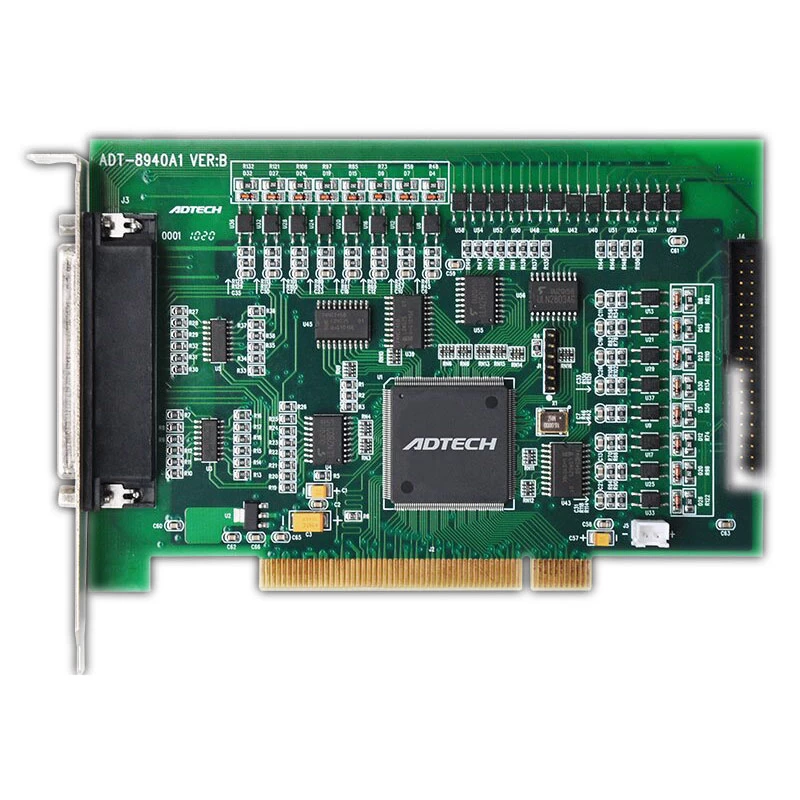

ADT-8940A1 4 Axis Motion Control Card PCI-bus

Features:

• 32-bit PCI bus, PNP;
• Pulse output mode: pulse + direction, pulse + pulse;
• Maximum pulse output frequency is 2MHz;
• Random 2-4 axes linear interpolation;
• Constant velocity or trapezoid acceleration/deceleration;
• 4-axis servo/stepper motor control; each axis can control independently;
• All the 4 axes have position(coder) feedback input; 32-bit counting; maximum frequency is 2MHz,maximum counting range: -2,147,483,648~+2,147,483,647;
• Hardware termination emergency;
• 40-channel optical coupling isolation digital input, 16-channel digital output ,every axis contains 2 positive and negative limit signals;
• Read the logical position, real position, driving speed, acceleration and driving state in real-time in the motion process;
• Each axis has 2 STOP signals, which are used to search for home , deceleration and Z-phase of coder;
• Each axis has 8 input signal,include 2 positive/negative limit signals,2 stop signals,1 servo in-position signal, 1 servo alarm signal and 1 general input signal. two limit signals can be used as general input signals by setting them as invalid;
• Time delay, can set timelag time and get timelag state;
• Receive signals from servo motor drive, e.g. coder Z-phase signal, in-position signal, alarm signal, etc;
• Up to 16 motion cards can be used in one system,control 64 axes;
• Support operating systems: DOS, WINDOWS95/98/NT/2000/XP, WINCE;
• Supports developing software with C, VC++, VB, BC++, C++builder, LabVIEW and Delphi

General Features:

• Operating temperature: 0~60°C

• Storage temperature: -20~80°C

• Humidity: 5~95% (no condensation

Accessories:

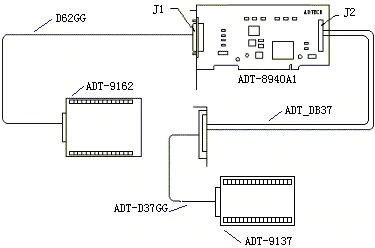

Wiring Diagram:

Main card dimension: 160*107mm

Terminal block/wiring board dimension: 9137-125*87.6mm 9162-136*72mm

Application Industries:

• 1. Biological,medical equipment
• 2. Semiconductor automatic processing and testing equipment
• 3. Packaging Equipment
• 4. Advertising equipment: Drawing word machine,slot machine
• 5. PCB processing equipment, SMT machine, PCB drilling machine
