ADTECH High speed performance 6 Axis CNC Milling/Drilling Motion Control System

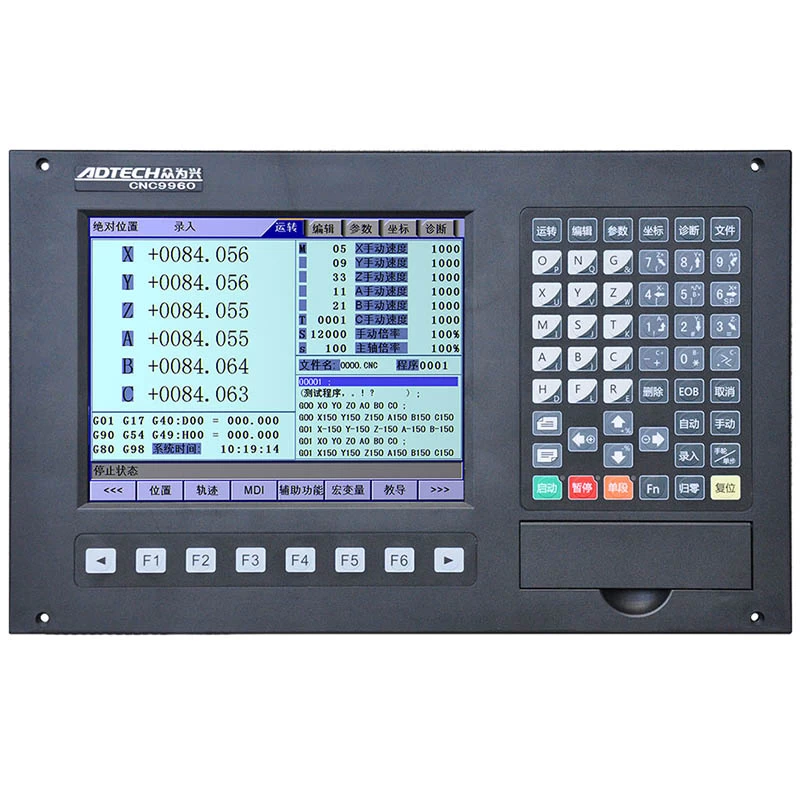

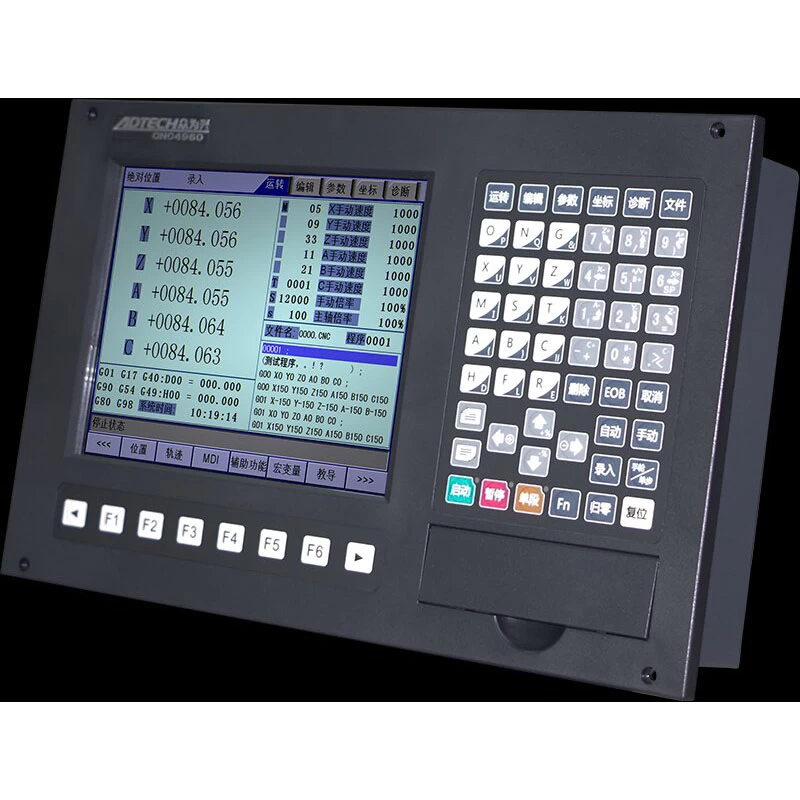

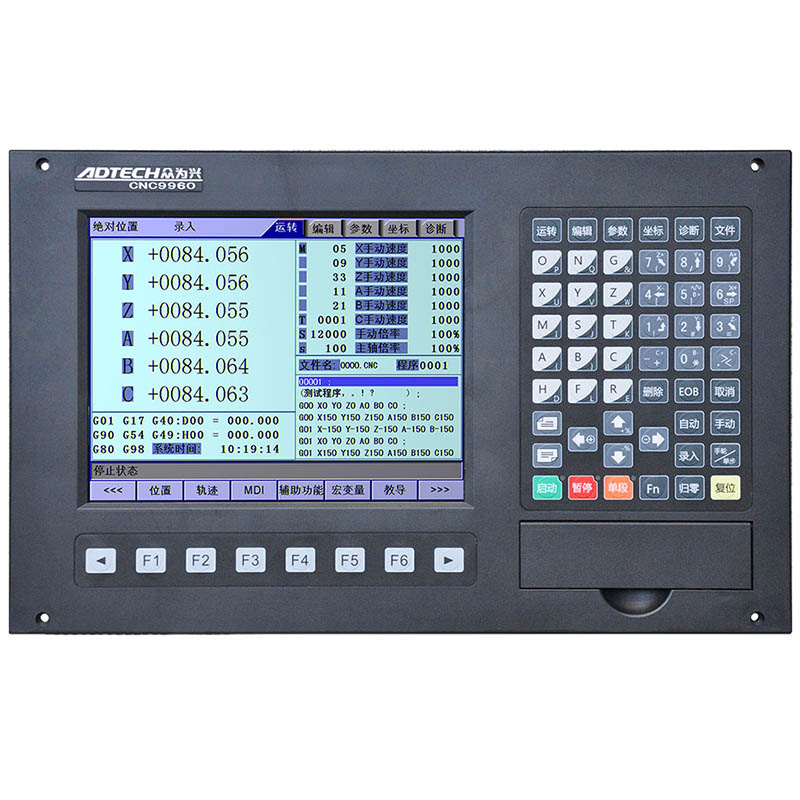

ADT-CNC9960 is a high end 6 axis CNC milling controller with big screen and new functions such as build-in PLC, based on FPGA + ARM platform dedicated CNC system, using the international standard G-code programming control, support MASTERCAM, UG, Wentai, TYPE3 other third-party software to generate CAM machining program.

Feature:

• 6 axis movement, 6 axis interpolation linkage movement;

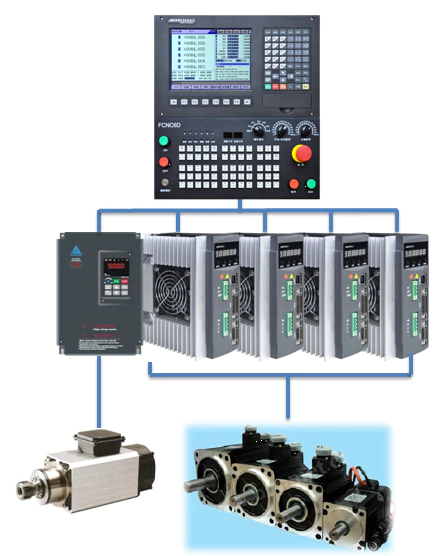

• 6 stepper / servo motor control;
• Independent servo spindle;
• Speed prospect processing, control the speed transition smooth;
• Support straight line magazine, disc magazine, cylinder tool change and magazine features customize;
• System self diagnose and parameters backup, recovery function;
• Support USB, Ethernet, serial communication, U disk, SD card operation;
• Support MPG running G code;
• G code track preview, real-time tracking and syntax check function.

Function:

• Pulse frequency up to 1M;
• 56 input and 48 output ports;
• 2-channel 0-10v analog output Control;
• a set of PWM analog control port;
• 512M built-in electronic disk, support 32G storage space expansion

Application:

• Metal parts processing (car / boat, electrical hardware processing industry);
• Glass products (mobile phones, televisions, computers, electrical switches and other glass panel processing);
• Wooden furniture garden art (furniture, handicrafts, wooden temple sculpture landscaping);

• Flexible processing line (milling, grinding, polishing and other processes producing line factory).

• CNC System Function

  • Self-diagnosis
    Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset; diagnose power supply, principal axis, limit and I/O ports in real-time during operating.
  • Compensation
    Automatic reverse clearance compensation
    Automatic tool length compensation
    Automatic tool radius compensation
    Automatic tool radius biasing and automatic tool tip transition
  • Abundant instruction system
    Scaling instruction
    Mirror processing instruction
    Tool biasing instructions
    Program cycle, program skip, program shift, program transfer, different end processing modes, macro definition and program management instructions
    Fixed-point instructions: starting point, setting point, etc.
    Linear, arc and spiral interpolation instructions
    Six workpiece coordinate systems, nine extension coordinate systems and one reference point
  • Full English menu operation & full screen edit
    9640/9660 CNC control system uses cascading menu structure and full English operation to ensure simple operation and visibility.
  • Abundant error-correction functions
    Point out the nature and correct the errors in operation.
  • Program exchange between CNC system and PC
    Perform CAD/CAM/CAPP auxiliary programming with abundant software in PC, and then transmit CNC program to the system through communication interface (USB disk, RS232 interface), or transmit the programs from the system to PC.
  • CNC system operating condition


    Operating voltage	24V DC (with filter)
    Operating temperature	0°C— 45°C
    Optimum operating temperature	5°C— 40°C
    Operating humidity	10%——90%(no condensing)
    Optimum operating humidity	20%——85%
    Storage temperature	0°C—50°C
    Storage humidity	10%——90%
    Operating environment	No excessive dust, acid, alkali, corrosive and explosive gases, no strong electromagnetic interference
