Industrial 4.0, New area we will face.
ADTECH is a professional 4-axis Scara industrial robot arm supplier since 2008. we have professional R&D engineers and modernization production line for robotics industrial production.
In the new area, Industrial robot will reduce your factory labor cost and leave some repeated and inconvenient work to the robots. More and more robot is used on production line at this time. ADTECH scara robot can perfectly compete with NACHI,TOSHIBA and some other famous brands , It is applied for 3C assembly，screwing, loading,packing and some other applications.
ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly，screwing loading,packing,etc electrical field.

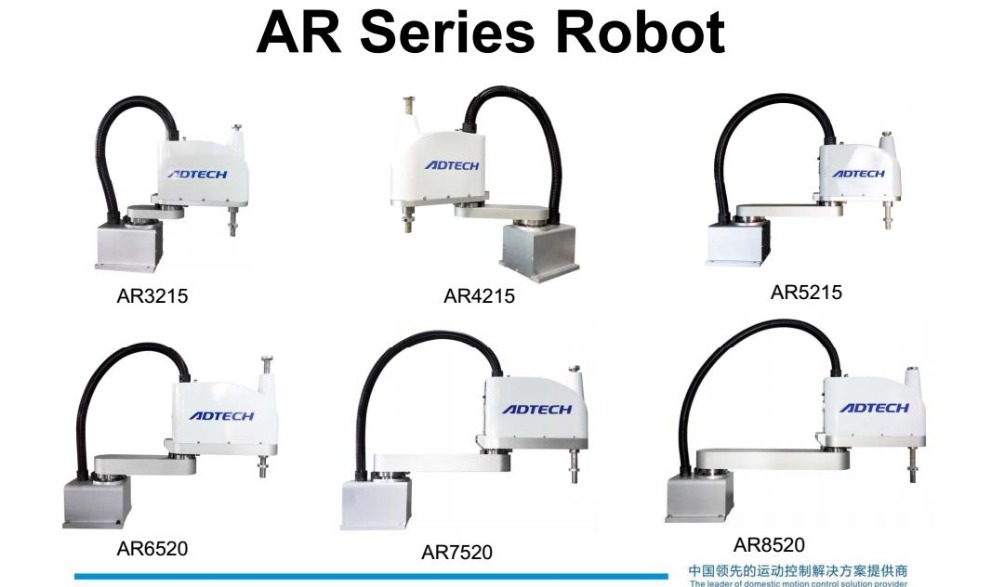

AR series robot： compact structure, flexible, fast, high transmission precision, low noise;

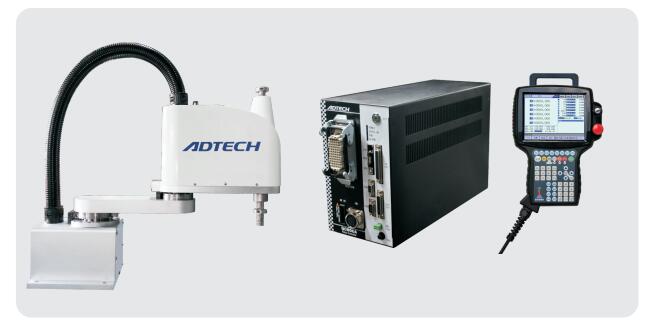

Adtech drive control with integrated controller RC400, supports a variety of communication port, network, USB and so on.
With multi-axis linear interpolation, 3D space circular interpolation, follow the track, smooth acceleration and deceleration, continuous trajectory speed adaptive function, spline teach, vibration suppression, and other advanced features that make AR series SCARA robot meet all kinds of applications occasions.
Product characteristics:
Run fast
High repeat positioning accuracy
Large load
Little noise
Light weight
Good rigidity
Applications

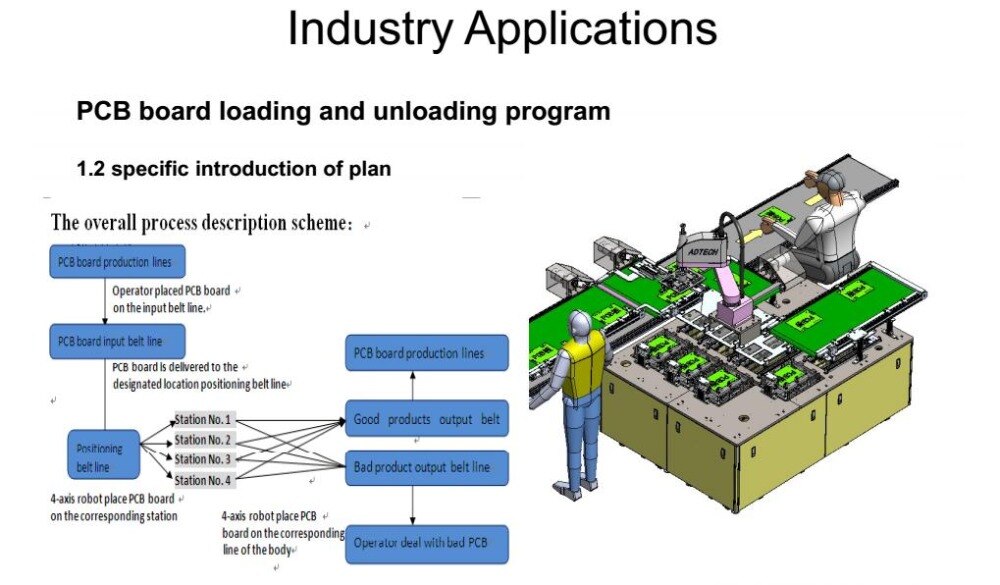

Sorting，Stacking，Plug-in，Loading and unloading，Transport，Gumming，Labeling，Assembly and so on
Technical Parameters

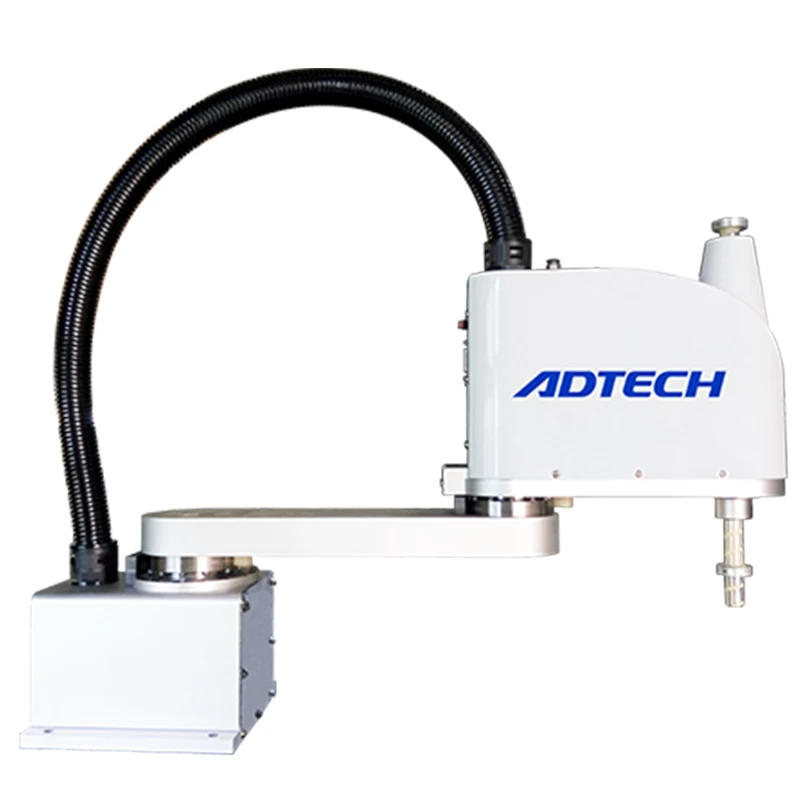

Model: ADT-AR6520
Type: Scara robot
Number axis: four axis
Arm length：600mm
Axis specification:
X axis Arm length: 300mm
Rotation range: ±130°
Y axis Arm length: 300mm
Rotation range: ±140°
Z axis Itinerary: 200mm
R axis Rotation range: ±360°
Highest speed
X axis: 375°/S
Y axis: 600°/S
X, Y-axis synthesis: 7.1m/s
Z axis: 1.1m/s
R axis: 1500°/s
Standard Cycle Time: 0.6s
Repeat positioning accuracy
X, Y axis: ±0.015mm
Z axis: ±0.01mm
R axis: ±0.005°
Rated / max load: 5Kg/10kg
R axis allows load moment of inertia (Rated / max): 0.05 kg·m2 / 0.2kg·m2
User signal line: 0.2sq × 16 lines, 8 outputs, 6 inputs
Users pipe: Ф6×2根
Limit protection: 1, the software limit
2, the mechanical limit (X, Y, Z axis)
Weight: 24.3kg
Our partners such as Foxcom phone assembly production, GE car production line etc.
ADTECH, the No.1 SCARA robot arm manufacturer which is from China.
