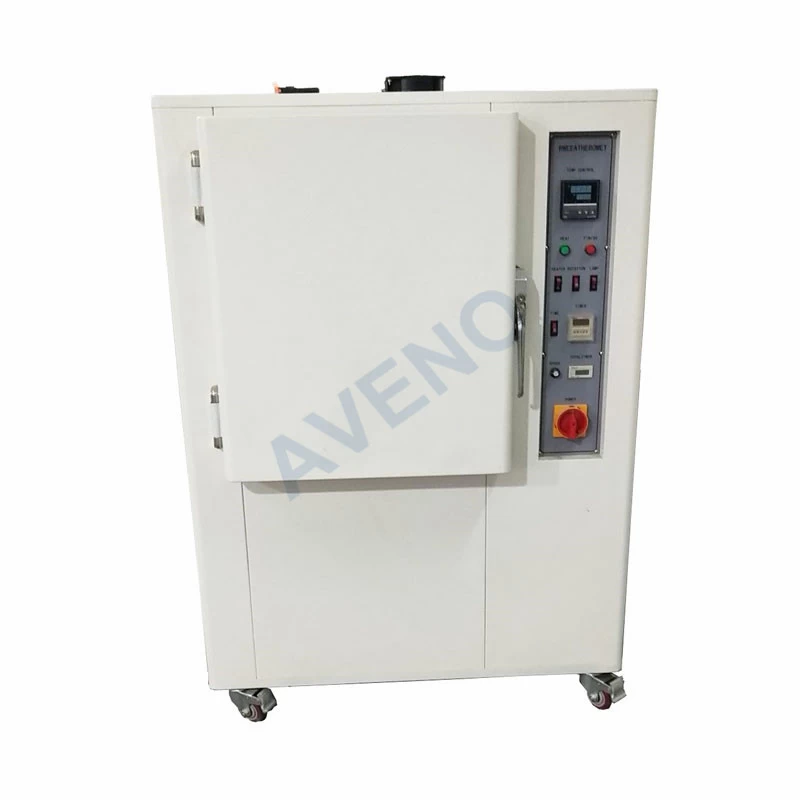

AF72-Aging Oven
Application Of Aging Oven
Aging Oven is used to test the variation characteristics before and after heating of plastics, rubber, leather, cloth materials.
After the specified temperature and time of uniformly heated, observation sample Yellow resistance, glue opening, shrinkage, extension, residual rate before and after aging to determine it aging resistance test.
Standards Of Aging Oven
ASTM D2436, CNS3556,742, ISO 188, JIS K721, ASTM D 1149
Key Specification Of Aging Oven
|
Model
|
AF72
Aging Oven
|
|
Control mode
|
LCD
control
|
|
Temperature range
|
RT-200℃, RT-300℃ optional
|
|
Temperature deviation
|
100℃＜±1℃, 100~200℃＜±2℃, 200~300＜±3℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Temperature uniformity
|
±1% F.S
|
|
Timmer
|
0～9999 (h, min) can
be set
|
|
Return speed
|
5~10
rpm
|
|
Inner dimension
|
50*50*60cm
|
|
Inner material
|
SUS#304
Mirror stainless steel
|
|
Power supply
|
AC220V,
50/60HZ
|
|
Dimension
|
95*65*130cm
|
|
Weight
|
140kg
|
Accessories Of Aging Oven
|
Standard Accessories
|
Turntable
|
1pc
|
|
Tray
|
1set
|
|
Power line
|
1pc
|
