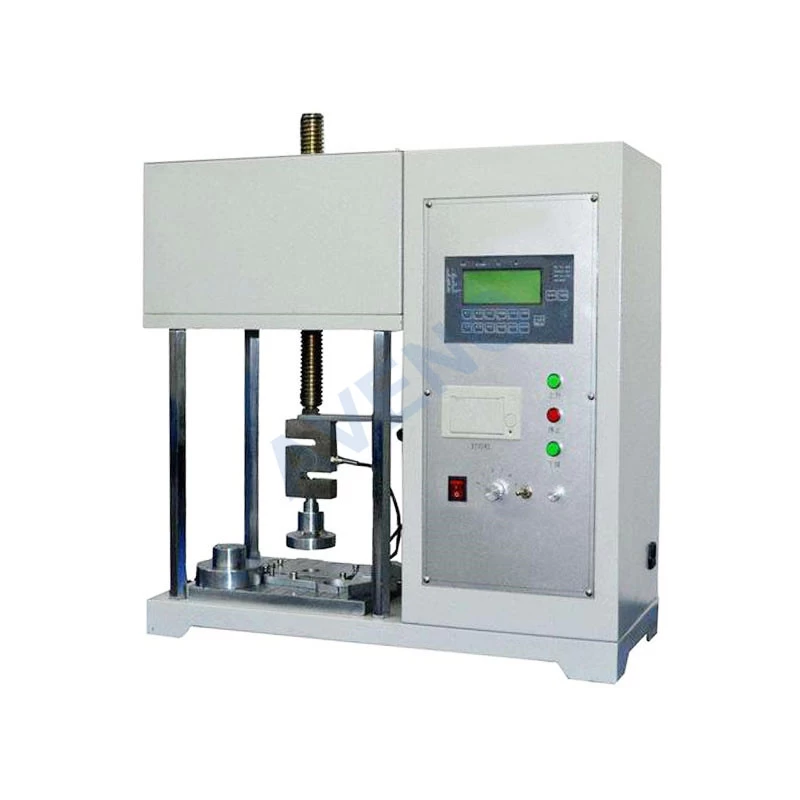

AF04 Safety Footwear Compression and Puncture Tester
Application Of Safety Footwear Compression and Puncture Tester
Safety Footwear Compression and Puncture Tester is used to determination of resistance to compression shoe cover, and the steel puncture resistance, prevent shoes safety performance due to insufficient operator injuries in the workplace when wearing.
Standards Of Safety Footwear Compression and Puncture Tester
EN 344,388,12568, ISO 20344, GB/T20991, ASTM F2412,2413
Key Specification Of Safety Footwear Compression and Puncture Tester
|
Model
|
AF04 Safety Footwear Compression and Puncture Tester
|
|
Max capacity
|
15±0.1KN, 20±0.1KN option
|
|
Load resolution
|
1/10000
|
|
Compression speed
|
5±2 mm/min
|
|
Puncture speed
|
10±3 mm/min
|
|
Test speed
|
5-500 mm/min, the speed can be adjustable
Compression speed:(5±2)mm/min
Puncture speed:(10±3)mm/min
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
82*33*71cm
|
|
Weight
|
115kg
|
