All Aluminum Alloy Conductor AAAC cable

PRODUCTS KEYWORDS

AAAC cable, AAAC bare conductor, all aluminum alloy conductor bare cable, aluminum alloy aerial cable, all aluminum alloy cable.

PRODUCTION APPLICATION

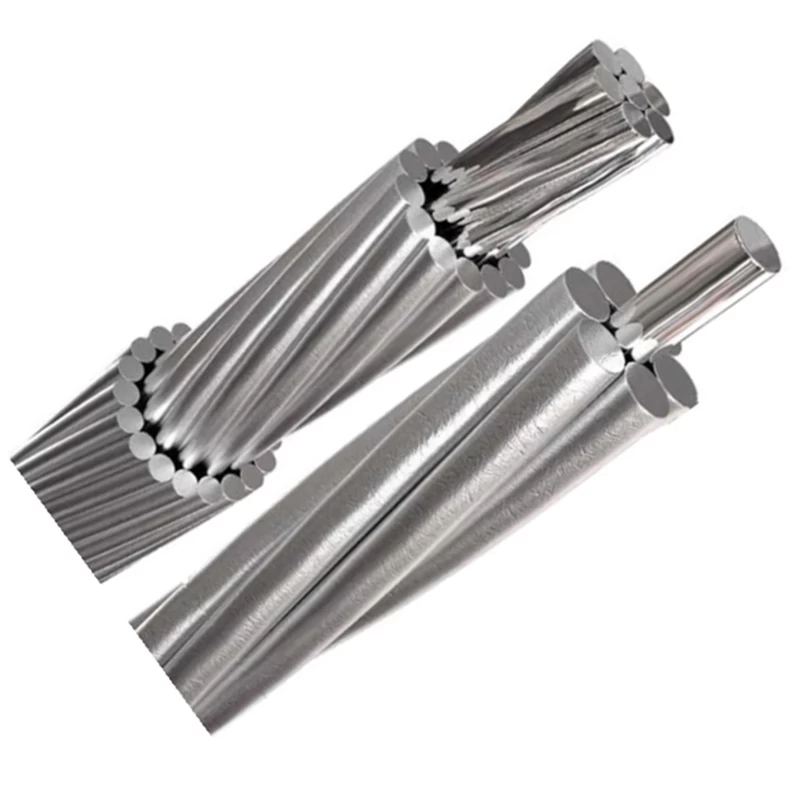

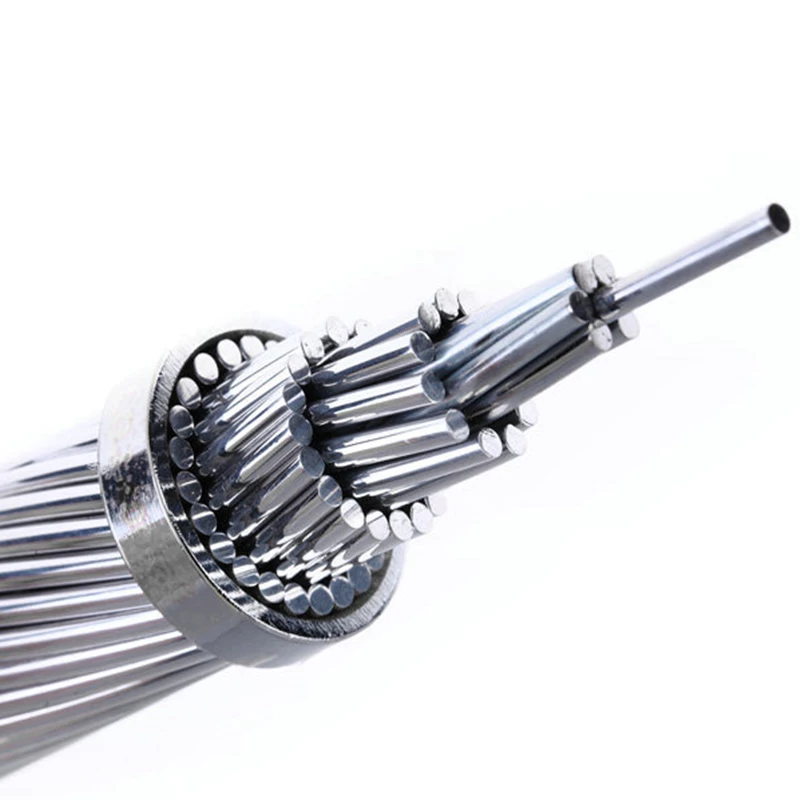

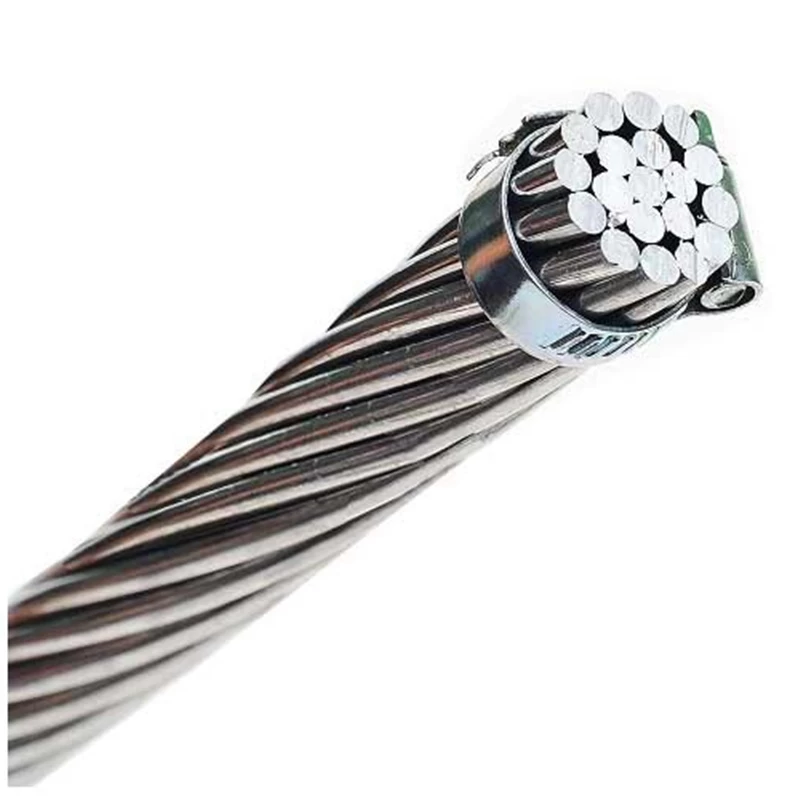

Hante brand All Aluminum Alloy Conductor AAAC cable, concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy. Hante Cable manufactures and supplies AAAC with different variants of electrical grade alloy type 6101 and 6201, one or more strands of hard drawn 1350 aluminium alloy. It is similar in construction and appearance to the AAC all-aluminum conductor.

PRODUCTION FEATURES

1. High strength to weight ratio.

2. Better sag characteristics.

3. Improved electrical properties.

4. Excellent resistance to corrosion.

5. Higher operating efficiency of the line.

All Aluminum Alloy Conductors have a number of advantages over the use of the ACSR or all-aluminum conductors.

1. Lower power losses than for equivalent single-aluminum-layer ACSR conductors.(The inductive effect of the steel core in the ACSR is eliminated.)

2. Simpler fitting than those required for ACSR.

3. Excellent corrosion resistance in environments conductive to galvanic corrosion in ACSR.

4. Strength and sag approximately the same as for equivalent 6/1 and 26/7 ACSR conductors.

5. Outside diameters are the same for standard ACSR conductors, permitting interchangeability of fitting.

6. Greater resistance to abrasion than that for 1350 wires in all-aluminum or ACSR conductors.

Note:

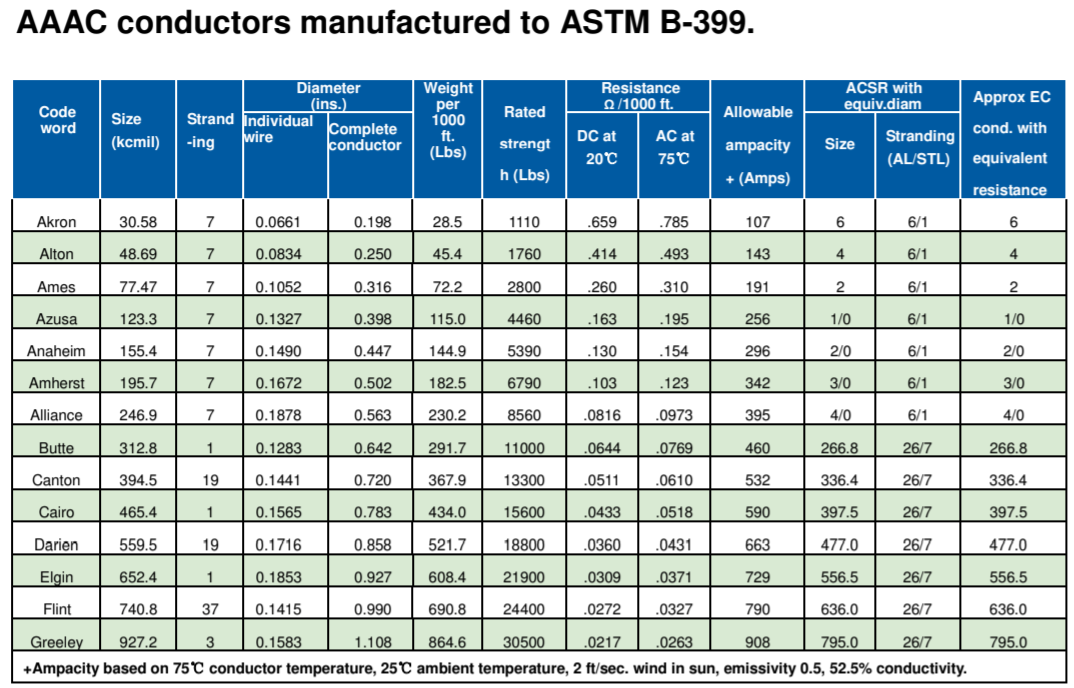

• Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 52% IACS, AC resistance at 60Hz.

• Current ratings are based on 80ºC conductor temperature, 50ºC ambient, 0.6 meter/second wind, 1200 watts/sq. meter solar heat radiation, 0.5 coefficients of emissivity and absorption.

PRODUCTS STRUCTURE

---Conductor Material

   Aluminium alloy conductor.

---Insulation Material

   Non-insulation

---Sheath Material

   Non-sheath

---Core Number

    Single core, 1C.

---Working Temperature

   -0℃～+70℃.

---Installation Temperature

    0℃ ～+40℃

---Minimum Bending Radius

    20 x Overall Diameter.

---Production Standard

    GB/T 12527-2008, GB/T 14049-2008, IEC 61089, ASTM B-231, ASTM B-399, BS EN 50183.

---Product Packing

    Wooden drum.

---Product MOQ

   10000 meters.

---Production Delivery

   Within 10-20 working days as soon as we received the deposit.

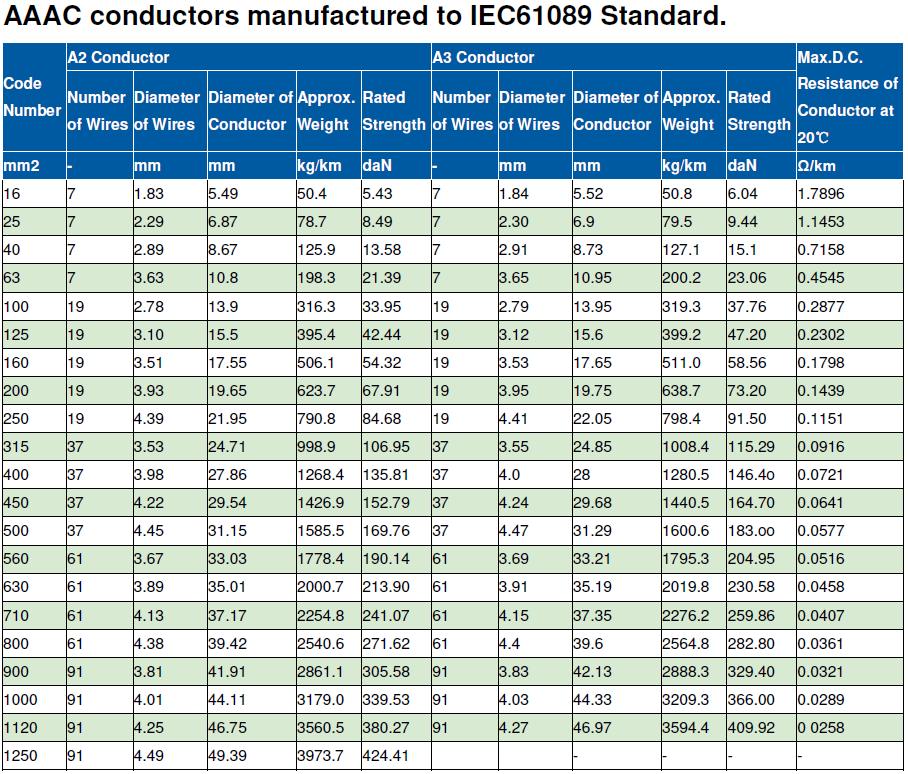

PRODUCTS STRUCTURE

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xintiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
