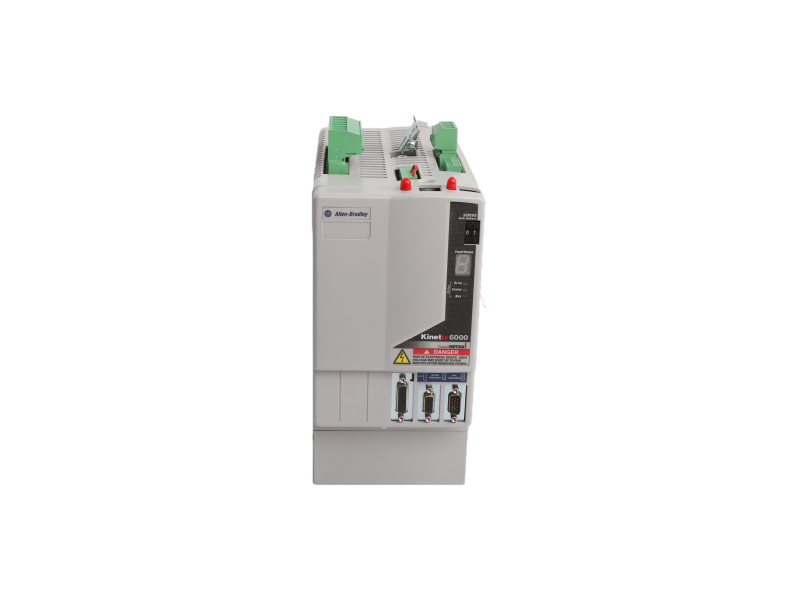

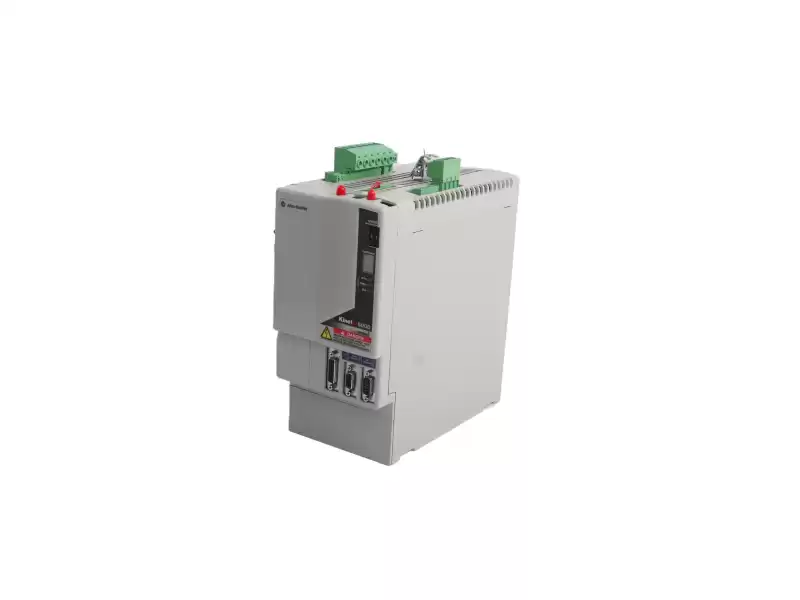

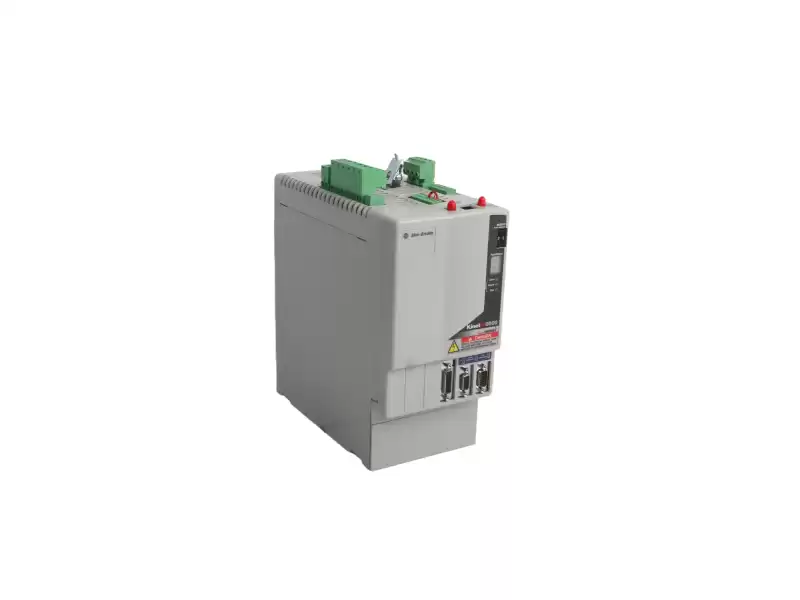

Allen-Bradley 2094-BC01-M01-S Kinetix 6000 Multi-Axis Servo Drive
Ultra-slim Integrated Axis Module (IAM) – Book-size power density for shallow cabinets
Sales Manager May | 20 years of Allen-Bradley motion distribution & tech support
E-mail: ab@mooreplc.com | WhatsApp: +86-18106909650 | WeChat: dcsfcs
1. Product Positioning
The 2094-BC01-M01-S is the narrowest 400 V IAM in the Kinetix 6000 family—only 50 mm wide.
Combining a 9 kW three-phase rectifier and a 4.5 A (9 A peak) inverter in one book-style slice, it delivers a shared-DC-bus solution for 1–2 axis machines such as bench-top assembly stations, lab platforms or compact Cartesian robots.
2. Electrical & Mechanical Highlights
|
Parameter
|
Value
|
Notes
|
|
Input voltage
|
324 – 528 V ac, 3-ph, 47-63 Hz
|
World-wide industrial mains
|
|
Cont. power
|
9 kW
|
50 % of BC04 rating
|
|
DC-bus
|
650 – 750 V dc typical
|
Shared with all AMs
|
|
Output current
|
4.5 A rms cont. / 9 A peak (2 s)
|
200 % overload, Peak-Enhance
|
|
Built-in shunt
|
100 W cont. / 5 kW peak
|
External resistor optional
|
|
Control supply
|
24 V dc ±10 %, 0.6 A
|
Includes motor brake feed
|
|
Communication
|
SERCOS fibre, auto 4 / 8 Mbps
|
Node 01-99 auto-discovery
|
|
Width
|
50 mm (2 in.)
|
50 % narrower than BC04
|
|
Depth
|
275 mm (10.8 in.)
|
Fits 300 mm shallow panels
|
|
Weight
|
2.1 kg
|
One-person installation
|
|
Operating temp
|
0 – 50 °C
|
Linear derate >45 °C
|
|
Protection / Marks
|
IP20 (good PE required)
|
UL / c-UL / CE / TÜV SIL3
|
3. Technical Advantages
Scale-as-you-go: add AM modules later to reach 8 axes—no software or safety re-certification needed.
Energy sharing: braking power from axis 1 is consumed by axis 2, cutting heat and resistor size.
Common firmware: same servo algorithms, filters and SIL3 safety function blocks as 28 kW units—protect your software investment.
Plug-and-play: slide onto the rail; node address and parameters auto-enumerate over SERCOS—commissioning <30 min.
Let two decades of Allen-Bradley motion expertise accelerate your next small-footprint machine to market.
