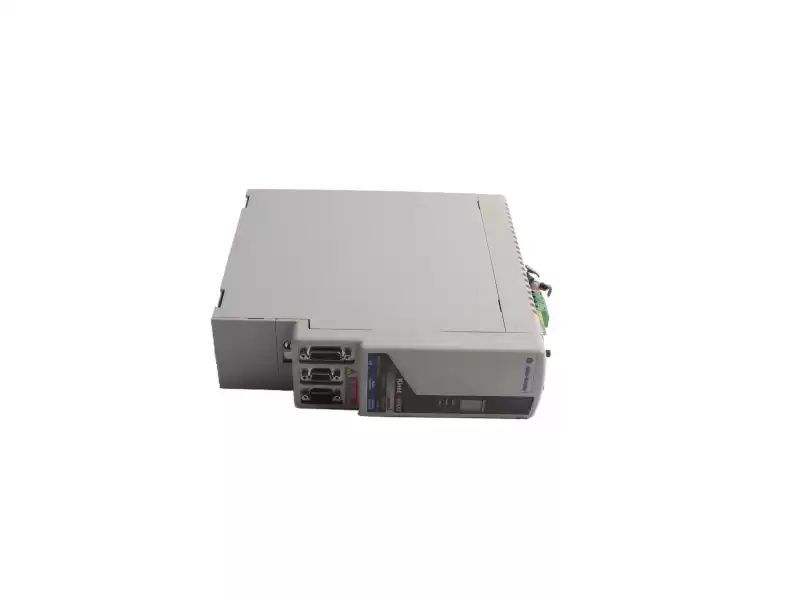

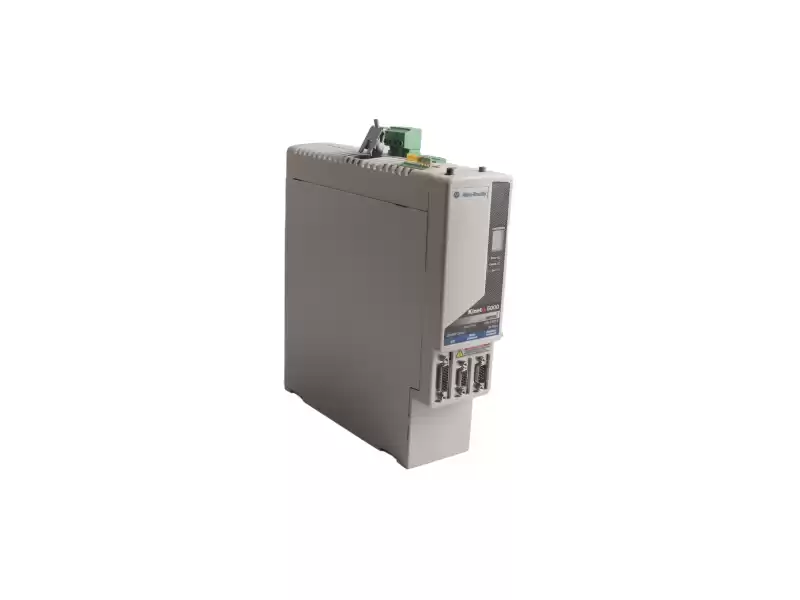

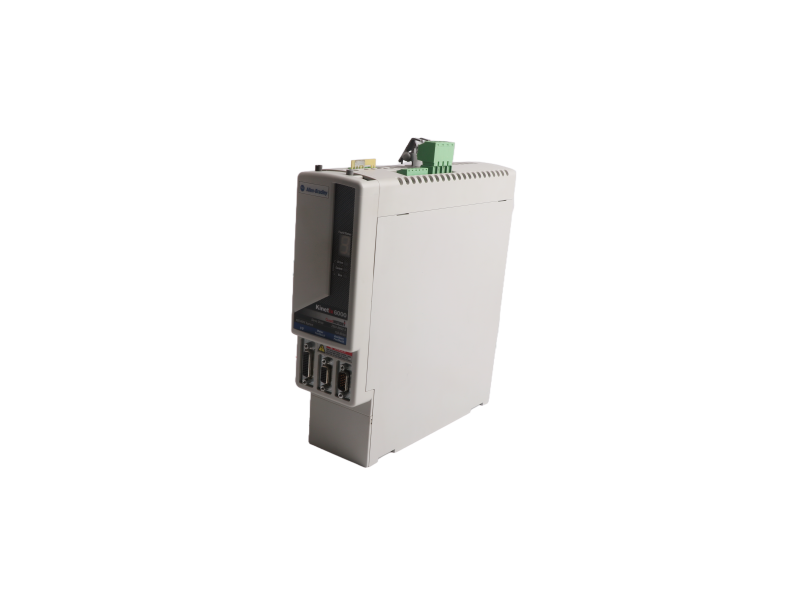

Allen-Bradley 2094-BM02-S Kinetix 6000 Axis Module
15 A plug-in slice – mid-power without extra mains hardware
Contact: May | ab@mooreplc.com | +86-18106909650 | WeChat: dcsfcs
What it does
Slips onto any Kinetix 6000 DC-bus → instant 3rd (or 8th) servo axis
10.3 A cont. / 15 A peak @ 650-750 V dc – covers most 2–5 kW servo motors
50 mm book format – same width from 4 A to 15 A, one spare fits all
Quick-spec (AB 2094-UM001)
Output: ~6.6 kW (460 V motor)
Peak-Enhance: 25 A for 2 s (firmware switch)
STO: SIL3 / PLe built into rail connector
Feedback: auto-detect Hiperface / incremental / resolver
Value adds
Regenerative power → reused by sister axes → smaller resistors, cooler cabinet
Peak-Enhance → avoids over-sizing drive for fast index or punch moves
Tool-less install → slide, latch, two cables online <5 min
Kinetix 6000 50 mm AM Family – at a glance
|
Part Number
|
Cont. A
|
Peak A
|
Typical kW @ 460 V
|
Application Example
|
|
2094-BM01-S
|
4.5
|
9
|
≤ 2.2
|
Small grippers, feed rolls
|
|
2094-BM02-S
|
10.3
|
15
|
2.2 – 5
|
Gantry Y-axis, index table
|
|
2094-BM03-S
|
15
|
30
|
5 – 7.5
|
Conveyor pull, spindle orient
|
Stock & support
Xiamen shelf – 12 mo warranty
Quote → ab@mooreplc.com
Tech talk → +86-18106909650 / WeChat dcsfcs
20 yrs AB motion know-how – packed in a 50 mm slice.
