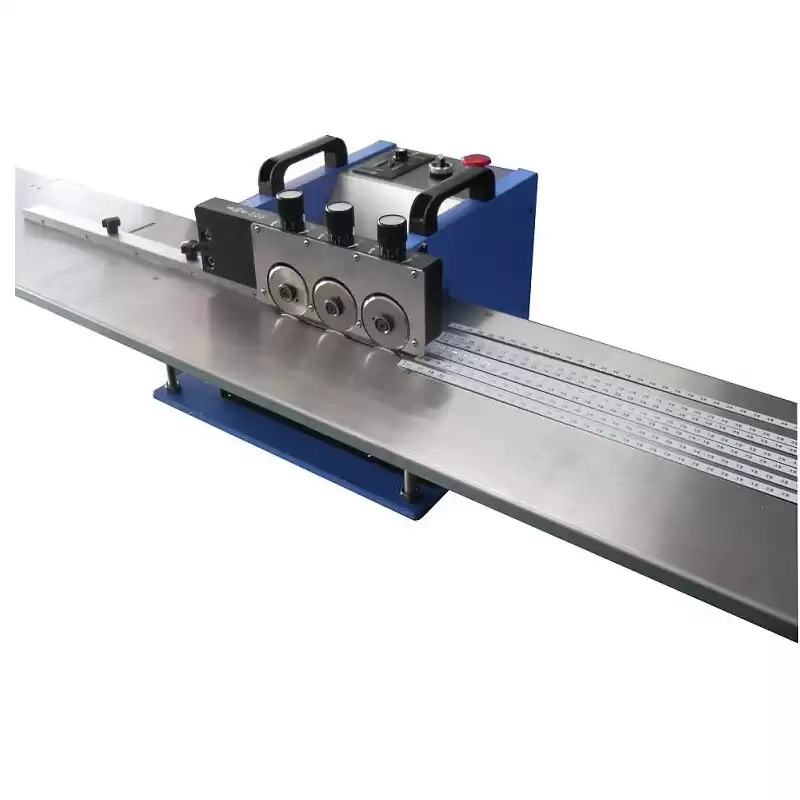

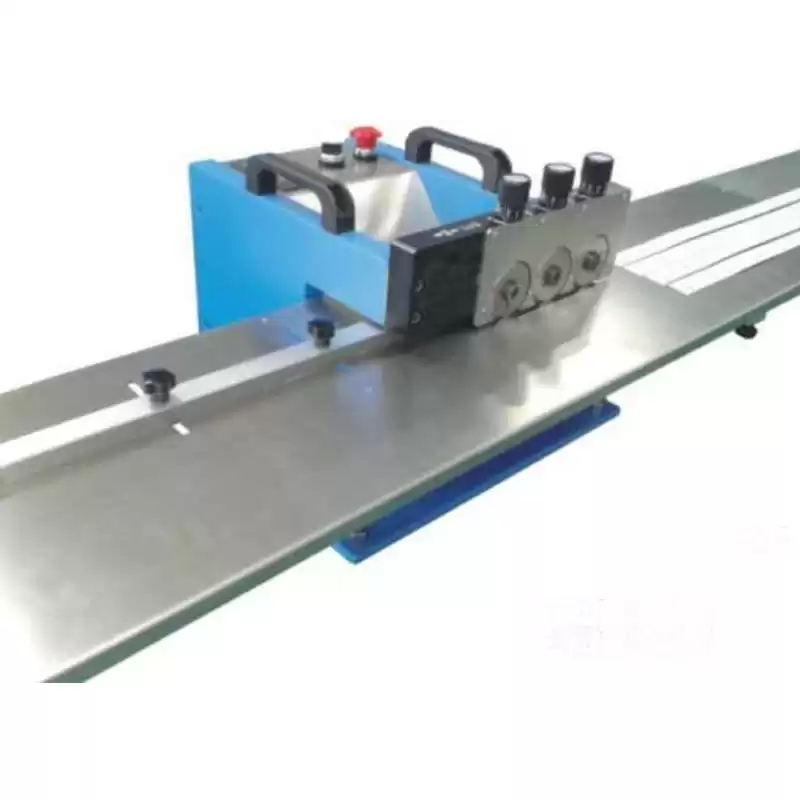

Aluminum LED Tube Light PCB Cutting Machine

LED PCB Cutting Machine is available for both FR4 and Aluminum printed circuit board depaneling.

Aluminum LED Tube Light PCB Cutting Machine

LED PCB Cutting Machine Introduction:

The LED PCB cutting machine designed to minimize board stress and avoid component damage.

Three pairs of precision beveled cutting blades ensure the board does not bend or deform.

The guide can be adjusted vertically to suit different LED boards.

Depth between upper circular blades can be precisely adjusted to reduce stress on score line edge and blade wear.


LED PCB Cutting Machine Specification:

Model SMTD3 
Machine Dimension 400x400x330mm
Platform Dimension 2400x300x200mm
Max Cutting Length No limit
PCB Material FR4, MCPCB, Copper Boards
Cutting Speed 0-500mm/s
PCB Thickness 0.6-3mm
Power 220/110V
Machine Weight 44kgs
Wooden Case Dimension 116x67x58cm
Gross Weight 76kgs

LED PCB Cutting Machine Features:

1. Separates panels up to 0.1"

2. The longest panel: No limit

3. Minimum board thickness of 0.024"

4. Shears boards safely with parts as close as 0.02" to score line.

5. Only allow correct boards placement to avoid mistakes.

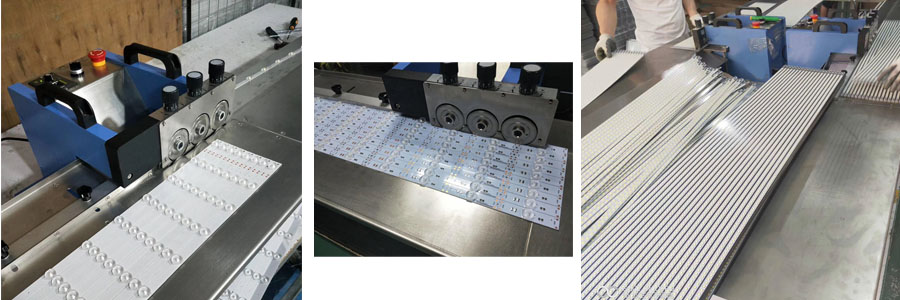

Aluminum LED PCB Cutting Machine Applications:

led pcb separator

Our Certificate:

PCB Separator certificate

Company Profile:

pcb depanelizer factory

2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.

2010, Our products are widely sold in local market.

2012, Start producing customized v-cut depaneling and PCB router.

2014, ;Expand our sales team for providing better service to more customers.

2015, Start manufacturing laser depaneling machines.

2017, Start manufacturing ;soldering robot and screwdriver machines.

2018, HK company established.
2019, Huizhou factory established, due to expansion.

2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;

2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.

Our Service:

1. Guarantee for 12 months.

2. Maintenance for whole life.

3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.

4. 24 ;hours x 7days online ;service, ;free ;technical ;support.

5. Machine ;has ;been tested before ;delivery.

6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.

7. Oversea on-site installation and trainning is available.

8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
