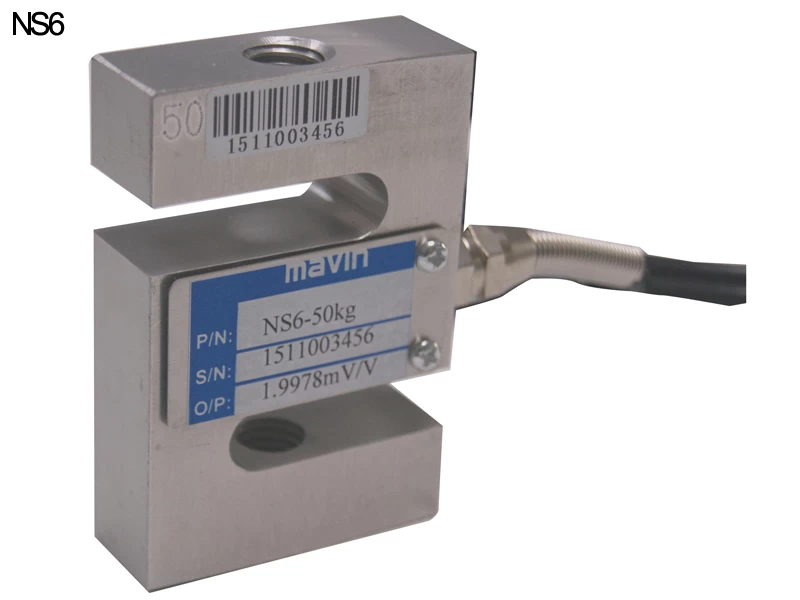

Aluminum S Beam Tension force Load Cell NS6

NS6 tension load cell is made with anodised aluminum alloy material, environmentally sealed by potting. The S beam sensor is ideal for measuring both tensile and compressive forces, offering a highly cost effective solution for a wide variety of applications.


  • Protection ClassIP66 / IP67
  • Rated Output2.0mV/V
  • MaterialAluminum Alloy
  • Dimension76*50.8*23mm
  • Capacities50-200kg

Tension Aluminum Load Cell NS6 (50-200 KG)

NS6 tension load cell is made with anodised aluminum alloy material, environmentally sealed by potting. The S beam sensor is ideal for measuring both tensile and compressive forces, offering a highly cost effective solution for a wide variety of applications.


Key Features

Anodised aluminum alloy material

Capacity: 50-200 KG

Strain Gauge Based

Calibrated to national standards


Usage & Applications
Hopper scales
Crane scales

Tension control and machine testing

Batching systems, blending & mixing systems, belt scales,etc

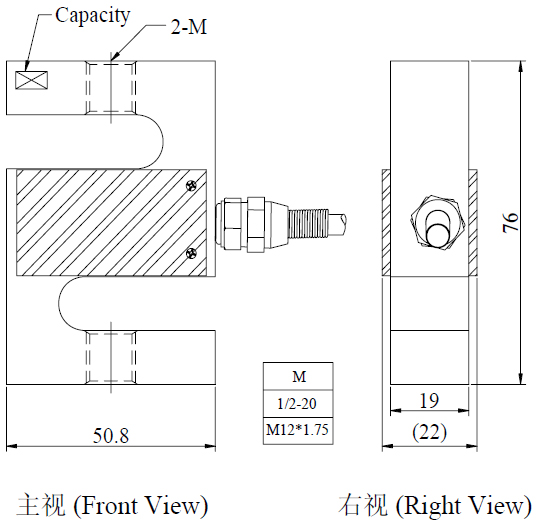

Dimension

tension load cell NS6

NS6 Specification

Rated Capacities

50,100200 (kg)

Rated Output

2.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ5×2 m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
