AOSIF 100KW 125kva Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

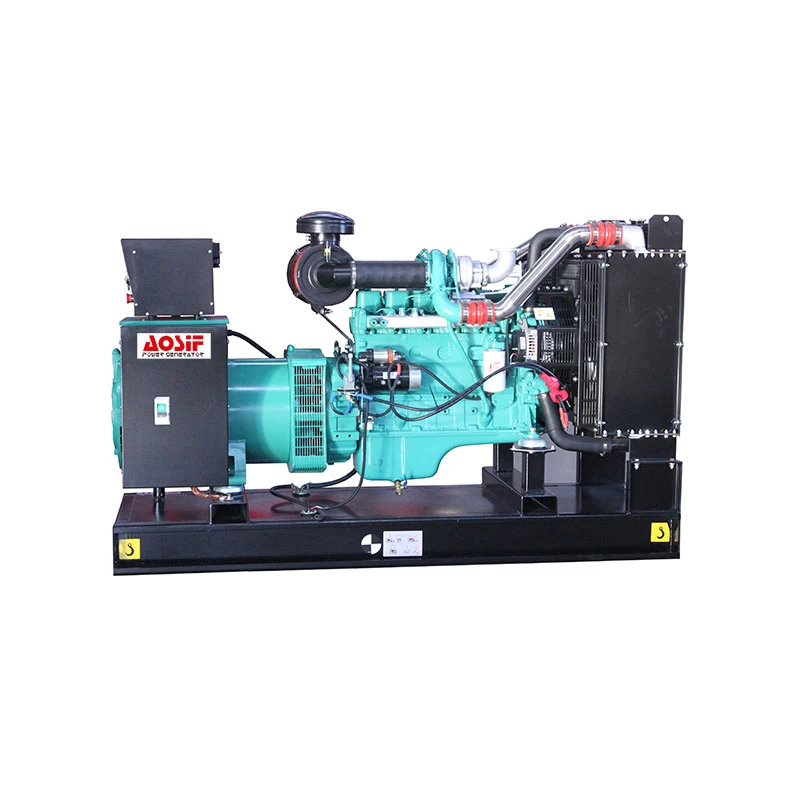

Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size:2144×785 ×1365mm(L*W*H)
|
Overall size: 3100× 1050×1830mm(L*W*H)
|
Weight: 1243kg
|
Weight: 1723kg
|
Genset Main Technical Data:
|
Genset Model
|
AC138
|
|
Prime Power
|
100KW / 125KVA
|
|
Standby Power
|
110KW / 138KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
240V/415V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Dongfeng Cummins Engine Co., Ltd.
|
|
Model
|
6BTA5.9-G2
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
----------------------------Standby power
|
116kw / 155HP
|
|
----------------------------prime power
|
106kw / 142HP
|
|
Aspiration
|
Turbocharged & Aftercooled
|
|
Cylinder quantity
|
6 line
|
|
Bore * Stroke
|
102*120mm
|
|
Displacement
|
5.9L
|
|
Fuel system
|
BYC PB/ Electronic Governor
|
|
Speed-droop
|
≤5%
|
|
Low idle
|
750-850 rpm
|
|
Piston speed
|
6.0 m/s
|
|
Friction energy output
|
12.7 kw
|
|
Max. exhaust back pressure
|
10kPa
|
|
Exhaust Pipe Size Normally Acceptable
|
75mm
|
|
Maximum Static Supported Weight at the Turbocharger Outlet Flange
|
13.5 N.m
|
|
Exhaust gas flow (prime power - standby power)
|
305-334 L/sec
|
|
Exhaust temperature (prime power - standby power)
|
540-570 ℃
|
|
Max. air intake resistance
|
|
|
Dirty Element
|
6kPa
|
|
Clean Element
|
3.7kPa
|
|
Minimum Dirt Holding Capacity with Heavy Duty Air Cleaner
|
53g/cfm
|
|
Maximum Temperature Rise from Ambient to the Inlet of the Turbocharger
|
17 ℃
|
|
Recommended intake piping size (inner diameter)
|
76mm
|
|
Air intake flow (prime power - standby power)
|
112-118 L/sec
|
|
Normal oil pressure range
|
|
|
------------idle speed
|
207 kPa
|
|
-----------governor speed
|
345 kpa
|
|
Max. oil temperature permitted in oil pan
|
121 ℃
|
|
Oil Capacity with OP 9006 Oil Pan : High - Low
|
14.2-12.3L
|
|
Minimum required lube system capacity-sump plus filters
|
16.4L
|
|
Angularity of Standard Oil Pan: (Values stated are for intermittent operation only): (any direction)
|
40 °
|
|
Type Injection System
|
BYC PB direct injection
|
|
Maximum Restriction at Lift Pump
|
13.6 kPa
|
|
Maximum Allowable Head on Injector Return Line (Consisting of Friction Head and Static Head)
|
67.7 kPa
|
|
Total Drain Flow
|
30 L/h
|
|
Coolant capacity – engine only
|
10L
|
|
Max. coolant cycling resistance exterior engine
|
28 kPa
|
|
Maximum Static Head of Coolant Above Engine Crank Centerline
|
14m
|
|
Thermostat adjusting temperature (range)
|
82-95 ℃
|
|
Min. opening pressure of radiator cap
|
69 kPa
|
|
Maximum Top Tank Temperature for Standby/Prime Power
|
104 / 100 ℃
|
|
Engine coolant flow (prime power - standby power)
|
2.0 L/s
|
|
Cranking Motor (Heavy Duty, Positive Engagement)
|
12V
|
|
Battery Charging System, Negative Ground
|
63A
|
|
Maximum Allowable Resistance of Cranking Circuit
|
0.00075 Ω
|
|
Minimum Recommended Battery Capacity • Cold Soak @ 10 °F (-12 °C) and Above
|
800 0°F CCA
|
Alternator Data:
|
Manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Model
|
LSA44.3M6
|
|
Output power
|
100KW
|
|
AVR model
|
R250
|
|
Number of phase
|
3
|
|
Power factor (Cos Phi)
|
0.8
|
|
Altitude
|
≤ 1000 m
|
|
Overspeed
|
2250RPM
|
|
Number of Pole
|
4
|
|
Exciter type
|
Shunt
|
|
Insulation class
|
H
|
|
Voltage regulation
|
±0.5%
|
|
protection
|
IP23
|
|
Totale Harmonic distortion THD (**) on linear load
|
< 5 %
|
|
Wave form : NEMA = TIF
|
< 50
|
|
Totale Harmonic distortion THD (**) in no-load
|
< 2%
|
|
Bearing
|
single
|
|
Coupling
|
Direct
|
Generator Detail
