AOSIF 36-64KW 4BTA Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version

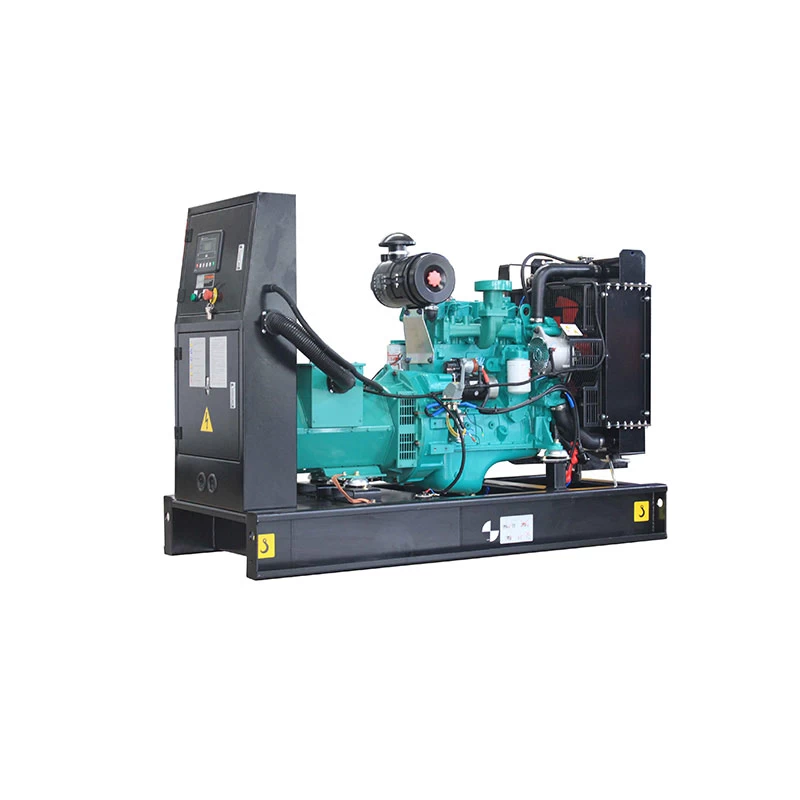

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size:1705×830 ×1285mm(L*W*H)
|
Overall size: 2250× 1000×1550mm(L*W*H)
|
Weight: 800kg
|
Weight: 1130kg
|
Genset Main Technical Data:
|
Genset Model
|
AC69
|
|
Prime Power
|
50KW / 63KVA
|
|
Standby Power
|
55KW / 69KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
220V/380V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Dongfeng Cummins Engine Co., Ltd.
|
|
Model
|
4BTA3.9-G2
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
----------------------------Standby power
|
64kw / 86HP
|
|
----------------------------pirme power
|
58kw / 78HP
|
|
Aspiration
|
Turbochanger& Aftercooler
|
|
Cylinder quantity
|
4
|
|
Bore * Stroke
|
102*120mm
|
|
Displacement
|
3.9L
|
|
Fuel system
|
BYC PB/GAC 12V
|
|
Governor Regulation
|
≤3%
|
|
Low idle
|
950-1050 rpm
|
|
Piston speed
|
6.0 m/s
|
|
Friction energy output
|
8.2 kw
|
|
Emission Certification
|
MEP STAGE I
|
|
Type Injection System
|
BYC PB Direct Injection
|
|
Maximum Restriction at Lift Pump
|
102 mmHg
|
|
Maximum Allowable Head on Injector Return Line (Consisting of Friction Head and Static Head)
|
508 mmHg
|
|
Total Drain Flow (constant for all loads)
|
30 L/h
|
|
Coolant capacity – engine only
|
8.3L
|
|
Maximum Coolant Friction Head External to Engine
|
28 kPa
|
|
Maximum Static Head of Coolant Above Engine Crank Centerline
|
14m
|
|
Standard Thermostat (Modulating) Range
|
83-95 ℃
|
|
Minimum Pressure Cap
|
69 kPa
|
|
Maximum Top Tank Temperature for Standby/Prime Power
|
104/100 ℃
|
|
Engine Water Flow to Engine (prime power-standby power)
|
1.6L/s
|
|
Cranking Motor (Heavy Duty, Positive Engagement)
|
12V
|
|
Battery Charging System, Negative Ground
|
63A
|
|
Maximum Allowable Resistance of Cranking Circuit
|
0.00075 Ω
|
|
Minimum Recommended Battery Capacity—Cold Soak @ 10 °F (-12 °C) and Above
|
800 0°F CCA
|
|
Gaseous Emissions per GB 20891-2007
|
|
|
Weight-Specific NOx
|
7.11 g/KW.h
|
|
Weight-Specific HC
|
0.58 g/KW.h
|
|
Weight-Specific CO
|
0.85 g/KW.h
|
|
Weight-Specific Particulates
|
0.254 g/KW.h
|
Alternator Data:
|
Manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Model
|
LSA44.3S2
|
|
Output power
|
56KW
|
|
AVR model
|
R250
|
|
Number of phase
|
3
|
|
Power factor (Cos Phi)
|
0.8
|
|
Altitude
|
≤ 1000 m
|
|
Overspeed
|
2250RPM
|
|
Number of Pole
|
4
|
|
Exciter type
|
Shunt
|
|
Insulation class
|
H
|
|
Protection
|
IP23
|
|
Voltage regulation
|
±0.5%
|
|
Totale Harmonic distortion THD (**)
|
< 2 % in no-load, on linear load <5%
|
|
Waveform: NEMA = TIF (**)
|
< 50
|
|
Bearing
|
single
|
|
Coupling
|
Direct
|
FAQ：
|
Q1. What is your warranty period?
|
|
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
|
|
Q2.Does your generator have global warranty?
|
|
Yes, most of our products like powered by Cummins engine , powered by Perkins engine, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
|
|
Q3.What is the difference between standby, continuous, and prime power ratings?
|
|
Standby power generators are most often used in emergency situations, such as during a power outage. It is ideal for applications that have another reliable continuous power source like utility power. It’s recommend usage is most often only for the duration of a power outage and regular testing and maintenance.
Prime power ratings can be defined as having an “unlimited run time”, or essentially a generator that will be used as a primary power source and not just for standby or backup power. A prime power rated generator can supply power in a situation where there is no utility source, as is often the case in industrial applications like mining or oil & gas operations located in remote areas where the grid is not accessible.
Continuous power is similar to prime power but has a base load rating. It can supply power continuously to a constant load, but does not have the ability to handle overload conditions or work as well with variable loads. The main difference between a prime and continuous rating is that prime power gensets are set to have maximum power available at a variable load for an unlimited number of hours, and they generally include a 10% or so overload capability for short durations.
|
|
Q4.How could I trust u?
|
|
Diesel Service & Supply stands behind the quality of all the used generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates’ knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
|
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
