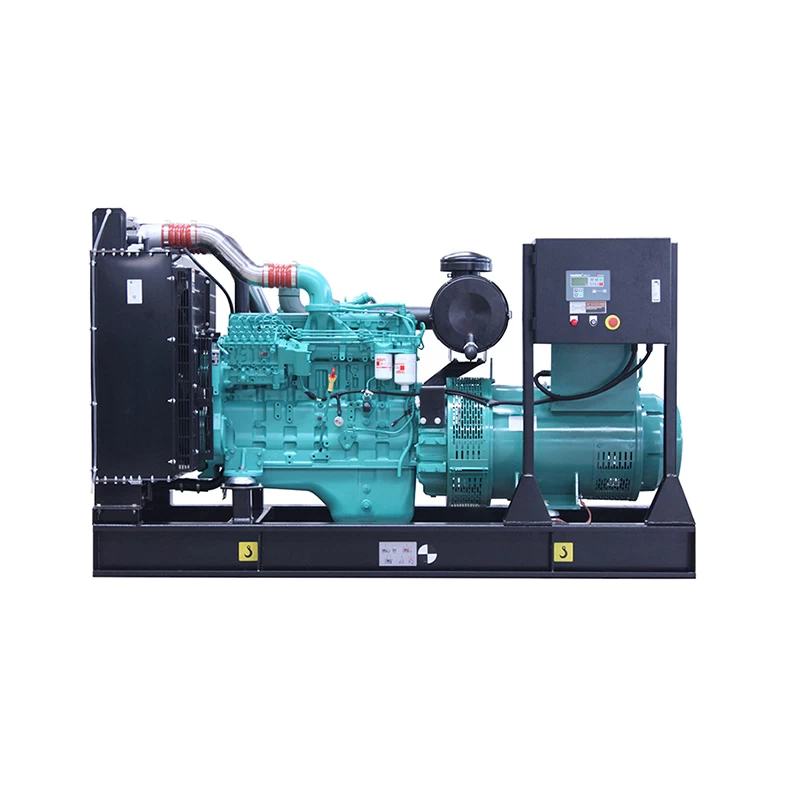

AOSIF 200KW 250kva Cummins diesel generator set
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

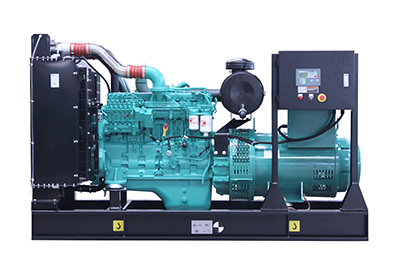

Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 2563×945 ×1560mm(L*W*H)
|
Overall size: 3600× 1200×1950mm(L*W*H)
|
Weight: 1900kg
|
Weight: 2500kg
|
General feature: 50HZ/1500rpm
|
Genset Model
|
AC275
|
|
Prime Power
|
200KW / 250KVA
|
|
Standby Power
|
220KW / 275KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
230V/400V
|
|
Available Voltage
|
220V/380V, 240V/415V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Dongfeng Cummins Engine Co., Ltd.
|
|
Model
|
6LTAA8.9-G2
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
----------------------------Standby power
|
240kw / 322HP
|
|
----------------------Base output power
|
220kw / 295 HP
|
|
-----------------------Continuous power
|
180kw /241HP
|
|
Air intake way
|
Turbocharged and Charge Air Cooled
|
|
Cylinder quantity
|
6 line
|
|
Bore * Stroke
|
114*135 mm
|
|
Displacement
|
8.9L
|
|
Fuel system
|
BYC P7100/SEGMA electrical governor
|
|
Governor Regulation
|
≤3%
|
|
Low idle
|
800-1000 rpm
|
|
Piston speed
|
7.3 m/s
|
|
Friction energy output
|
26 kw
|
|
Emission Certification
|
MEP STAGE II
|
Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
