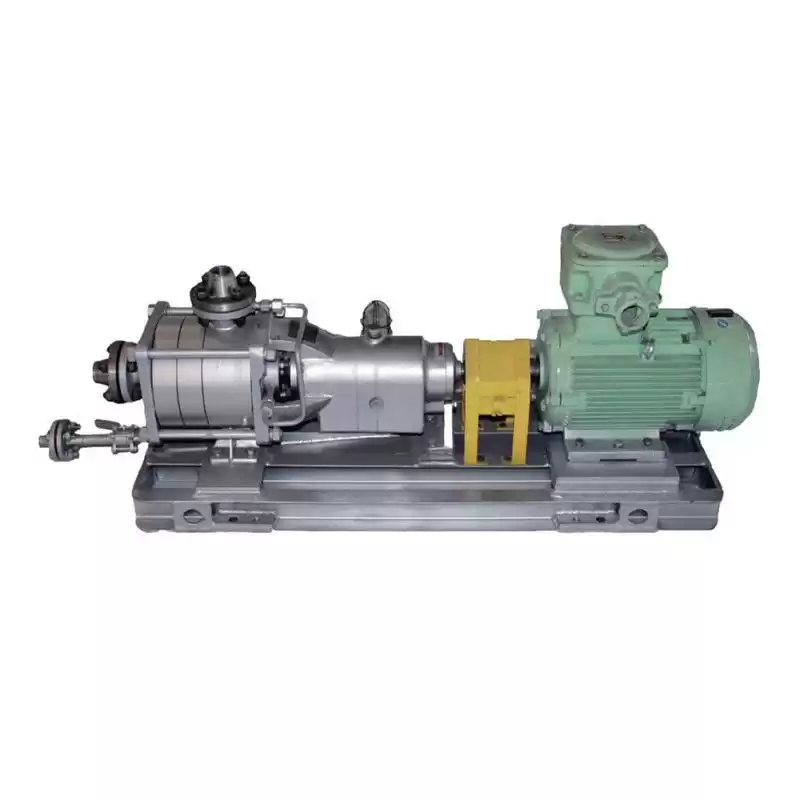

API 610 Horizontal type single stage small flow centrifugal pump

API 610 Horizontal type single stage small flow centrifugal pump

Product profiles：

• Flow centrifugal pumps are available in various configurations, such as electric motor, engine drive, or frame-mount pedestal drive.
• These horizontal type single stage pumps are constructed using materials like Cast Iron,  Stainless Steel, Bronze, and Thermoplastics.
• They feature different pump types, including mechanical shaft seal, Packed, and Magnetic Drive.

Features：

• Horizontal type centrifugal pump, overhung design, single stage and multi-stage.
• Foot mounted construction for working temperature up to 105℃(195 ℉), centerline mounted construction for higher temperature up to 250℃(470 ℉).
• Either grease lubrication or oil lubrication depends on application.
• Rely on company developed production process, the narrow passageway for low specific speed impeller can be produced, the smallest width at passageway exit is 2mm.
• More energy saving comparing with large pump with either internal circulation or external bypass for small flow applications.

Applications：

• Small flow processes
• Small flow high head service
• Chemical product transfer
• High temperature small flow service
• Aggressive small flow service
