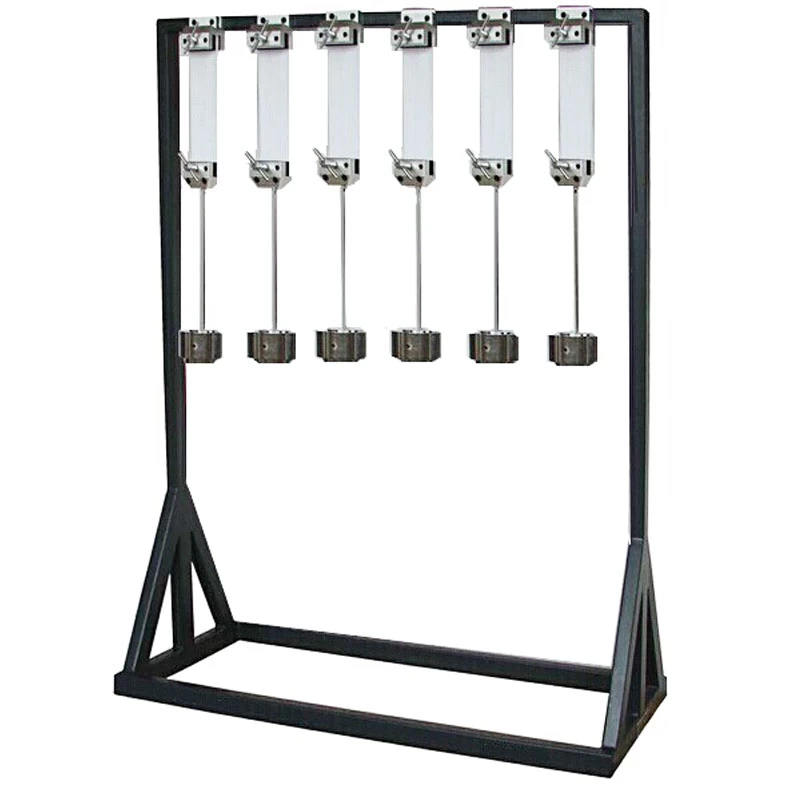

AG38-2-ASTM D3107 Fabric Stretch & Recovery Tester
Application Of ASTM D3107 Fabric Stretch & Recovery Tester
ASTM D3107 Fabric Stretch & Recovery Tester is suitable for testing the static elongation and permanent elongation of fabrics, films, artificial leather and insulating materials under certain conditions.
Feature Of ASTM D3107 Fabric Stretch & Recovery Tester
-
Static elongation: The difference between the measured length of the sample (before the additional load) under static (constant) time-dependent tensile stress and the original gauge length of the sample.
-
Permanent elongation: After the static elongation test is done, the difference between the length and the original measured length is measured at the specified time (30 min) under the unloaded state.
Key Specification Of ASTM D3107 Fabric Stretch & Recovery Tester
|
Model
|
AG38-2 ASTM D3107 Fabric
Stretch & Recovery Tester
|
|
Test positions
|
6
|
|
Gripper material
|
Aluminum alloy
|
|
Weight load
|
3 pounds, 4 pounds and 5 pounds(can be customized)
|
|
Gripper effective clamping width
|
≥ 80mm
|
|
Gripper spacing
|
0-300mm adjustable
|
|
Weight hook length
|
280mm
|
|
Dimensions
|
120x60x165 cm
|
