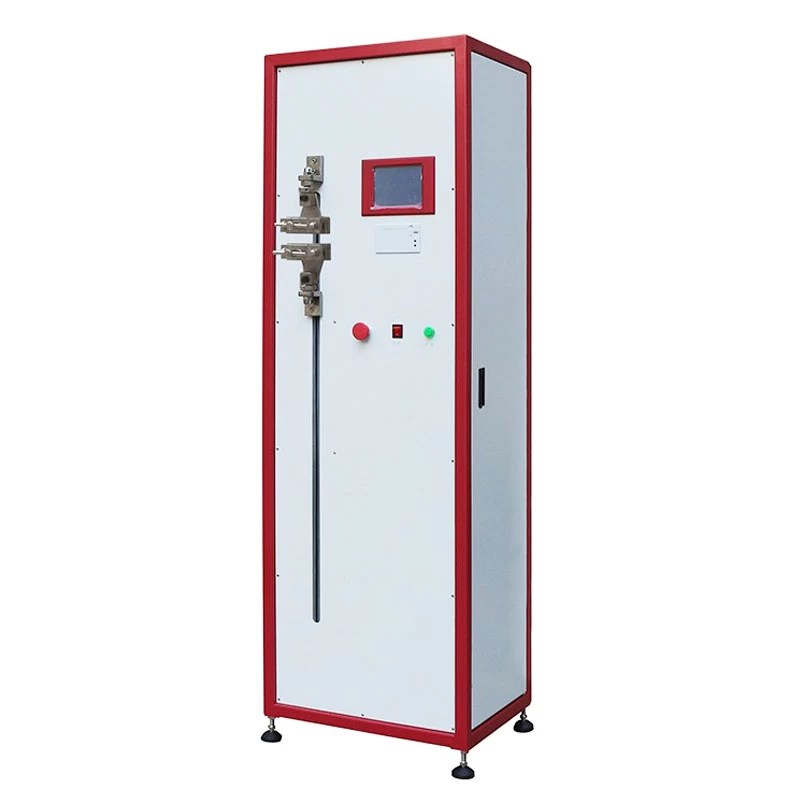

AG39-Electronic Elastic Strength Tester
Application Of Electronic Elastic Strength Tester
Electronic Elastic Strength Tester is used to test the elastic properties of various socks, knitted underwear, woven fabrics, spandex, spandex cored wire, slings and elastic bands.
Feature Of Electronic Elastic Strength Tester
-
Powerful data query function, the data and curves can be directly viewed.
-
Built-in multiple test parameter settings, suitable for testing of different samples.
-
Automatic positioning of the clamping distance.
-
Automatically correct the parameter setting error.
-
Connecting to computer is available, and equipped with expert analysis system.
-
Sample testing and data processing software using multi-threaded processing, which makes quick test.
Standards Of Electronic Elastic Strength Tester
FZ/T 01034, FZ/T 01062, ASTM D4964, BS 4592
Key Specification Of Electronic Elastic Strength Tester
|
Model
|
AG39 Electronic Elastic Strength
Tester
|
|
Force
measurement range
|
Model
|
AG39 -5
|
AG39 -50
|
|
Full scale
|
50N
|
500N
|
|
Measurement range
|
1% to 100% of full scale
|
|
Working
mode
|
CRE principle,
microcomputer control, LCD display, can be connected to computer
|
|
Sampling
frequency
|
1000 times / sec
|
|
Test
accuracy
|
≤0.2%F·S
|
|
Stretching
speed
|
50 ~ 1000mm / min
|
|
Max.elongation
|
800mm
|
|
Elongation
resolution
|
0.01mm
|
|
Power
supply
|
AC220V 50/60HZ
|
|
Dimensions
|
52 x40 x160cm
|
|
Weight
|
60Kg
|
