Australian Saudi Style Rolling Shutter Door Machine

Australian & Saudi Style Rolling Shutter Door Machine with low noise than normal  Rolling Shutter Door Machine.

The complete door roll forming machine line includes decoiler, main machine, computer controlling system and run out tables.

Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer

and the door machine produces it automatically. The machines are easy to operate and running stable.




          Australian Saudi Style Rolling Shutter Door Machine



Australian & Saudi Style Rolling Shutter Door Machine




1.Main features of Australian & Saudi Style Rolling Shutter Door Machine




    The advantages of Ridge Cap machine are as follows:

    1.Able to produce two different profiles.

    2.Save spacemore convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable




2.Detailed Images of Australian Saudi Style Rolling Shutter Door Machine





    Machine Parts

        1) Australian Saudi Style Rolling Shutter Door Machine pre cutter

        Brand: BMS    Original: China


Australian Saudi Style Rolling Shutter Door Machine

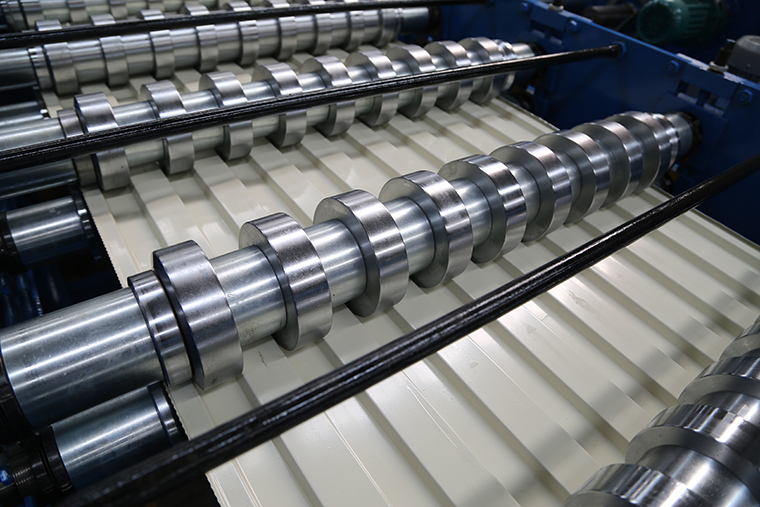

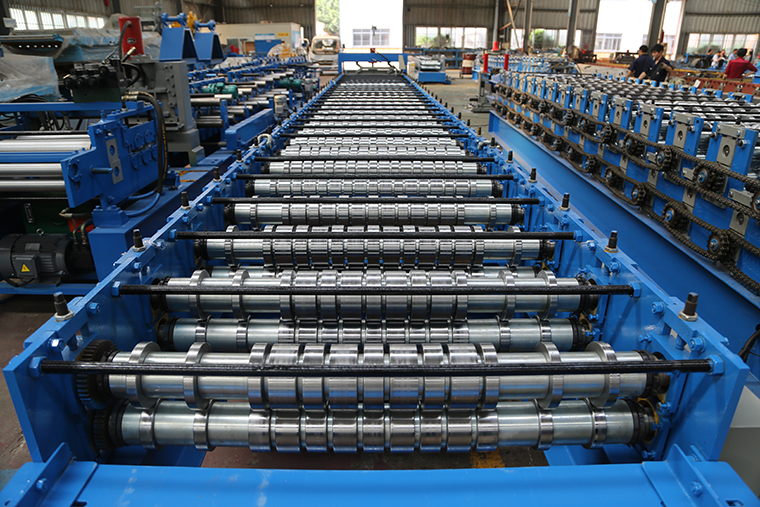

        2) Australian Saudi Style Rolling Shutter Door Machine  rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

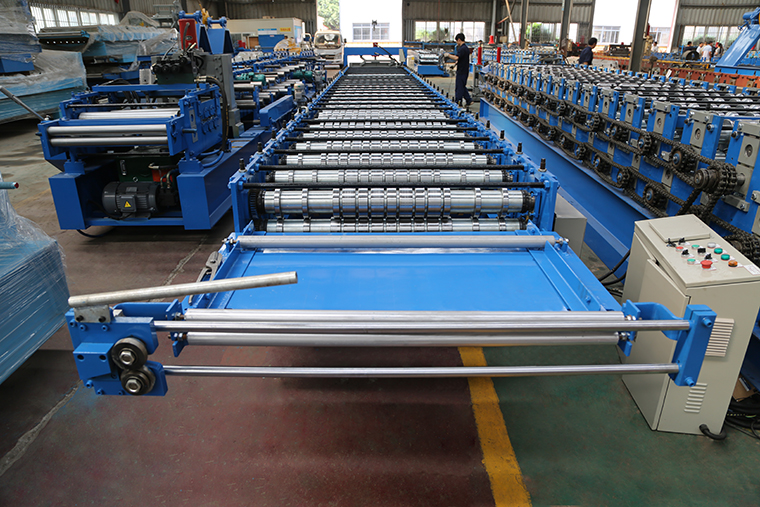

        With feeding material guide, body framemade from 400# H type steel by welding



Australian Saudi Style Rolling Shutter Door Machine


Australian Saudi Style Rolling Shutter Door Machine

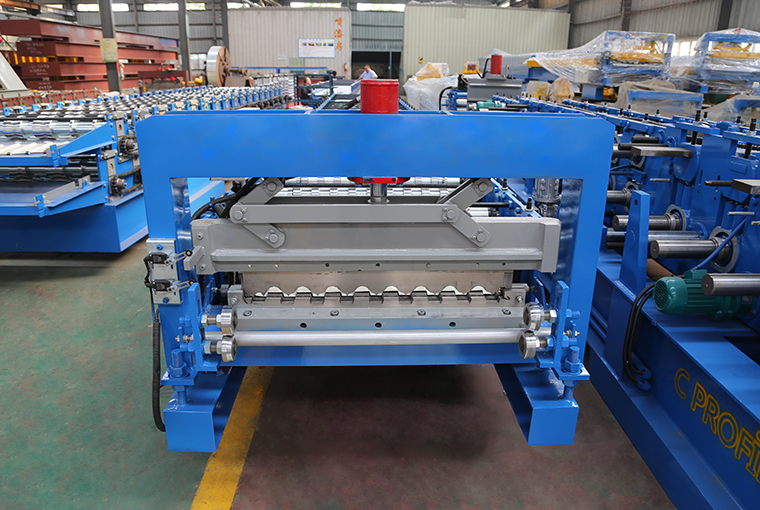

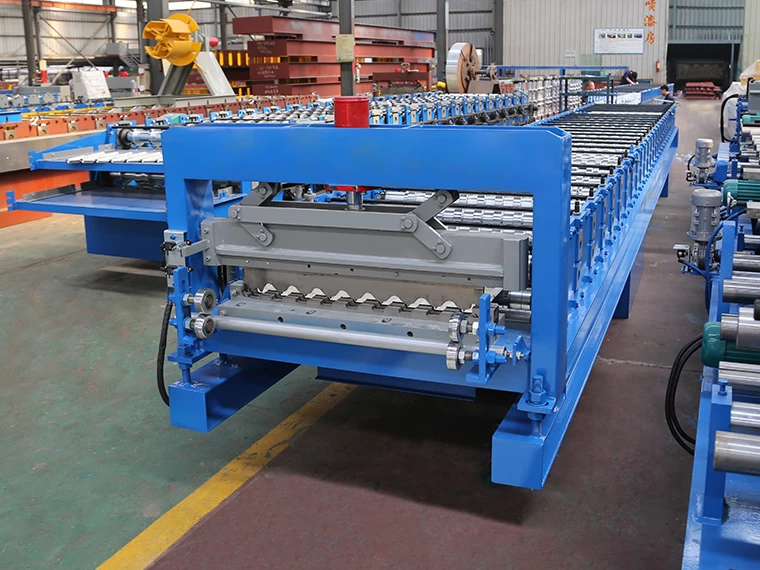

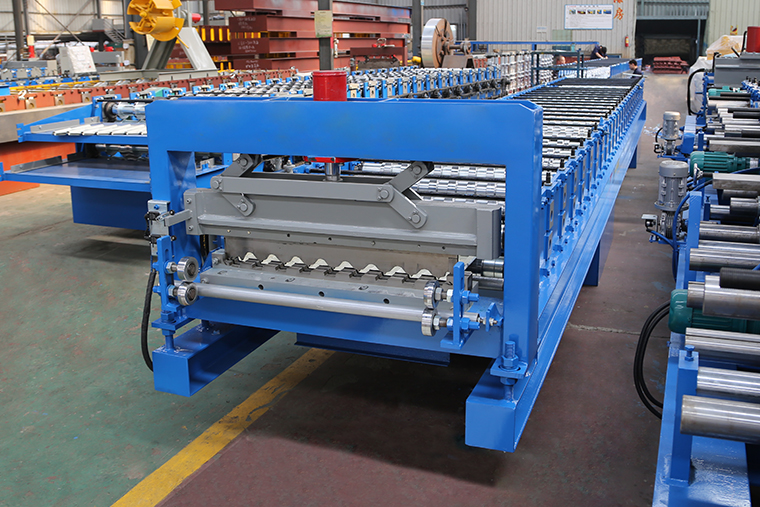

       3) Australian Saudi Style Rolling Shutter Door Machine  post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa



Australian Saudi Style Rolling Shutter Door Machine

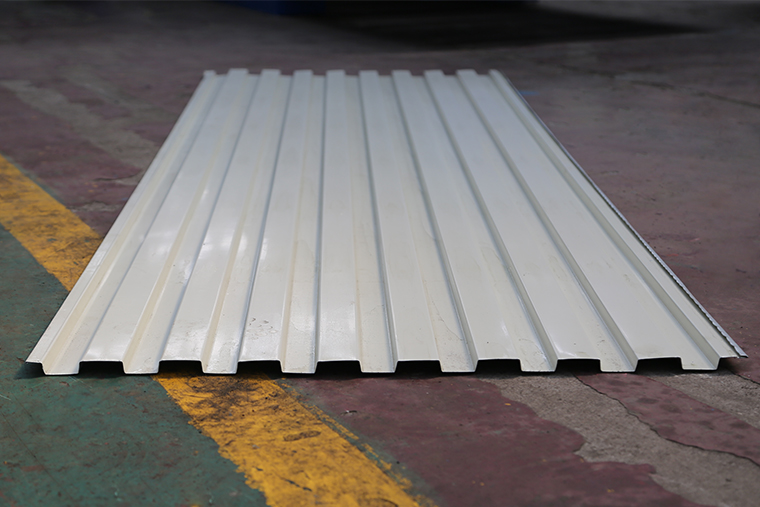

        4) Australian Saudi Style Rolling Shutter Door Machine  product show



 Australian Saudi Style Rolling Shutter Door Machine



        5) Australian Saudi Style Rolling Shutter Door Machine  decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 8 Ton

        With 6 tons hydraulic decoiler for option

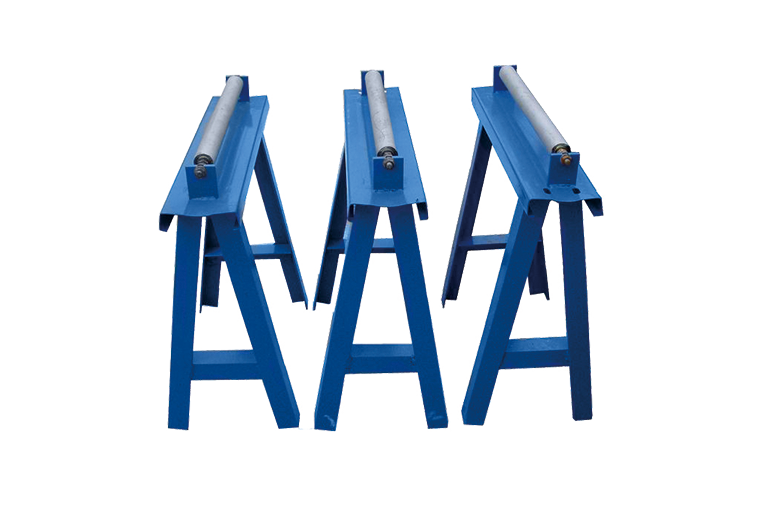

        6) Australian & Saudi Style Rolling Shutter Door Machine  run out table

        Un-powered,one unit






Other detailes of Australian Saudi Style Rolling Shutter Door Machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission,20 steps to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Shutter Door machine



1. The warranty of Australian Saudi Style Rolling Shutter Door Machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
