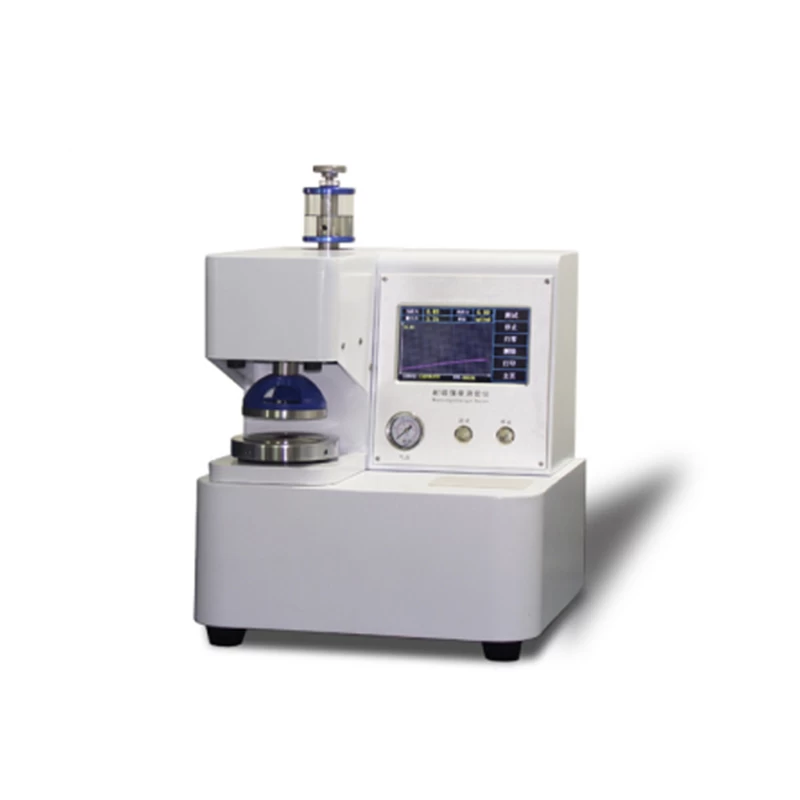

Automatic Bursting Strength Tester GT-N29D
Product Introduction
|
Application:
This Automatic Bursting Strength Tester was made according to Mullen Method. It is available to test a variety of paper. It also can be used for non-paper sheet materials' bursting, such as silk and cotton.
carton bursting strength tester has abundant functions, such as parameter testing, transformation, adjusting, display, storing and printing. It has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.
Perfect for paper, kraft paper, white cardboard, gray broad paper, single ply board paper, corrugating medium, freewood paper, toilet paper, aluminum foil, copper foil, cigarette case, and graphic carton.
Standards:
ISO2758, GB/T454 , TAPPI T403 |
Key Specifications
Model
|
GT-N29D
|
Testing Range
|
5-1400kpa
|
Testing Accuracy
|
0.01kpa
|
Accuracy Rating
|
≤0.5%
|
Deformation Error
|
≤1mm
|
Oil Feeding Speed
|
95±5ml/min
|
Dia. of Upper Plate
|
30.5±0.1mm
|
Dia. of Lower Plate
|
33.1±0.1mm
|
Intensity of Pressure (Rubber Diaphragm)
|
30±5kpa, when it at (9±0.2)mm
|
Holding Force
|
0-1200kpa (adjustable)
|
Units
|
kpa, kg/cm2, lb/in2
|
Printer
|
Thermal printer
|
Dimension
|
410×410×620mm
|
Weight
|
45kg
|
