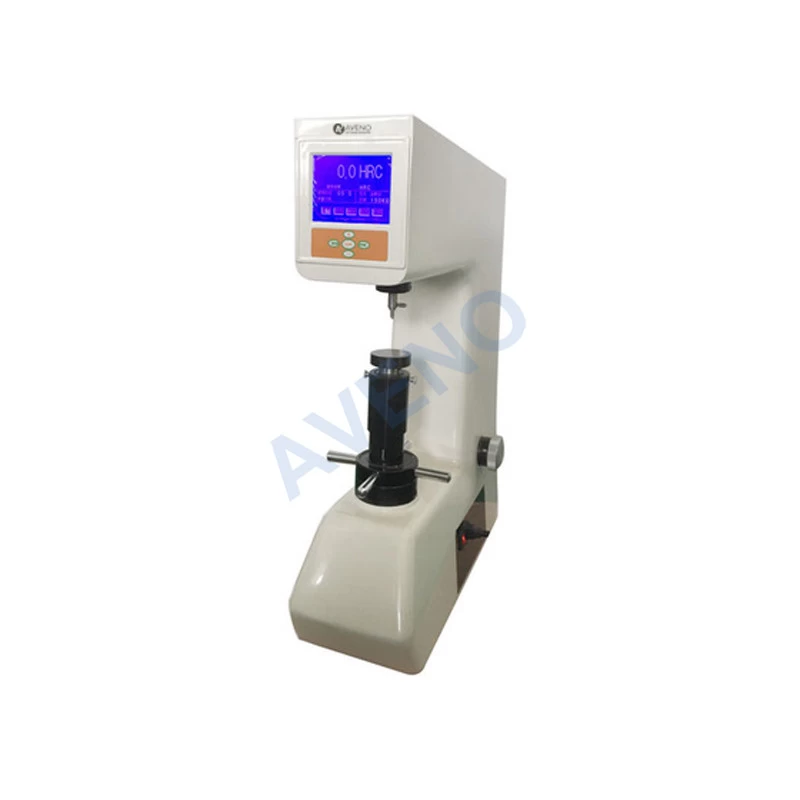

AF71-Automatic Rockwell Hardness Tester
Application Of Automatic Rockwell Dardness Tester
Using Rockwell's measurement principle, direct Rockwell hardness measurement. It has the characteristics of good structural rigidity, simple operation, stable indication and convenient maintenance. It is suitable for Rockwell hardness test of hard alloy, carbon steel, alloy steel, cast iron, non-ferrous metal and other materials.
Hardness Test Range Of Automatic Rockwell Hardness Tester
HRA:20-88, HRB:20-100, HRC:20-70, HRD :40-77, HRE :70-94, HRF :60-100, HRG :30-94, HRH :80-100 , HRK :40-100, HRL :100-120, HRM :85-110, HRR :114-125
Key Specification Of Automatic Rockwell Hardness Tester
|
Model
|
AF71 Automatic
Rockwell Hardness Tester
|
|
Control
mode
|
Touch
screen control
|
|
Initial
test force
|
10kgf(98.07N)
|
|
Total
test force
|
60kgf(588N),
100kgf(980N), 150kgf(1471N)
|
|
Precision
|
0.1HR
|
|
Holding
time
|
1-60s
|
|
Hardness
indicator reading mode
|
LCD
|
|
Maximum
height of sample
|
190mm
|
|
Head
center to fuselage distance
|
165mm
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
52*24*72cm
|
|
Weight
|
70kg
|
