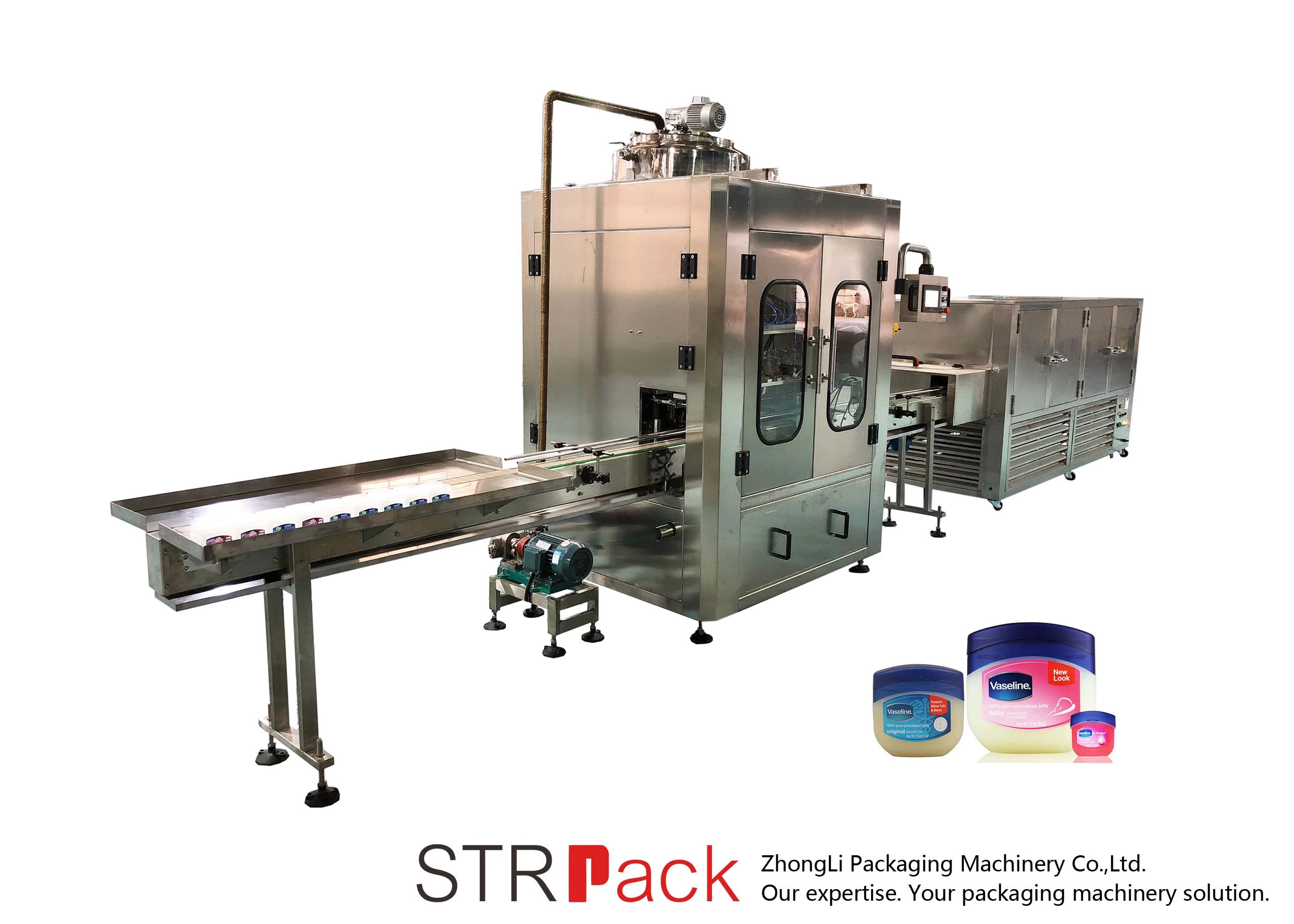

Automatic Vaseline Filling And Cooling Line
Brief Introduction:
This hot filling machine is special made
for filling product like wax, vaseline etc which need heating up before
filling.
Piston type , filling system is driven by servo motor which is accurate on the
filling volume and convenient of filling volume setting.
The whole filling system: product hopper, dosing system, filling nozzle all are
heatable for maintain product temperature.
And product contact parts of the machine is made up of 304 stainless steel( 316
stainless steel is available for optional)
Can connect with cooling tunnel after filling to cool down the product in the
bottle immediately.
Features:
Made by high quality 304 Stainless steel,
it is durable.
316 stainless steel product contact parts
is available for optional according to product features.
Dosing system is driven by servo motor, it
assure high filling accuracy.
Whole filing system is heatable
No bottle no fill.
Controlled by PLC and operation through touch screen.
Easy change over of different size bottles.
Quick-install connecting parts , it is easy to disassemble and clear machine.
Main Parameter:
|
Model
|
Unit
|
STRFRP
|
|
Nozzle Number
|
PCS
|
2
|
4
|
6
|
8
|
|
Filling volume
|
Ml
|
20-250ml /50-500ml
|
|
Production capacity
|
Bottle/h
|
1000-2000 pcs/Hour (
Depends on Filling volume)
|
|
Quantitative error
|
%
|
≤±1%
|
|
Voltage
|
V
|
380V/220V, 50Hz/60Hz
|
|
Power
|
KW
|
2.5
|
3.5
|
4.5
|
5.5
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
