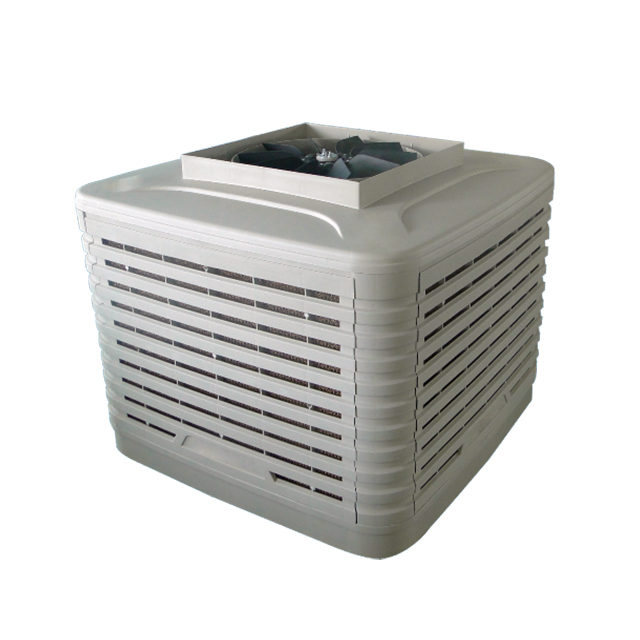

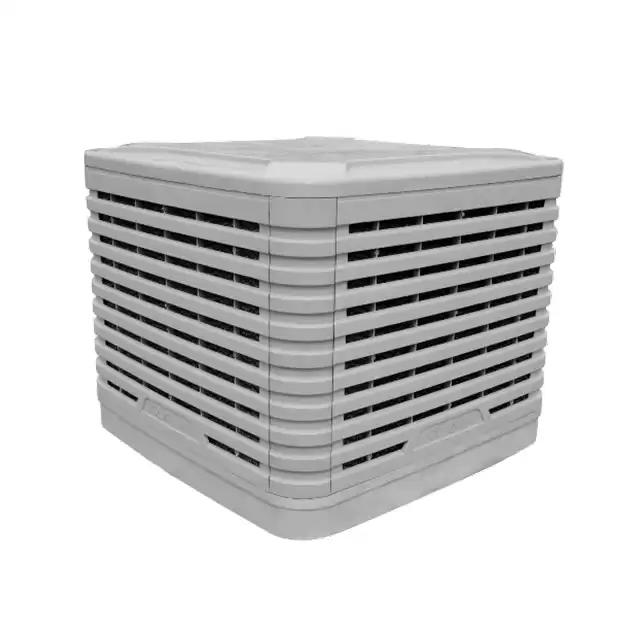

Wall Roof Mounting Air cooler Water air Cooler Conditioner air Cooler 10000 M3/h
This Industrial Evaporative Air Cooler features a UV-resistant, anti-corrosion engineering plastic shell for 10+ year durability. Key upgrades include a leak-minimizing hook louver side panel, easy-clean molded dust filter, and high-performance wood pulp cooling pads. It boasts a sealed aluminum-shell motor for heat dissipation and waterproofing, an anti-clog water distribution system, and high-airflow/low-noise operation. Safety is ensured by a flame-retardant low-water pump with thermal protection, with top/bottom/side air outlets for flexible installation.
Specification:
Model/Specs
|
AZL10-ZX10J |
| AZL10-ZS10J |
| X-down discharge,S-up discharge |
| Electric source |
110/220 /50-60(V/Hz) 1-phase |
| Power |
0.52KW |
| Rated Current |
2.8A |
| Airflow |
10000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
Multi-speed,Silicon Control |
| Pressure |
80Pa |
| Vent Size (L*W)(mm) |
555*555
|
| Noise |
≤65dBA |
| Dimension (L*W*H)(mm) |
1030*1030*643mm (down)
1030*1030*728mm (up)
|
| Pad Size (L*W*H)(mm) |
395*498*100mm |
| Net Weight (±3kg) |
52(down) 53(up)
|
| Operation Weight(kg) |
70(down) 71(up)
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
66(down/up/side) |
| QTY/SKD(40HQ) |
95(down)/88(up) |
Characteristics:

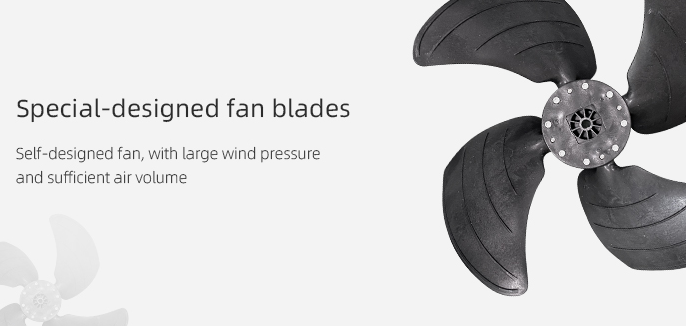

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume
Evaporative cooling pad with excellent material performance
Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of
evaporative cooling pad products.

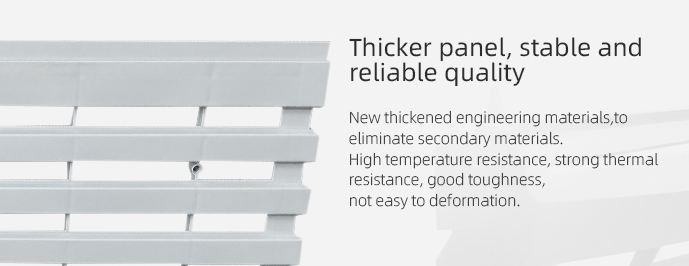

Thicker panel, stable and reliable quality
New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal
resistance, good toughness, not easy to deformation.

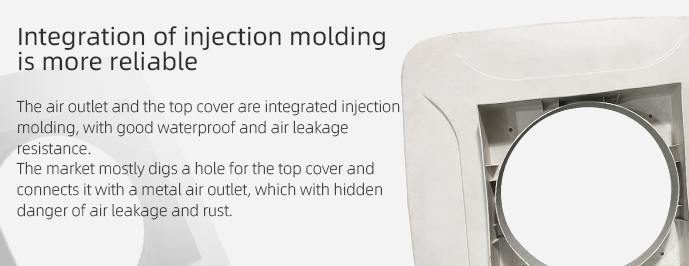

Integration of injection molding is more reliable
The air outlet and the top cover are integrated injection
molding, with good waterproof and air leakage resistance.

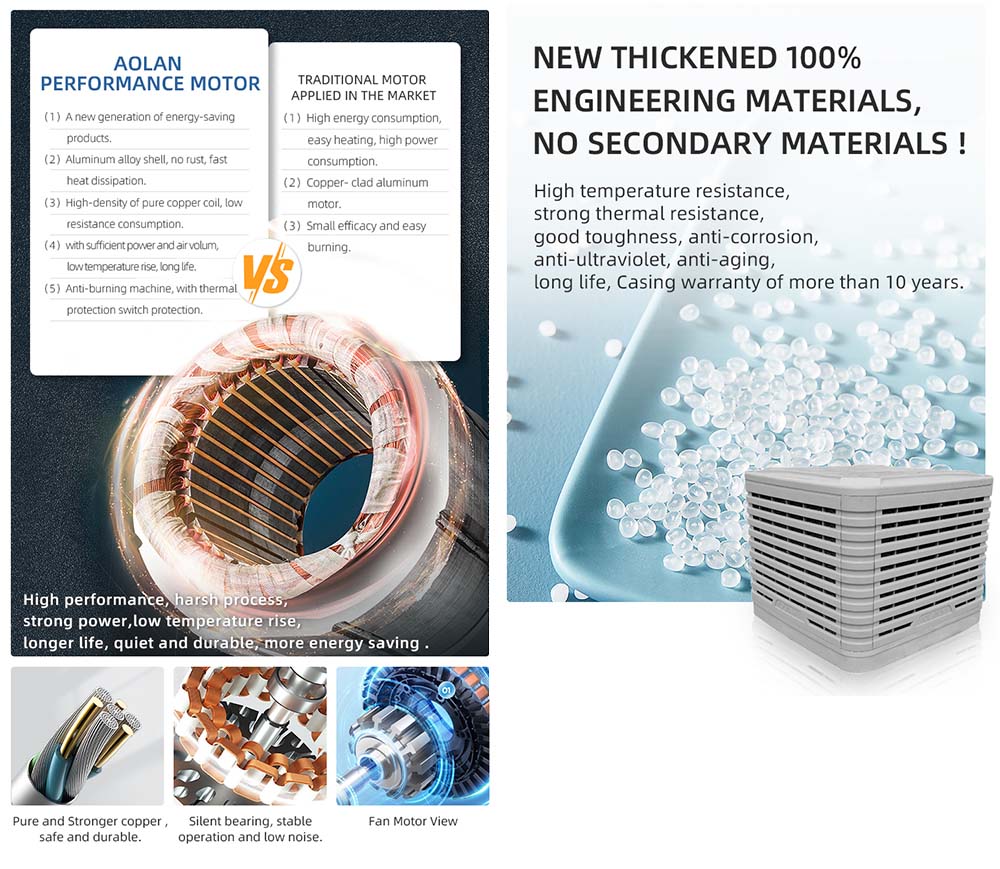

AOLAN PERFORMANCE MOTOR
1.A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.
2.High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.
3.Anti-burning machine, with thermat protection switch protection.
NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!
High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,
Casing warranty of more than 10 years.
More advantages:
1.Different fan speeds for choice: 1-phase variable-speed, 3-phase 1-spped or 2-speed.

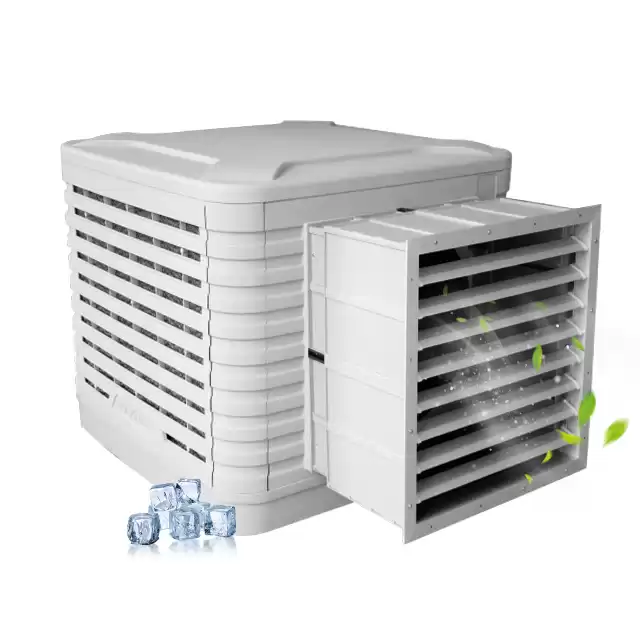

2.Different air discharges (top, down or side) meet different installation requirements.
3.Using LCD or standard controller, easy to operate.
4.Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
5.Fan impeller is special designed to allow large airflow but lower noise.
6.Motor applied is moistureproof, waterproof with tiny temperature rise.
7.Using automatic control water system and open type water distributor, water can flow smoothly and distributor is not easy to block.
8.Using high efficient evaporative pads with large evaporation capacity, good cooling efficiency and easy to clean.
