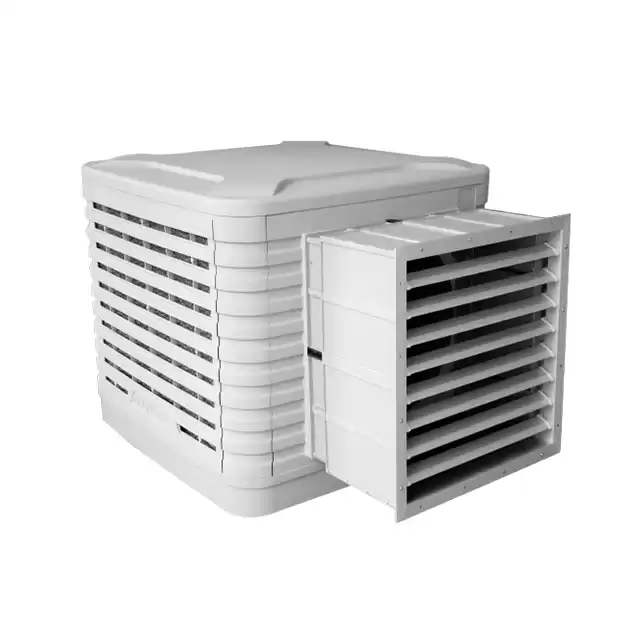

Multi-speed Eco-friendly Industrial Water Cooling Fan Evaporative Air Conditioners
Engineered for long-lasting industrial cooling, this Industrial Evaporative Air Cooler offers decade-plus durability with its weather/UV/corrosion-resistant plastic shell. Experience minimal water drift (upgraded hook louver), easy maintenance (removable filter, cleanable pads), and reliable performance (enclosed aluminum motor, clog-free water system). Operate safely (thermal-protected flame-retardant pump) and quietly with high air volume. Choose top, bottom, or side discharge to perfectly suit your space.
Specification:w
Model/Specs
|
AZL18-ZX10J |
| AZL18-ZS10J |
| AZL18-ZC10J |

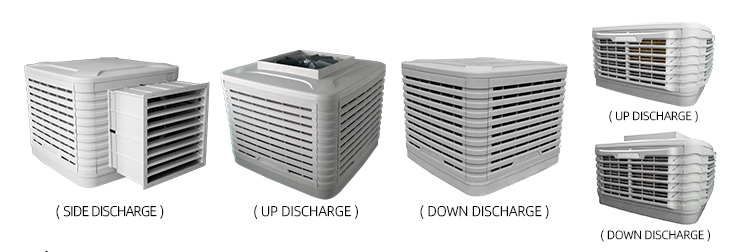

| X-down discharge,S-up discharge,C-side discharge |
| Electric source |
110/220 /50-60(V/Hz) 1-phase |
| Power |
0.75KW |
| Rated Current |
5.6A |
| Airflow |
18000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
Multi-speed,Silicon Control |
| Pressure |
160Pa |
| Vent Size (L*W)(mm) |
555*555 (down/up)
614*614（side）
|
| Noise |
≤65dBA |
| Dimension (L*W*H)(mm) |
1030*1030*883mm (down)
1030*1030*968mm (up)
1030*1345*883mm (side)
|
| Pad Size (L*W*H)(mm) |
638*738*100mm |
| Net Weight (±3kg) |
49(down) 53(up) 55(side)
|
| Operation Weight(kg) |
67(down) 71(up) 86(side)
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
44(down/up/side) |
| QTY/SKD(40HQ) |
87(down)/75(up)/85(side) |
Characteristics:

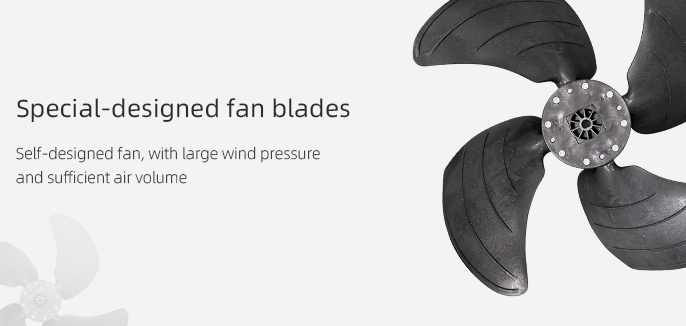

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

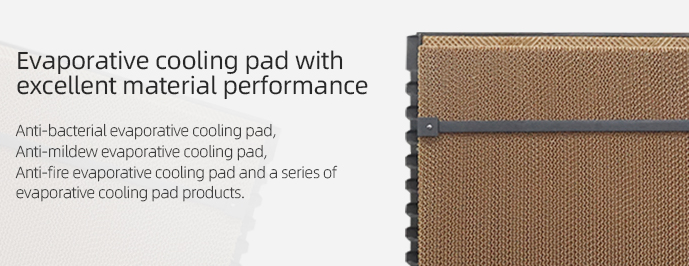

Evaporative cooling pad with excellent material performance
Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of
evaporative cooling pad products.

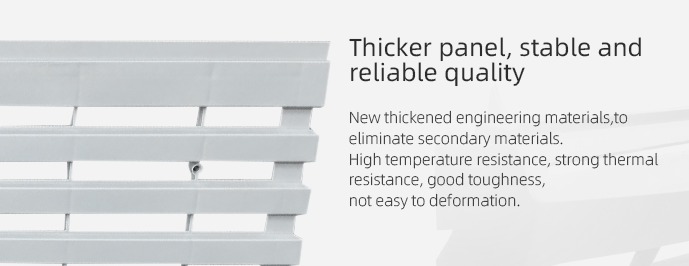

Thicker panel, stable and reliable quality
New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal
resistance, good toughness, not easy to deformation.

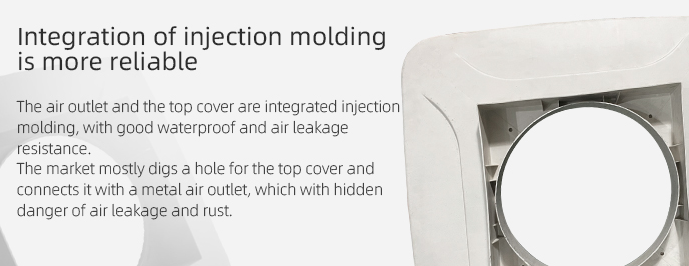

Integration of injection molding is more reliable
The air outlet and the top cover are integrated injection
molding, with good waterproof and air leakage resistance.

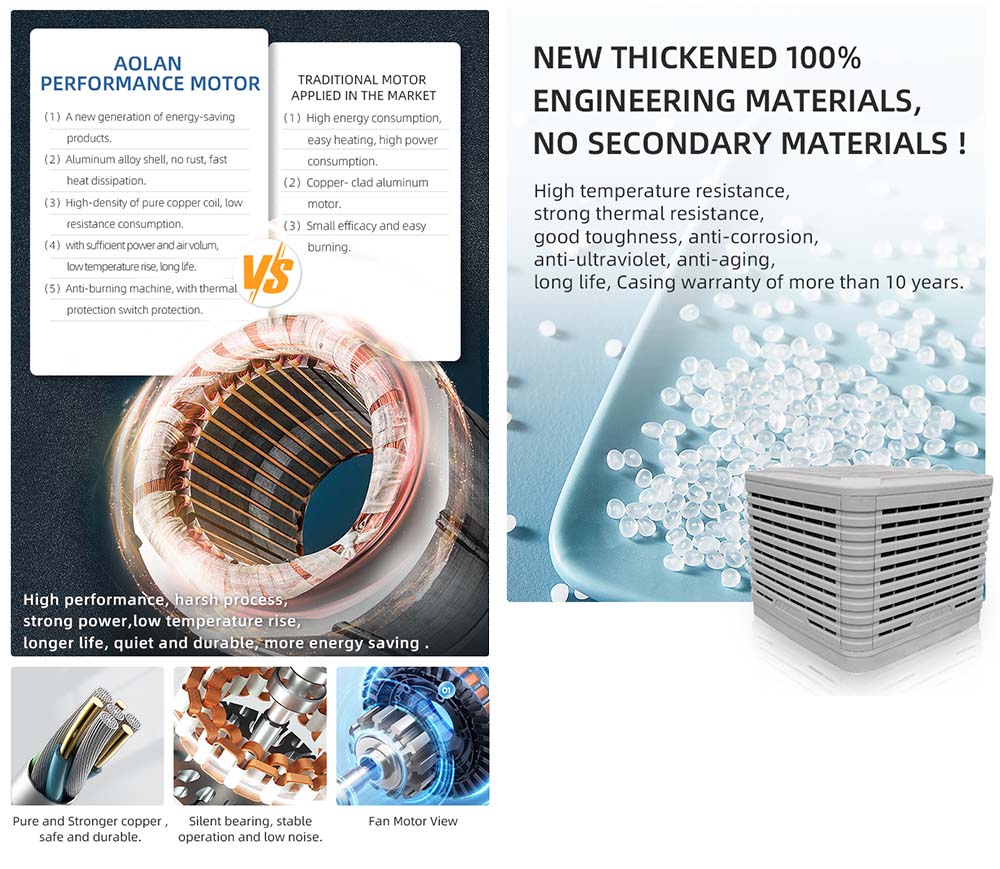

AOLAN PERFORMANCE MOTOR
1. A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.
2. High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.
3.Anti-burning machine, with thermat protection switch protection.
NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!
High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,
Casing warranty of more than 10 years.
More advantages:
1.Primary Function: Delivers powerful evaporative cooling for industrial settings.
2.Operational Characteristic: Operates quietly.
3.Shell Durability: Built with a 10-year durable, weatherproof plastic shell.
4.Leakage Prevention: Upgraded side panel with hook louver minimizes leakage.
5.Maintenance Features: Removable filter simplifies upkeep.
6.Cooling Pad Features: Wood pulp pads simplify upkeep.
7.Motor Protection: Aluminum-shell motor ensures heat dissipation and waterproofing.
8.Safety Pump: Flame-retardant low-water pump with thermal cutoff enhances safety.
9.Water System Reliability: Reliable anti-clog water system ensures consistent performance.
