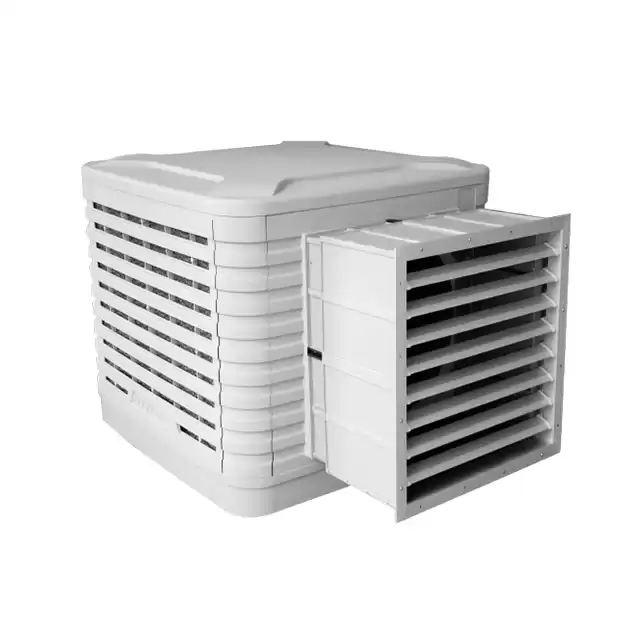

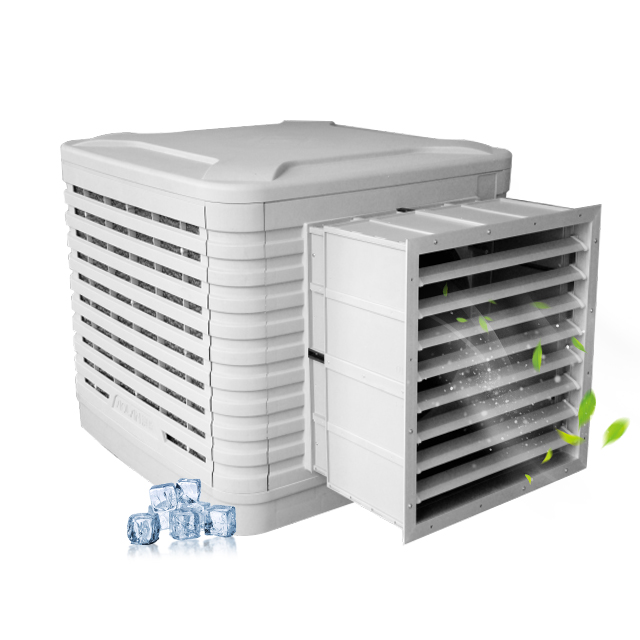

Outdoor Conditioner 18000cmh Industrial Evaporative Portable Air Cooler
Our Industrial Evaporative Air Cooler is constructed with high-strength, aging/UV/corrosion-resistant engineering plastic for >10-year structural integrity. It incorporates an upgraded side panel with lower hook louver to reduce drift/leakage, a molded removable dust filter, efficient cleanable wood pulp fiber pads, and a fully enclosed aluminum-shell motor for optimal cooling/moisture protection. Equipped with automatic water control, an open distributor for even flow, high-airflow/low-noise operation, a thermally protected flame-retardant pump, and multi-directional air outlets (top/bottom/side).
Specification:
Model/Specs
|
AZL18-ZX10JG |
| AZL18-ZS10JG |
| AZL18-ZC10JG |

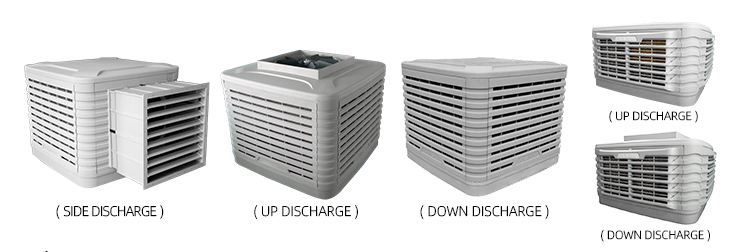

| X-down discharge,S-up discharge,C-side discharge |
| Electric source |
110/220 /50-60(V/Hz) 1-phase |
| Power |
0.75KW |
| Rated Current |
4.0A |
| Airflow |
18000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
Multi-speed,Inverter |
| Pressure |
160Pa |
| Vent Size (L*W)（mm） |
555*555 (down/up)
614*614（side）
|
| Noise |
≤65dBA |

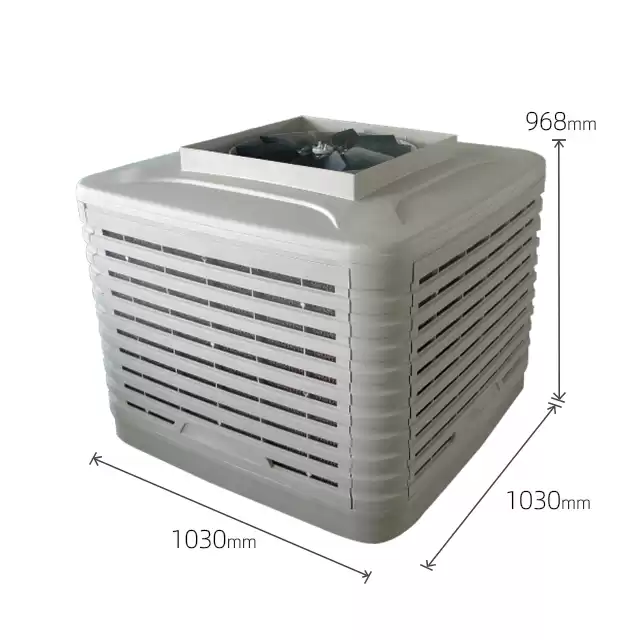

| Dimension (L*W*H)（mm） |
1030*1030*883mm (down)
1030*1030*968mm (up)
1030*1345*883mm (side)
|
| Pad Size (L*W*H)（mm） |
638*738*100mm |
| Net Weight (±3kg) |
49(down) 53(up) 55(side)
|
| Operation Weight(kg) |
67(down) 71(up) 73(side)
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
44(down/up/side) |
| QTY/SKD(40HQ) |
87(down)/75(up)/85(side) |
Characteristics:

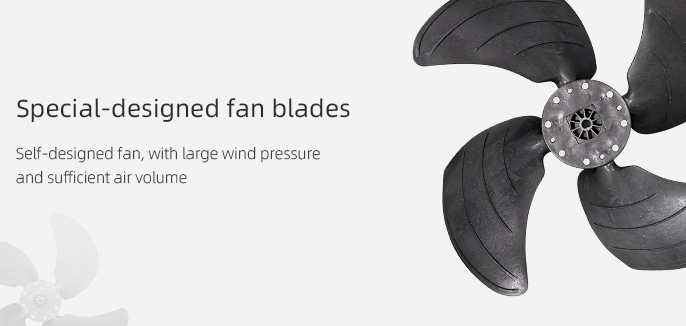

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

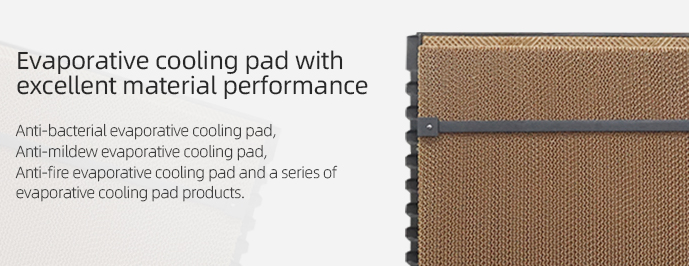

Evaporative cooling pad with excellent material performance
Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of
evaporative cooling pad products.

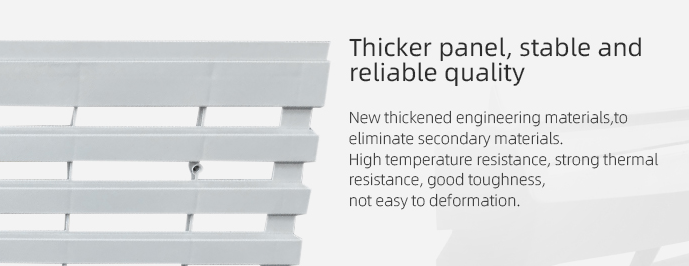

Thicker panel, stable and reliable quality
New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal
resistance, good toughness, not easy to deformation.

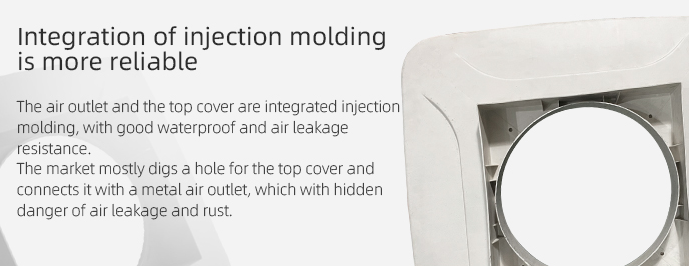

Integration of injection molding is more reliable
The air outlet and the top cover are integrated injection
molding, with good waterproof and air leakage resistance.
AOLAN PERFORMANCE MOTOR
1.A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.
2.High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.
3.Anti-burning machine, with thermat protection switch protection.
NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!
High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,
Casing warranty of more than 10 years.
More advantages:
1.Durable Shell: High-strength plastic, weather/UV/corrosion resistant, 10+ year life.
2.Upgraded Leak Control: Side panel with lower hook louver.
3.Easy Maintenance: Removable molded dust filter, easy-to-clean wood pulp fiber cooling pads.
4.Protected Motor: Fully enclosed aluminum shell for heat dissipation and waterproofing.
5.Water System: Automatic control, open distributor, anti-clog, even flow.
6.Performance: High air volume, low noise, stable.
7.Safety Features: Low-water-level foot pump, flame-retardant housing, thermal protection switch.
8.Installation Flexibility: Top, bottom, and side air outlet options.
