Without freon Cheapest High Quality Evaporative air Cooler air Cooler Water
This Industrial Evaporative Air Cooler delivers powerful, quiet cooling for industrial settings, built to last with a 10-year durable weatherproof shell. Its upgraded hook louver panel minimizes leakage, while the removable filter and wood pulp pads simplify upkeep. Critical protection includes an aluminum-shell motor (heat dissipation/waterproofing) and a flame-retardant pump with thermal cutoff. The anti-clog water system ensures consistent performance, with top/bottom/side discharge for optimal airflow direction.
Specification:w
Model/Specs
|
AZL18-ZX31J |
| AZL18-ZS31J |
| AZL18-ZC31J |

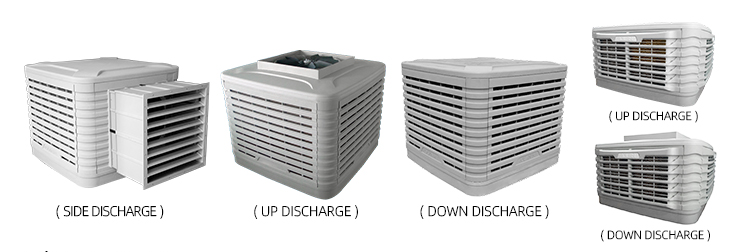

| X-down discharge,S-up discharge,C-side discharge |
| Electric source |
380-415 /50-60(V/Hz) 3-phase |
| Power |
0.75KW |
| Rated Current |
2.3A |
| Airflow |
18000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
3-phase,1-Speed |
| Pressure |
160Pa |
| Vent Size (L*W)（mm） |
555*555 (down/up)
614*614（side）
|
| Noise |
≤65dBA |

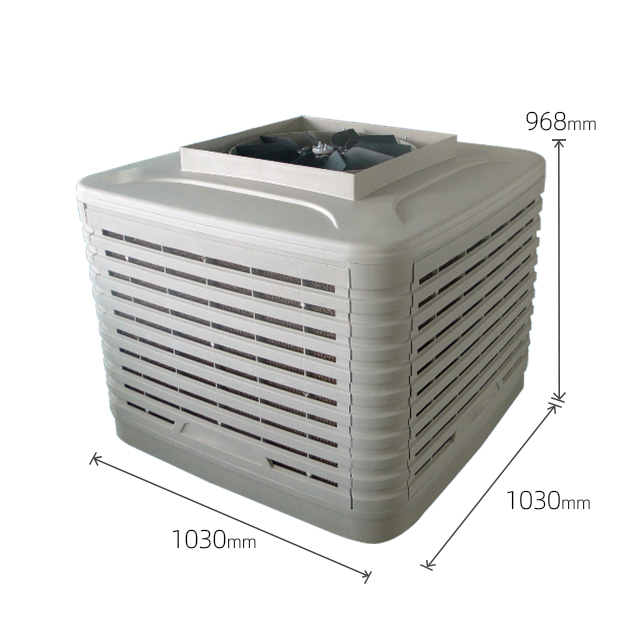

| Dimension (L*W*H)（mm） |
1030*1030*883mm (down)
1030*1030*968mm (up)
1030*1345*883mm (side)
|
| Pad Size (L*W*H)（mm） |
638*738*100mm |
| Net Weight (±3kg) |
49(down) 53(up) 55(side)
|
| Operation Weight(kg) |
67(down) 71(up) 73(side)
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
44(down/up/side) |
| QTY/SKD(40HQ) |
87(down)/75(up)/85(side) |
Characteristics:

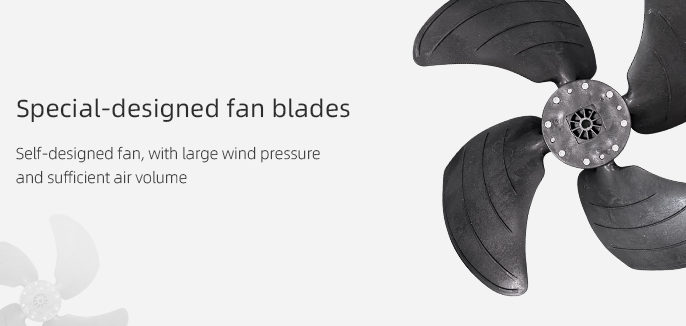

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume
Evaporative cooling pad with excellent material performance
Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of
evaporative cooling pad products.
Thicker panel, stable and reliable quality
New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal
resistance, good toughness, not easy to deformation.

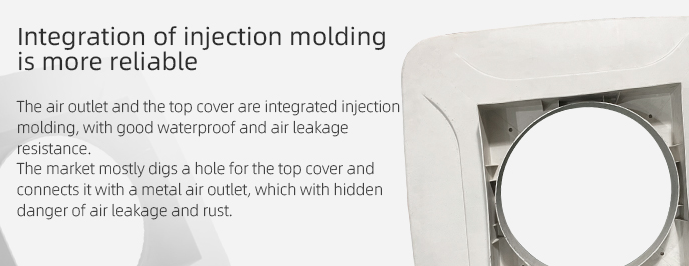

Integration of injection molding is more reliable
The air outlet and the top cover are integrated injection
molding, with good waterproof and air leakage resistance.
AOLAN PERFORMANCE MOTOR
1.A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.
2.High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.
3.Anti-burning machine, with thermat protection switch protection.
NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!
High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,
Casing warranty of more than 10 years.
More advantages:
1.Durable Shell Construction: Built with high-strength engineering plastic resistant to aging, UV rays, and corrosion.
2.Long Structural Integrity: Designed to maintain structural integrity and shape for over 10 years.
3.Upgraded Leakage Control: Incorporates an upgraded side panel featuring a lower hook louver to minimize water drift and leakage.
4.Removable Dust Filter: Includes a molded dust filter that is easy to remove and maintain.
5.High-Efficiency Cooling Pads: Utilizes efficient evaporative cooling pads made from cleanable wood pulp fiber for strong cooling performance.
6.Protected Motor: Equipped with a fully enclosed aluminum-shell motor providing superior heat dissipation and moisture/waterproof protection for long-lasting operation.
7.Automated Water Management: Features an automatic water control system.
8.Anti-Clog Water Distribution: Employs an open water distributor to ensure smooth, even water flow without clogging.
9.Performance & Safety Features:
(1).High air volume delivery with low noise and stable performance.
(2).Includes a low-water-level foot pump with a flame-retardant housing and a thermal protection switch for enhanced safety.

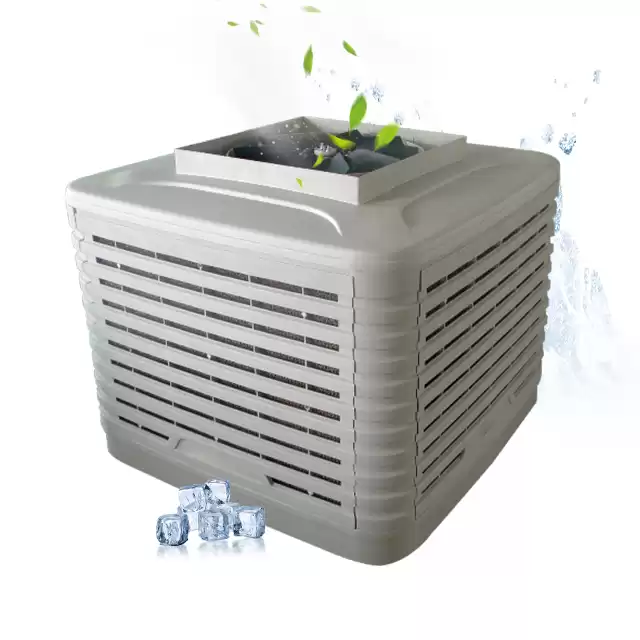

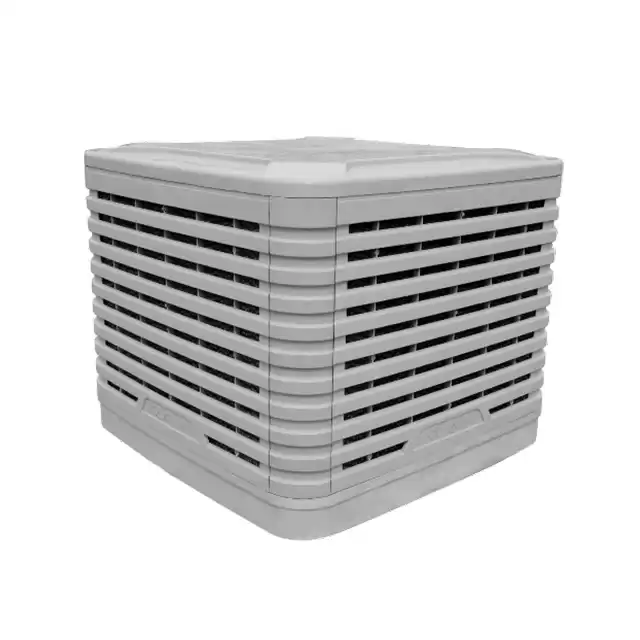

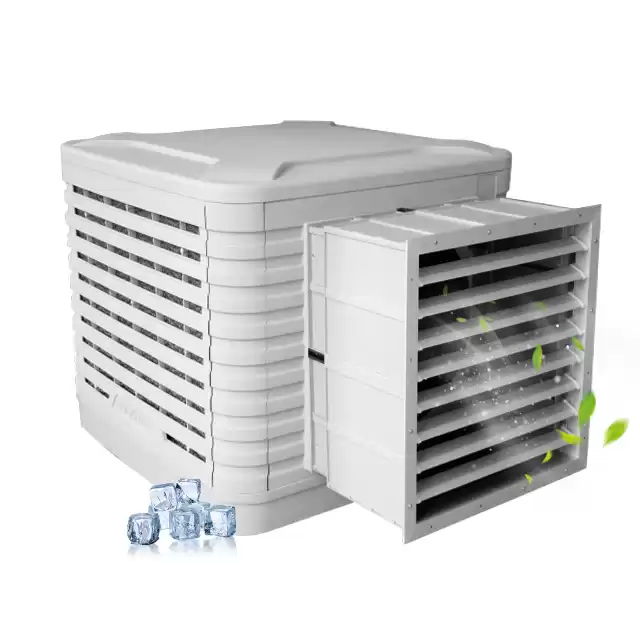

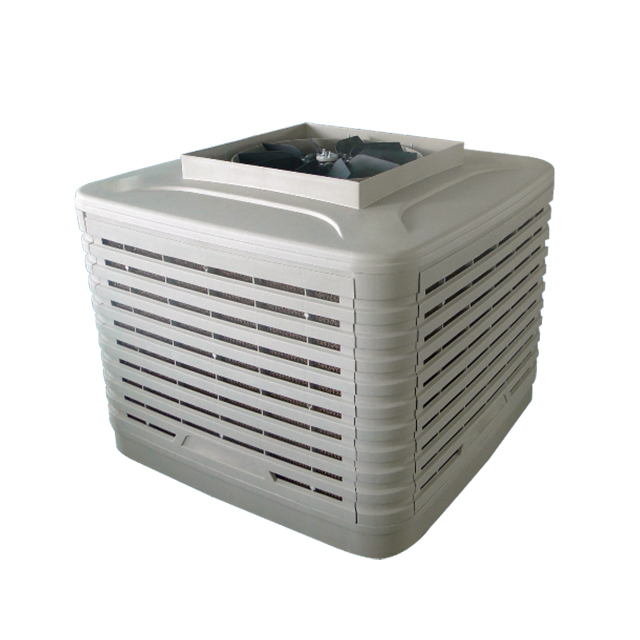

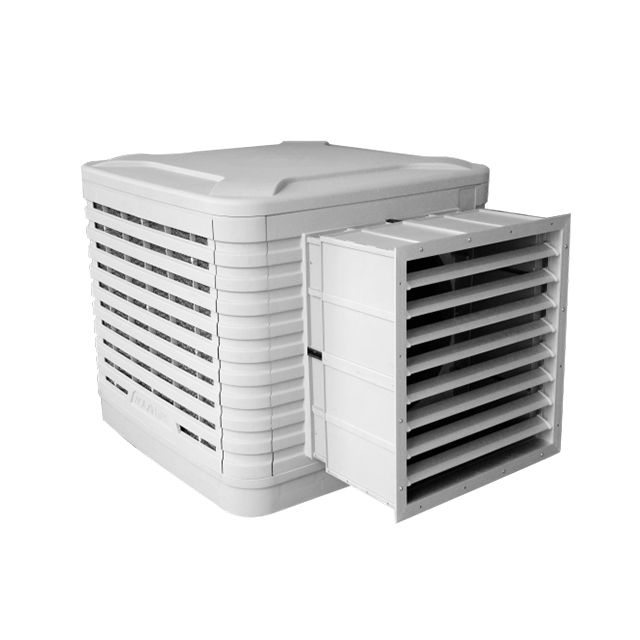

10.Flexible Air Outlet Options: Offers top, bottom, and side air outlet configurations to suit various installation needs.
