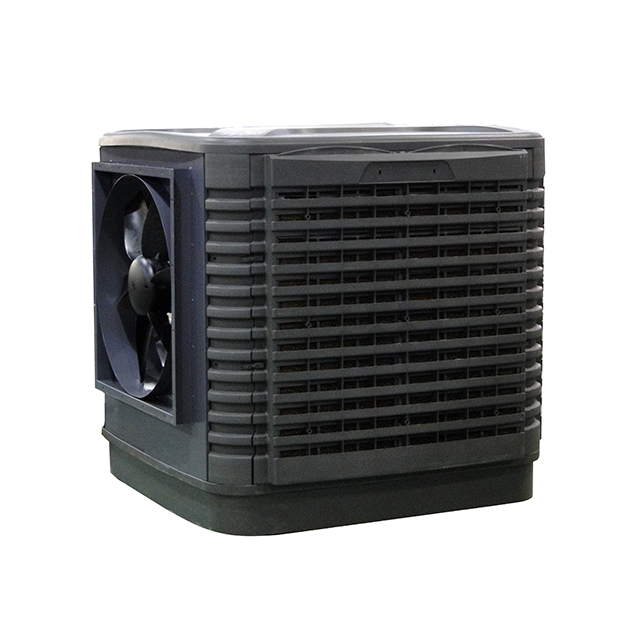

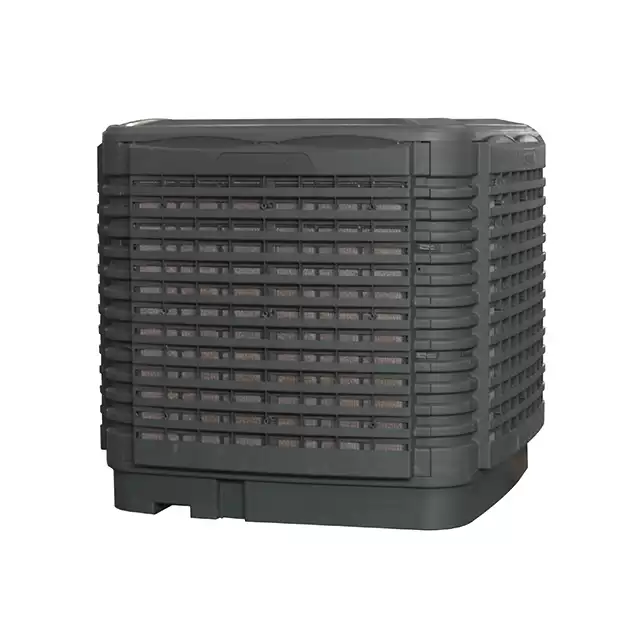

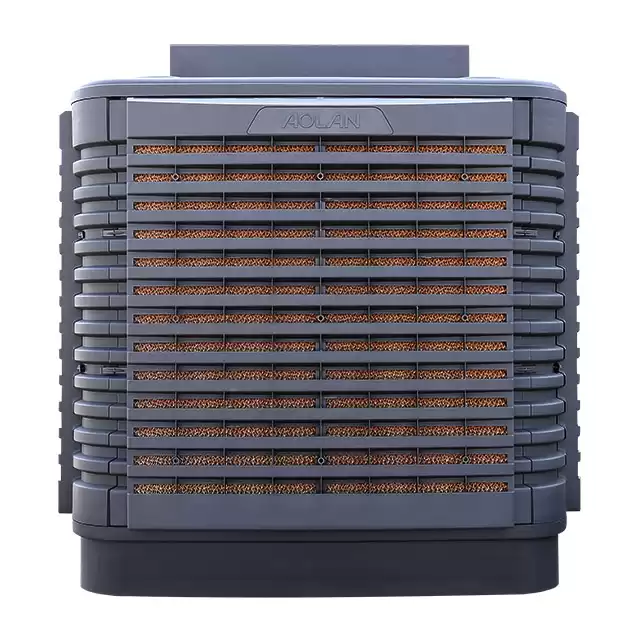

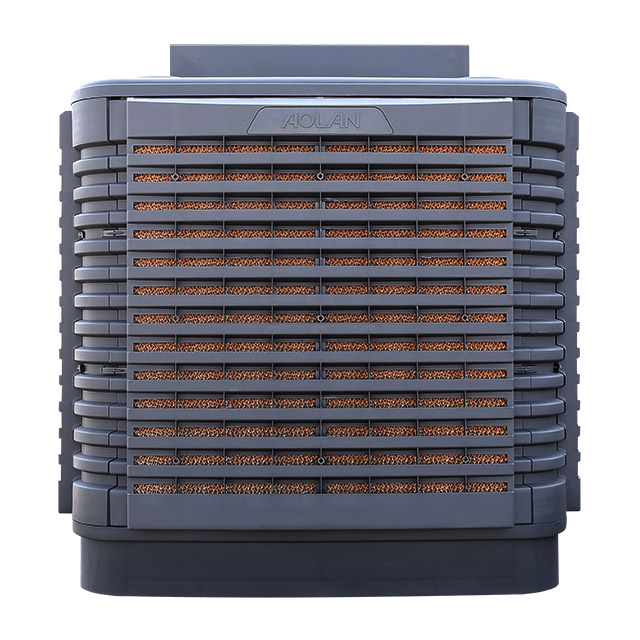

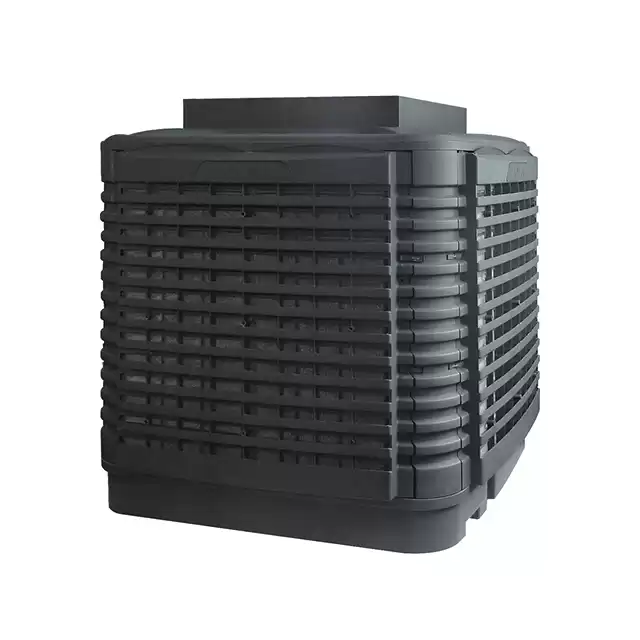

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System
This industrial evaporative air cooler is built with a high-strength, weather-resistant engineering plastic shell that resists aging, UV rays, and corrosion—ensuring durability and shape retention for over ten years. It features an upgraded side panel with a lower hook louver to minimize water drift and leakage. The molded dust filter is easy to remove and maintain, while the high-efficiency evaporative cooling pads, made from raw wood pulp fiber, provide strong cooling performance and are easy to clean.
Equipped with a fully enclosed aluminum-shell motor for superior heat dissipation and waterproof protection, the unit offers long-lasting, moisture-resistant operation. Its automatic water control system and open water distributor ensure smooth, even water flow without clogging. Designed for high air volume with low noise and stable performance, it also includes a low-water-level foot pump with a flame-retardant housing and thermal protection switch for enhanced safety. Top, bottom, and side air outlet options are available to suit various installation needs.
Specification:
Model/Specs
|
AZL30-ZX30C |
| AZL30-ZS30C |
| AZL30-ZC30C |

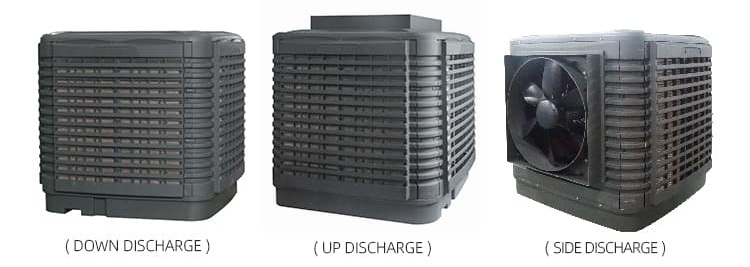

| X-down discharge,S-up discharge,C-side discharge |
| Electrical source |
380-415/50-60(V/Hz) 3-phase |
| Power |
3.0KW |
| Rated Current |
7.1A |
| Airflow |
30000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
Multi-speed,Inverter |
| Pressure |
366Pa |
| Vent Size (L*W) |
765*765mm |
| Noise |
≤80dBA |

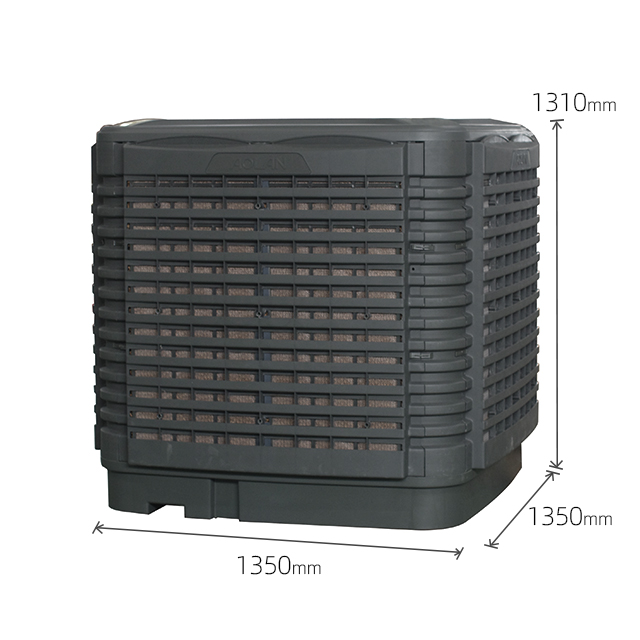

| Dimension (L*W*H) |
1350*1350*1310mm (down/side)
1350*1350*1426mm (up)
|
| Pad Size (L*W*H) |
970*886*100mm |
| Net Weight (±3kg) |
125(down)152(up)
161(side)
|
| Operation Weight(kg) |
180(down)207(up)
216(side)
|
| Controller |
LCD Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
9(down/up/side) |
| QTY/SKD(40HQ) |
45(down)/39(up)/42(side) |
Characteristics:

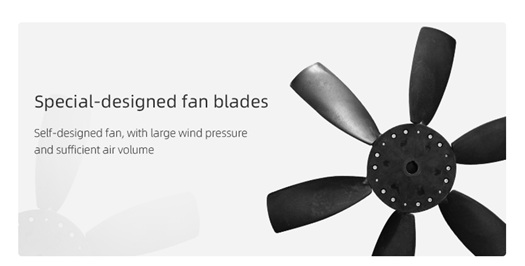

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

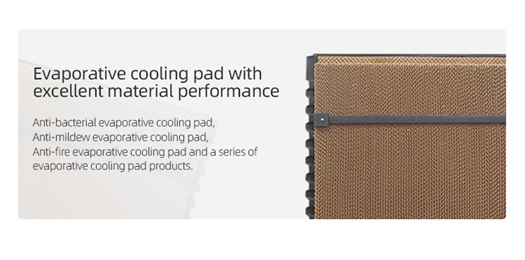

Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of evaporative cooling pad products.

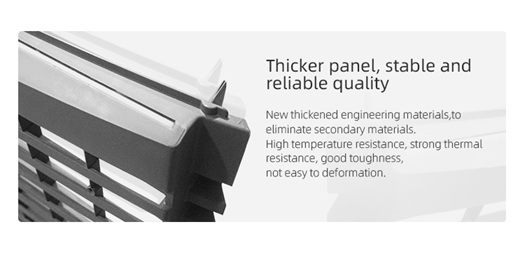

New thickened engineering materials,to eliminate secondary materials. High temperature resistance,
strong thermal resistance, good toughness, not easy to deformation.

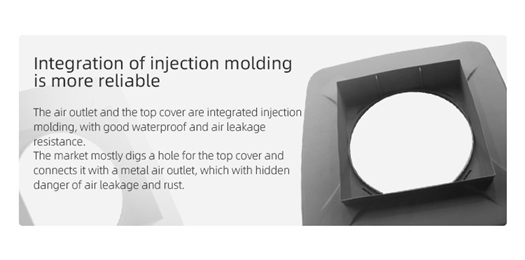

Air outlet and top cover are integrally injection-molded, ensuring good waterproofing and leak resistance.
Common designs use a cut-out top with metal outlets, which may cause air leakage and rust over time.
More advantages:
1. The shell is made of high-strength weather-resistant engineering plastics, anti-aging, anti-UV, anti-corrosion and no deformation, warranty for more than ten years.
2. New side panel, lower hook louver to prevent water drift and water leakage.
3. Equipped with a molded dust filter, easy to disassemble and maintain.
4. The Evaporative pads are made of raw wood pulp paper fiber composite, which is easy to clean and has a significant cooling effect.
5. Using high-quality fully enclosed aluminum shell motor, good heat dissipation, high insulation protection level, waterproof and moisture-proof.
6. Adopt automatic control water system, open water distributor, make the water flow even and smooth, not easy to block.
7. Large air supply, low noise, flat curve, high efficiency and wide working range.
8. Low water level high foot pump, flame retardant shell, built-in thermal protection switch, safe and reliable.
9. There are three types of air outlet, top, down and side to choose from.
