Toroidal common mode choke with base widely used in various switching power suppliers and high frequency electronic equipment. All materials are environmental protected. We accept custom made and design service.
Quick Details
|
Part Number: MCT B31V with Base Series Common Mode Choke
|
|
Brand name: MCT
|
|
Type: Choke Inductor, High requency
|
|
Custom made: Available
|
|
Testing frequency: 1KHz/0.25V
|
|
Logo: Can be customized
|
|
Operating temperature:-40°C~+105°C.
|
|
Shipping: Air, Ship, etc
|
|
Certification: ISO9001,ROHS,CE
|
|
MOQ: Any quantity
|
|
Lead time: 25 days after payment
|
|
OEM: Available
|
Part Information

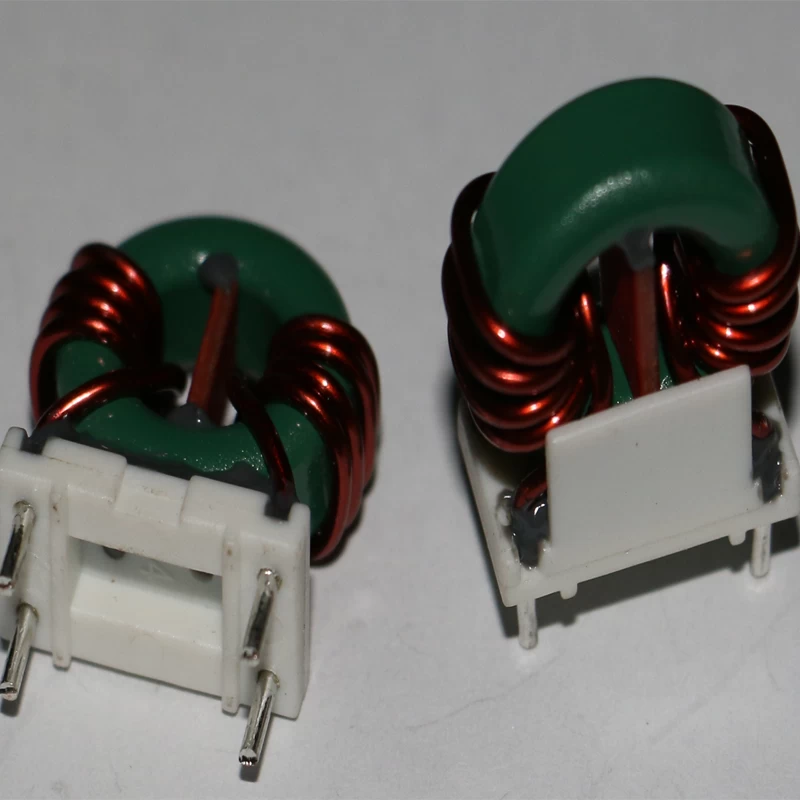

Product Name: B31V Magnetic Core Common Mode Inductor with Base
Applications: Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Typical electrical parameter
|
MCT Part No.
|
Inductance(mH) min
|
DC Resistance(Ω)max
|
Rated Current(A)
|
|
MCTB31V333A15
|
33.0
|
0.25
|
2.0
|
|
MCTB31V253A30
|
25.0
|
0.15
|
3.0
|
|
MCTB31V153A40
|
15.0
|
0.10
|
4.0
|
|
MCTB31V103A50
|
10.0
|
0.06
|
5.0
|
|
MCTB31V682A60
|
6.80
|
0.04
|
6.0
|
|
MCTB31V332A80
|
3.30
|
0.025
|
8.0
|
|
MCTB31V202AC0
|
2.00
|
0.010
|
12.0
|
|
MCTB31V102A14
|
1.00
|
0.006
|
20.0
|
We can decign it.If you have any requests, please contact us, we will give you fast reply
