High quality electronic components from ISO9001 factory, Hefei Mycoil Technology Co.,LTD. Toroidal common mode choke has high frequency and low power loss.
Quick Details
|
Part Number: MCT B42V with Base Series Common Mode Choke
|
|
Brand name: MCT
|
|
Type: Choke Inductor, High requency
|
|
Custom made: Available
|
|
Testing frequency: 1KHz/0.25V
|
|
Logo: Can be customized
|
|
Operating temperature: -40°C~+105°C.
|
|
Shipping: Air, Ship, etc
|
|
Certification: ISO9001,ROHS,CE
|
|
MOQ: Any quantity
|
|
Lead time: 25 days after payment
|
|
OEM: Available
|
Part Information

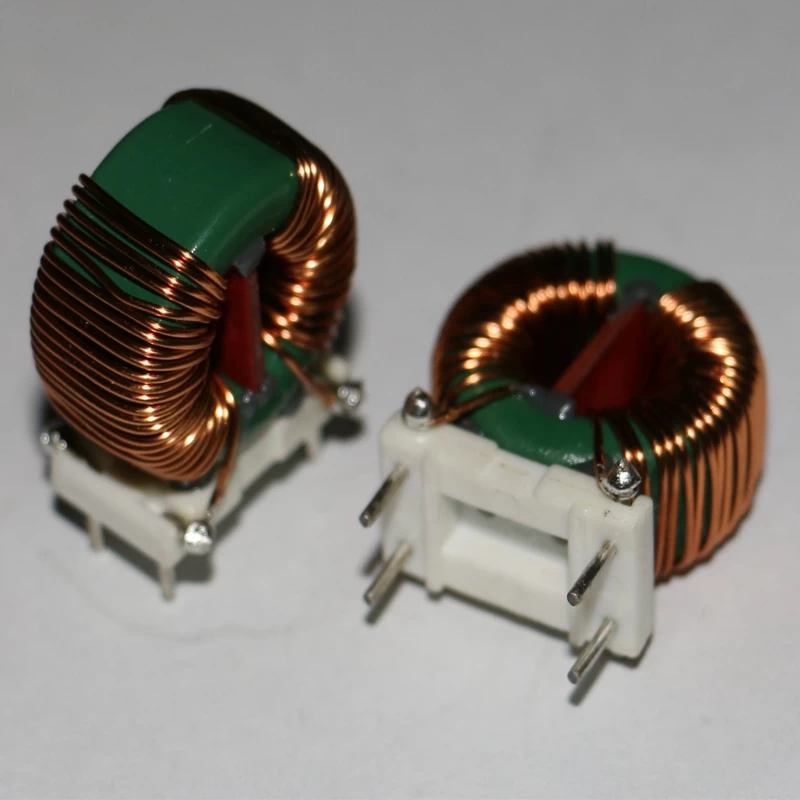

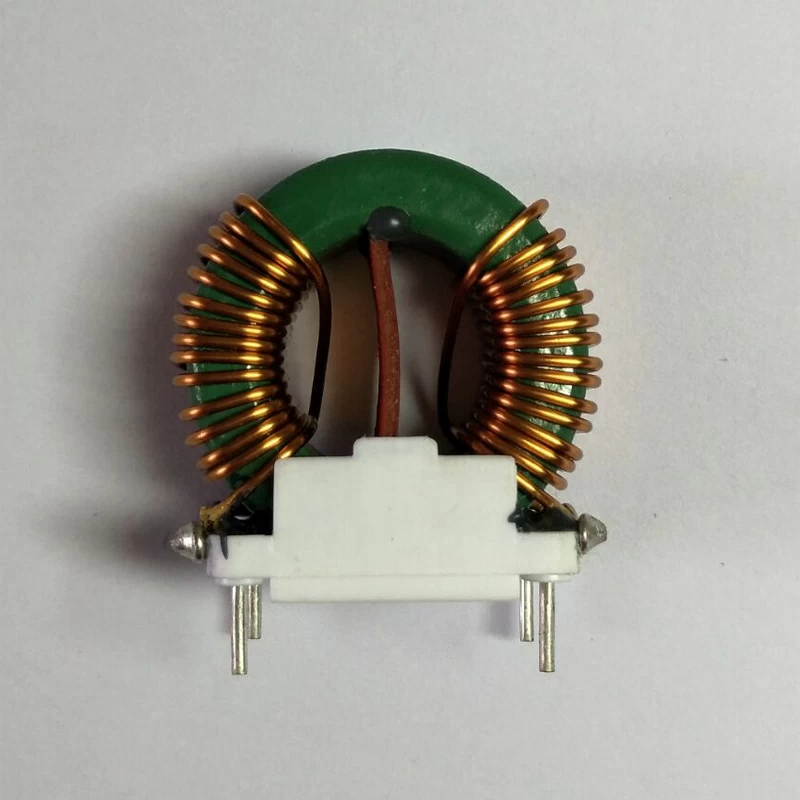

Product Name: B42V PCB Board Common Mode Choke Filter with Base
Applications: Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification

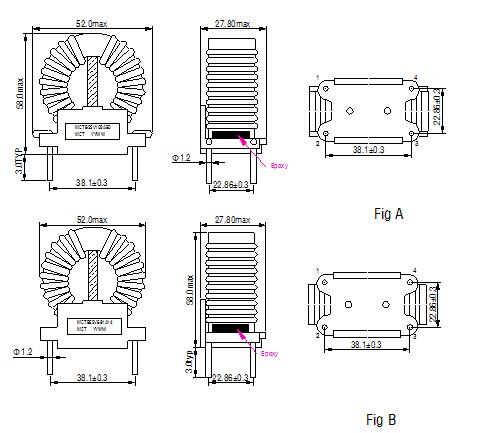

Both fig A and fig B dimension can choose. Dimension in mm Tolerance:±0.03
Typical electrical parameter
|
MCT Part No.
|
Inductance(mH) min
|
DC Resistance(Ω)max
|
Rated Current(A)
|
|
MCTB42V104A20
|
100.0
|
0.50
|
2.0
|
|
MCTB42V563A40
|
56.0
|
0.20
|
4.0
|
|
MCTB42V333A70
|
33.0
|
0.10
|
7.0
|
|
MCTB42V183AA0
|
18.0
|
0.05
|
10.0
|
|
MCTB42V103AF0
|
10.0
|
0.03
|
15.0
|
|
MCTB42V682AA1
|
6.80
|
0.02
|
17.0
|
|
MCTB42V422A14
|
4.20
|
0.015
|
20.0
|
|
MCTB42V302A19
|
3.00
|
0.012
|
25.0
|
|
MCTB42V222A1E
|
2.20
|
0.009
|
30.0
|
