Data Sheet: Bachmann EM203 – 3-Port Ethernet Master Module
Contact: ab@mooreplc.com | Same-day dispatch worldwide
1.Product Identity

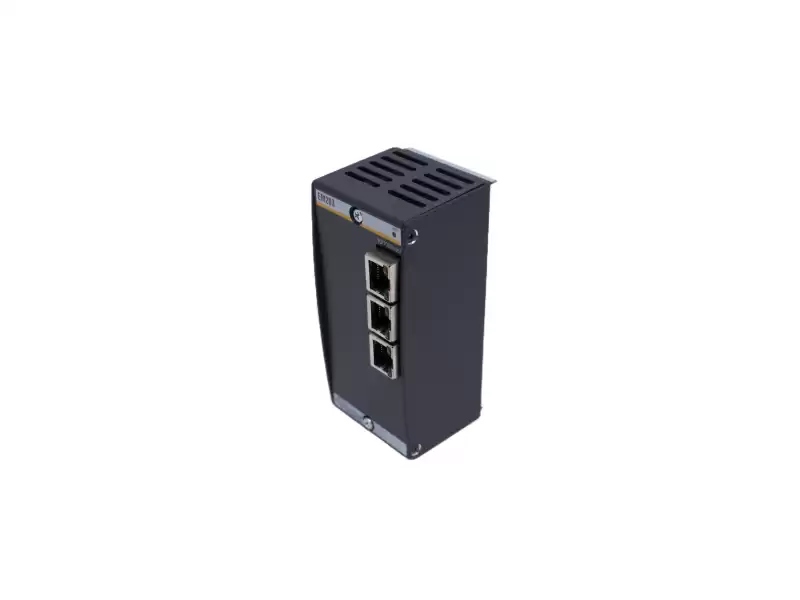

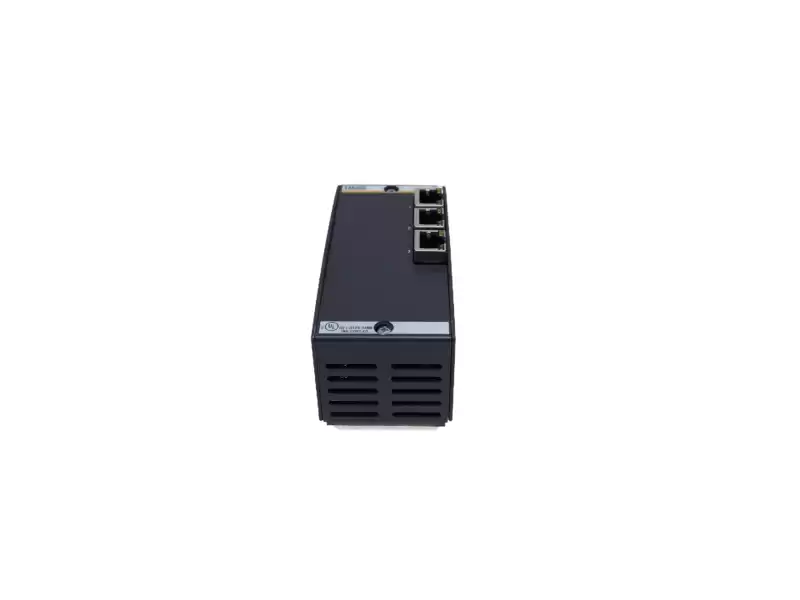

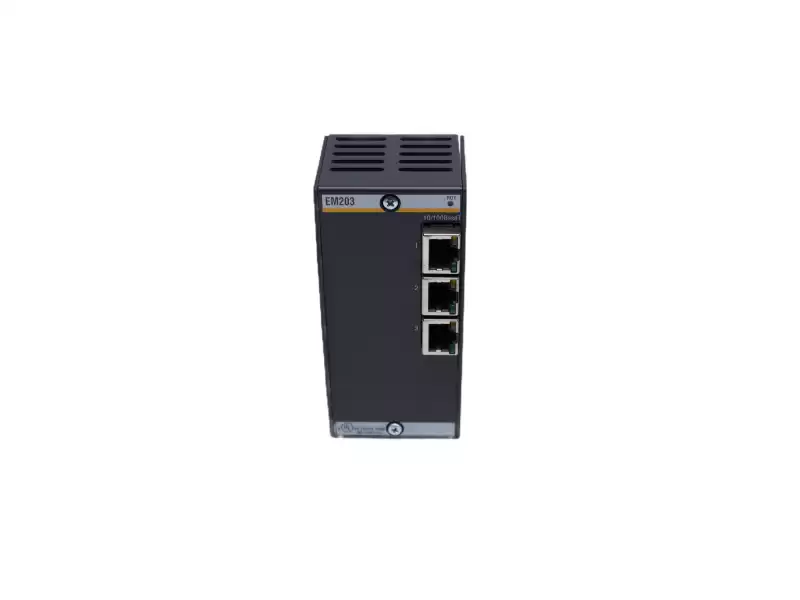

EM203 is a 3-port Ethernet master module for Bachmann M1 controllers.
It turns any M1 rack into a Modbus-TCP/UDP/RTU gateway without external switches, making it the default choice for wind-turbine, marine and rolling-mill networks.
2.Verified Specifications (per vendor datasheet & CE marking)
|
Parameter
|
Value
|
|
Ports
|
3 × 10/100 Mbit/s RJ-45 (ETH0, ETH1, ETH2)
|
|
Protocols
|
Modbus TCP/UDP, RTU over TCP, HTTP, SNTP
|
|
Port Isolation
|
1.5 kV DC between each Ethernet port & backplane
|
|
Processor
|
ARM Cortex-A8, 400 MHz, 256 MB DDR3
|
|
Memory
|
16 MB flash for firmware, 1 MB SRAM for variables
|
|
Power
|
24 V DC (18–36 V DC), 3 W typical
|
|
Operating Temp
|
–40 °C … +85 °C
|
|
Dimensions
|
100 mm × 63 mm × 12 mm (3U)
|
|
Weight
|
0.2 kg
|
|
Certifications
|
CE, UL, marine (DNV, ABS, LR, BV, NK, KR, RINA)
|
3.Typical Applications
• Offshore wind turbines – links turbine PLC to SCADA via Modbus-TCP over fiber.
• Ship engine rooms – distributes process data to three separate control zones.
• Steel-mill finishing lines – real-time speed reference to three drive islands.
4.Ready-to-Ship Package
|
Part Number
|
Description
|
|
EM203
|
3-port Ethernet master (this unit)
|
|
NT255
|
24 V DC 10 A supply
|
|
BS207
|
7-slot M1 backplane
|
|
RS204
|
RS-485/RS-232 serial module (optional)
|
|
ETH-CBL-3M
|
Cat-5e patch cable, 3 m
|
Need pricing or overnight delivery?
Email: ab@mooreplc.com | Phone: +86-18106909650
All items factory-sealed, ready for same-day dispatch.
