Data Sheet: Bachmann SCT202 – Safety Counter Module
Contact: ab@mooreplc.com | Same-day dispatch worldwide
1.Product Identity

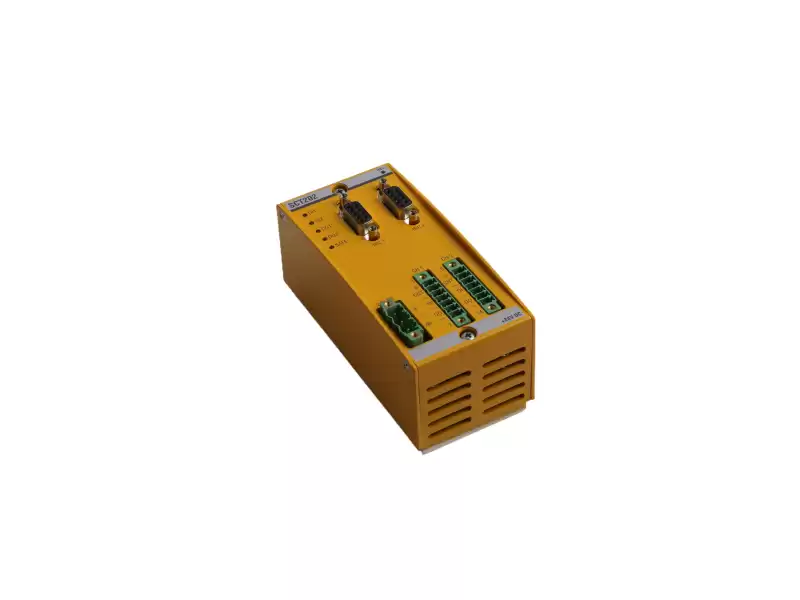

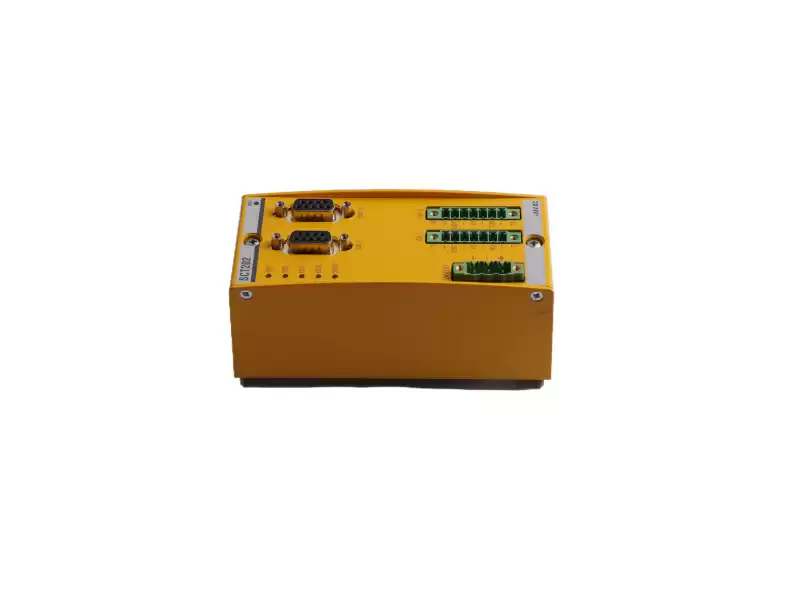

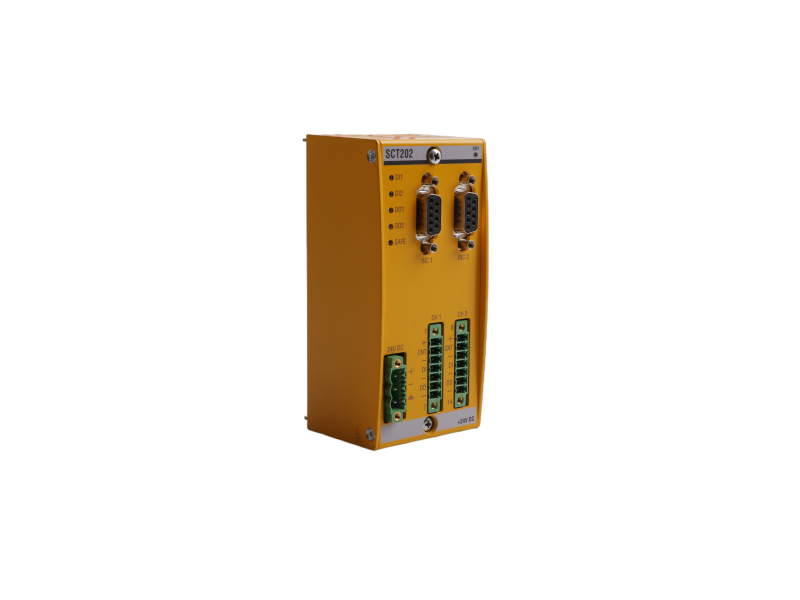

SCT202 is a safety-rated counter module within the Bachmann M1 system. It provides 2 × 24 V DC inputs and 2 × 24 V DC outputs, plus 2 × incremental encoder inputs (HTL/TTL, 300 kHz) and 2 × low-speed counter inputs (HTL, 5 kHz) for SIL-2 / PL-d applications .
2.Verified Specifications (per vendor datasheet)
|
Parameter
|
Value
|
|
Inputs
|
2 × 24 V DC (2 mA), 2 × incremental encoder (HTL/TTL, 300 kHz), 2 × counter (HTL, 5 kHz)
|
|
Outputs
|
2 × 24 V DC, 1 A per channel, short-circuit protected
|
|
Count Range
|
32-bit signed (±2 147 483 647)
|
|
Power
|
24 V DC (18–36 V DC), 100 mA max
|
|
Operating Temp
|
–40 °C … +70 °C
|
|
Dimensions
|
100 mm × 63 mm × 12 mm (3U)
|
|
Weight
|
0.5 kg
|
|
Certifications
|
SIL 2 / PL-d (IEC 61508, ISO 13849), marine (DNV, ABS, LR, BV, NK, KR, RINA)
|
3.Typical Applications
• Wind-turbine pitch control – counts blade angle encoder pulses for safety shutdown.
• Steel-mill roller tables – tracks slab position for emergency stop logic.
• Packaging lines – monitors product flow and triggers e-stop on miscount.
4.Ready-to-Ship Bachmann Kit
|
Part Number
|
Description
|
|
SCT202
|
Safety counter module (this SKU)
|
|
BS207
|
7-slot M1 backplane
|
|
NT255
|
24 V DC 10 A supply
|
|
RS204
|
RS-485/RS-232 serial module (optional)
|
|
LM201
|
Dummy module (spare slot filler)
|
