Deep-Dive Brief: Bachmann MX213 – MX200-Series Processor Module
Contact: ab@mooreplc.com | Same-day dispatch worldwide

1.Core Identity

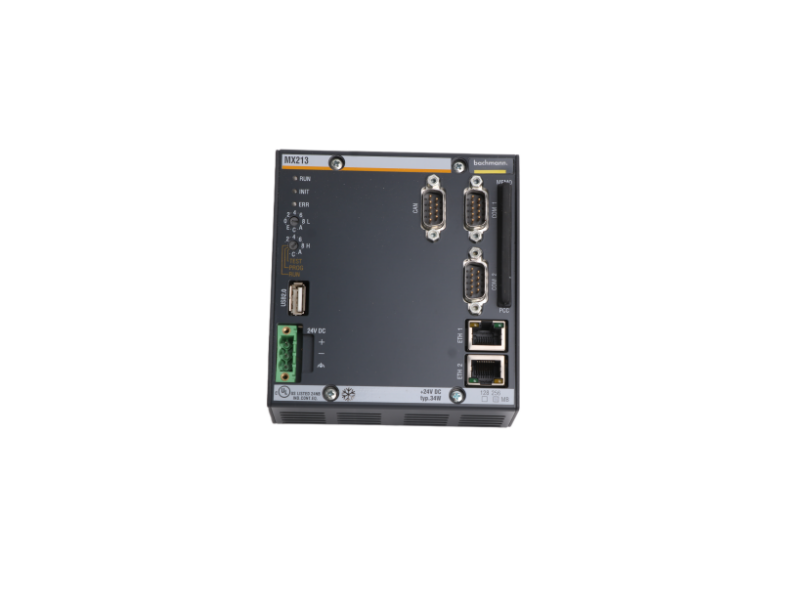

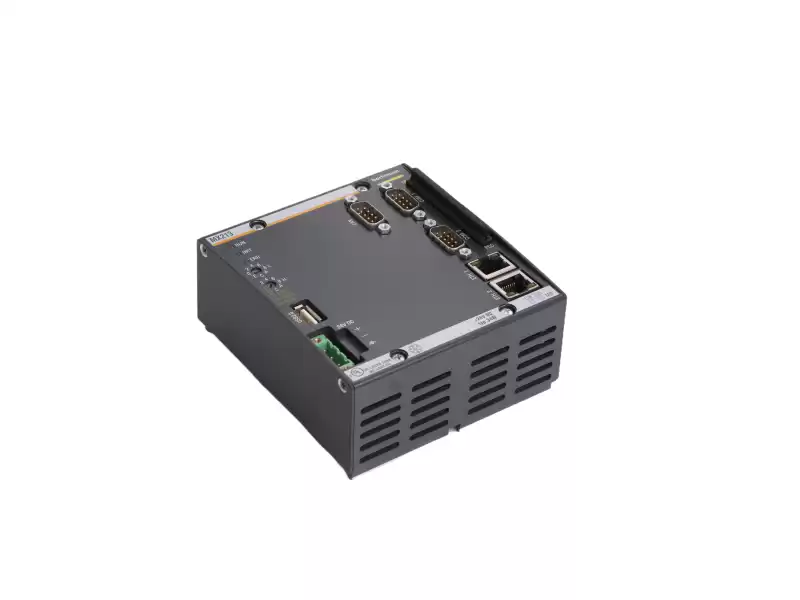

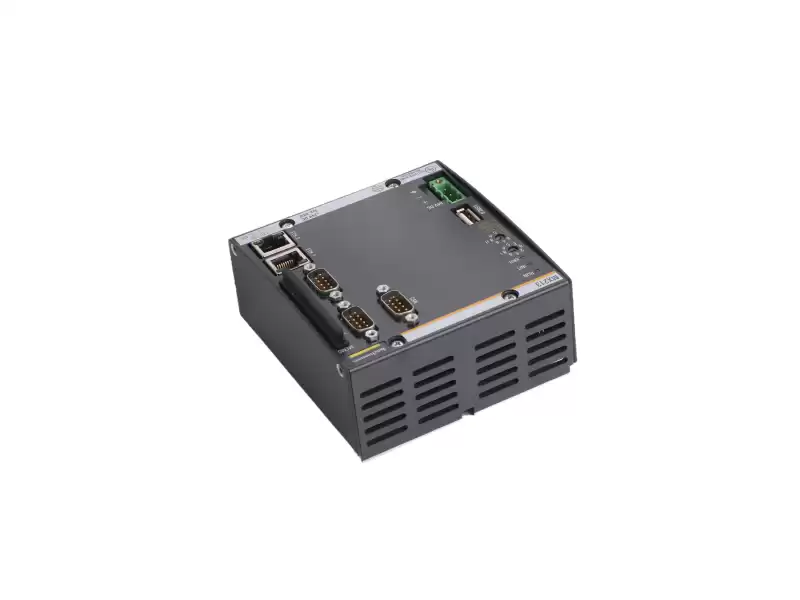

MX213 is the main CPU card of the Bachmann MX200 family. It integrates a 32-bit PowerPC 750 @ 266 MHz, 256 MB DRAM and 512 kB nvRAM on a single 3U CompactPCI board, turning any M1 rack into a real-time controller for wind turbines, rolling mills or marine drives.

 2. Extracted Technical Data (per vendor datasheet & CE marking)
• Processor: 32-bit PowerPC 750, 266 MHz
• Memory: 256 MB DRAM, 512 kB nvRAM (10-year data retention), 64 MB file-flash
• Interfaces: 2 × 10/100 Mbit/s Ethernet, 1 × RS-232, 1 × RS-232/422/485, 1 × USB 2.0, 1 × CAN/CANopen
• Power: 24 V DC (18–36 V DC), 17 W typical
• Operating Temperature: –30 °C … +60 °C (standard); –40 °C … +85 °C (cold-climate option)
• Dimensions: 120 mm × 80 mm × 40 mm, 0.5 kg
• Certifications: CE, UL, marine (DNV, ABS, LR, BV, NK, KR, RINA)

 3.Fresh Application Ideas
• Wind-turbine pitch control – runs blade-angle PID while logging 10 Hz vibration data to on-board flash.
• Bottling plant vacuum pump – 26 × MX213 distributed nodes control plasma generation and microwave activation at 12 000 bottles/h.
• Steel-mill finishing line – coordinates hydraulic roll-gap loops with < 1 ms jitter via CANopen.

 4.Ready-to-Ship Bachmann Kit

Need pricing or overnight delivery?
Email: ab@mooreplc.com | Phone: +86-18106909650
All items factory-sealed, ready for same-day dispatch worldwide.
