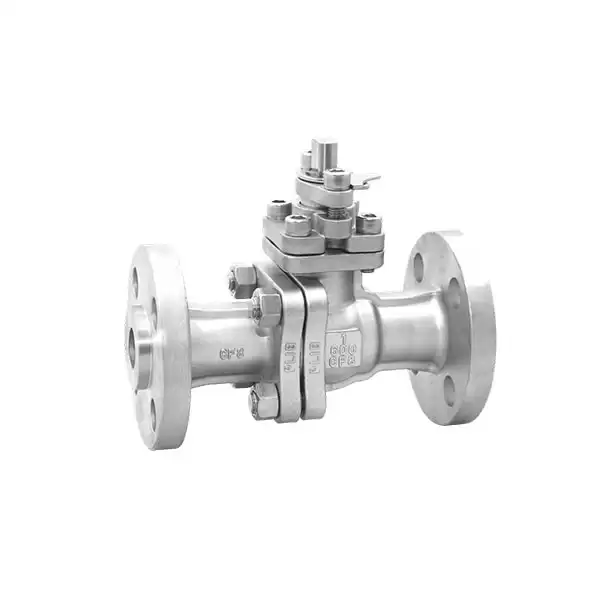

Ball Valve Floating Full Bore 1Inch 600LB CF8

API6D 2Pcs Full Bore Floating Ball Valve

1Inch,600LB,CF8,F304+Ni55,Lever

Manufacture STAVAL Factory Offers.


  • Working Temp.-196°C to +600°C
  • End ConnectionBW, Flange
  • SeatSoft Seat, Metal Seat, PMSS Seat
  • BoreFull Bore, Reduce Bore
  • ConstructionBB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Size Range1Inch ~ 60Inch (DN25 ~ DN1000)

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem,Drian And Vent

Key Specification

Type

Ball Valve

Size

1Inch

Pressure

600LB

Construction

2Pcs, Full Bore, Floating, Side Entry, Bolt Bonnet,

Connection

RTJ End

Body/Bonnet Material

A351 CF8

Ball Material

A182 F304+Ni55

Stem Material

17-4PH

Seat Material

A182 F304+Ni55

Bolt/Nut

B8/8

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-40℃~+300

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
