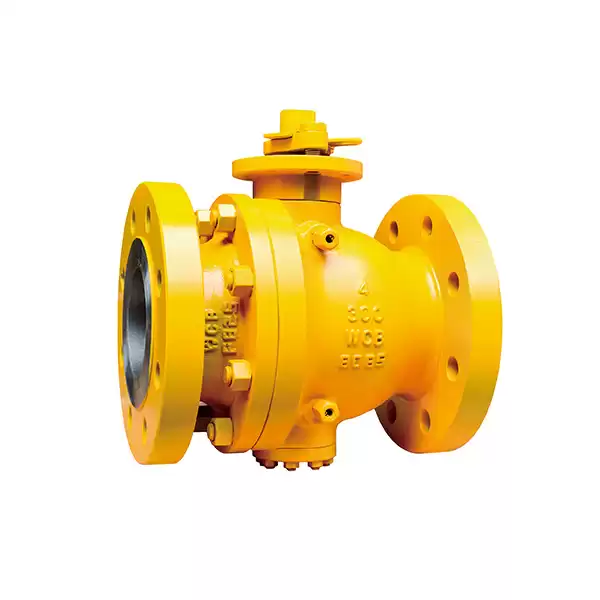

Ball Valve Trunnion Full Bore 4Inch 300LB WCB

API6D 2Pcs Full Bore Trunnion Ball Valve

4Inch,300LB,WCB,F304,PTFE,Handwheel

Manufacture STAVAL Factory Offers.


  • Working Temp.-196°C to +600°C
  • End ConnectionBW, Flange
  • SeatSoft Seat, Metal Seat, PMSS Seat
  • BoreFull Bore, Reduce Bore
  • ConstructionBB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem,Drian And Vent

Key Specification

Type

Ball Valve

Size

4Inch

Pressure

300LB

Construction

2Pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet,

Connection

RF End

Body/Bonnet Material

A216 WCB

Ball Material

F304

Stem Material

17-4PH

Seat Material

PTFE

Bolt/Nut

B7/2H

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+120

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
