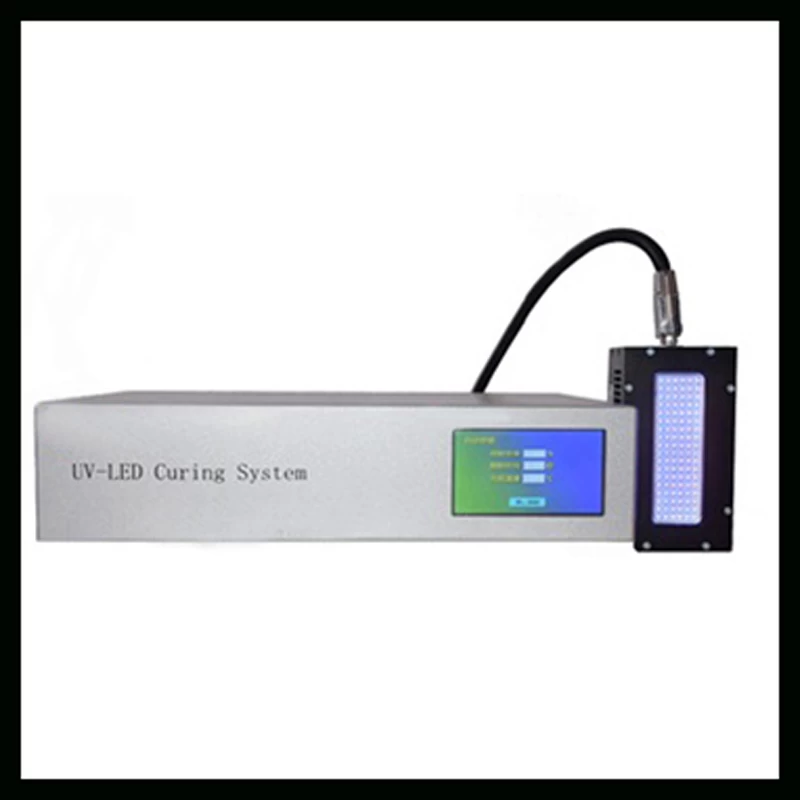

Energy Saving Bar Type LED UV Curing System for UV Ink.
The length of the irradiation head depends on your substrate and the width depends on the printing speed.This kind of Line Type LED UV Curing System can be used for UV ink, UV varnish and UV paint.It is suitable for flex printer, offset printer, flatbed printer and flexo printer. Different size and peak irradiance has different price.
Parameters of Small Area LED UV Curing Systems for Flexible Glue :
|
Long life span
|
25000-30000H
|
Energy saving
|
save 80% electrical than Mercury lamp
|
|
Environment friendly
|
NO Mercury. NO Ozone. NO warm-up time.Low temperature
|
UV output adjustment
|
From 1%-100%.
|
Irradiation Specification of Industrial UV LED Curing System Enhancing Industrial Curing Process :
|
Curing area
|
wavelength
|
power intensity
|
print speed
|
cooled method
|
|
60x25mm
|
395nm
|
12w/cm2
|
10m to 30m/ min
|
air or water cooled
|
Note:The length of the irradiation head depends on your substrate and the width depends on the printing speed.This kind of uv led curing system can be used for uv ink, uv varnish and uv paint. It is suitable for flex printer, offset printer, flatbed printer and flexo printer. Different size and peak irradiance, different price.
|

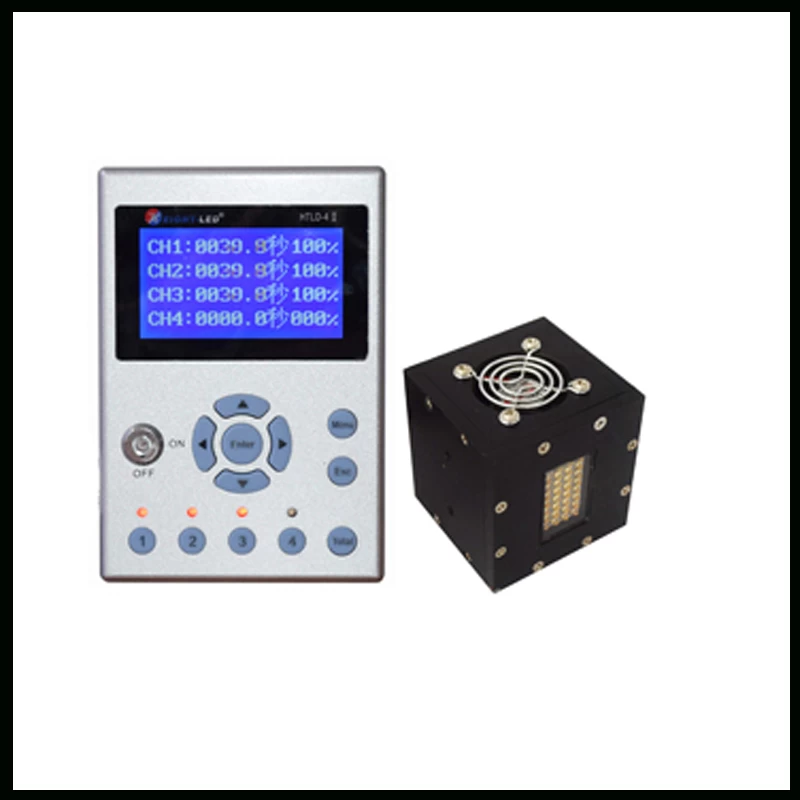

Controller Specification of Linear UV Curing Light Source Curing Screen Printing Inks :
|
|
Model
|
DSXUV-II
|
|
Channel
|
Two
|
|
The size of controller
|
L200*W310*H150mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232
communication signals
|
|
Output
|
serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and
humidity
|
Ambient temperature:-10℃—50℃
Relative humidity:25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging,Manual exposure
control,Foot control or timing control
(0.1~9999S)
|
|
Setting operation
|
Using the operating switch is set,Power key parameter switch,RS-232
|
|
External Control
|
External input
|
Enter irradiation alone
Irradiation stop input,
Interlocking,All lights
illuminated input,Query
switch
|
|
External output
|
READY signal,Error
signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator used)
|
|
Product Advantages of Line Type 365nm UV LED Curing Machine Drying UV Ink:
|
|
1.Extra-long life: 25000h~30000h
|
|
2.Energy saving: save 80% electrical energy than Mercury lamp
|
|
3.UV output adjustment: From 1% to 100%
|
|
4.Multiple control modes : Constant current, pedal control, intelligent optical and manual modes
|
|
5: Photoelectric induction, instant on/off, no preheating required.
|
|
6: Low energy consumption, just 20% of the ordinary uv lamp
|
|
7: No mercury, No Ozone, eco-friendly
|
|
8: Cold light source, low temperature
|
|
9: Stable output, high uniformity.
|
|
10: Instant on/ off, no preheat required.
|
