High Power UV LED Dryer for UV Adhesive Curing System 30*120mm

High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.



High Power UV LED Dryer for UV Adhesive Curing System

UV LED 365nm UV Curing System contain two parts: Controller and Irradiation Head.

UV Curing Systems can be used for curing UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials. Any size of emitting window and Peak Irradiance can be  customized .


UV LED Dryer 30*120mmHigh Power UV LED Dryer


Technical data of UV-LED Uniform Surface Illumination Light Source Controller :

Type

       SPACEUV2

Channel

            2

The size of controller

   L390*W350*H100mm

Terminal I/O

Input

   Pedal switch & serial RS-232 communication signals

Output

serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and

humidity

Ambient temperature:-10℃—50℃  Relative humidity:25%—85%RH



Dimming/Exposure control

Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S)

Setting operation

Using the operating switch is set,Power key parameter switch,RS-232









External Control





External input

Enter irradiation alone Irradiation stop input,

Interlocking,All lights illuminated input,Query

switch





External output

READY signal,Error signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator used)

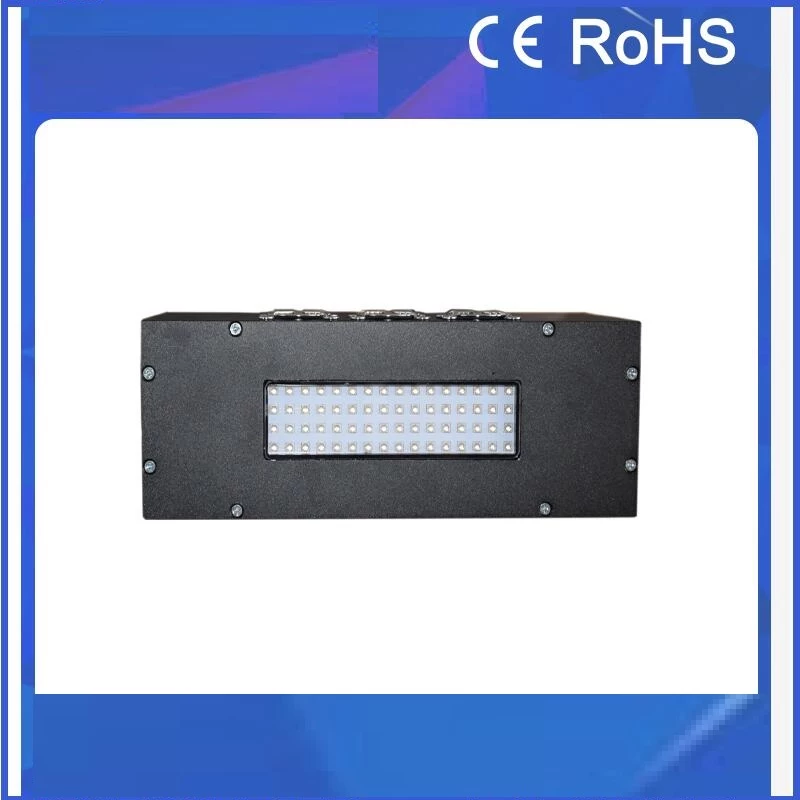

Technical data of High Efficiency LED UV Cold Light Source :

product model eimitting window size wavelength cooling method peak irradiation irradiation distance
SPC30120 30X120mm    365nm  air cooling

1200mw/cm²

10-20mm

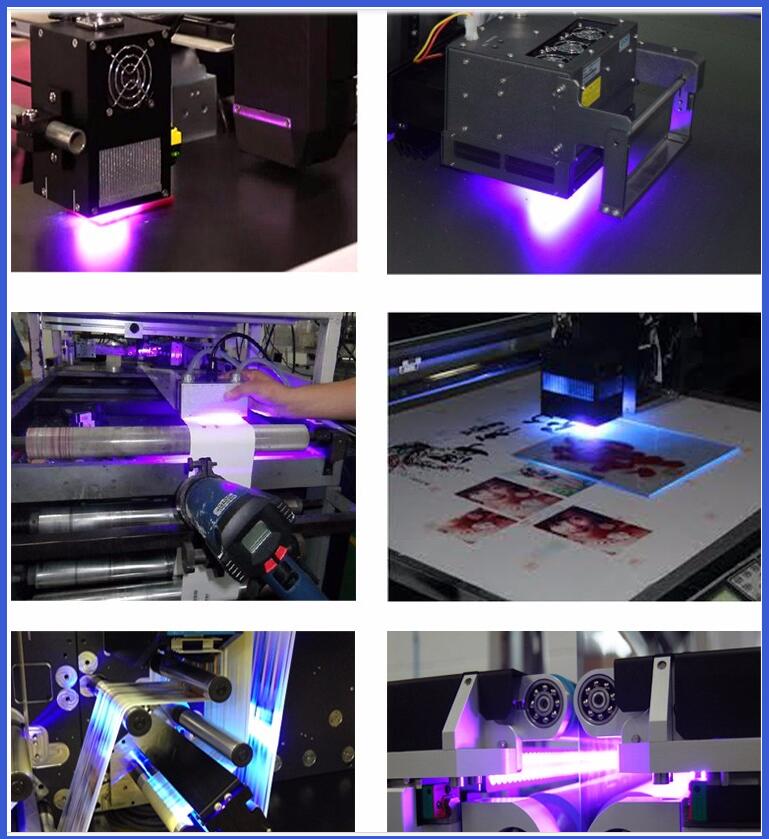

 Prodct application of Rectangular UV Adhesive Curing Machine for 3D Print :

UV Adhesive Curing System 30*120mmDryer MachineUV LED Dryer for UV Adhesive Curing System
