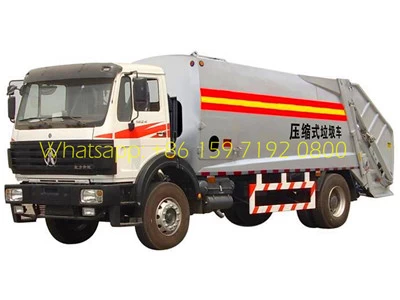

China Beiben 4*2 refuse compactor truck supplier
China best quality beiben 10-12 CBM garabge compactor truck with 4*2 drive system, with fully benz technology front axle and rear axle, to ensure the best work performance and excellent drive interest. With the 15 years expereience in beiben garbage compactor trucks manufacturing, we can make sure the best price for all beiben 10 cbm garbage trucks from us.
Best Dongfeng 10 CBM trash compactor trucks functions and features:
1. We CEEC TRUCKS are manufacturer, specializing in producing garbage compactor truck many years with good reputation.
2. The Sudan 9CBM garbage compactor truck control system PLC (programmable logic controller) originally imported from Italy.
3. Collecting tank is well sealed, which can prevent second pollution.
4. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.
5. Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.
6. The garbage compression truck adopt double direction compression techniques, which can make the whole compression work smoothly and efficiently. All the garbage compactor trucks are easy to operate and maintenance!
7. Different hopper can be provided to satisfy our customers. And the Hopper is hydraulically and automatically locked when closed.
CEEC TRUCKS produced and export garbage compactor trucks mainly export Africa countries, including Kenya,
Algeria, Ethiopia, Angola, Botswana, Togo, Gambia, Congo, Guinea,
Ghana, Zimbabwe, Cameroon, Cote d'Ivoire, Rwanda, Mali, Mozambique,
Sudan, Tanzania, etc. Our best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, Foton, Beiben chassis LHD / RHD for optional.
Similar Key Words: Beiben18 CBM garbage compactor truck, isuzu 18CBM trash compactor truck,
dongfeng compression garbage truck, 18cbm refuse compactor truck, waste
management truck, North benz rubbish compactor trucks
| Technical Parameters
|
| Brand
|
BEIBEN Garbage compactor TRUCK
|
| Vehicle model
|
1929GA
|
| Cabin
|
Full steel skeleton structure, covered with double layer steel plate
|
| Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
|
| Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure
|
| Persons in cab: 3
|
| Driving
|
4×2
|
| Wheel base (mm)
|
4800
|
| Weight data
|
Curb Weight(kg) ：7760
|
| Engine
|
Model
|
Brand WeiChai WP10.290 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders,
|
| Power
|
290HP
|
| Emission
|
EURO III
|
| Rated power(kw/rpm)
|
213Kw/2200rpm
|
| Transmission
|
5S-112P, 9-forward &1-reverse gears
|
| Option: ZF9T-160
|
| Clutch
|
single disc, dry type, diaphragm spring, φ430
|
| Frame
|
BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame
|
| Fish belly, various width, various sections, side beam structure
|
| Axle
|
Front:
|
Mercedes Benz Technology, 7.5 ton, non-driving steering axle
|
| Rear:
|
Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
|
| Suspension
|
Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension，
|
| Steering
|
ZF8098 (Original ZF technology)
|
| Wheels and tyre size
|
6+1/12.00-R22.5
|
| Fuel tank (L)
|
400L
|
| Colour
|
Metal white, multi-colored options
|
