As the industry leader of custom built fire apparatus. Each fire fighting truck is completely customized based on clients department’s specifications. Newly beiben 2642 fire pumper truck with eliminating the large traditional pump house allows for a more maneuverable apparatus, as well as additional area for equipment storage. Pump control panel locations can be either on the operator’s back or curbside. The design of North Benz Beiben V3 fire fighting truck was constructed for extreme-duty applications, superior pumping capability with high flow, high pressure and foam applications, user friendly design with simple to operate pump controls and rescue style body for all kinds of equipment storage.
China north benz Beiben pumper fire engine is equipped with the CB10/60 fire pump, optional as XIONGZHEN brand or RONGSHEN brand, the water fire truck delivers a high output of 3,600 liters per minute at 10 bars, with a suction depth of up to 7 meters, enabling rapid water and foam delivery. The PS60 top mounted fire monitor complements this system, offering a maximum pressure of 1.0 MPa and a flow rate of 3,600 liters per minute. It ensures an impressive shooting range, with water reaching up to 70 meters, making it suitable for tackling large-scale fires.
Durability is a key feature for all fire fighting truck, with the water tank constructed from stainless steel 304 material, also optional as polypropylene PP material, ensuring long-lasting service even in challenging conditions. This water fire tender is a testament to advanced engineering and practical design, tailored to meet the demands of modern firefighting operations.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

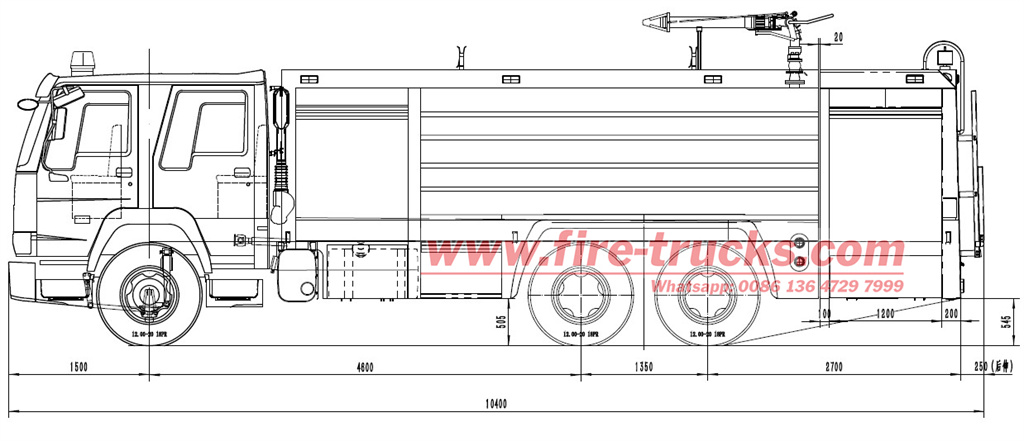

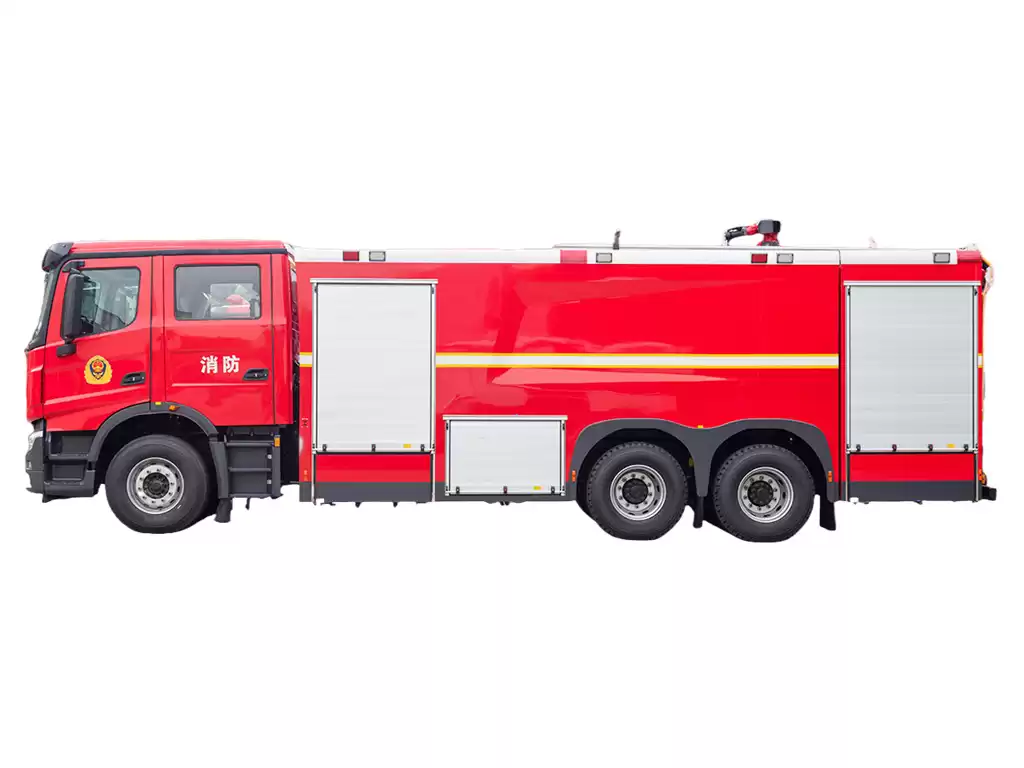

This Water tank fire truck is composed of the BEIBEN V3 LHD 2642 6X4 truck chassis, water tank, water fire pump, pipeline, fire monitor, instrument circuit system and other components, the pump room is in the rear of the vehicle, the tank is welded steel plate type, the tank material is made of high quality stainless steel plate, customized water tank capacity 16 cubic meters. The vehicle is equipped with TOP 1 Chinese brand CB10/60 fire pump, Wester PS60 fire gun.
| VEHICLE PARAMETERS |
| Vehicle Model |
PT5260GXF |
Vehicle Brand |
POWERSTAR TRUCKS |
| Overall dimensions |
10400x2550x3650 |
Gross vehicle |
26000kg |
| Driving type |
LHD |
Color |
RED |
| cooling and heating system (A/C) |
YES |
passenger number |
2+4 |
| Drive wheel |
6*4 |
Number of Axle |
3 |
| ENGINE |
| Engine(HP) |
420HP |
Emission |
Euro 3 |
| Gearbox |
Fast 12-speed trans mission |
wheelbase |
4800+1400mm |
| Tire specifications |
12.00R20 |
Fuel |
Diesel |
| front axle |
7.5tons |
rear axle |
13+13tons |
| torque |
1750N.m |
maximum power outpu |
309kW |
| Engine form |
Vertical,in-line, water-cooled, four-stroke |
Number of valves per cylinder |
6 |
| Number of cylinders |
6 |
displacement |
11596ML |
| DRIVING CAB |
| structure |
Double Cab with 4 doors |
Number of seats |
2+4, rear with 4 SCBA seats |
| Equipment |
In addition to the original equipment, it is equipped with a power collector control switch, 100w alarm, rotary light switch, radio power line pile. |
| TANKER BODY |
| Capacity |
16CBM, 16000Liters |
Material |
Stainless steel |
| Structure |
Frame welded inside fortification board |
Colour |
Red |
| Equipment |
1 population hole with quick locking and opening device.
1 level indicator.
1 sewage outlet with stainless steel ball valve.
2 water injection ports (one on each side) |
| FIRE PUMP AND PIPING SYSTEM |
| Fire pump |
CB10/60 atmospheric fire pump |
Rate of flow |
60L/s Pressure 60L/s |
| Qressure |
Atmospheric pressure 1.0 |
Setup mode |
Rear mount |
| Suction line |
The pump has a Φ125mm water inlet, which can absorb water from a natural source or from a liquid tank. |
| Outlet line |
1 water outlet each
Through the tank to the top of the tank, there is a water cannon pipe with a diameter of 89mm |
| Cooling water line |
In order to make the force extractor cope with various complex situations in the work, the pipeline is equipped with a cooling water pipeline inlet and outlet water pipe with stainless steel ball valve |
| Drain line |
In order to protect the water pump and the ball valve, the residual water pipe is installed in the pipeline, and the ball valve is equipped respectively. |
| FIRE MONITOR |
| model |
PS60Heavy-duty apparatus |
Pressure |
1.0MPa |
| Rate of flow |
60(L/s) |
Watering distance |
Water≥70m |
| EQUIPMENT CASE AND PUMP ROOM |
| Texture |
The skeleton is made of high quality steel, and the mask is made of aluminum alloy plate |
| Construction |
.The separation of the equipment box is made of shaped steel structure, which is firm and reliable, and improves the space utilization and variability. |
| Car door |
There are aluminum alloy rolling shutter doors on both sides of the equipment box, which are light, reliable and low noise |
Electric reel |
24-volt Electric Rewind hose Reel with Guide Rollers fitted with 1" light weight 400 - 600 PSI Hose, 60 meters rubber hose USA standard NH coupling long fitted with Nozzle with Pistol Grip selectable flow, assembled on top of the water tank or above the water pump. |
As one of the famous Chinese brand truck chassis, the Beiben heavy truck chassis performs well in load bearing performance. This high load-bearing capacity can meet the needs of fire trucks equipped with heavy equipment, such as water tanks, foam systems, ladders, rescue equipment, etc. The 6×4 drive model can further enhances the vehicle's traction and stability, especially in rugged terrain or full load conditions, to ensure driving safety. The Beiben heavy duty truck chassis is often equipped with high-power WEICHAI diesel engines, with optional engine power 340HP, 380HP, 420HP, etc. Such a power configuration can support Beiben fire trucks to quickly reach the fire scene and meet the power requirements of equipment such as high-pressure water pumps and foam mixing systems. For firefighting scenarios that require frequent start-stop and high-speed response, high-torque engines are particularly important
Beiben 6×4 LHD 2642 truck mounted pumper fire fighting truck, with chassis has become the preferred solution for fire engine modification due to its high load-bearing capacity, strong power, modification convenience and domestic cost advantages. Especially in scenarios with high requirements on load capacity and reliability, such as medium-sized water tank/foam fire trucks and emergency rescue vehicles, Beiben chassis meets the core needs of the firefighting industry by balancing technical adaptation and cost-effectiveness. And details for Beiben 2642 fire engine as below showing:
1. Tank Capacities and Materials:
Water Tank: 8,000 liters capacity, constructed with corrosion-resistant stainless steel 304.
2. High-Performance Fire Pump:
Model: CB10/60, capable of delivering a flow rate of 3,600 liters per minute at 10 bars.
Suction depth of up to 7 meters, ensuring efficient water intake from deep sources.
3. Advanced Roof Fire Monitor:
Model: PS60, operating at 1.0 MPa pressure with a flow rate of 3,600 liters per minute.
Shooting range: Water can reach distances of 70 meters.
4. Robust Chassis and Engine:
Built on the China North Benz BEIBEN 2642 truck chassis with a 6x4 drive type.
Powered by a 420HP diesel engine WP12.420E32 complying with Euro 3 emission standards.
5. Specialized Firefighting Design:
Combines water and foam storage for versatile firefighting capabilities.
Engineered for reliability in various conditions with a focus on performance and durability.
