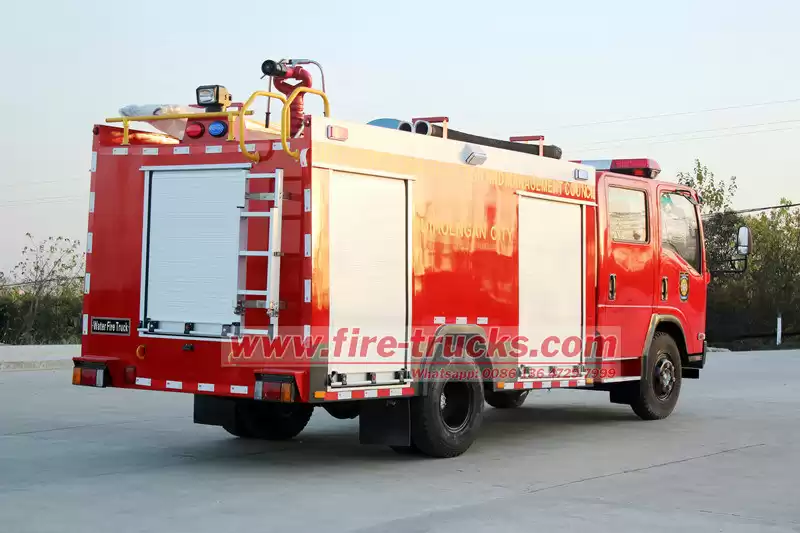

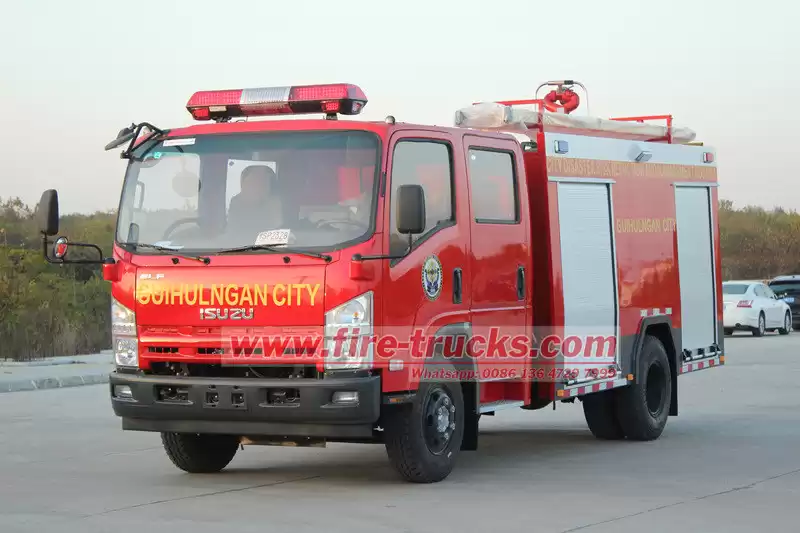

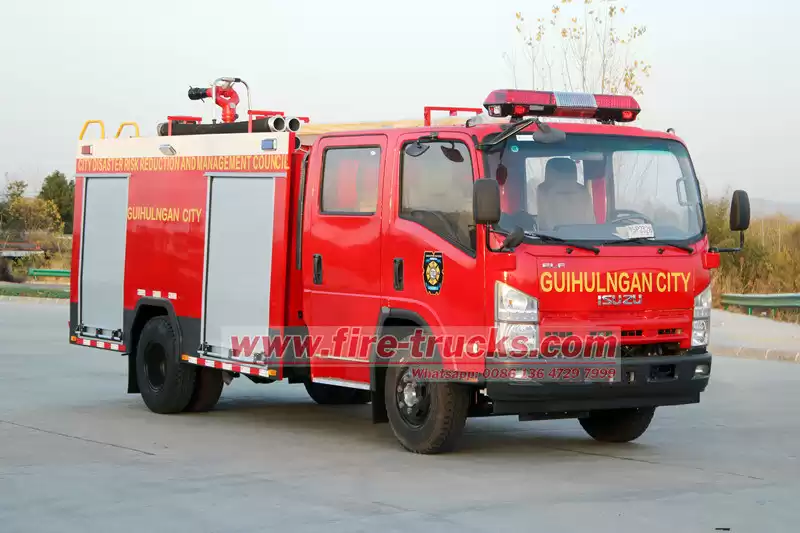

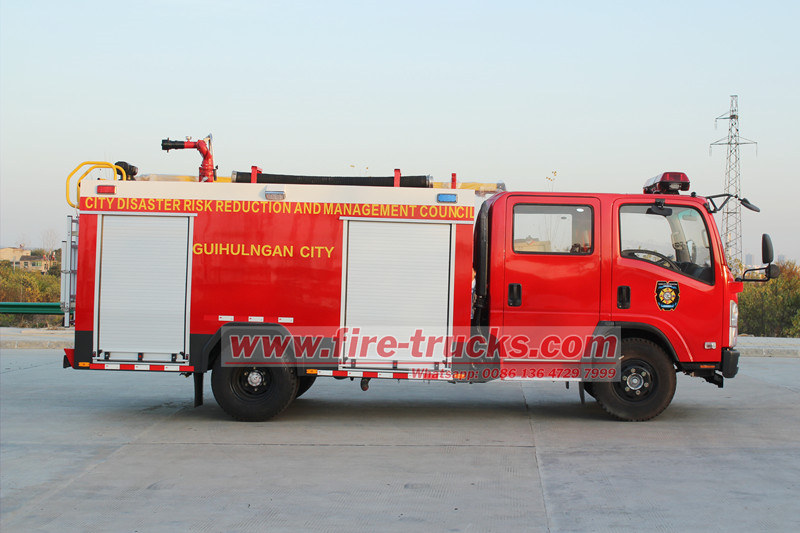

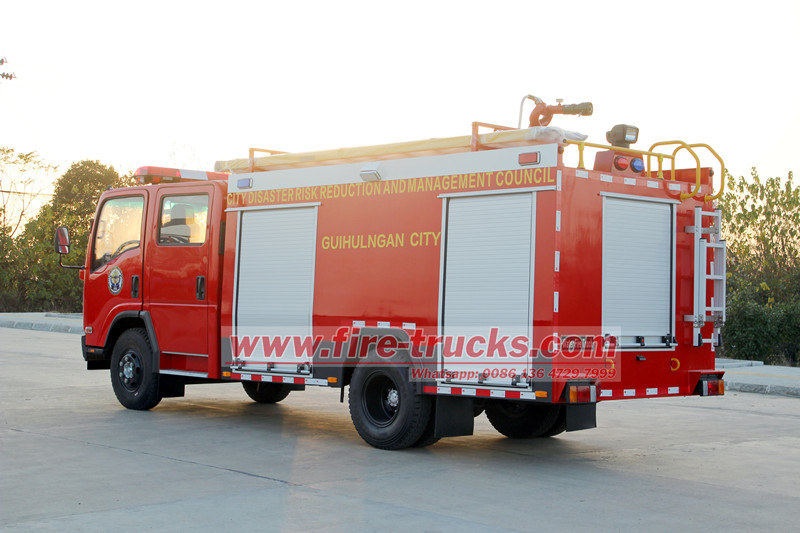

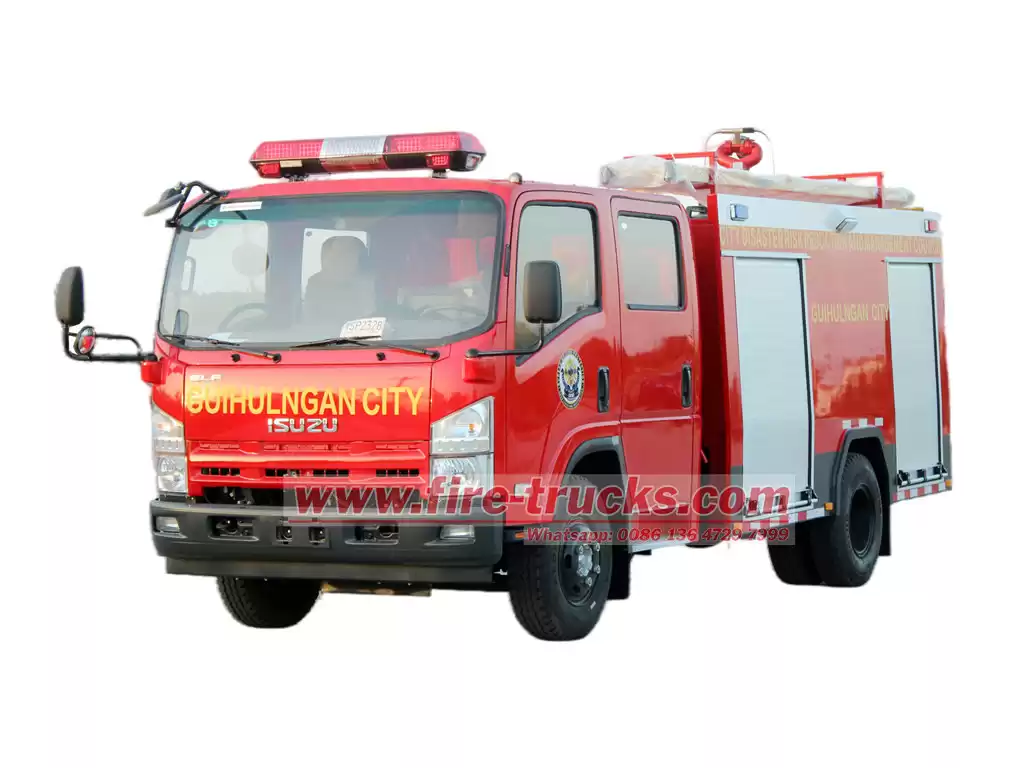

The ISUZU NPR 5000L Water Fire Fighting Truck is a professional firefighting apparatus built on an ISUZU medium-duty chassis, perfectly balancing mobility and fire suppression efficiency. It features an ISUZU NPR 4×2 drive chassis, powered by a 4HK1-TCG61 high-pressure common rail diesel engine delivering 139kW max power and 5193cc displacement, paired with a 6-speed manual transmission for excellent performance in both urban and rural road conditions. With overall dimensions of 7200×2200×2750mm and a 4175mm wheelbase, its compact turning radius makes it highly suitable for narrow city streets.

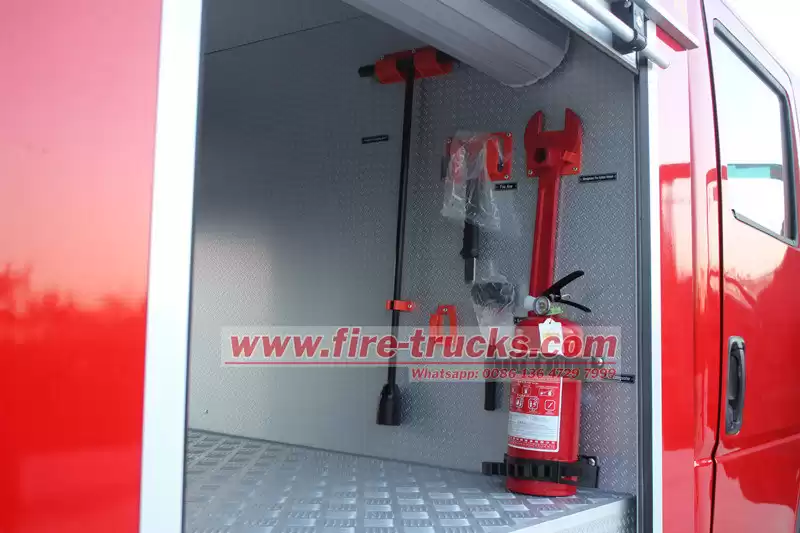

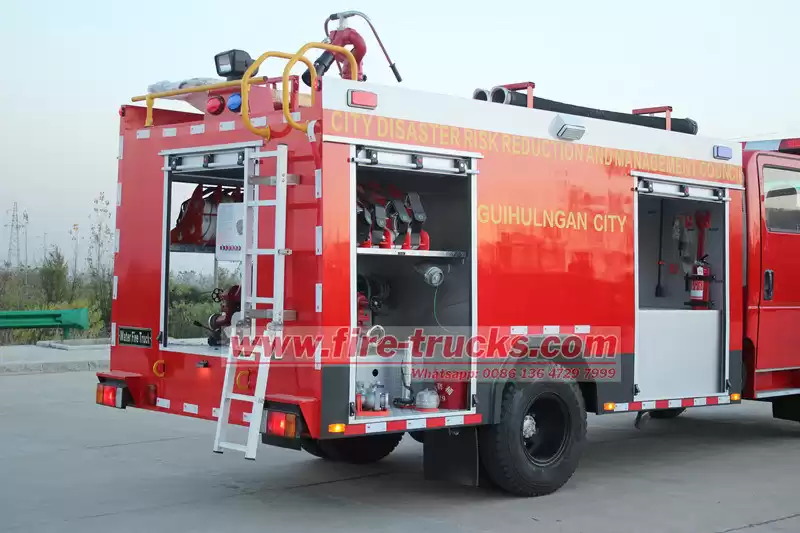

The superstructure design of this ISUZU tanker fire truck combines practicality and reliability. The carbon steel welded water tank includes internal baffle plates to minimize water sloshing during movement, enhancing stability. The built-in tank design not only improves aesthetics but also lowers the center of gravity for safer operation. The high-quality aluminum roll-up door equipment compartment is lightweight, durable, and weatherproof, ensuring optimal protection for firefighting gear.

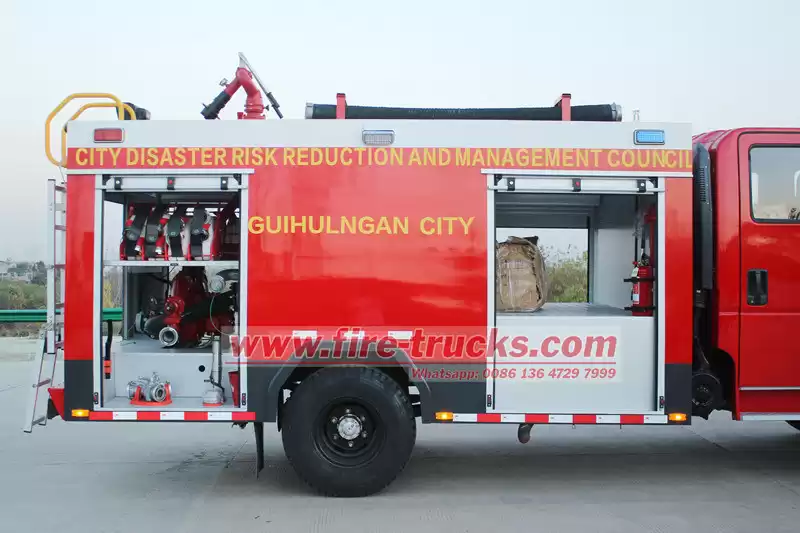

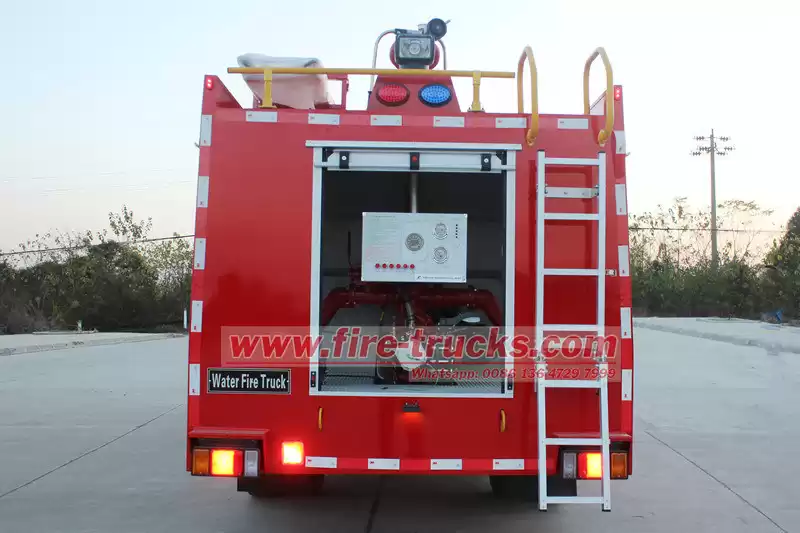

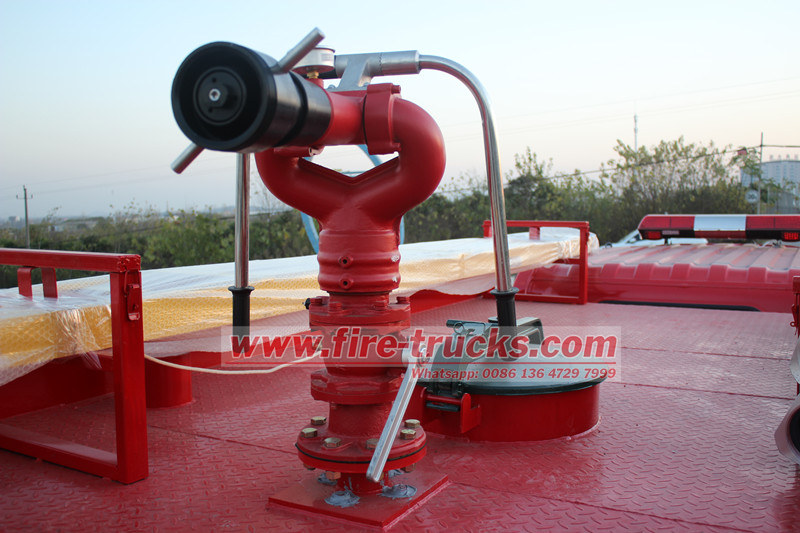

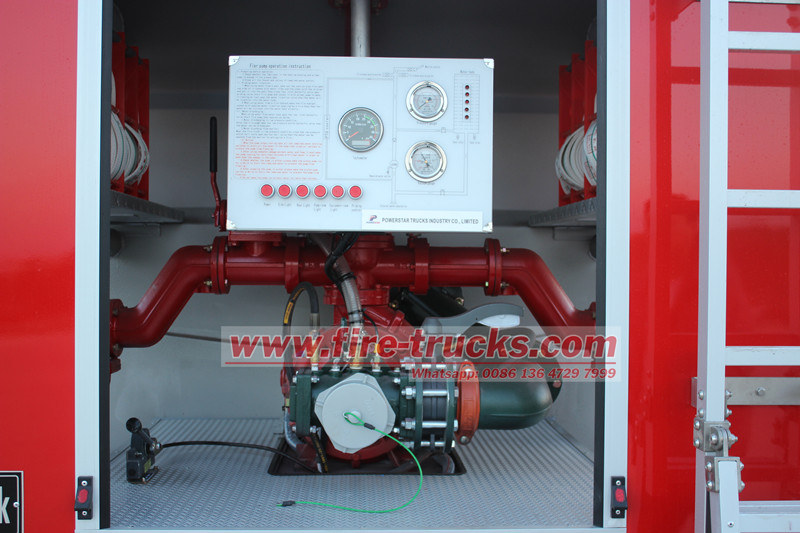

The fire pump system is the core component of this ISUZU NPR water tender truck. The rear-mounted pump room houses a CB10/40 normal-pressure fire pump, driven via a PTO and universal shaft connected to the engine. This system delivers a stable 40L/s flow rate at 1.0MPa, with a water priming time under 50 seconds, ensuring rapid firefighting response. The roof-mounted Wester PS40W fire monitor is a professional-grade device, also providing 40L/s flow with a range exceeding 60 meters. With an elevation range of -30° to +70° and 360° horizontal rotation, it enables full-coverage fire suppression.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
ISUZU 5000 liters water fire fighting truck specifications
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
7200x2200x2750mm
|
|
GVW
|
10550 kg
|
|
Curb weight
|
5800 kg
|
|
Front/rear track
|
1680/1650 mm
|
|
Approach/departure angle
|
24/14 (°)
|
|
Front/rear suspension
|
1015/1880
|
|
Leaf spring
|
8/10+6
|
|
Cab
|
Cab Seat
|
3+3
|
|
Air Conditioner
|
Cooling and heating
|
|
Chassis
|
Drive type
|
4x2
|
|
Transmission
|
Manual, 6-speed
|
|
Wheelbase
|
4175 mm
|
|
Tyre Specification
|
235/75R17.5
|
|
Tyre No.
|
6+1
|
|
Max Speed
|
95km/h
|
|
Paint
|
Red or as request
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engie Model
|
4HK1-TCG61
|
|
Engine Brand
|
ISUZU
|
|
Power
|
139kw/189hp
|
|
Displacement
|
5193 cc
|
|
Emission Standard
|
Euro 6
|
|
Water tank
|
Volume
|
5000 liters
|
|
Material
|
Carbon steel
|
|
Structure
|
welded, with baffle plate inside
|
|
Fire pump
|
Location
|
Rear-mounted
|
|
Model
|
CB10/40, normal pressure fire pump
|
|
Rated flow
|
40L/s @1.0MPa
|
|
Rated pressure
|
1.0MPa
|
|
Water diversion time
|
≤50s
|
|
Fire monitor
|
Model
|
PS40W
|
|
Rated flow
|
40L/s
|
|
Rated pressure
|
0.8 Mpa
|
|
Range
|
≥60 m
|
|
Angle of depression
|
≤-30°
|
|
Angle of elevation
|
≥70°
|
|
Horizontal rotation angle
|
≥360°
|
|
Pipeline system
|
Pipe material
|
High quality seamless steel
|
|
Water pumping pipeline
|
A DN125 suction port is installed behind the pump room
|
|
Water inlet pipeline
|
There is a DN65 water inlet port on each side of the water tank, and a DN65 pipeline for pumping water into the tank is installed in the pump room
|
|
Water outlet pipeline
|
There is one DN65 atmospheric pressure outlet on each side of the pump room, equipped with a shut-off valve and cover
|
|
Cooling water pipeline
|
Equipped with cooling water pipeline and control valve for cooling the power take-off
|

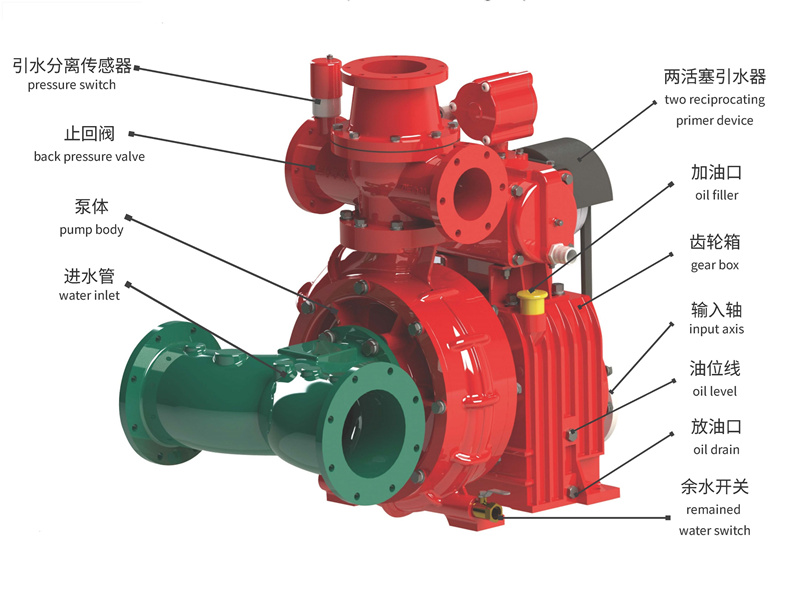

Description of the CB10/40-XZ Fire Pump
The CB10/40-XZ fire pump is a single-stage centrifugal pump equipped with a dual-piston priming device. During operation, the priming mechanism engages automatically and disengages once the required pressure is achieved. This pump is known for its excellent performance, compact structure, easy operation, and low maintenance, making it highly suitable for the ISUZU NPR water tender fire truck.
|
Model
|
Working condition
|
Flow (L/s)
|
Outlet pressure (MPa)
|
Rated speed (r/min)
|
Shaft power (kW)
|
Suction depth (m)
|
|
CB10/40-XZ
|
1
|
40
|
1.0
|
3135±50
|
60
|
3
|
|
2
|
28
|
1.3
|
3390±50
|
61
|
3
|
|
3
|
20
|
1.0
|
3010±50
|
39
|
7
|
