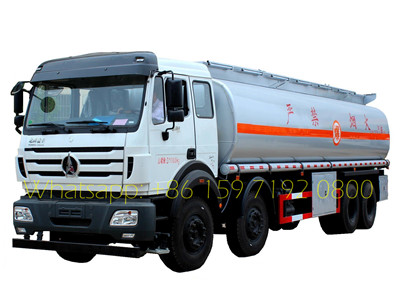

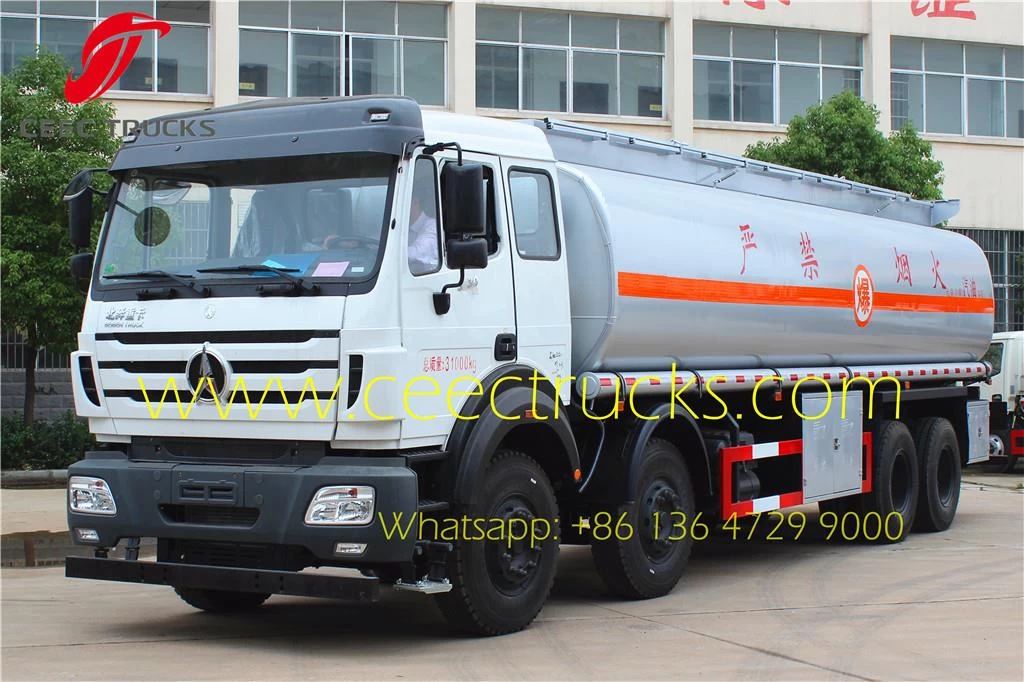

Kenya 40,000 Liters Beiben 3138 fuel tanker truck
Professinal beiben 40000 liters fuel tanker truck supplier from china
100% BEIBEN NG80B FUEL truck supplier from china baotou beiben heavy duty truck co.,limited. China beiben 40 CBM fuel tanker truck manufacturer, using original north benz technology china assembly beiben chassis, weichai 380 hp engine, ZF steering device. all our beiben 12 wheelers beiben fuel bowser have good reputation in most africa country, such as CONGO, GHANA, ALGERIA, tanzania, kenya country.
Currently , we can produce and supply beiben 6*4 fuel truck and beiben 8*4 wheeler fuel tanker trucks.
Advanced features for Beiben 12 wheeler fuel trucks:
★ Beiben 40000 Liters fuel tanker body can be carbon steel, polyethylene, stainless steel and aluminum

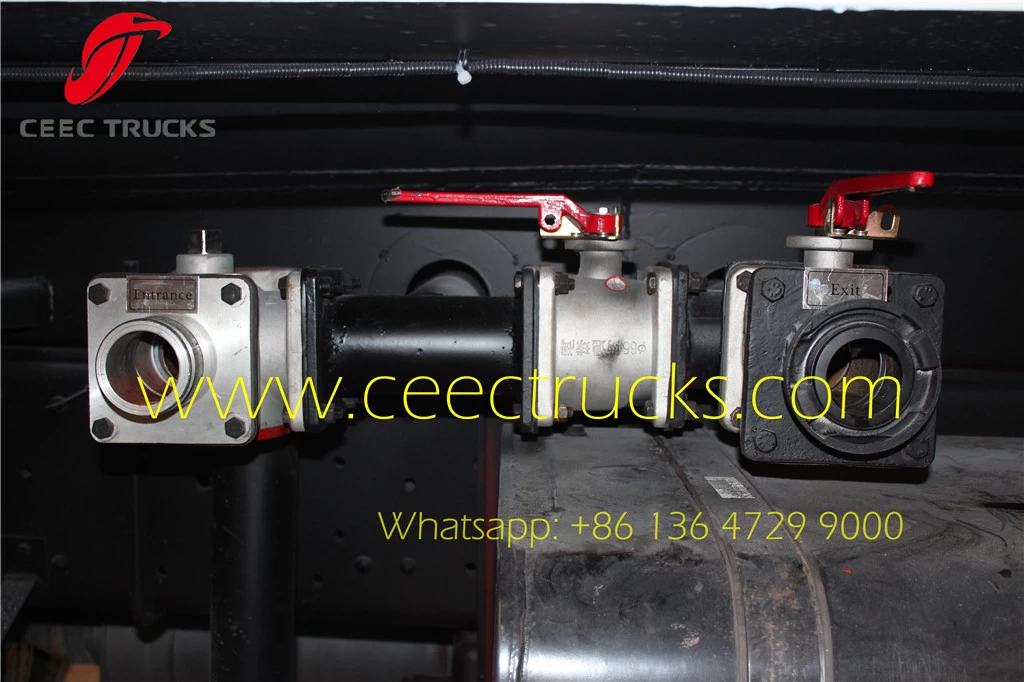

★ The 40 CBM fuel bowser consist of special tank, fuel pump, pipeline assembly and other specil configuration
★ Tank shape can be oval, circumference, rotundity for requirement

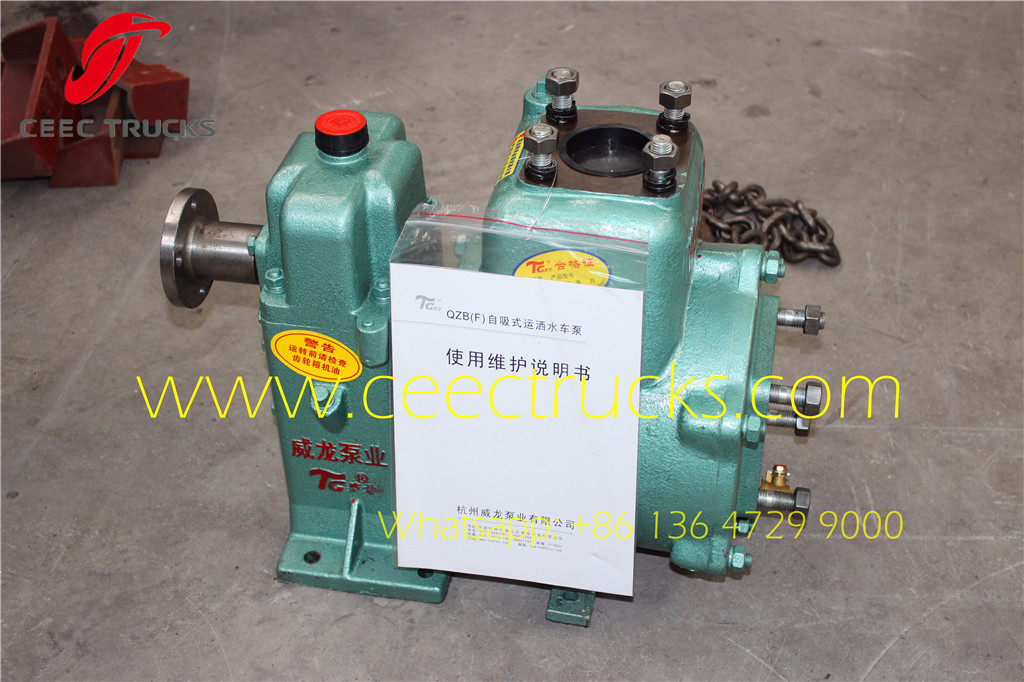

★ Chemical pump adopt famous reliable pump, stainess pump available
★ Tank inside is installed regular antti-wave clapboard. It's completely detected by high pressure air tightness. High strength tank, stable gravity, safety drive.

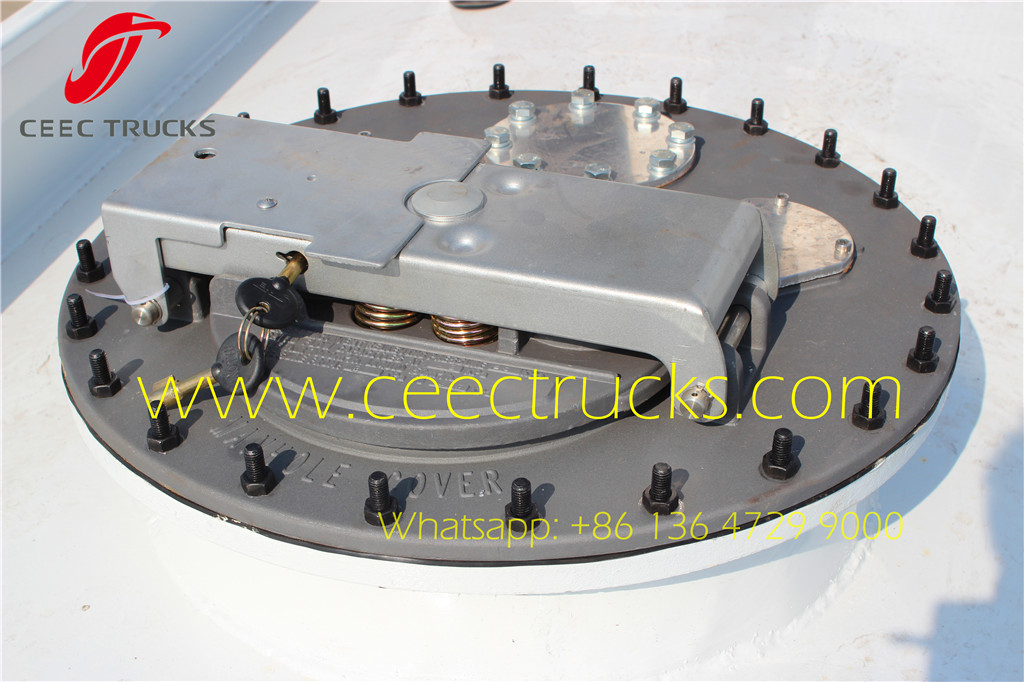

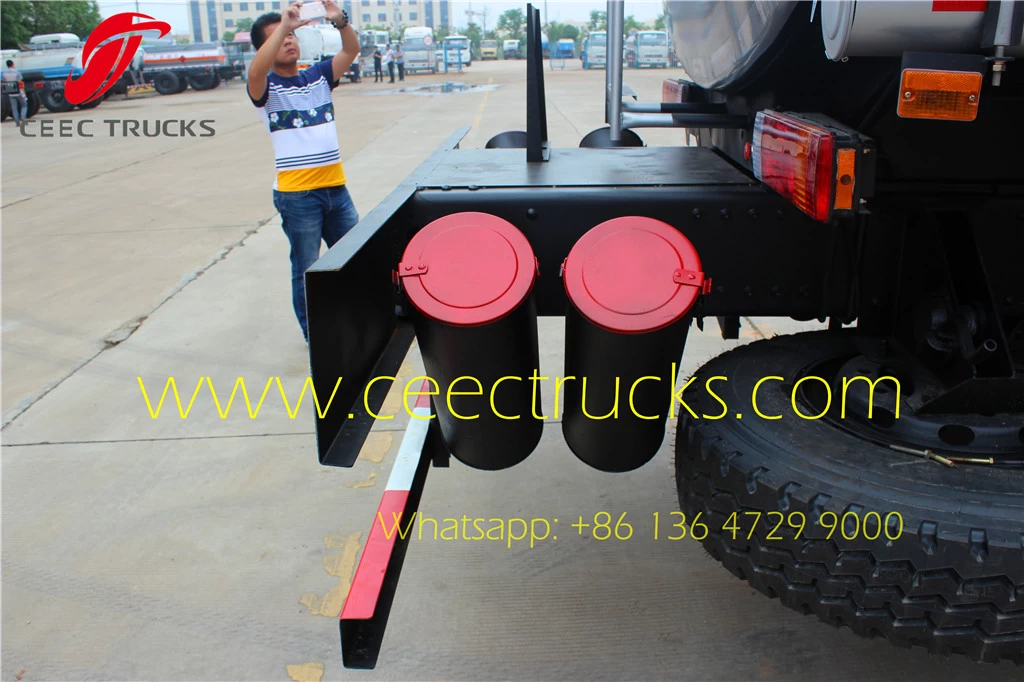

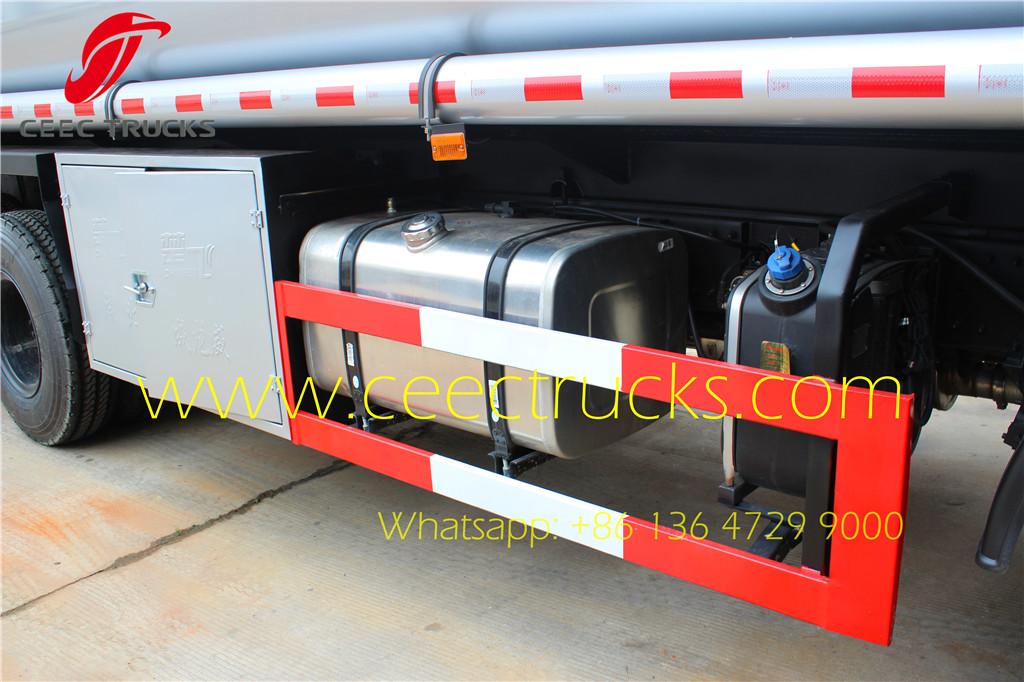

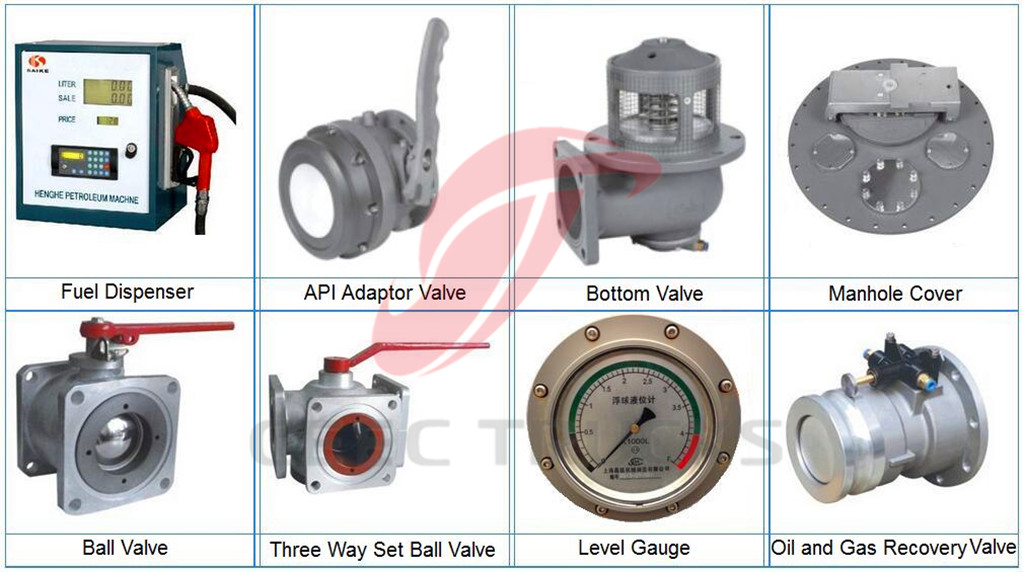

★ Main parts for North Benz 40 CBM oil tanker vehicles

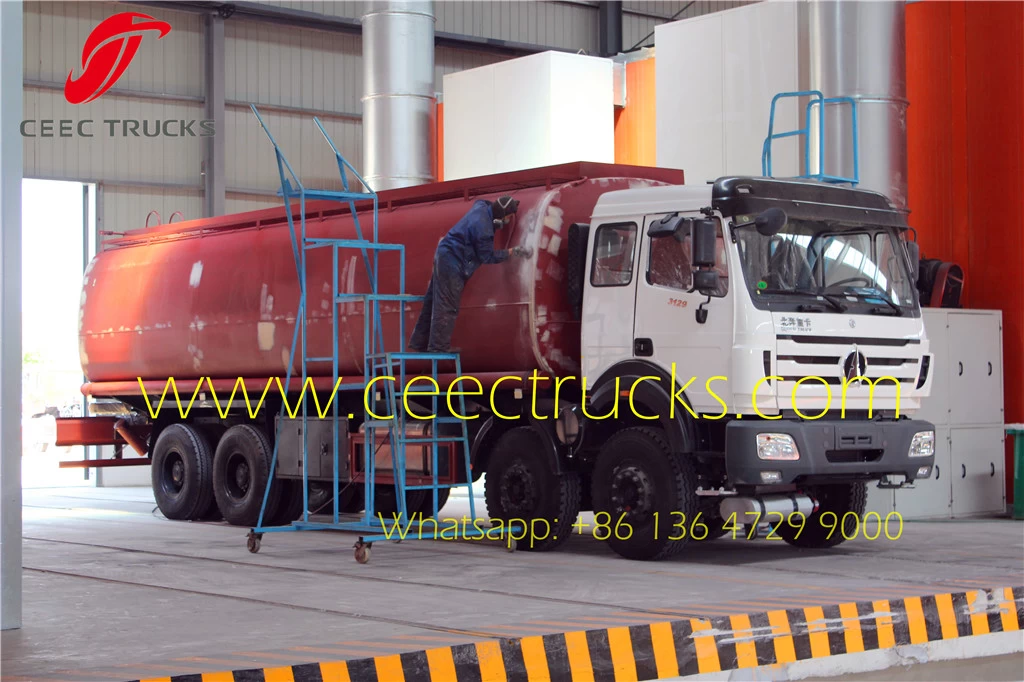

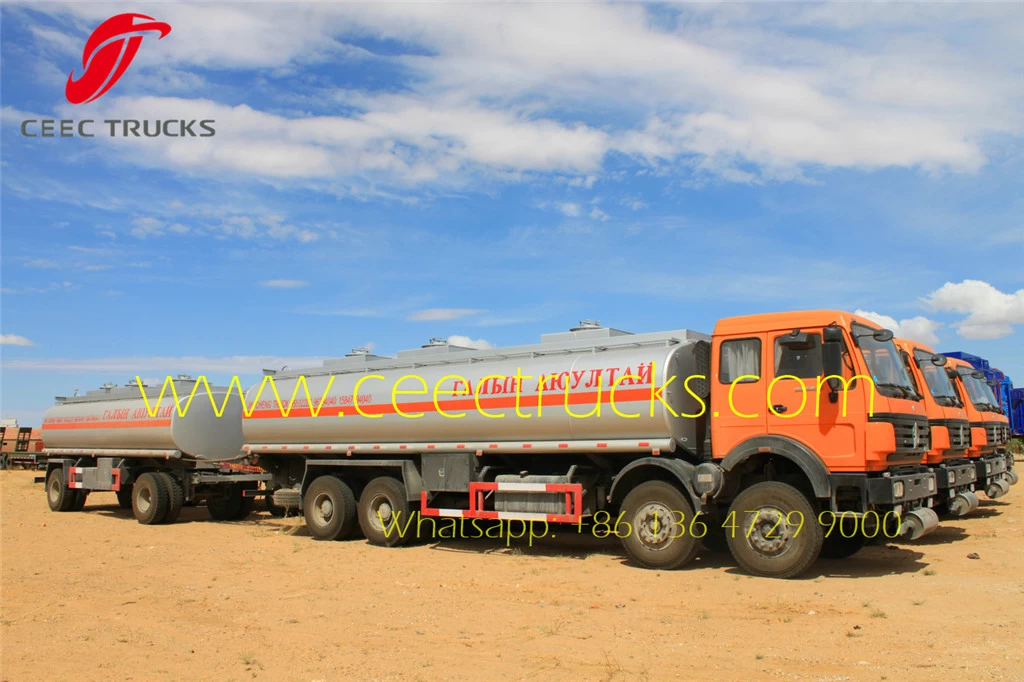

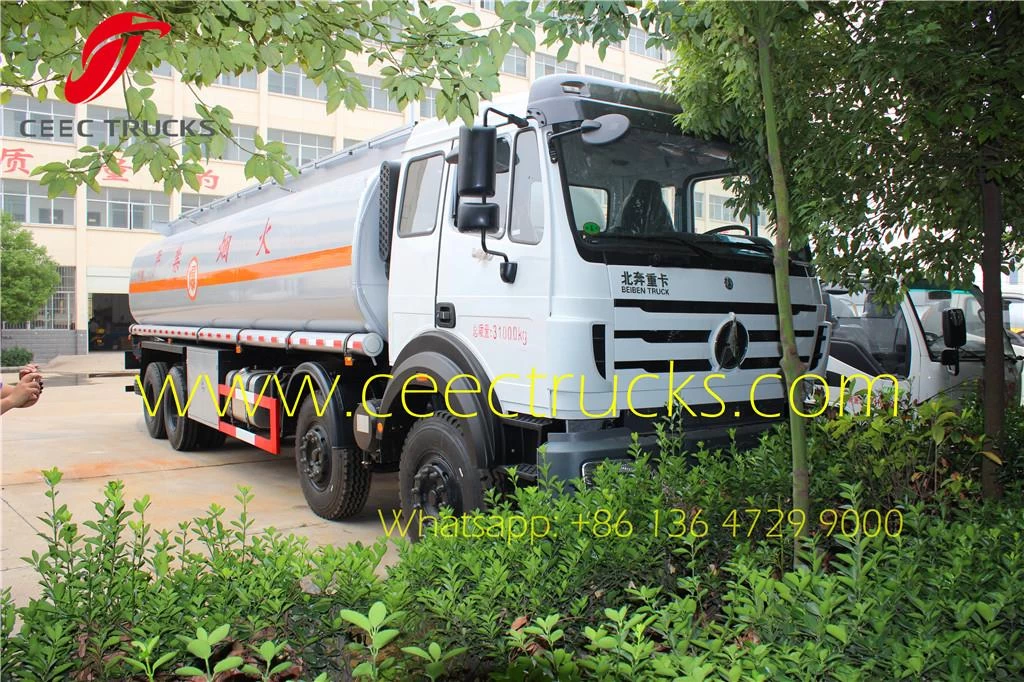

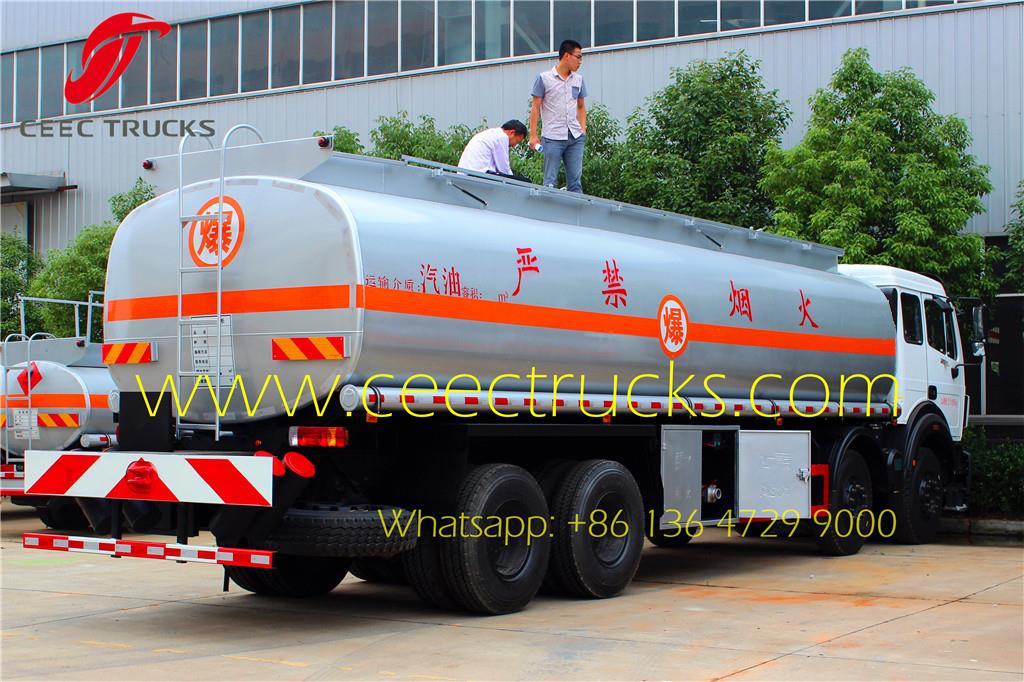

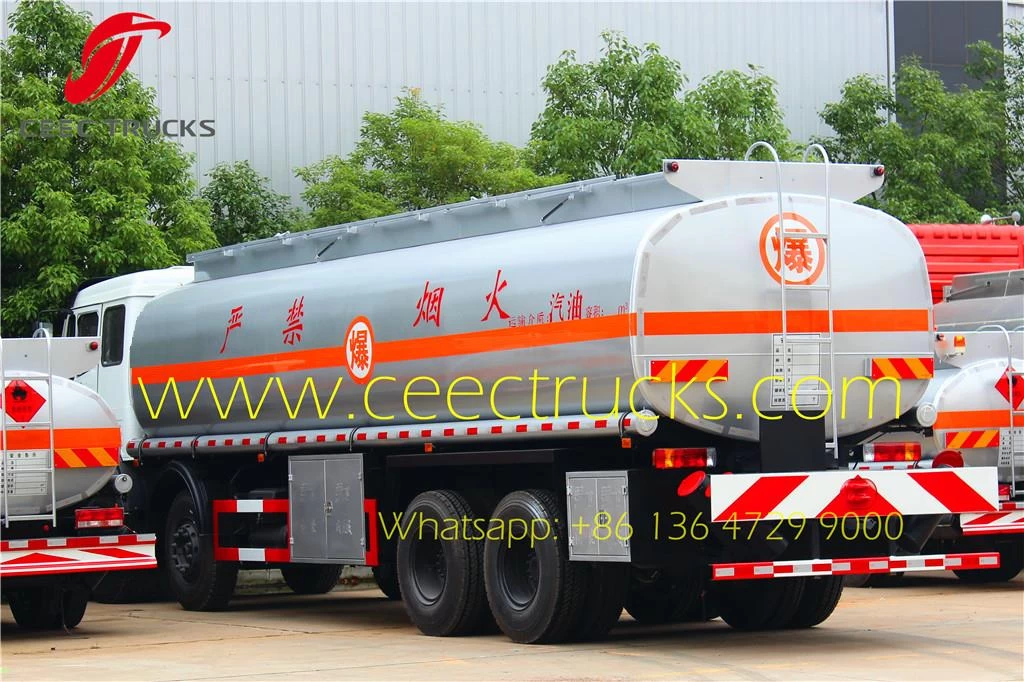

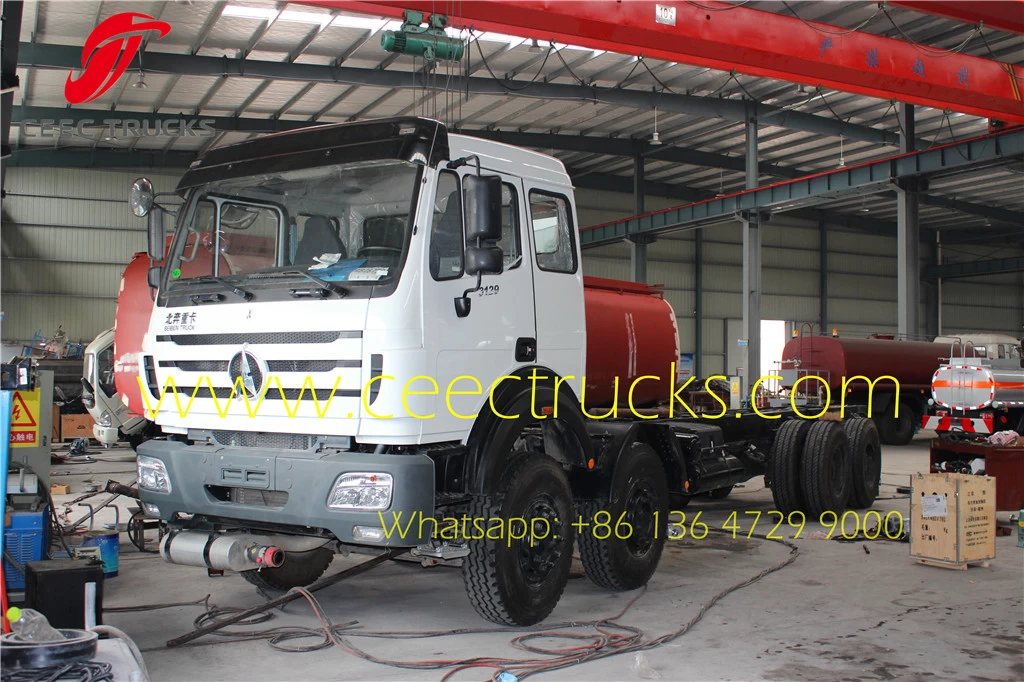

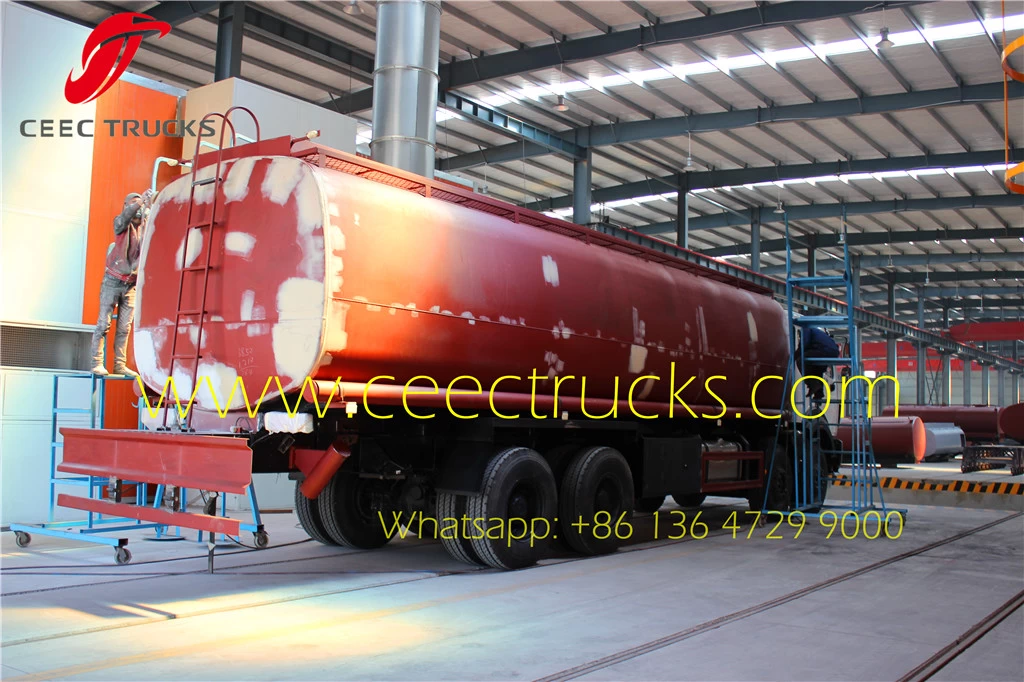

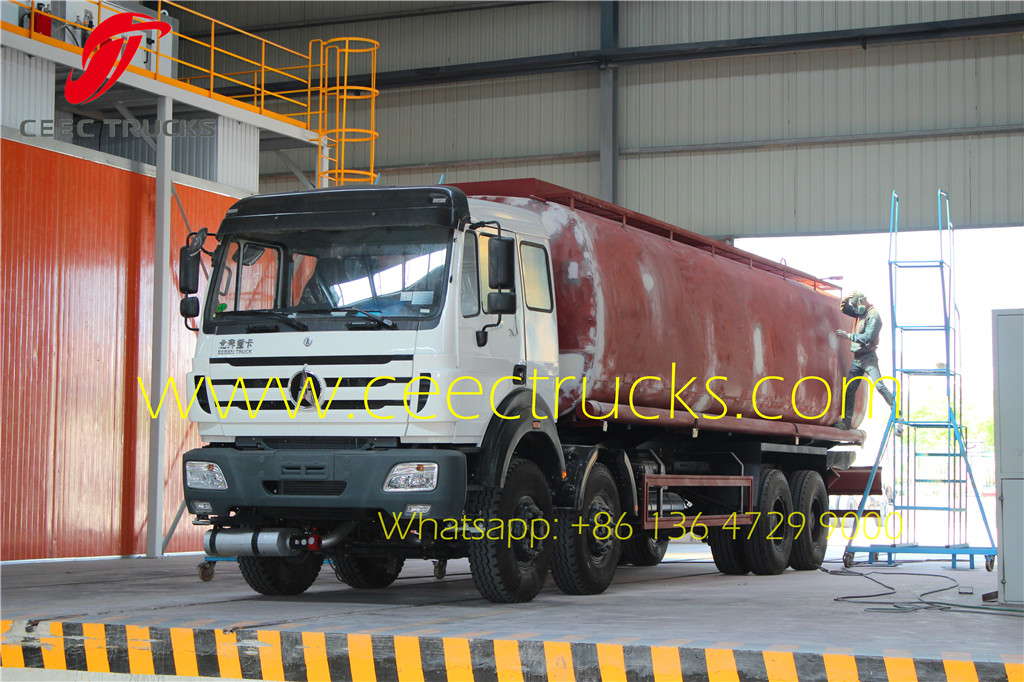

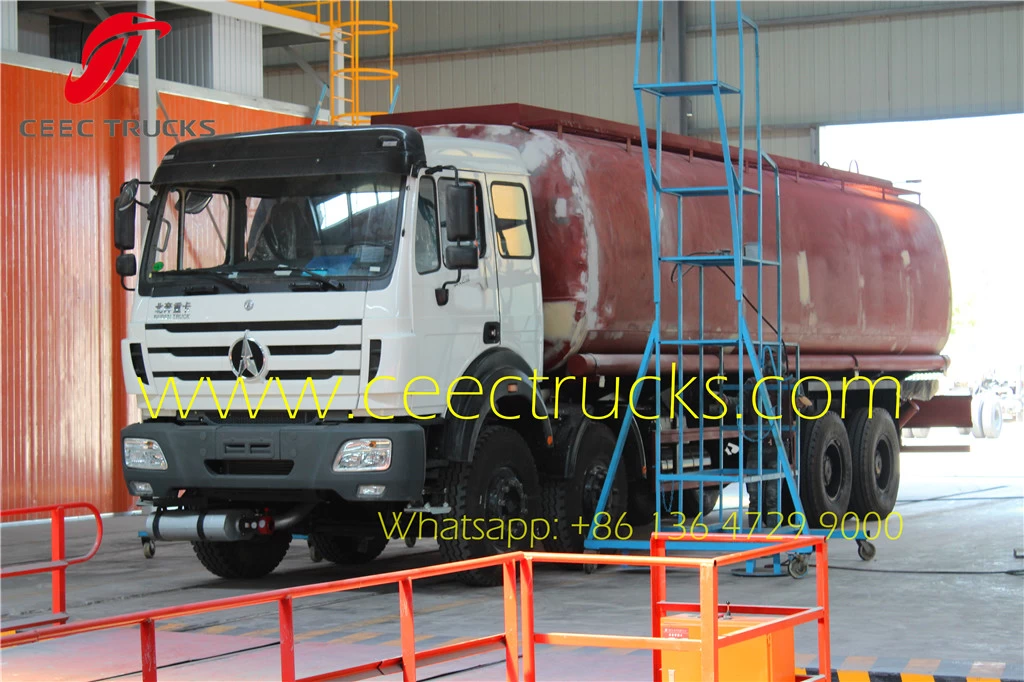

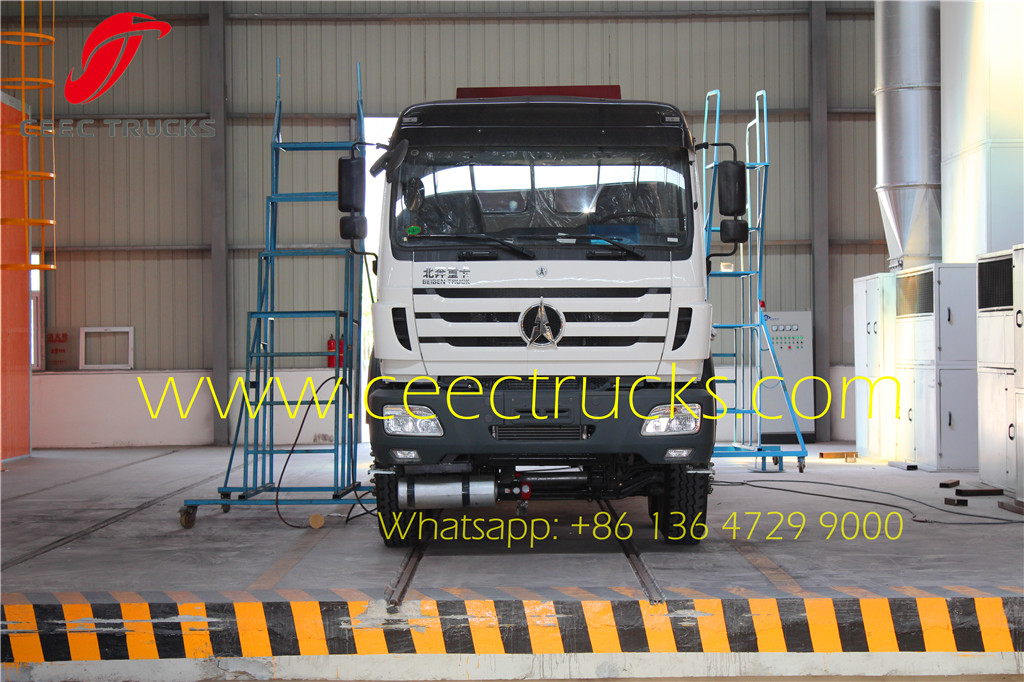

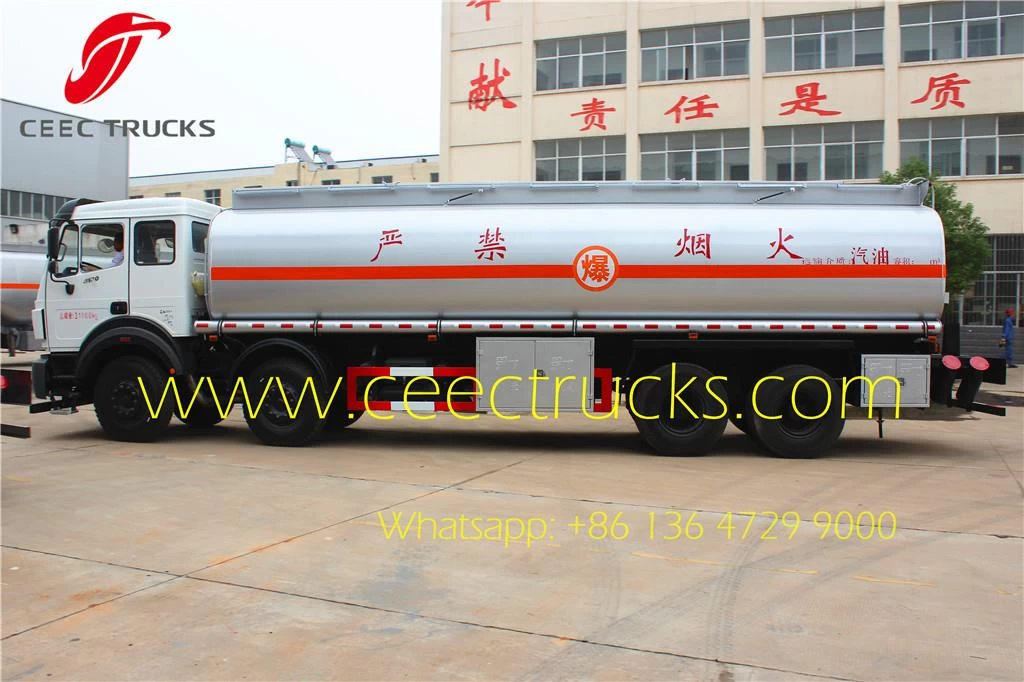

Kenya Mombasa customer choose Beiben 40 CBM fuel bowser:
Similar key words: Beiben 40000 liters fuel tanker vehicle, north benz 3138 oil tanker truck, Beibben 40CBM fuel bowser, Benz 40
CBM diesel tanker truck, beiben 12 wheeler oil refueling truck, beiben 40,000 liters fuel
tanker
| Vehicle Description
|
| Vehicle model
|
Beiben 40000 Liters fuell tank truck
|
| GVW (kg)
|
Appro×31000
|
| Mass in working order (kg)
|
Appro×12715
|

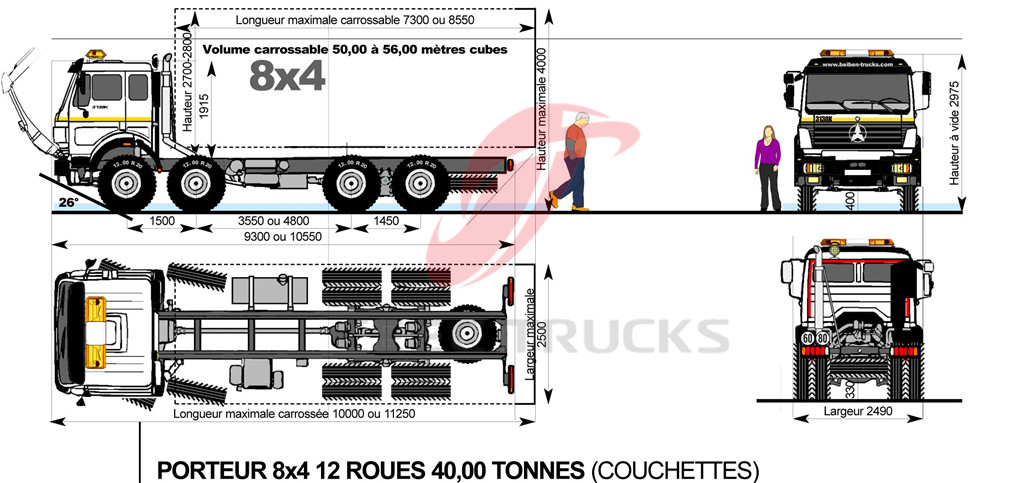

| Overall dimensions (mm)
|
11900x2500x3454
|
| Fact loading capacity (L)
|
28000
|
| Max. Speed (km/h)
|
85
|

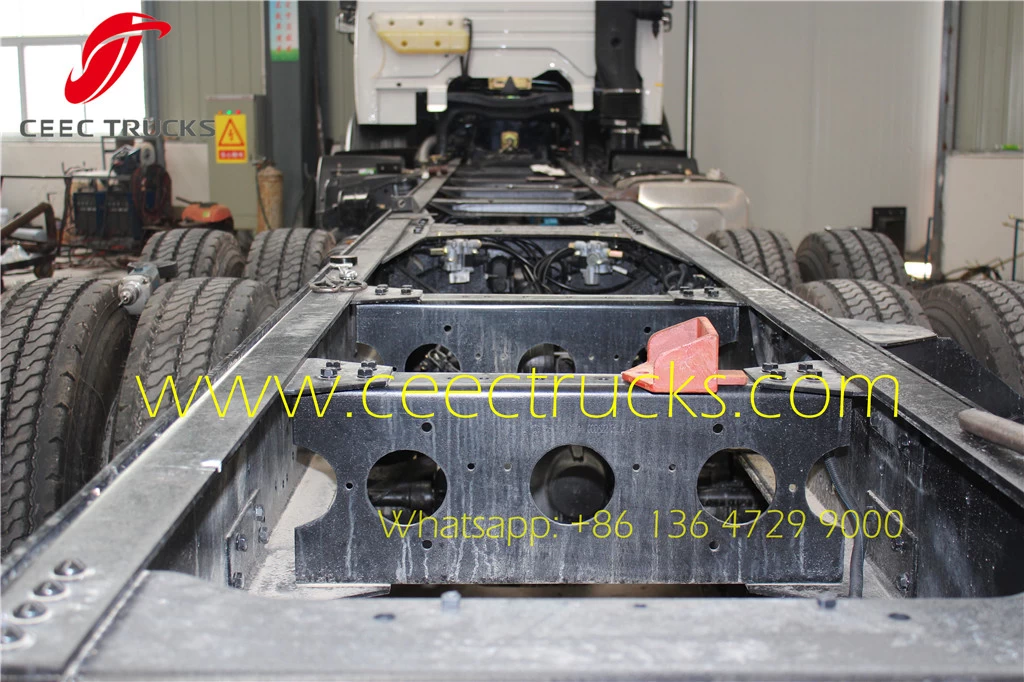

| Chassis Description
|
| Chassis Model
|
Beiben 3138 chassis
|

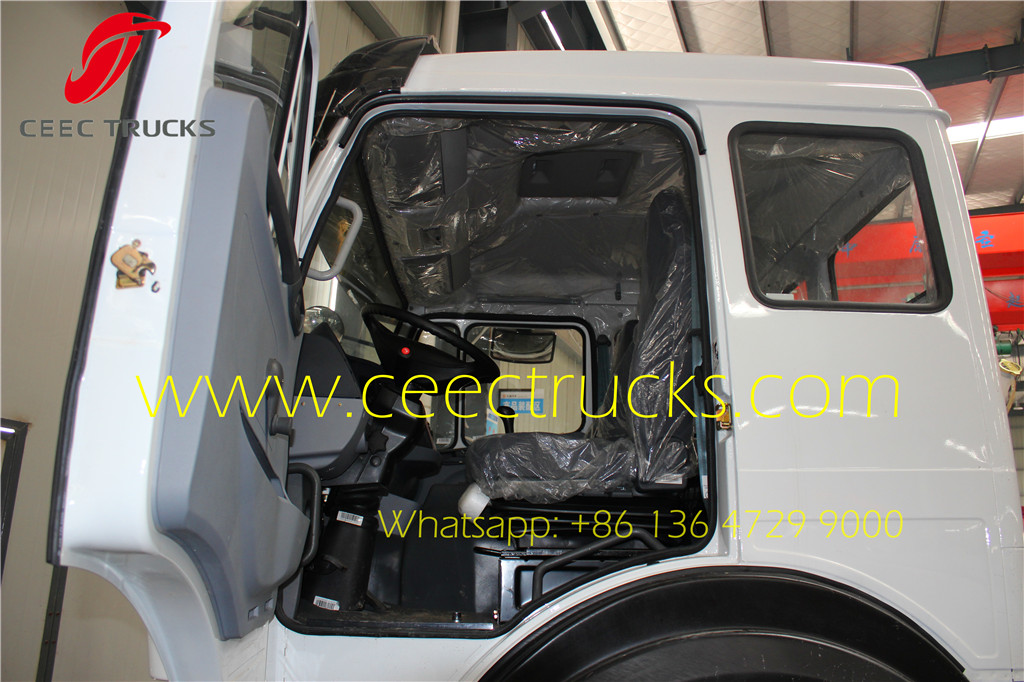

| Cab
|
Standard cabin with Left hand drive
|
| Color
|
Optional
|
| Allowable person in cab
|
2/3
|
| Wheel base (mm)
|
1950+4550+1350
|
| Front/Rear track base (mm)
|
1950/1950
|
| Front/Rear overhang (mm)
|
1245/2845
|
| Number of axles
|
4
|
| Axle
|
Front axle
|
6500/6500
|
| Rear axle
|
18000
|
| Traction system
|
8*4
|
| Operation control system
|
Power steering
|
| Braking system
|
Full air
|
| Electric system
|
24V
|
| Transmission
|
FAST 12 speed
|
| Spring plate
|
8/13
|
| Tire specification
|
12.00R20
|
| Tire quantity
|
12+1
|
| Engine Description
|
| Engine model
|
WP10.380E32
|
| Emission standard
|
Euro 2 / 3
|
| Exhaust/output
|
9726 cc /280
|
| Horse power
|
380hp
|
| Up-parts Description
|
| Tank Dimension (mm)
|
8600×2430×1590
|
| Standard Equipment
|
1. Equipped with oil pump, oil interface, oil hose suite, flow gauge.
2. Tank is made of 5mm carbon steel .The whole tank can be separated into several unattached parts. Diaphragm is welded in the middle of tank to reduce the pressure during the transportation.
3. Antirust paint is pained and container indicator is installed to show the capacity of the tank during the pump in or out.

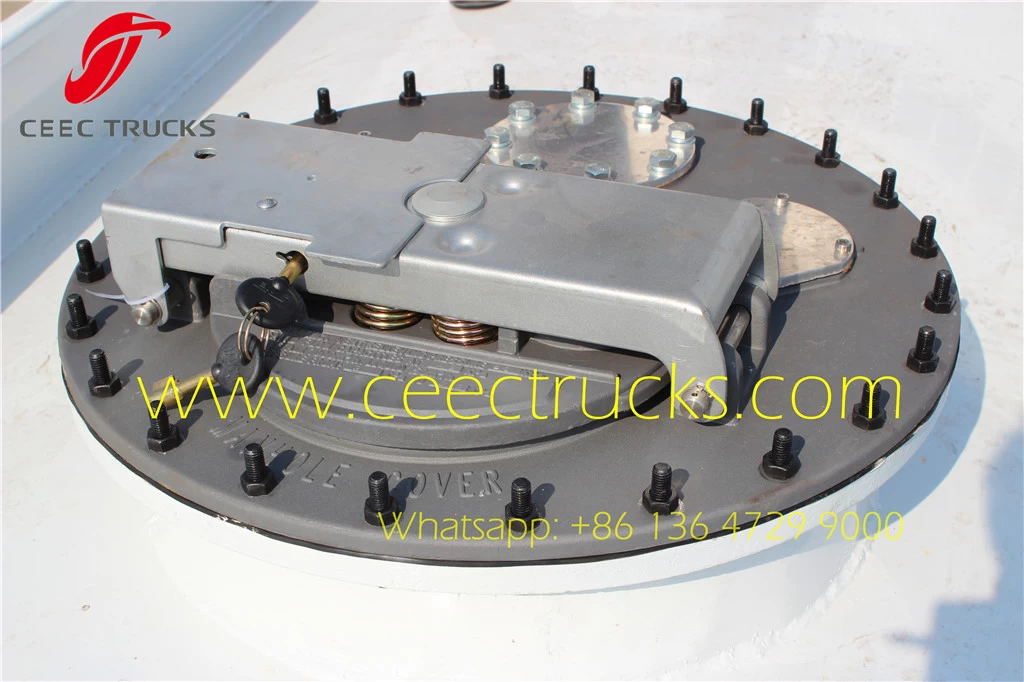

4. In order to ensure the tank pressure and atmospheric pressure are basically the same during their working, breathing valve is installed in the covered pot CUHK .When the tank pressure is higher than the outside pressure 8KPa, the front breathing valve would open; when the tank pressure is lower than the outside pressure 3KPa , the real breathing valve would open.
|
| Working Condition:
|
1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree
|
CEEC Recommend environmental protection truck series

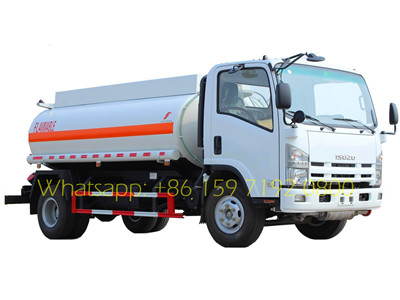

| ISUZU diesel tank truck
|
Beiben fuel tanker truck
|

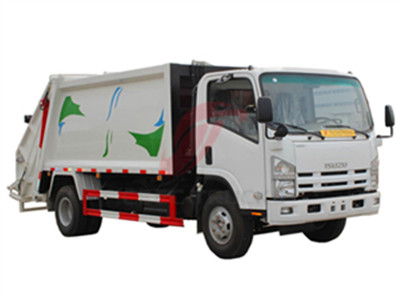

ISUZU garbage compactor
|

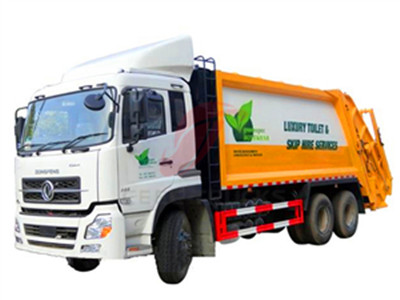

Dongfeng 20 CBM refuse compactor
|
|
|
|
|
|

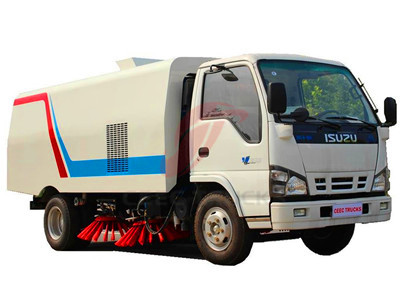

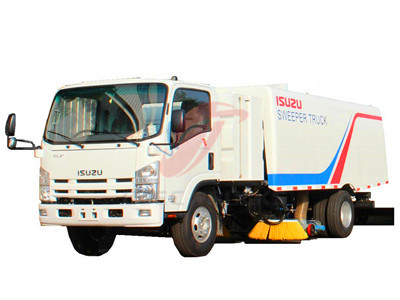

| ISUZU 4 CBM road sweeper |
ISUZU 8 CBM sweeper truck
|

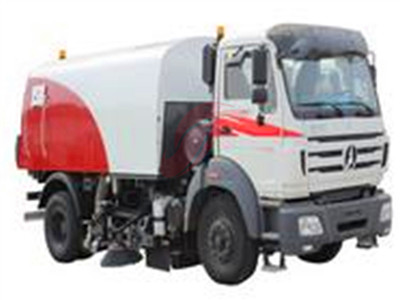

Beiben 16 CBM road sweeper
|

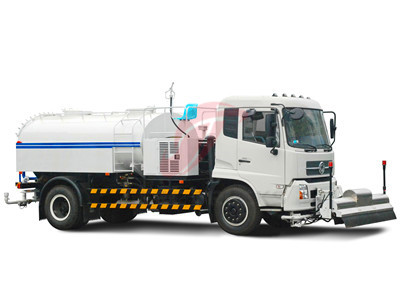

High pressure jetting truck
|
|
|
|
|
|

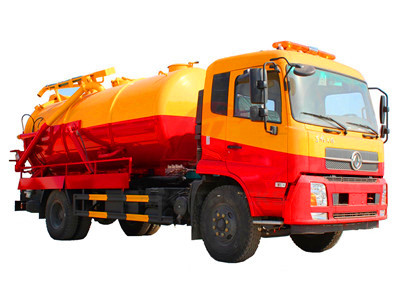

| Dongfeng vacuum suction truck
|
Beiben Cesspit Emptier
|

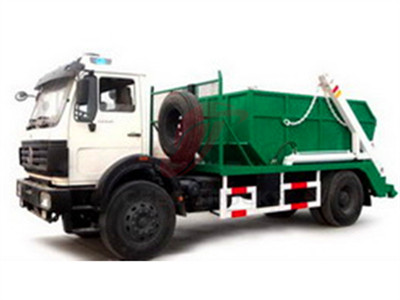

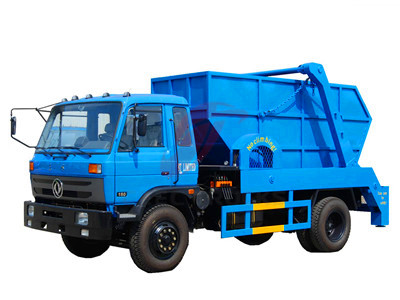

Dongfeng skip loader truck
|
Beiben swing arm truck
|
|
|
|
|
|
| Beiben 20 CBM water truck
|

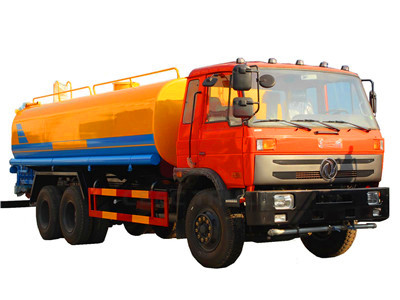

Dongfeng 20 CBM water tanker
|
Beiben Roll on Roll off Truck
|

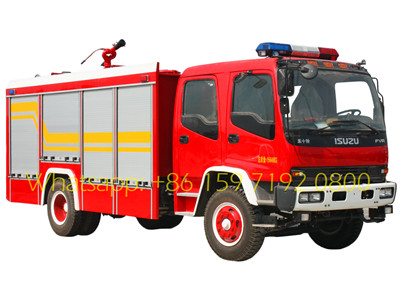

ISUZU fire fighting truck
|
|
|
|
|
|
