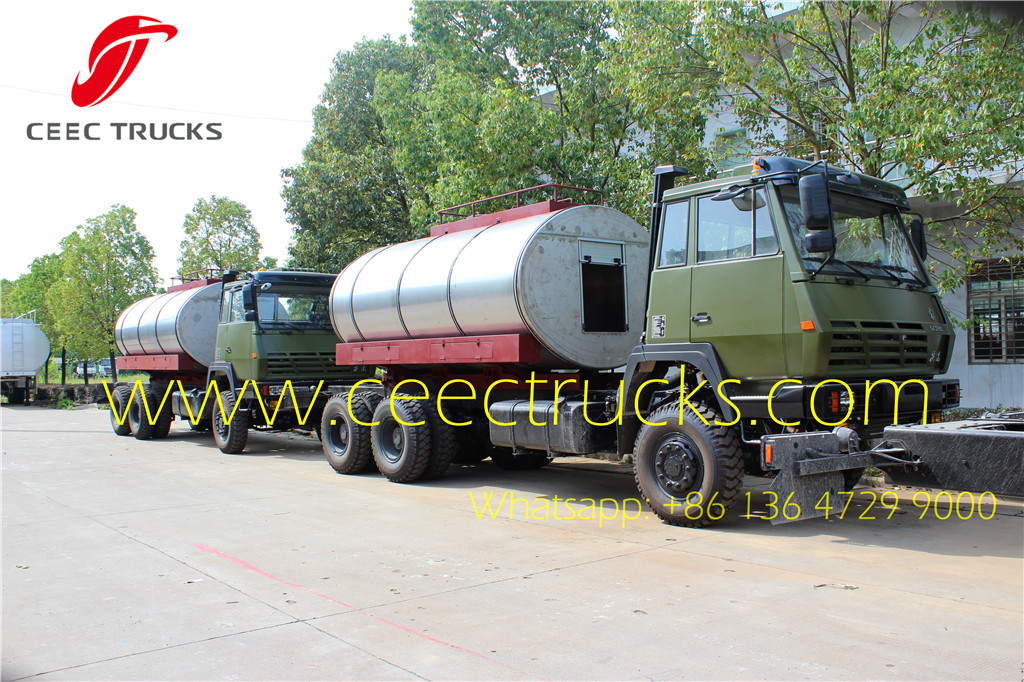

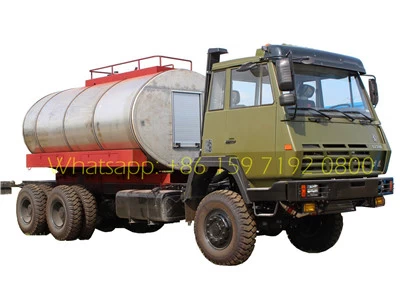

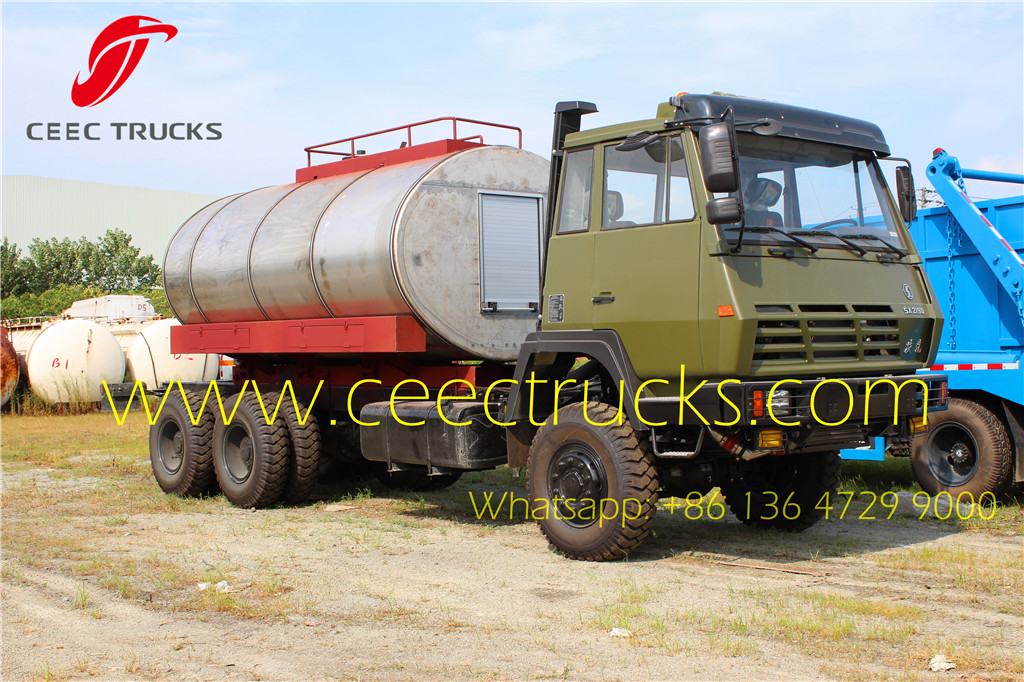

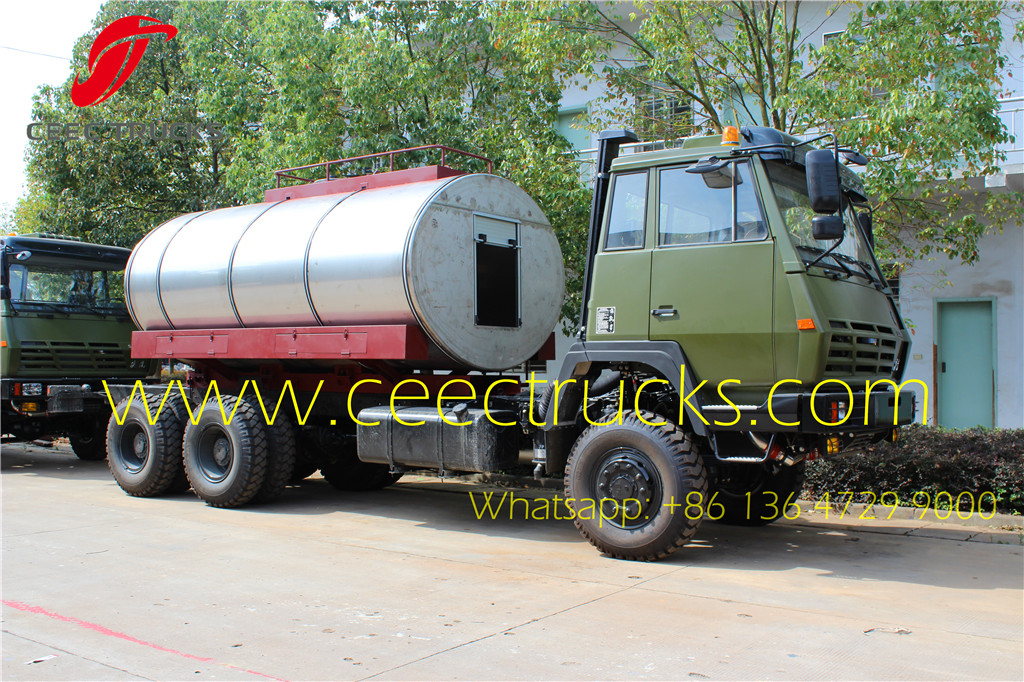

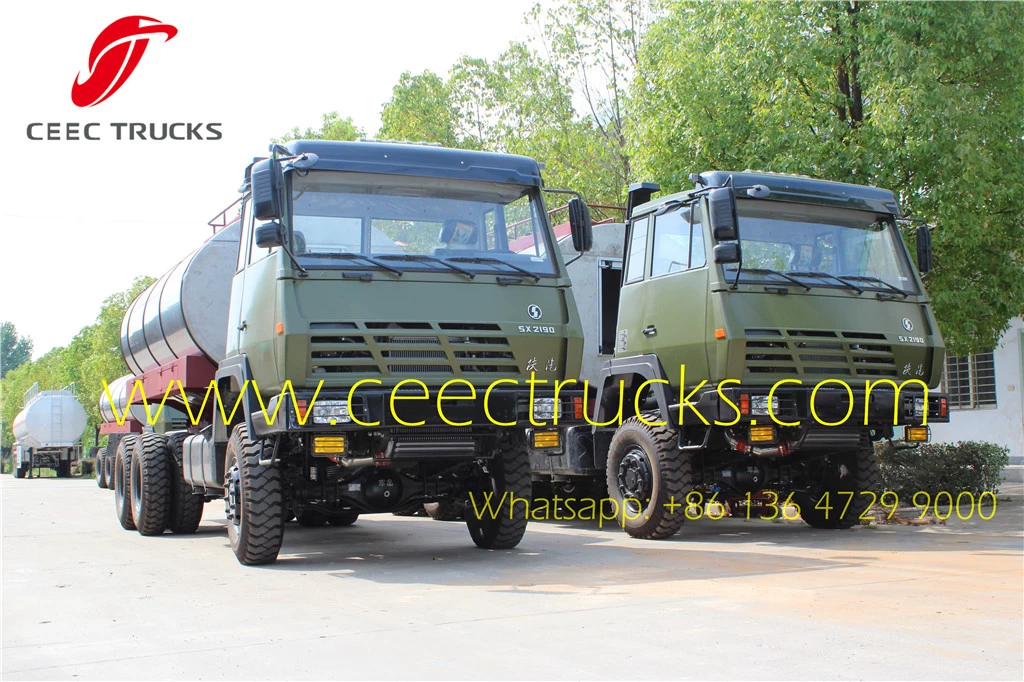

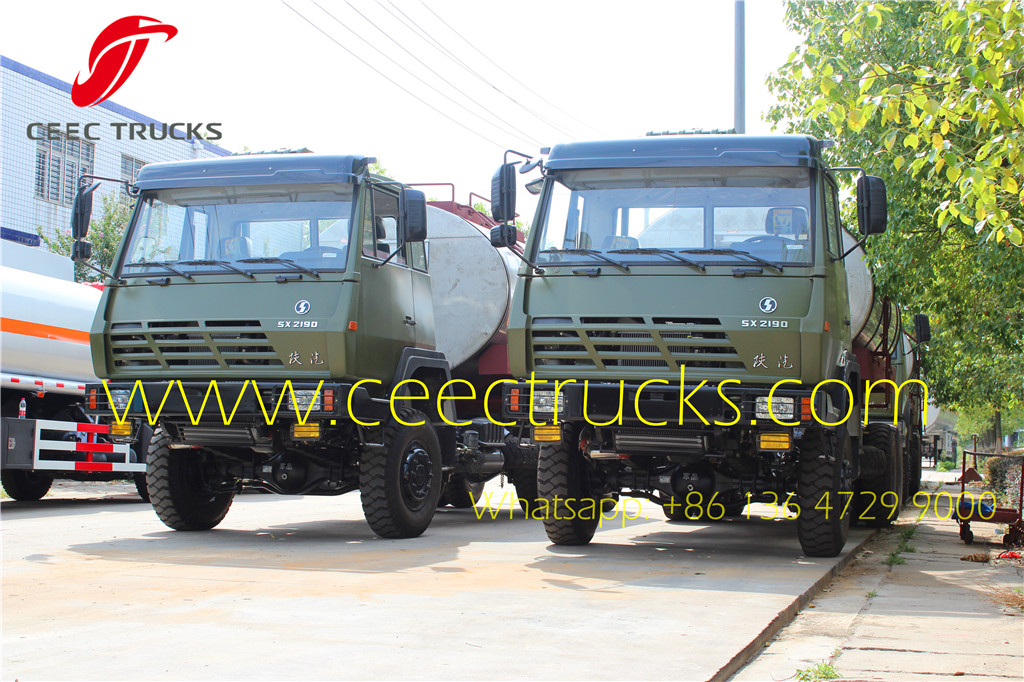

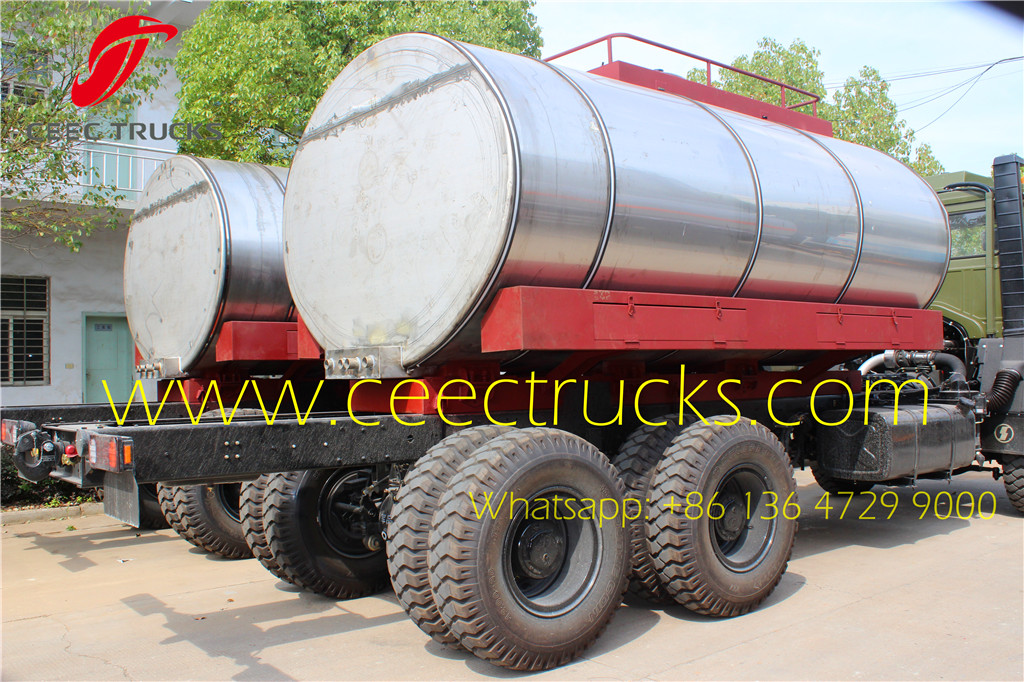

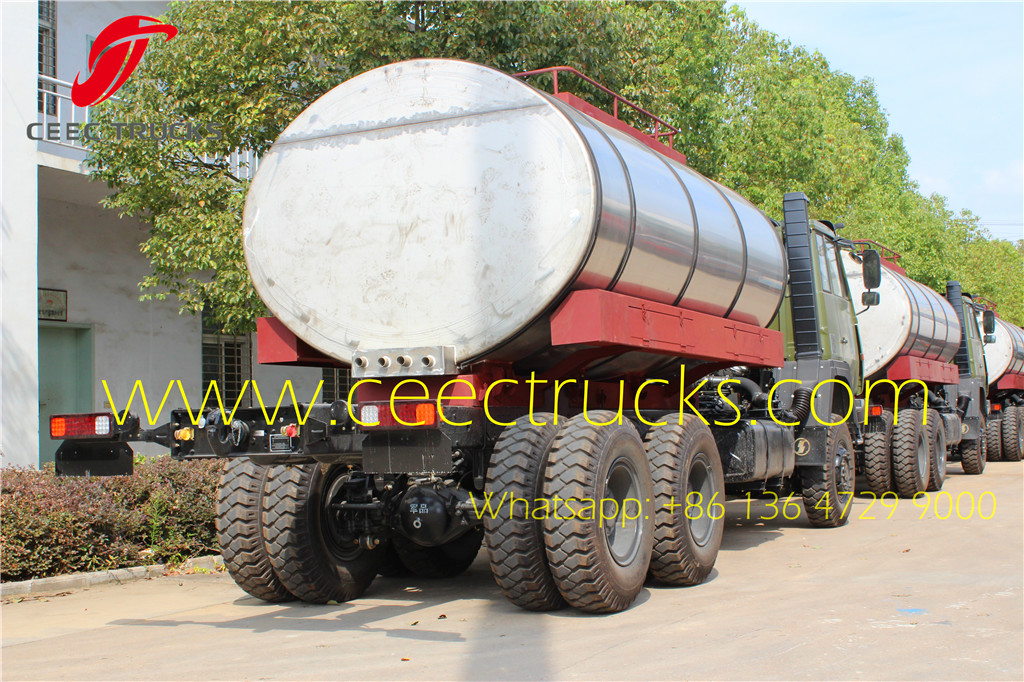

SHACMAN 6*6 Fuel Tanker Truck

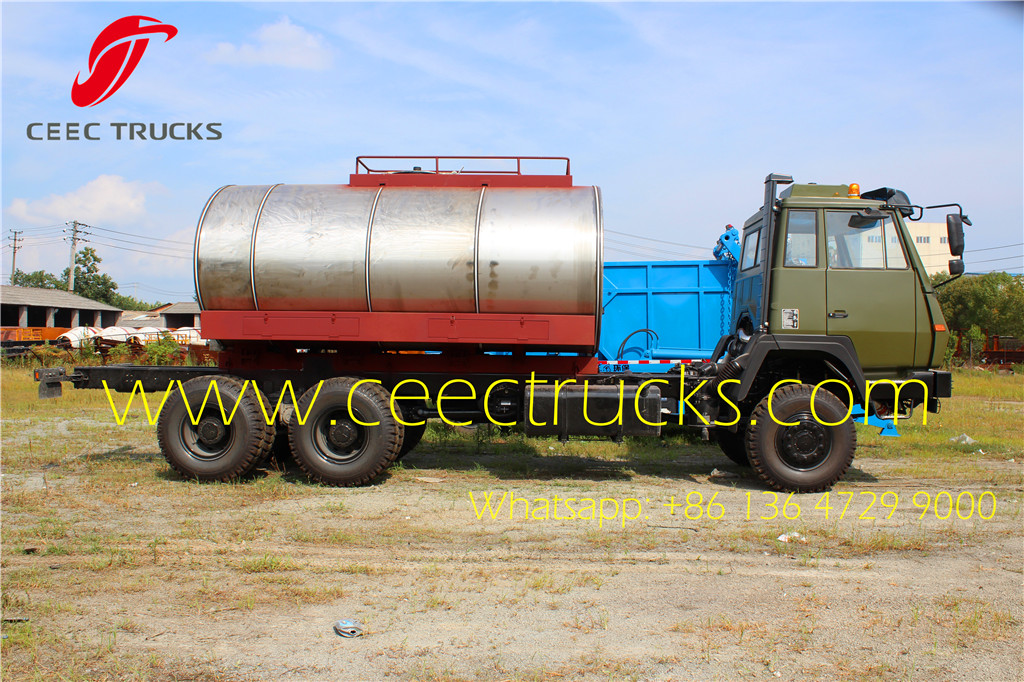

Desert SHACMAN 6*6 military fuel tanker truck use S2190 model chassis, WD615.50 engine with super 280HP engine, Mechanical 8-shift manual gearbox, stainless steel material fuel tanker with 10000 liters capacity.



SHACMAN 6*6 Fuel Tanker Truck for Desert Usage



SHACMAN military fuel tanker trucks manufacturer



CEEC TRUCKS is the professional Beiben Trucks, ISUZU Trucks and Shacman 12 wheel military fuel tanker Trucks manufacturer, guarantee all goods 100% Brand-New and China-Origined. We can provide you all series tank Trucks and Price.

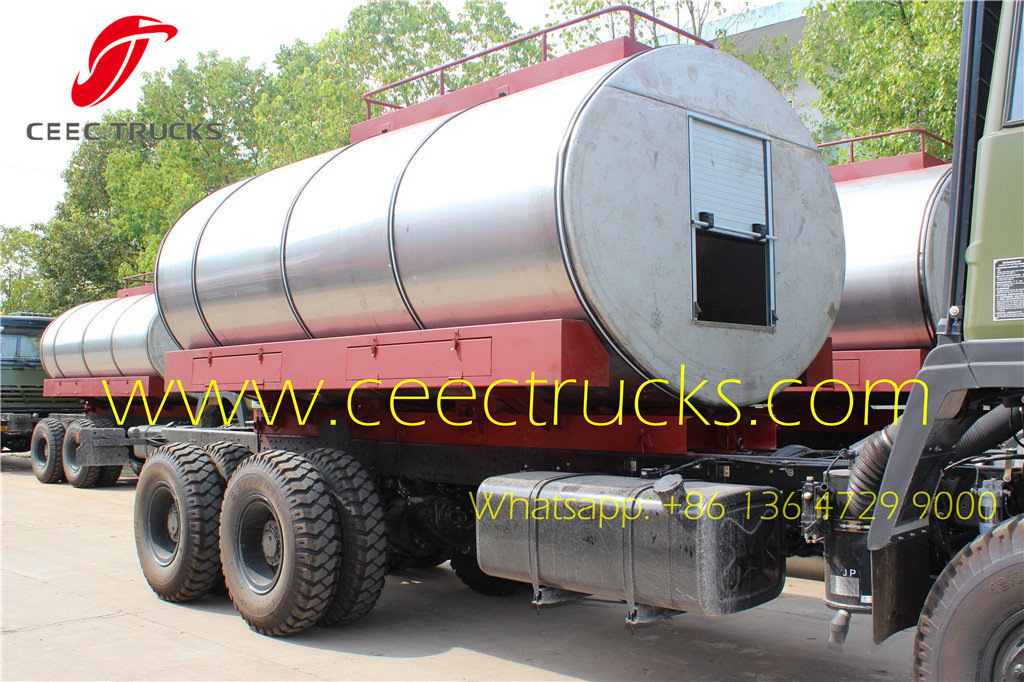

1.Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;
2.Tank shape: Optional for round square, oval, and round;
3.Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4.Oil pump:Optional single counting, double counting, and tax control tanker;
5.Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.

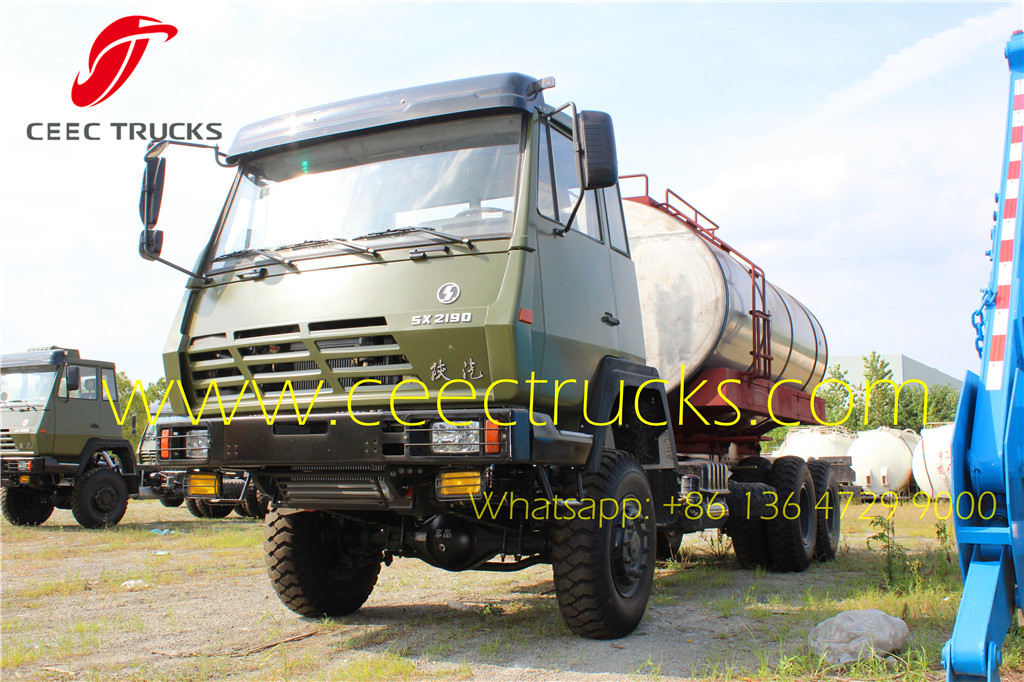

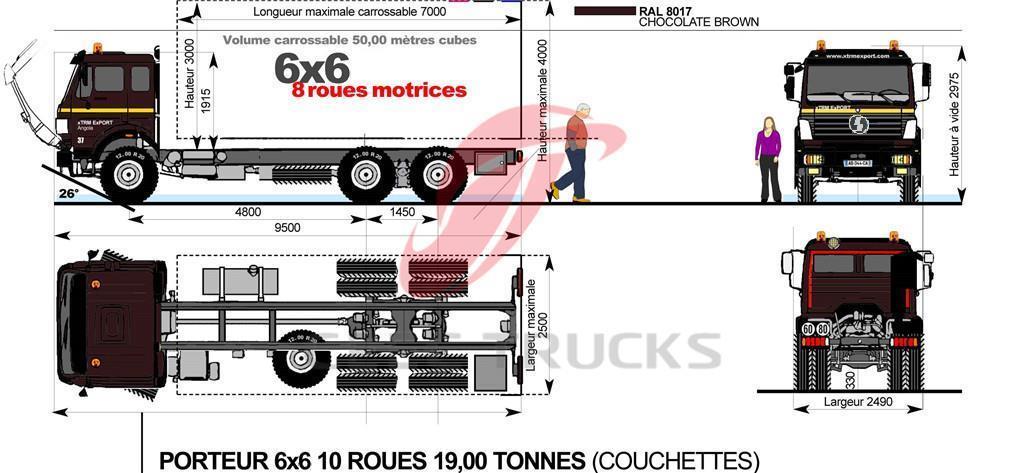

SHACMAN 6x6 truck chassis



SHACMAN military fuel tanker trucks supplier



SHACMAN military fuel tanker trucks manufacturer



SHACMAN military fuel tanker trucks manufacturer



SHACMAN military fuel tanker trucks manufacturer    SHACMAN military fuel tanker trucks manufacturer



Similar Key Words: military tanker truck manufacturer, Shacman 6*6 fuel trucks, SHACMAN 12 wheel oil tanker dispenser, low price 10000 Liters fuel trucks manufacturer



SHACMAN military fuel tanker trucks supplier



Product Name

SHACMAN 6*6 fuel tanker truck

Chassis model

SHACMAN S2190 military chassis

Overall dimensions(mm)

7820*2500*2950

Tank dimensions(mm)

3500*2300*1830

Weight(kg)

GVW

25000

payload weight

14345

curb weight

10460

Approach/departure angle(°)

18/11

Front/Rear overhang(mm)

1576/2699

Fuel type

Diesel

Fuel consumption(100km/L)

18

Max speed (km/h)

78

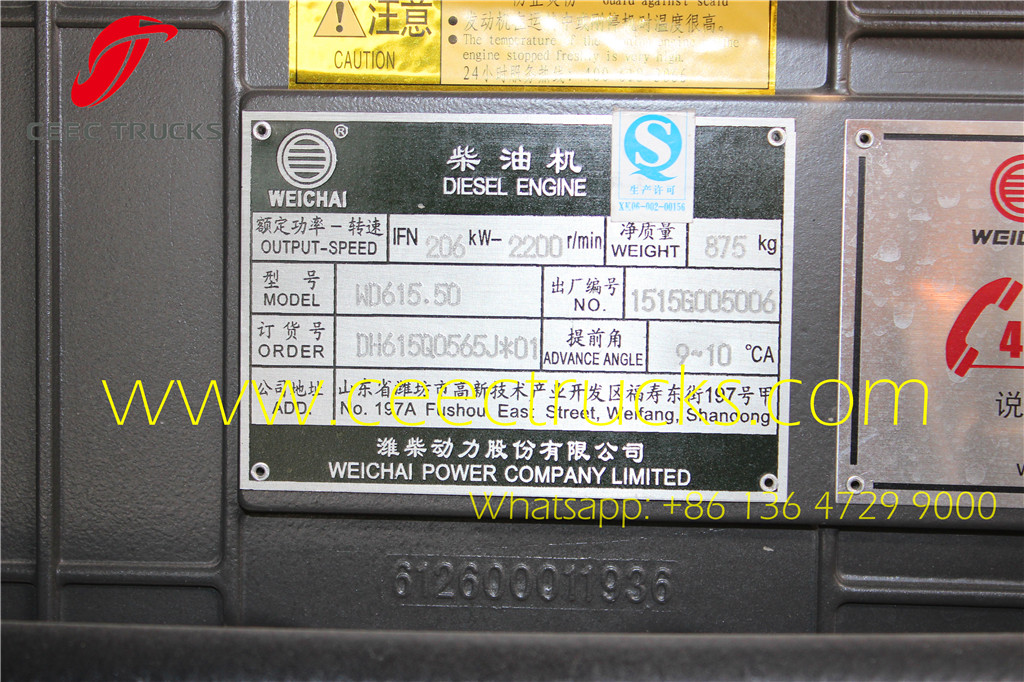

Model

WD615.50 engine

Displacement(cc)

9726

Horsepower(kw/ps)

206/280

Engine type

6 cylinder, in-line , turbo charge and after cooled

Drive style

6X4

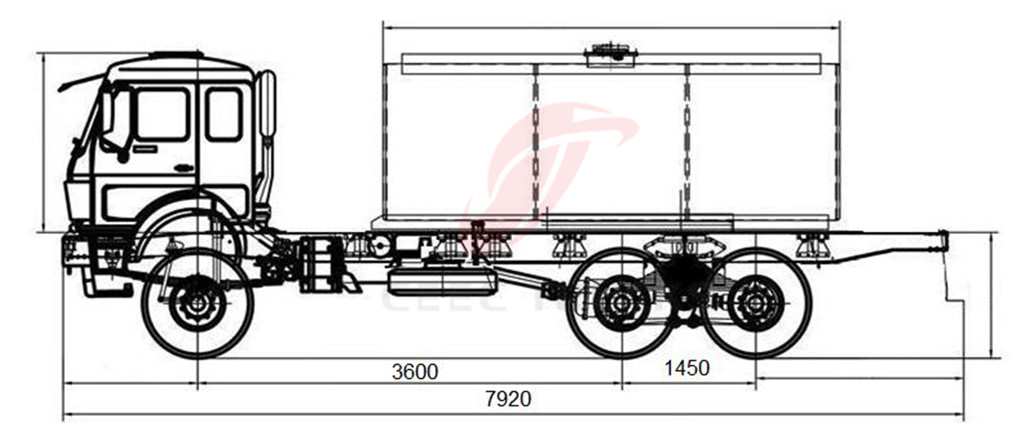

Wheelbase(mm)

3600+1450

Front tread(mm)

1939

Rear tread(mm)

1860/1860

Front axle loading(T)

7000

Rear axle loading(T)

18000

Gearbox

8 speed

Brake

Air brake, with power assisted , pressure boost

Tire spec.

11.00-20

Tire nos.

10+1(spare part)

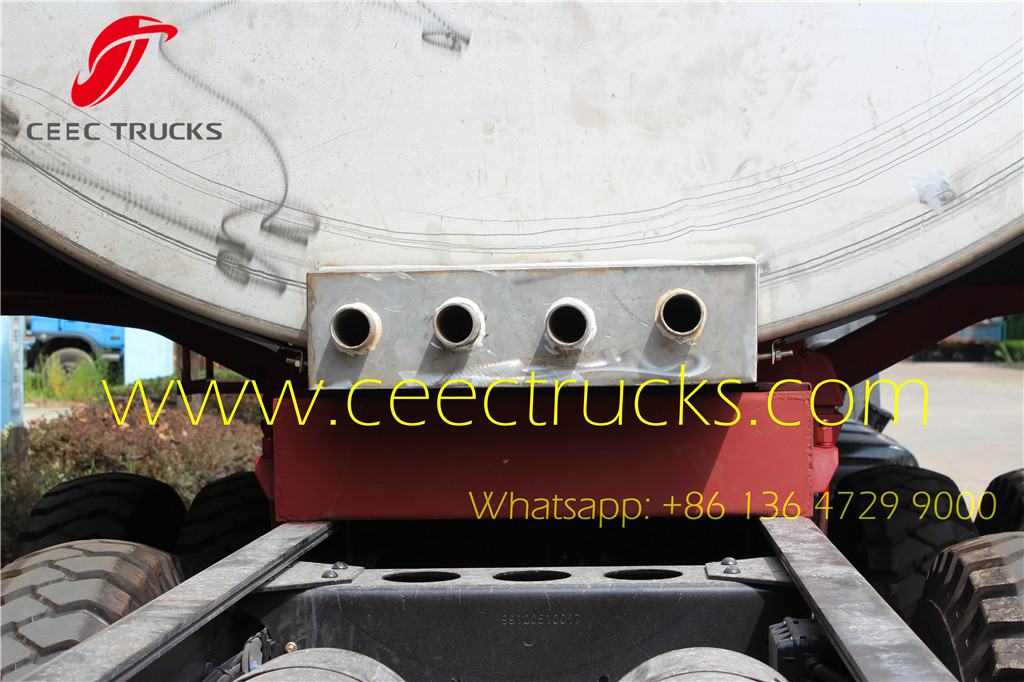

1. Tank can be separated to several unattached small tanks to fill different fuels

2. Tank material: carbon steel, stainless steel, FRP etc. optional

3. Tank shape: round, quadrate, oval optional

4. Oil pump: self-priming pump, gear pump optional

5. Oil meter: single, double, Fiscal processor optional
