Beiben 6*6 Oil Tanker Truck

Beiben 2534 airport fuel tanker truck, widely used for refueling the airplane at the airport, based on beiben 340 Hp engine truck chassis, with Germnay technology upper structure system. very convenient and reliable for charge the air gas . minimum 10 CBM fuel tanker capaicty .



Beiben all-wheel-drive airpoort tanker truck supplier



Beiben 20 CBM fuel truck for airplane dispensing



The most professional beiben offroad 2534 airport fuel truck manufacturer in china, this kind of beiben 340 Hp engine 10 wheeler fuel trucks can be used for refueling the small airplane in airport, it is very safe and reliblae. Compared with Germnay Benz trucks, this kind of beiben fuel tanker truck price is at least 40% lower.

Currently, our beiben oil truck plant can supply all customers with beiben 4*2,4*4, 6*4, 6*6,8*4,8*8 fuel tanker trucks, range from beiben 2527,2530,2534,2538 fuel trucks.



Beiben 2534 AWD Fuel Tanker Truck

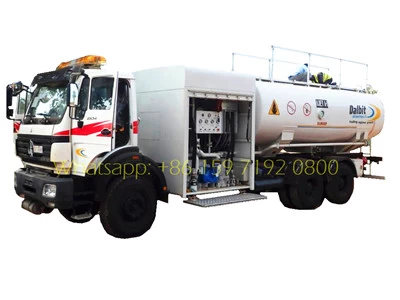

Beiben airplane refueling truck



Beiben airplane refueling truck



Congo Beiben 20000 liters Airport fuel tanker truck features:

→ Beiben 20000 Liters fuel tanker body can be carbon steel, polyethylene, stainless steel and aluminum

→ The Kenya Mombasa 20 CBM north oil bowser consist of special tank, fuel pump, pipeline assembly and other specil configuration

→ Tank shape can be oval, circumference, rotundity for requirement

→ Chemical pump adopt famous reliable pump, stainess pump available

→ Tank inside is installed regular antti-wave clapboard. It's completely detected by high pressure air tightness. High strength tank, stable gravity, safety drive.



Name

Standard configuration

♦ Tank volume

Full capacity 10000L

♦ Transport medium

air gas

♦ Tank Material

Carbon steel(Aluminium alloy or Stainless steel are optional)

♦ Compartment plate

Nil

♦  Shell Body

5 mm nominal thickness

♦  Head

5 mm nominal thickness

♦  Tank shape

Ellipse

♦  Compartment

1 compartment (20000L)

♦  Shell Finish

Shot blasted with 1 antirust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

♦ Testing Pressure

36kPa, standard water pressure test

♦  Logo & Color

Any color and  logos are FREE according to our clients wish



Beiben airplane refueling truck



Similar key words: Beiben offroad 20000 liters fuel tanker truck, Beibben 2534 airport fuel bowser, north benz 20 CBM military airport diesel tanker truck, beiben airplane oil refueling truck, beiben 20 CBM airport 6*6 fuel tanker

beiben 20 CBM fuel tanker truck advantages



Beiben 2530K offroad fuel tanker truck /6×6/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4450+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.300E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

220/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C



beiben airport refueling truck
