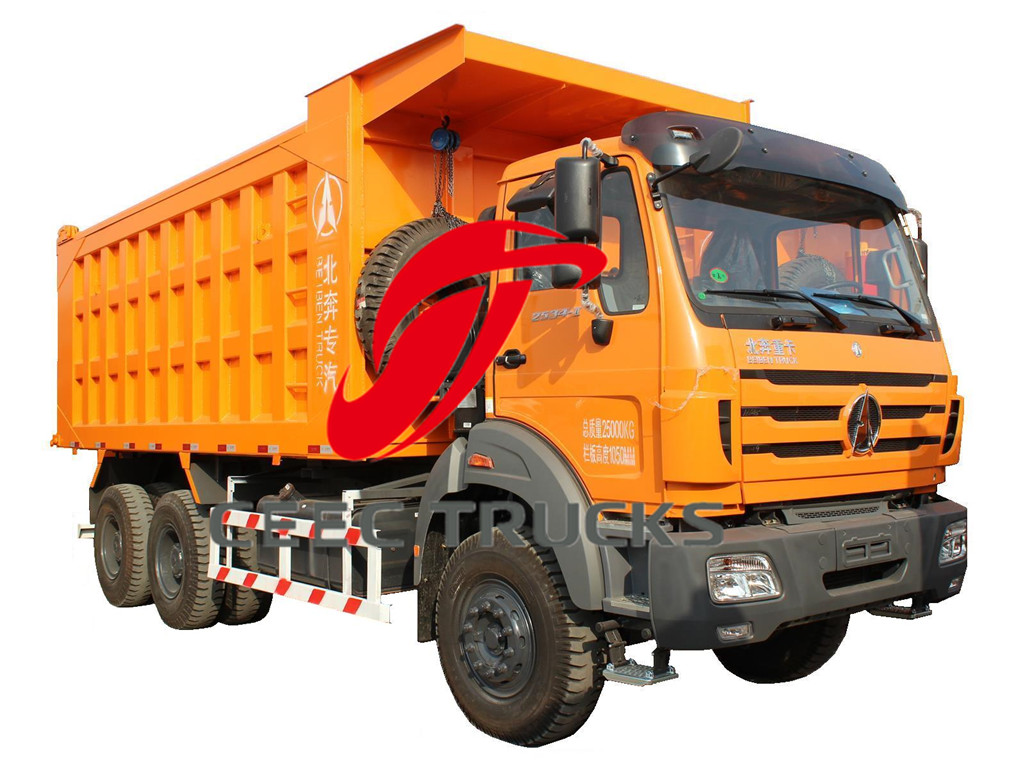

BEIBEN North Benz NG80 2634 dumper trucks export Africa
Africa customer choose beiben 10 wheeler dumper truck advanced features:

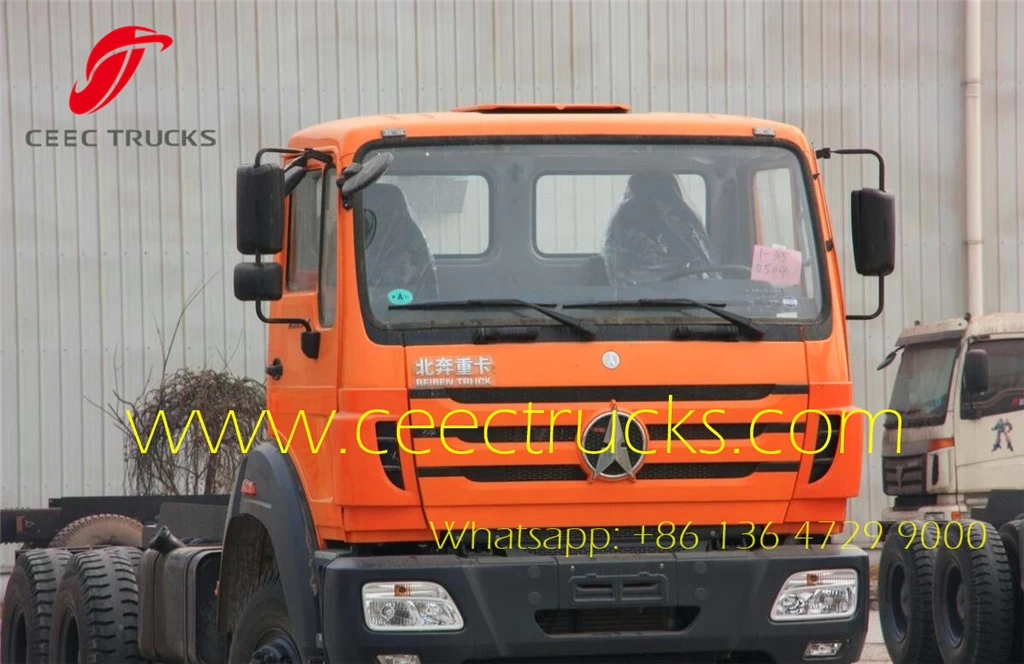

★ Beiben 2634 dumper truck equipped with new NG80B cabin, which has attractive appearanc, and export to congo, kenya and tanzania
★ WEICHAI engine WP10.340E32 with 340ps, and FAST 12 shift manual mechinical gearbox for easy operation
★ Beiben 10 wheeler tipper trucks loading capacity can be up to 50 T
★ Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles
★ Dumper truck body material can be High strength carbon steel Q345 or Q550 material, with thickness over 6mm
★ Hydraulic system can be original import brand HYVA hydraulic system
★ Optional dumper body can be normal shape, square shape, U-shape, etc
Best supplier of beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 15 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumpers. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks for congo, kenya, tanzania, etc.
Similar key words: beiben
2534 dumper truck, north benz 2534 dump truck, beiben 2534 sand
transportation truck, beiben 2534 tipping truck, beiben 2534 dump truck
price, africa beiben dumper manufacturer
| Wheel base (mm)
|
3800+1450
|
| Curb weight kg
|
12400
|
| Engine
|
Model
|
WP10.340 (Wei Chai engine.Euro III, Based on Styre technology, made in China)
|
| Power, max kw/rpm
|
206/2200
|
| Max torque(Nm/rpm)
|
1160/1100-1600
|
| Emission standard
|
EUROIII
|
| Fuel tanker capacity L
|
300
|
| Clutch
|
Model
|
GFX420, Single dry frictional disc,Hydraulic boosting
|
| Gearbox
|
Model
|
ZF 5S-111GP(ZF technical, mechanism, 9 forward gears, 1 reverse gear, manual, made in China, produed by Bei Ben Transmission)
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
Model
|
ZF8098
|
| Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
| Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|
| Cab
|
Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C
|

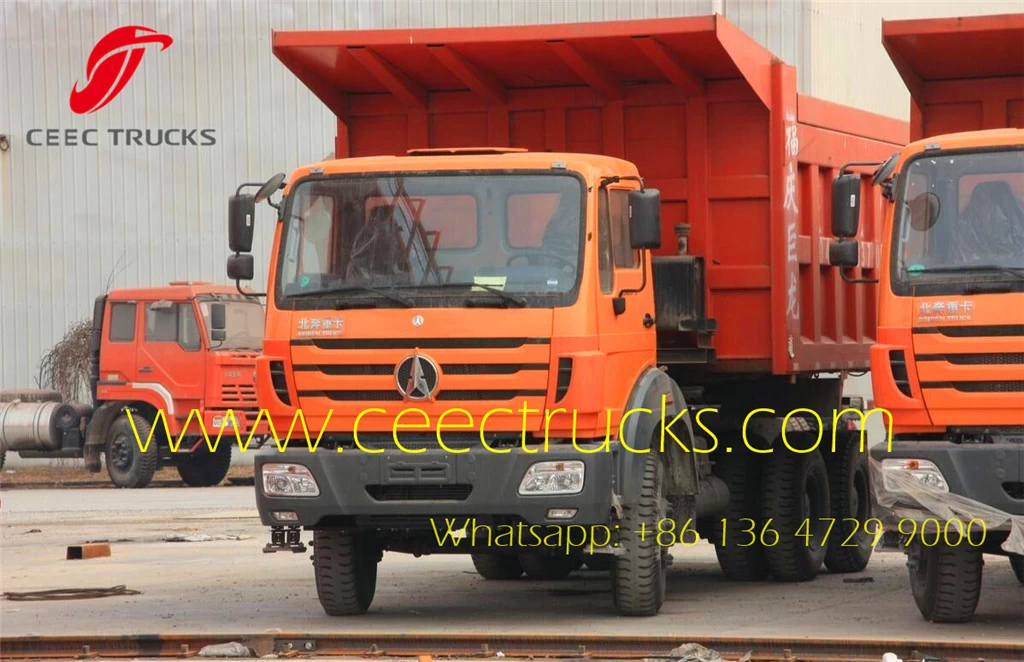

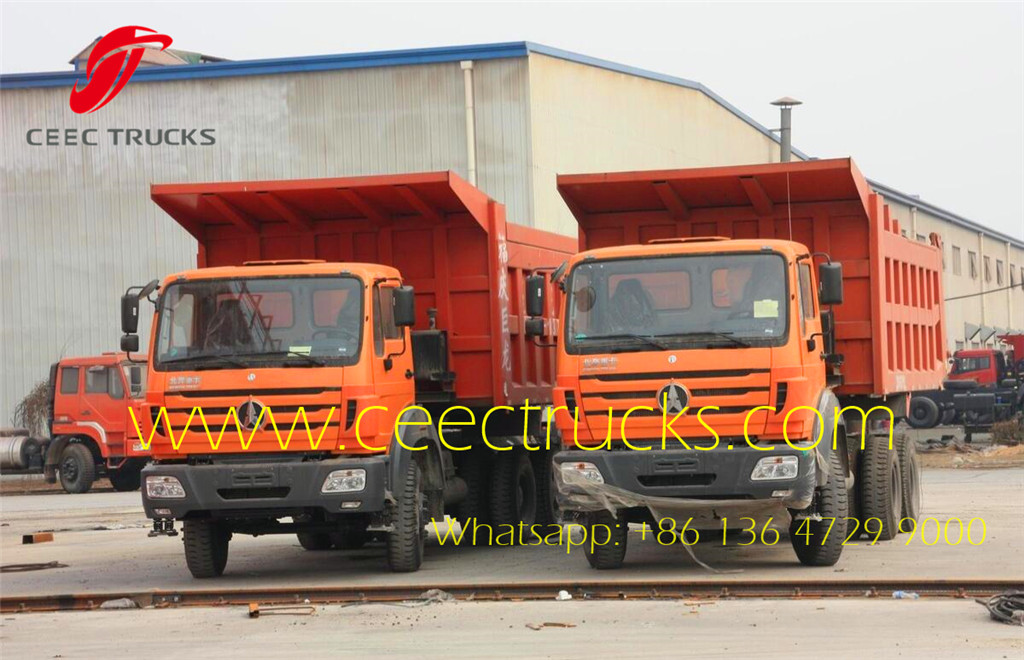

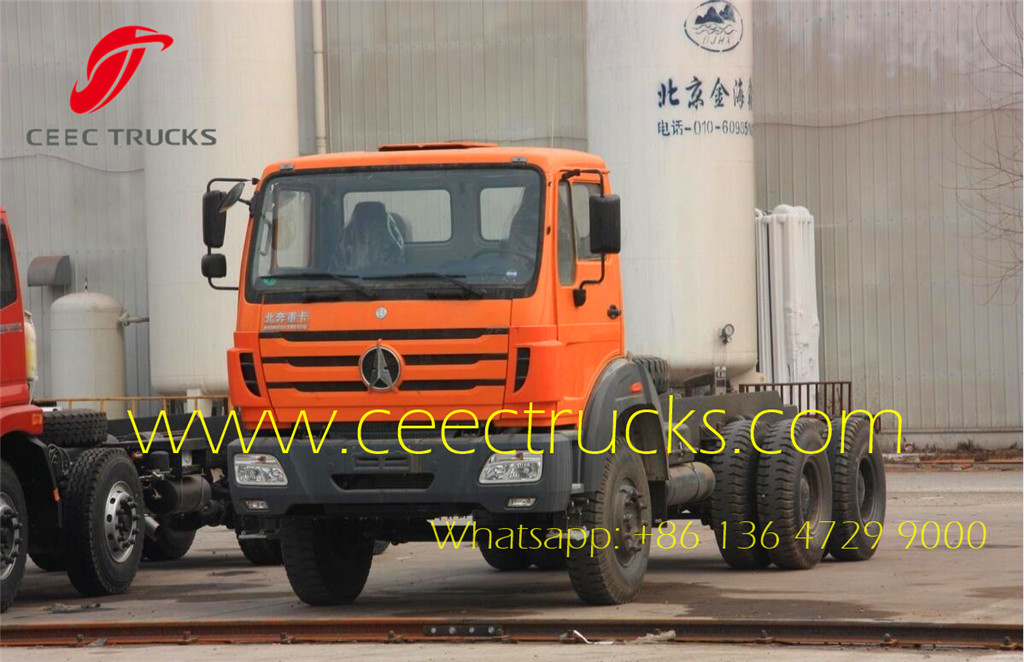

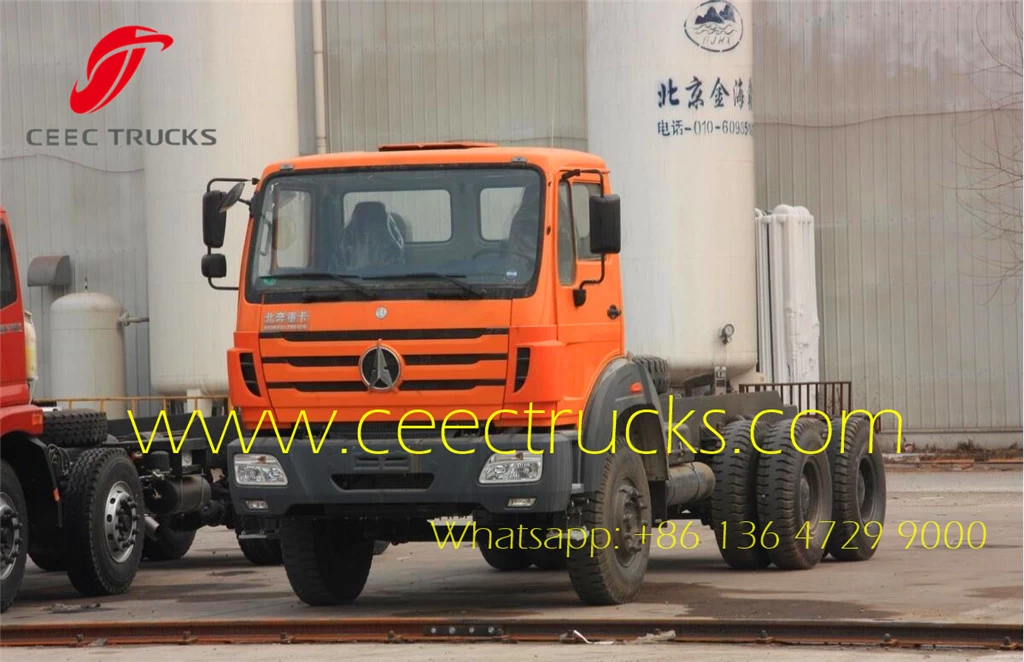

beiben dump trucks on sale

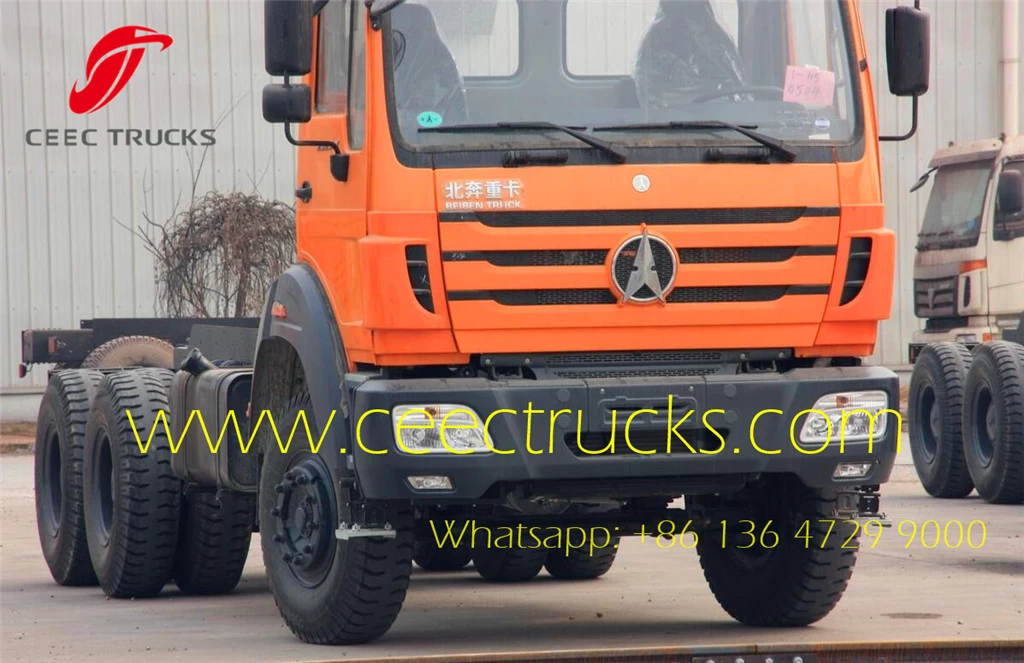

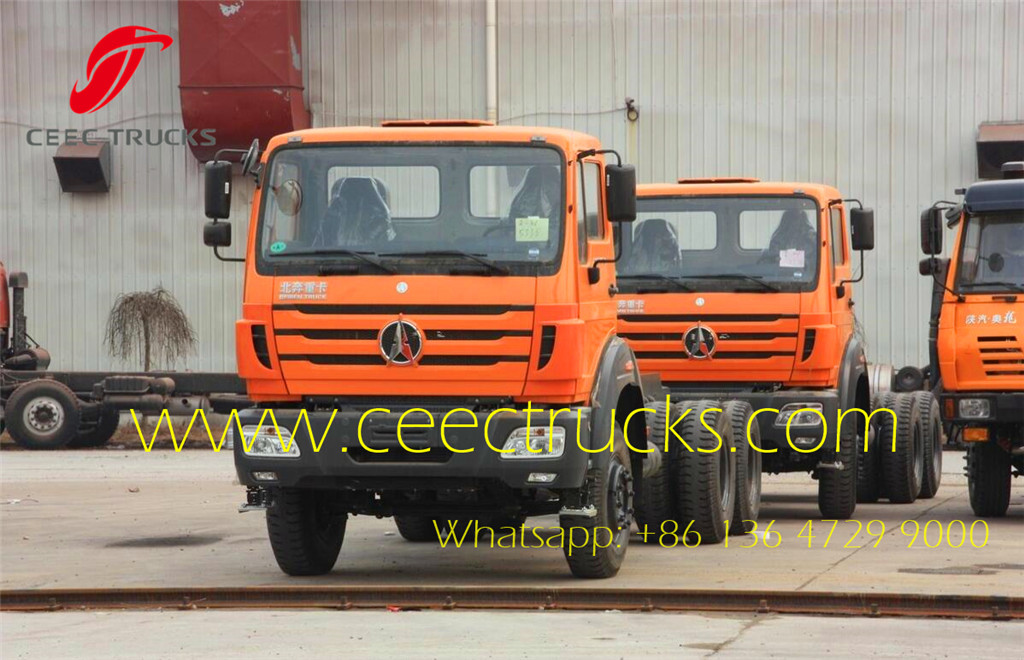

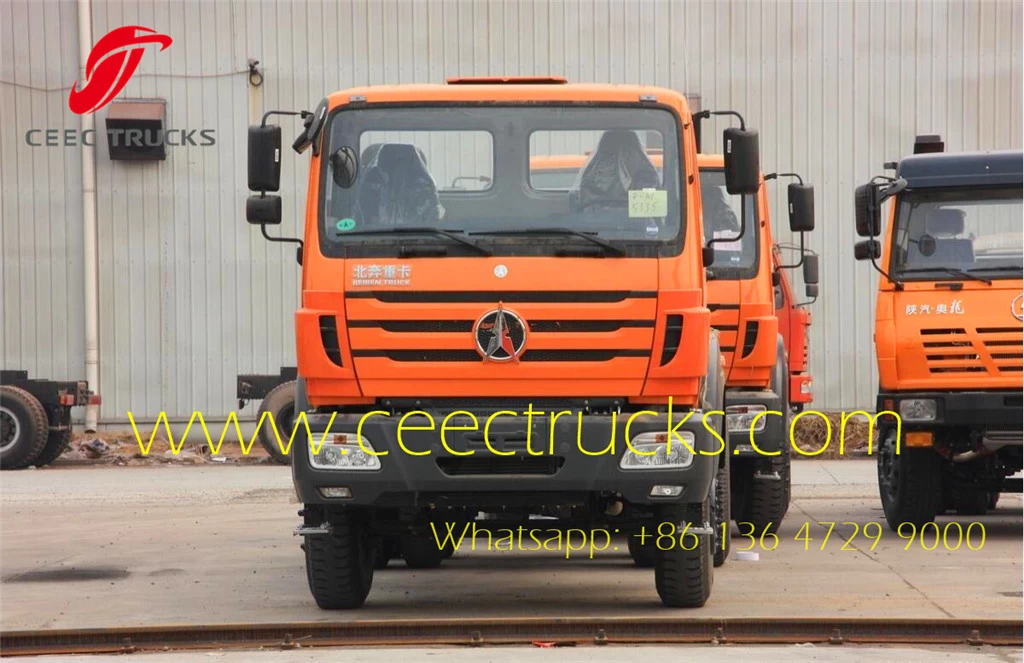

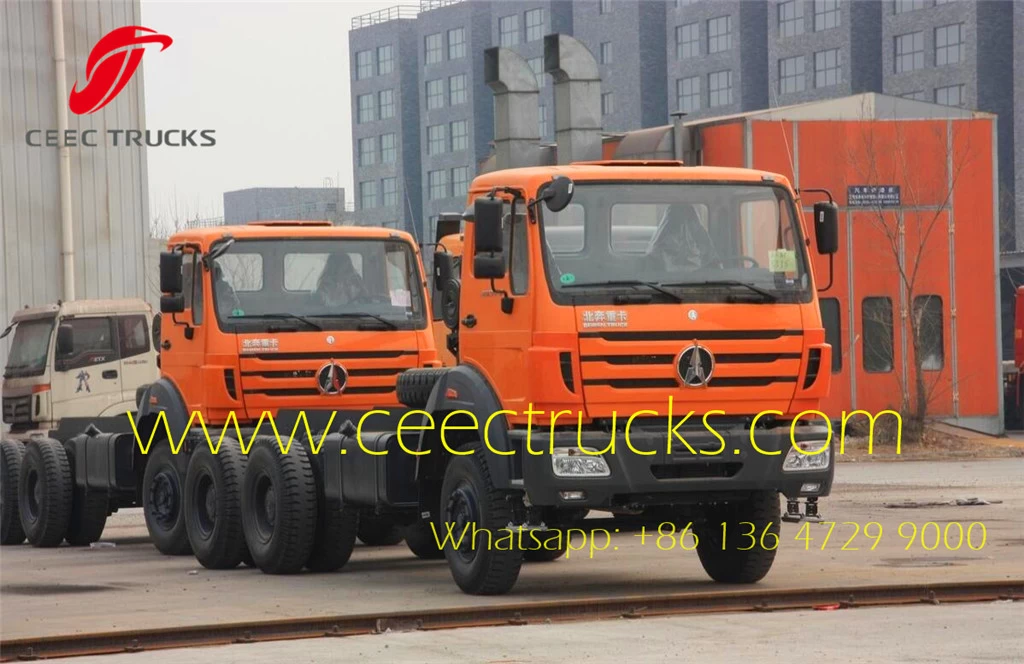

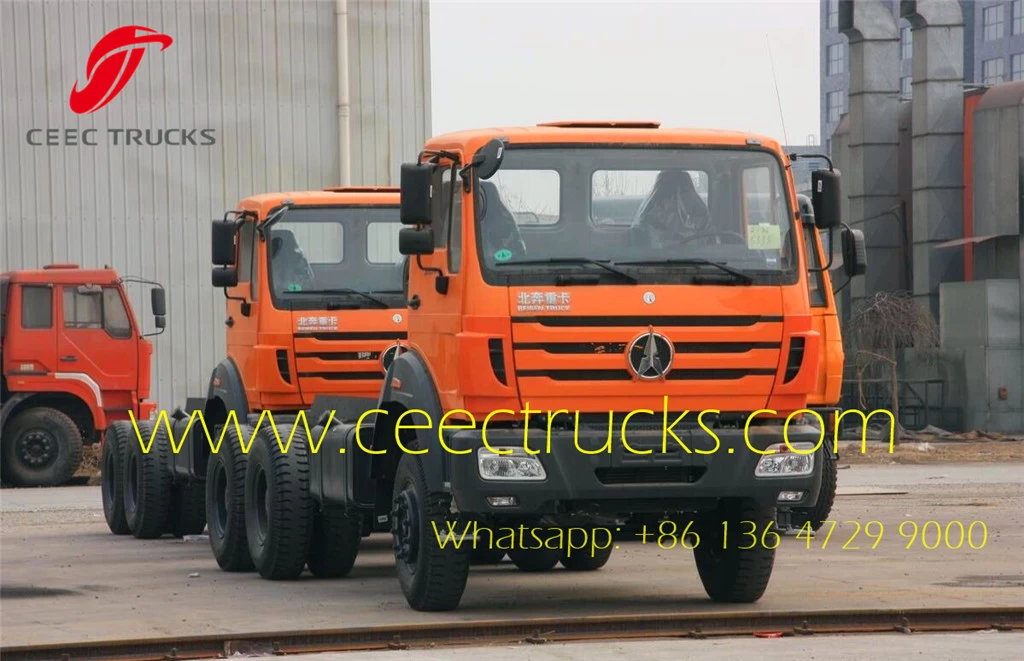

Other beiben trucks display
