1. What it is

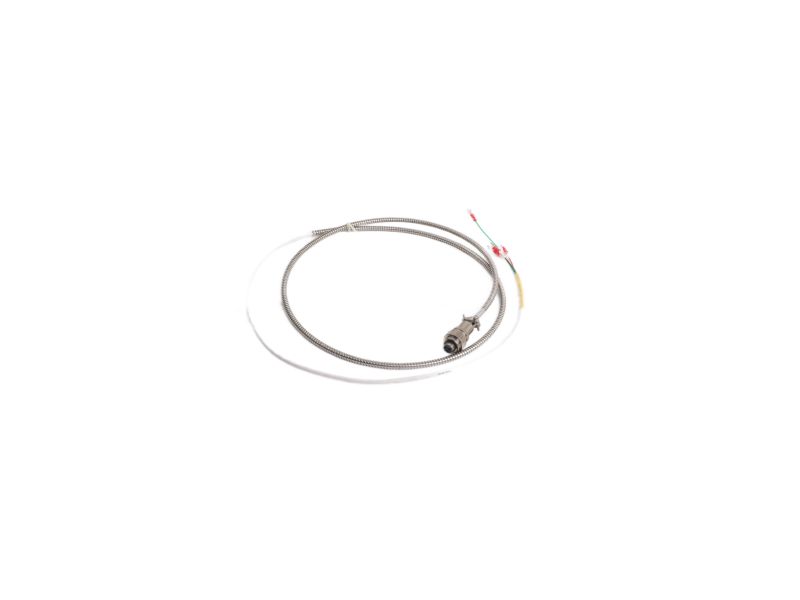

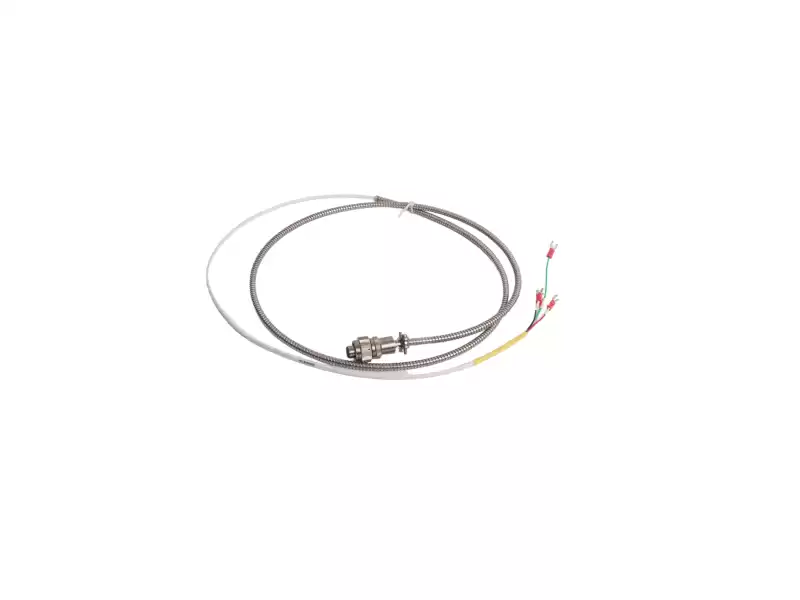

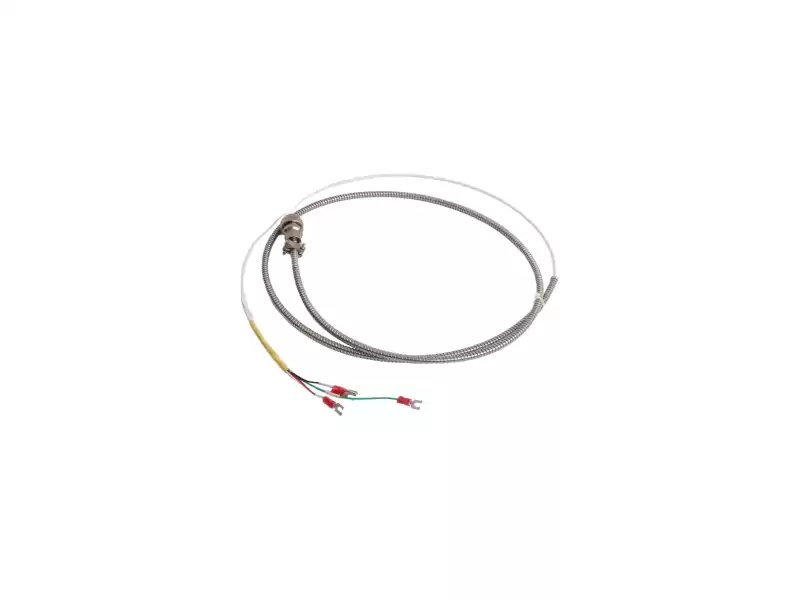

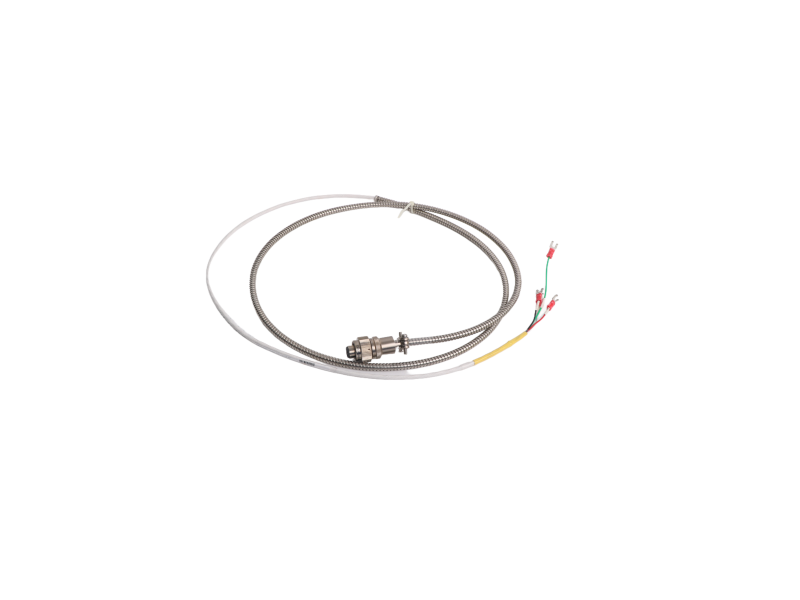

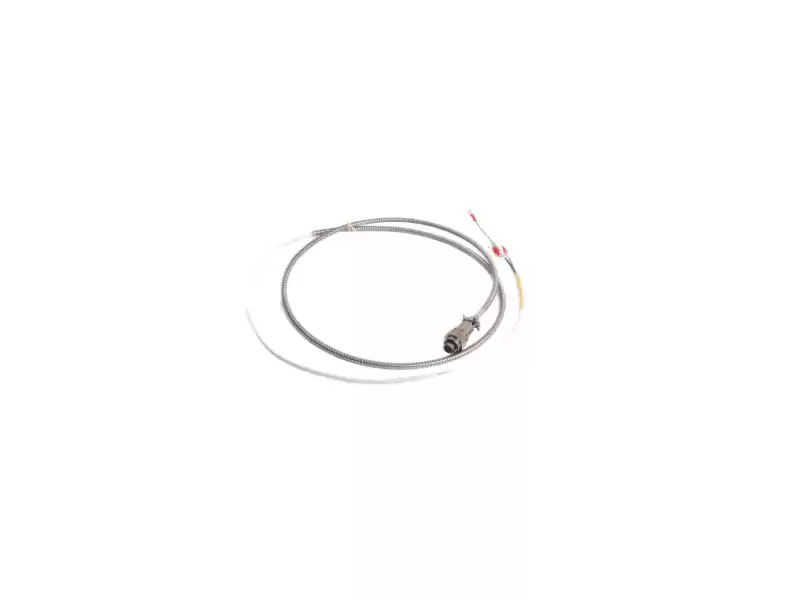

The 16710-07 is Bently Nevada’s “classic purple” armored interconnect cable—a 7-conductor, 100 Ω impedance, foil-shielded cordset that links the proximity probe to the 3500/3300 front-end. Oil-proof, abrasion-proof, and field-proven in refineries, FPSOs and power turbines for 25+ years.
2. Mechanical Snapshot
|
Attribute
|
Value
|
Notes
|
|
Conductors
|
7 × 22 AWG stranded tinned copper
|
3 pair + 1 drain
|
|
Armor
|
0.25″ OD 304 SS interlocked
|
-65 °C … +260 °C
|
|
Jacket
|
Purple Teflon FEP
|
passes IEEE-383 70 kW flame test
|
|
Min. bend radius
|
5 × OD (≈ 1.25 in)
|
armored but flexible
|
|
Std. lengths
|
3 ft – 70 ft (1 m – 21 m)
|
cut-to-length available
|
3. Electrical Performance
|
Parameter
|
16710-07
|
Typical 2-conduit run
|
|
Capacitance
|
24 pF/ft (79 pF/m) probe-to-driver
|
keeps -24 Vdc scale within 0.5 %
|
|
Impedance
|
100 ±10 Ω @ 1 MHz
|
matches 3300 XL driver
|
|
Shield effectiveness
|
> 60 dB @ 10 MHz
|
foil + 90 % braid
|
|
Working voltage
|
300 Vrms
|
meets UL 13 PLTC
|
4. Common Part-Number Matrix
|
Length (ft)
|
Factory PN
|
Stock status*
|
|
5
|
16710-07-A5-B
|
same day
|
|
10
|
16710-07-A10-B
|
same day
|
|
25
|
16710-07-A25-B
|
3 days
|
|
50
|
16710-07-A50-B
|
5 days
|
5. 60-Second Compatibility Check
✓ 3300 XL 5-/8-mm probes
✓ 3500/42M & 3500/44M monitors
✓ 3300 16-mm HTPS (with 16710-16 adapter)
✗ 7200-series 11-mm (needs 16925-XX)
6. One-Line Ordering
Sales Manager May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Quote template: “16710-07 + length + destination port” – reply in 15 min.
7. Bottom Line
If your vibration rack still runs on 3500 frames, the 16710-07 is the safest, longest-lasting copper path between probe and monitor. Keep a spare on the shelf—turbines don’t wait for cables.
