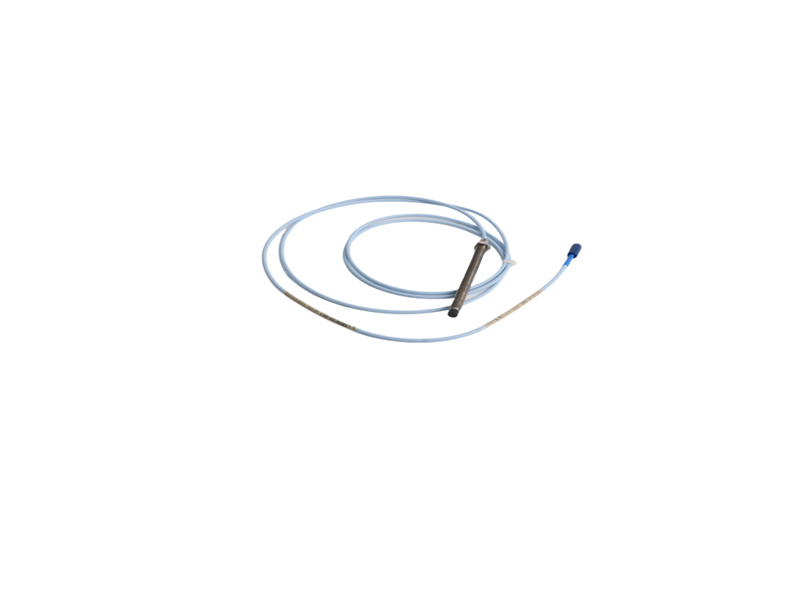

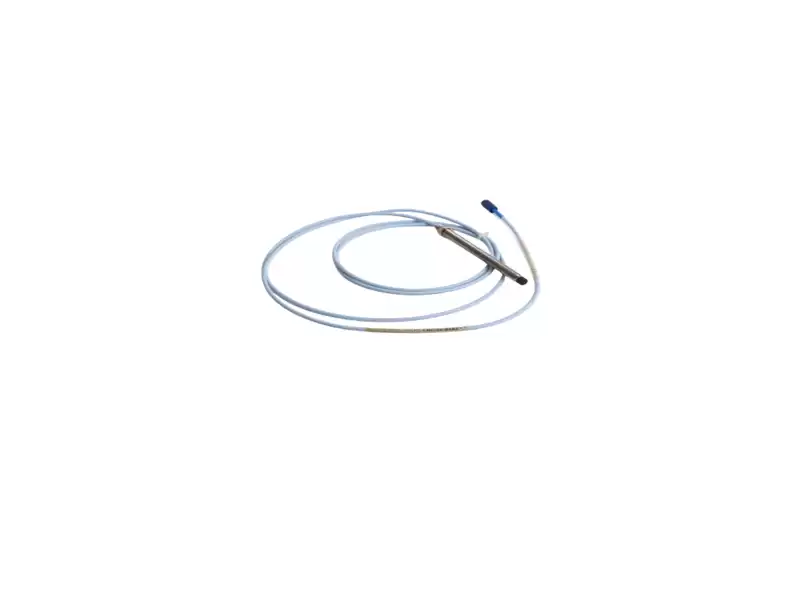

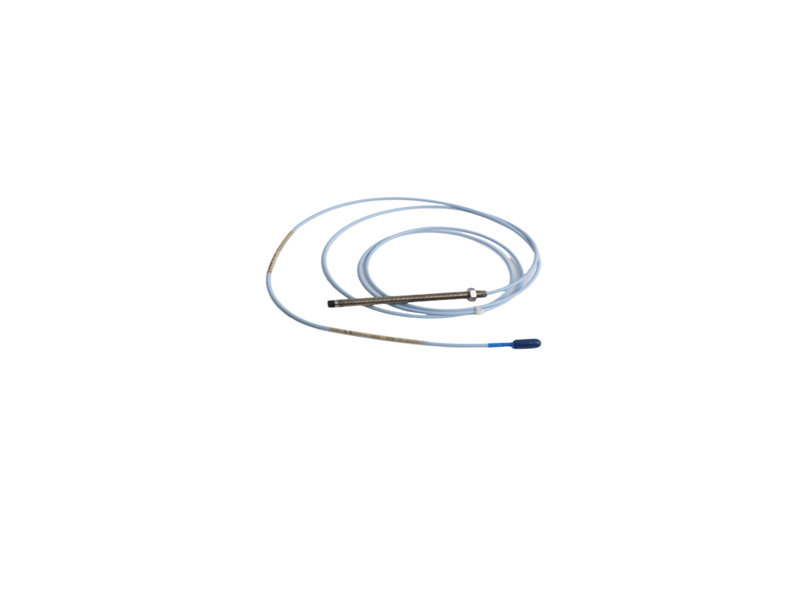

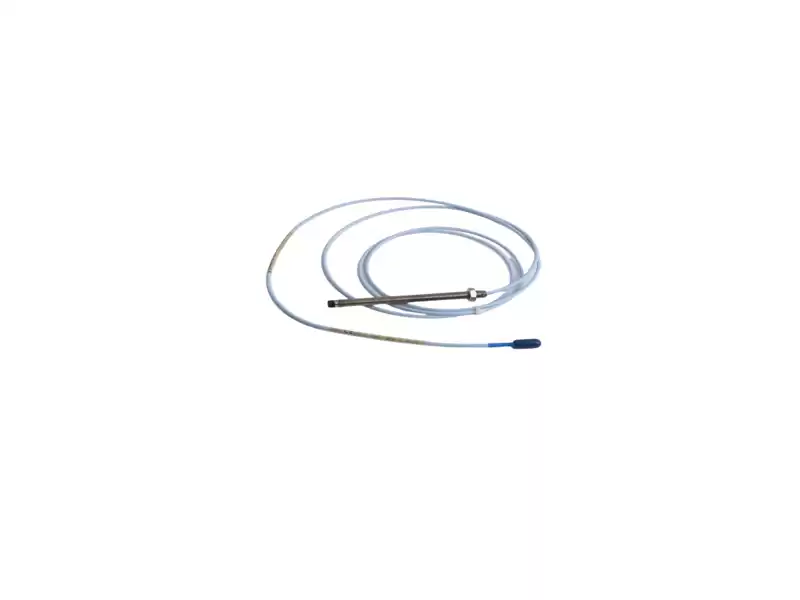

Bently Nevada 330101-00-48-20-12-05 3300 XL 8 mm Proximity Probe

Parameter

Value

Sensing Range

2 mm (80 mil) linear

Sensitivity

7.87 V/mm ±5 % (200 mV/mil)

Frequency Response

0 Hz – 10 kHz (–3 dB)

Gap Voltage Range

–1.5 … –11.5 V DC

Operating Temperature

–51 °C … +177 °C probe & cable

Storage Temperature

–60 °C … +177 °C

Thread

3/8-24 UNF-2A

Max Torque

22.6 N·m (200 in-lbf)

Cable Length

2 m integral armored

Armor Code

12 (stainless-steel braid)

Certifications

API 670 4th Ed., ATEX Zone 2, IECEx, CSA Class I Div 2

Function

Alternate Part Number

Comment

Probe

330104-00-16-10-02-05

Standard 8 mm tip, 1 m integral armored cable – drop-in for tight spaces

System Length

330180-91-05

9 m Proximitor system for long-run offshore applications

Monitor

3500/45 176449-01

Differential-expansion monitor—adds axial position capability

Power

330850-90-05

DIN-rail 24 Vdc supply, SIL-2 rated

Field Housing

330880-28-00-065-03-02

PROXPAC XL self-contained probe + proximitor—no extension cable required

Vibration Gateway

2300/20-CN

Dual-channel vibration monitor—cost-effective standalone unit
