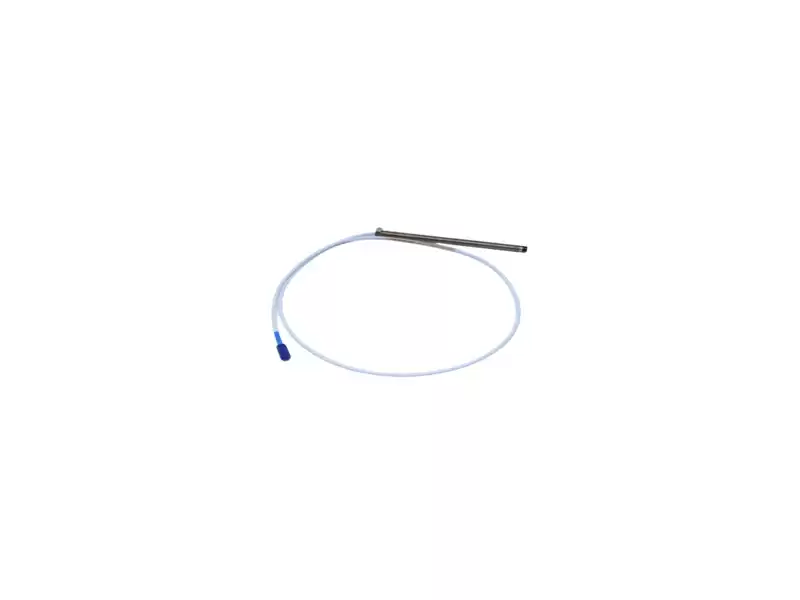

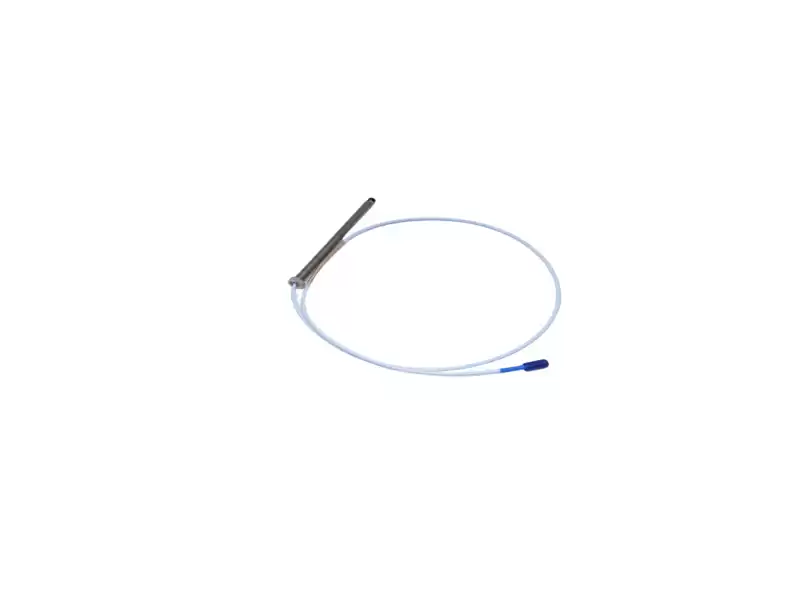

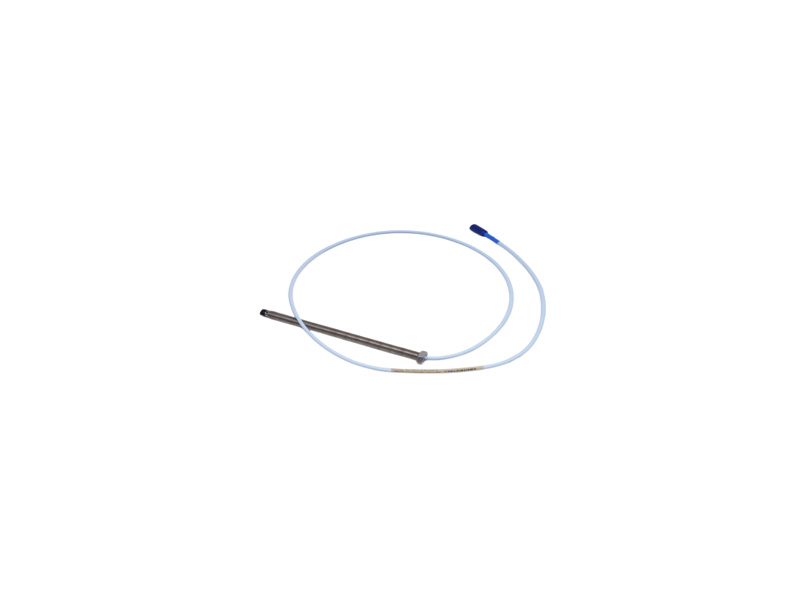

Bently Nevada 330101-00-59-15-12-05 3300 XL 8 mm Proximity Probe

Parameter

Value

Active tip diameter

8 mm

Penetration depth

150 mm (5.9 in) – longest standard nose

Cable length

1.5 m armored, integral

Armor code

12 – stainless-steel braid, FEP jacket

Thread size

3/8-24 UNF-2A

Operating temperature

–51 °C … +177 °C

Function

Bently Nevada Part Number

Note

Probe

330101-00-59-15-12-05

Ultra-long 5.9″ nose

Proximitor System

330180-91-05

9 m system for turbine-to-cabinet spans

Extension Cable

330130-090-01-05

9 m armored extension when extra length is required

Monitor

3500/45 176449-01

Differential expansion monitor—adds axial position

Power

330850-90-05

DIN-rail 24 Vdc supply, SIL-2 rated

Field Housing

330880-28-00-065-03-02

PROXPAC XL self-contained probe & proximitor—eliminates extension cable

Portable Interface

2300/20-CN

Dual-channel vibration monitor—stand-alone for commissioning
