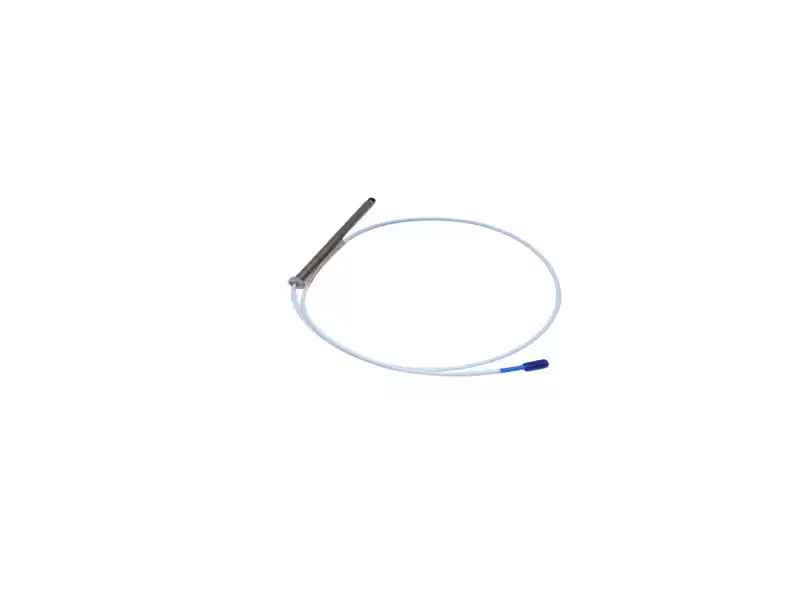

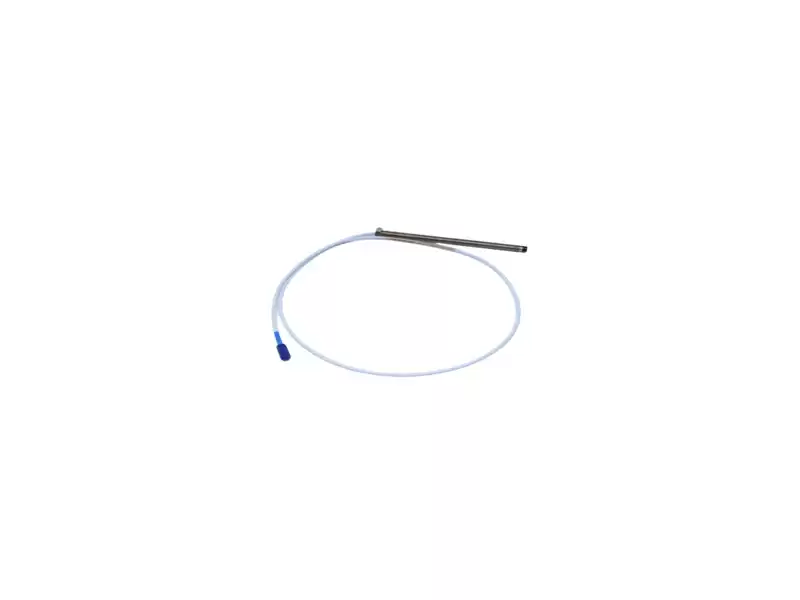

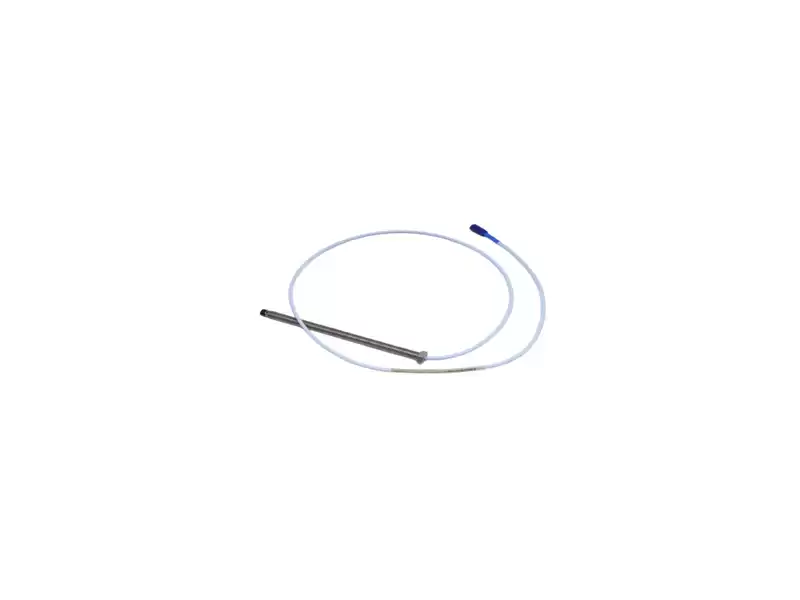

Bently Nevada 330101-00-61-15-12-05 3300 XL 8 mm Proximity Probe

Based on over 5000 reviews

Description:Bently Nevada 330101-00-61-15-12-05 3300 XL 8 mm probe delivers non-contact vibration measurement for critical rotating machinery.

Product condition: New

Packing condition:Factory Packing

100% insured shipping: A guarantee for your purchases

PLC Autocontroller DELIVER PARTS TO WORLD.

Facebook Twitter Pinterest LinkedIn 分享

PLC Autocontroller | 20 Years of Machinery-Protection Expertise
Data Sheet: Bently Nevada 330101-00-61-15-12-05
3300 XL 8 mm Super-Long Probe – 6.1 in Case, 1.5 m Armored Cable



Part-Number Decoder
330101-00-61-15-12-05
• 330101  3300 XL 8 mm probe family
• 00   Standard AISI 4140 tip
• 61   Case length 6.1 in (155 mm) – longest commercially available nose
• 15   1.5 m integral armored cable
• 12   Stainless-steel braid + FEP jacket
• 05   Global approvals (ATEX / IECEx / CSA)

Unique Technical Highlights

Parameter

Value

Penetration Length

155 mm (6.1 in) – reaches deep labyrinth seals

Cable Length

1.5 m armored – no extension needed for most turbines

Armor Type

12 – stainless-steel braid, IP66 rated

Temperature Range

–51 °C … +177 °C – steam-turbine exhaust ready

Thread

3/8-24 UNF-2A – API 670 thread form

Certifications

SIL-2 capable per IEC 61508



Proven Applications
• Steam-turbine LP exhaust bearing – wall thickness > 160 mm
• Centrifugal compressor inter-stage labyrinth – Frame 6B / 7EA
• Hydro-generator thrust-bearing – eliminates custom spacer

Ready-to-Ship Kit

Function

Part Number

Benefit

Power

330850-90-05

SIL-2 DIN-rail 24 Vdc supply

Monitor

3500/45 176449-01

Differential-expansion + axial position

Housing

330880-28-00-065-03-02

PROXPAC XL—probe & proximitor in one housing

Portable

2300/20-CN

Dual-channel vibration monitor for commissioning

Cable

330930-060-00-00

6 m extension for extra-long turbine-to-cabinet runs

All items factory-sealed, ready for same-day dispatch from PLC Autocontroller.
