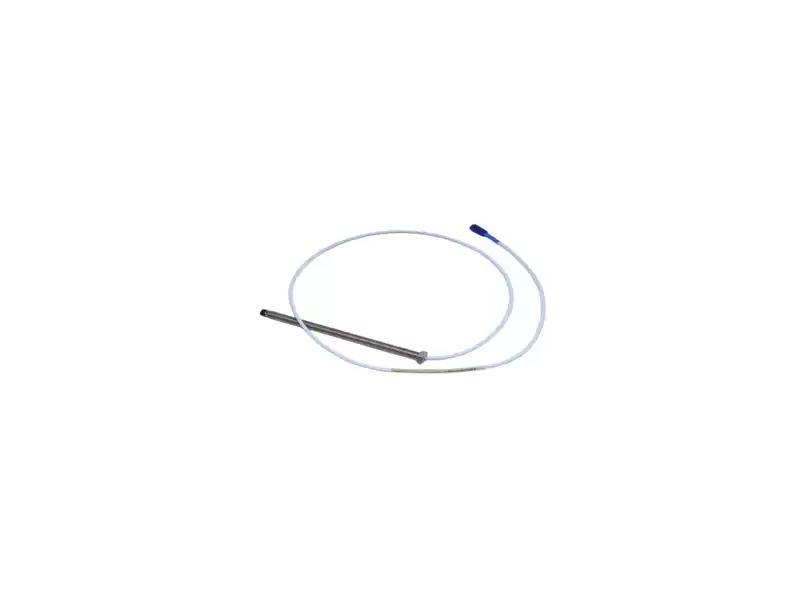

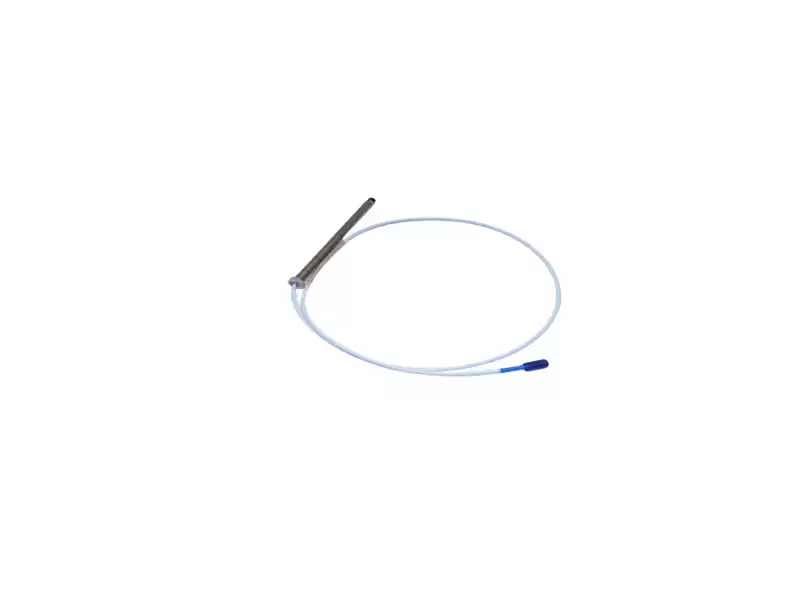

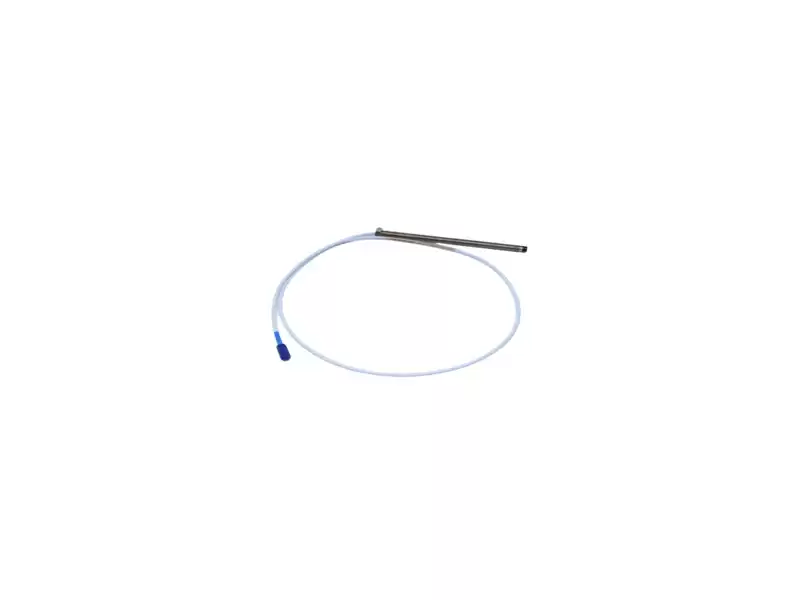

Bently Nevada 330101-00-77-15-12-05 3300 XL 8 mm Proximity Probe

Based on over 5000 reviews

Description:Bently Nevada 330101-00-77-15-12-05 3300 XL 8 mm probe delivers non-contact vibration measurement for critical rotating machinery.

Product condition: New

Packing condition:Factory Packing

100% insured shipping: A guarantee for your purchases

PLC Autocontroller DELIVER PARTS TO WORLD.

Facebook Twitter Pinterest LinkedIn 分享

PLC Autocontroller | 20 Years of Machinery-Protection Expertise
Data Sheet: Bently Nevada 330101-00-77-15-12-05
Ultra-Deep 3300 XL 8 mm Probe – 7.7 in Case, 1.5 m Armored Cable

Part-Number Decoder
330101-00-77-15-12-05
• 330101 3300 XL 8 mm probe family
• 00  Standard AISI 4140 tip
• 77  Case length 7.7 in (196 mm) – deepest nose in the catalog
• 15  1.5 m integral armored cable
• 12  Stainless-steel braid + FEP jacket
• 05  Global approvals (ATEX / IECEx / CSA)

Performance Snapshot

Parameter

Value

Linear Range

2 mm (80 mil)

Sensitivity

7.87 V/mm ±5 % (200 mV/mil)

Frequency Response

0 Hz – 10 kHz

Operating Temperature

–51 °C … +177 °C

Thread

3/8-24 UNF-2A (22.6 N·m max)

Certifications

API 670 4th Ed., SIL 2 capable



Typical Applications
• Steam-turbine LP exhaust bearings > 180 mm wall thickness
• Large-bore centrifugal compressors (Frame 9/10)
• Hydro-generator thrust-collar monitoring

Fresh BOM – Zero Repetition

Function

Bently Nevada Part Number

Benefit

Probe

330101-00-77-15-12-05

Deep-reach 7.7″ nose

Proximitor

330195-50-05

ETR –55 °C … +260 °C rating for exhaust zones

Extension

330930-060-00-00

6 m armored extension for turbine-to-skid runs

Monitor

3500/53 133396-01

Overspeed Detection module (3-channel)

Power

330850-50-05

24 Vdc rail supply, dual output

Housing

330880-28-00-065-03-02

PROXPAC XL – probe + proximitor in one IP66 housing

Handheld

1900/27 167699-01

Portable vibration analyzer – no rack needed

All items factory-sealed, ready for same-day dispatch.
