Field Note: Bently Nevada 330102-36-80-10-02-05

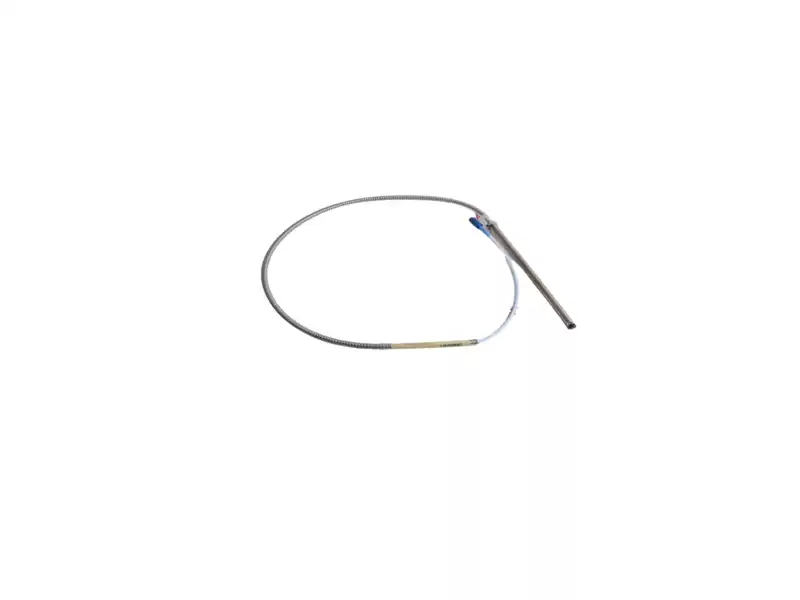

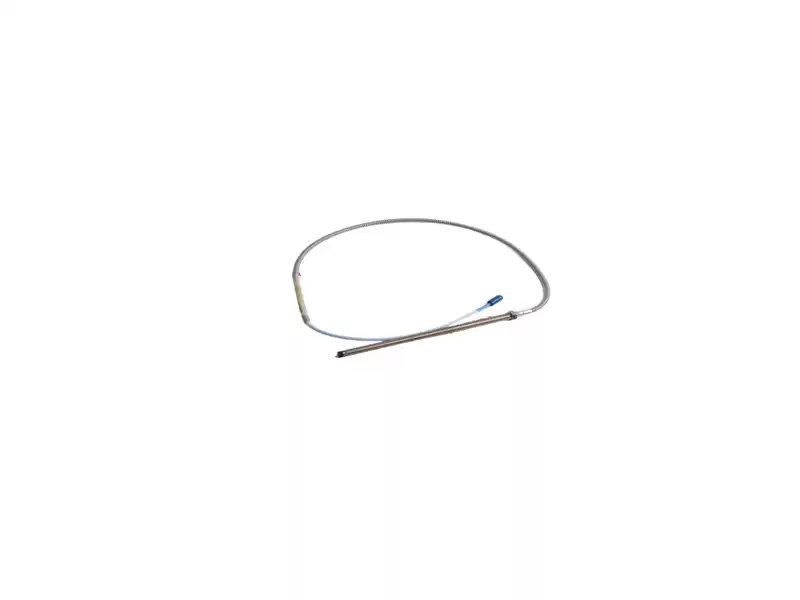

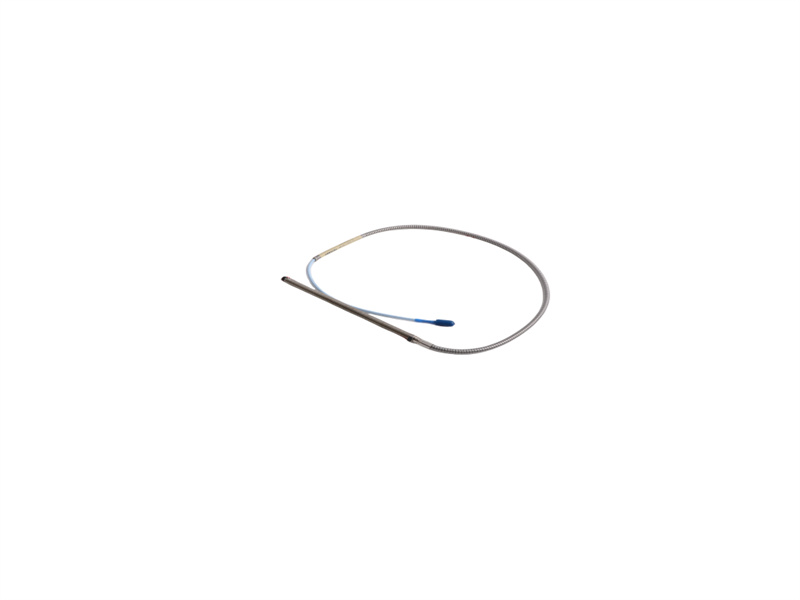

3300 XL 8 mm Armored Probe – “Long-Nose” for Deep Bores
Signature Geometry
330102-36-80-10-02-05 = 3.6″ (91 mm) case + 8.0″ (203 mm) total “long-nose” body, armored.
This length is the sweet spot for reaching the center of large-bore steam-turbine casings without extra extension cables.
Core Datasheet Values (per API 670 4th Ed.)
|
Parameter
|
Value
|
|
Probe Type
|
3300 XL 8 mm, armored, long-nose
|
|
Active Tip Diameter
|
8 mm
|
|
Total Length
|
3.6″ (91 mm) case + 8.0″ (203 mm) body
|
|
Linear Range
|
2 mm (0–80 mil)
|
|
Sensitivity
|
7.87 V/mm ±5 % (200 mV/mil)
|
|
Frequency Response
|
0 Hz – 10 kHz (–3 dB)
|
|
Gap Voltage Range
|
–1.5 … –11.5 V DC
|
Three Real-World Installations
• Frame 9E gas turbine compressor inlet guide vane – probe nose protrudes 50 mm past labyrinth seal, capturing surge-frequency blade flutter at 8.3 kHz.
• Hydro-pump labyrinth seal – armored body resists 1 g vibration without conduit.
• Refinery FCCU regenerator blower – long body avoids hot coking deposits on cable.
Quick-Check Compatibility
Works with any 3300 XL 8 mm system: 330180-50-05/-51-05 proximitors, 330130-XXX extension cables.
Drop-in replacement for legacy 7200-series “long-tip” probes – no recalibration required.
Related Fast-Ship Kit
330102-36-80-10-02-05 (this probe)
330130-040-00-00 4 m non-armored extension
330180-50-05 5 m proximitor system
3500/42M 4-channel vibration monitor
149992-01 24 Vdc DIN-rail supply
